Blood physiology

Lec .3 Monday 23 October 2017
Prof.Dr.Baybeen Alselevany

Hemoglobin

Objectives
Hemoglobin
Structure
Variation in structure of HB
Reactions
Normal level
Synthesis
O2 capacity of blood
Iron Metabolism
2.functions of RBC
3.Life span and destruction of RBC
4. Jaundice (Icterus):

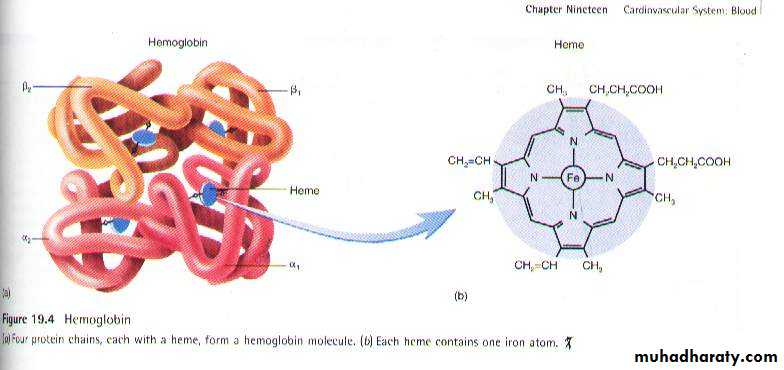

Structure of Hb

The red, oxygen-carrying pigment in the red blood cells is hemoglobin, a protein with a molecular weight of 64,450. Hemoglobin is a globular molecule made up of 4 subunits. Each subunit contains a heme conjugated to a polypeptide (globin) i.e. Hb consists of 4 protein chains and 4 heme groups. Each protein, called globin, is bound to one heme.
Structure of Heme: Heme is a chemical structure made up of a porphyrin ring with an iron atom inserted in the center. Each heme is a red-pigment molecule containing one iron atom in ferrous state (Fe +2). The porphyrin ring is made up of 4 pyrrole units Synthesis of heme takes place in the mitochondria.


Structure of globin:The globin protein of the Hb is a protein (simple polypeptide chains made up of amino acids). There are two Paris of polypeptides in each Hb molecule, two of the subunits containing one type of polypeptide and two containing another. Synthesis of globin takes place in the ribosomes.

Variation in the structure of Hb

More than 300 different variation of the Hb molecule have been described.
Normal variations.
Abnormal variations.
Normal variations: There are several slight variations in different subunit Hb chains, depending on the amino acid composition of the polypeptide protein. The different types of chains are designated alpha(a-chains) chains beta (β) chains, gamma( ) chains, and delta( )chains.4 types of normal hemoglobin;

Embryonic Hb: this Hb occur early in gestation:

Gower 1.
Gower 2.
Portland.
Embryonic Hb is replaced by:
Fetal Hb (HbF): which consist of two alpha(α )– chains and two gamma( ) chains.
Before birth, fetal Hb is gradually replaced by
Adult Hb (HbA): there are two types:
1.HbA1: made up of two: alpha(α )– chain – two and beta(β) – chains.
HbA1 is the important which accounts for about 97.5% of the
total HbA.
2.HbA2: which consists of two alpha(α) – chains & two delta –
chains.About 2.5% of adult Hb is HbA2.

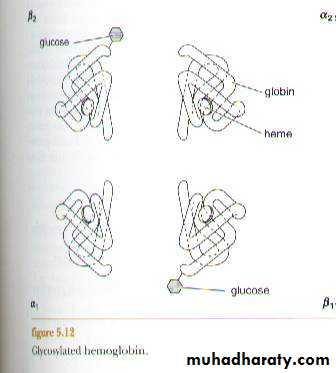

4. Glycosylated Hb (HbA1c): its normal consists of a minor variation
of HbA1. It differs from normal HbA1 in that if has a molecule of
glucose attached to the N-terminal valine of the β - chains. This test is
performed on patients suspected of having diabetes mellitus. The
normal level of HbA1c in adults is 5% of Hb (HbA1).In diabetics this
level is elevated.

Reactions of Hb

Reaction of Hb with O2: the most important feature of the Hb molecule is its ability to combine loosely and reversibly with O2. Hb binds O2 to form oxyhemoglobin, O2 attaching to Fe2+ (ferrous iron) in the heme. There are 4 iron atoms in each Hb molecule, each of these can bind with one molecule of O2, making a total of 4 molecules of O2 (or 8 O2 atoms) that can be transported by each molecule. This oxyhemoglobin form of Hb is called oxyhemoglobin.
Hb containing no 02 is called deoxyhemoglobin .

Hb4O6 + O2 Hb4O8

The affinity of Hb for O2 is affected by PH, temperature & the concentration of 2, 3 diphosphoglycerate (2,3 – DPG). Embryonic and HbF are more effective at binding O2 than in adult Hb (HbA).
Abnormal Hb is less effective at attracting O2 than is normal Hb and can results in anemia.

Reaction of Hb with CO2: CO2 is combine amino group of the globin molecule & not with iron atom and form carbamino hemoglobin (carbaminoHb).


CO reachs with Hb to form carboxyhemoglobin (carbon monoxyhemoglobin). The affinity of Hb for O2 is much lower than its affinity for CO, which consequently displaces O2 on Hb, reducing the O2 – carrying capacity of blood e.g. incomplete combustion of gasoline produces carbon monoxide (CO) which combine with iron and death occur. Cigarette smoke also produces CO and the blood of heavy smokers can contain 5% - 15% carboxy Hb. Carbon monoxide is a poisonous substance.
When the blood is exposed to various drug and other oxidizing agents in vitro or in vivo, the ferrous iron (Fe2+) in the Hb molecule is converted to ferric iron (Fe3+) forming methemoglobin (metHb). MetHb is dark – colored and when it is present in large quantities in the circulation, it causes a dusky discoloration of the skin resembling cyanosis.

Level of Hb in the blood

The average normal Hb content of blood is 16g/dL in men and 14g/dL in women.

O2 carrying power of the blood i.e. O2 capacity of blood:

O2 capacity of blood defined as the maximum amount of O2 that can combine with Hb of the blood .One gram of Hb can bind with 1.34 mL of O2. Whole blood in health adults contains 15g of Hb per dl of blood thus.
O2 capacity of blood = 1.34 mL O2 x gHb/vol. of blood.
= 1.34 mL O2/gHb x 15gHb/dL blood.
=20.1 mL O2 combine with Hb/dl.blood

Synthesis of Hb

Synthesis of Hb begins in the proerythroblasts and continue slightly even into the reticulocyte stage because when the reticulocytes leaves the bone marrow and pass into the blood stream,.
The heme portion of Hb molecule is synthesized in mitochondria and globin in ribosomes.

Iron Metabolism:

Iron is necessary for the normal function of Hb because each O2 molecule that is transported in associated with an iron atom. Iron is also important for formation of myoglobin, cytochromes. If blood is lost from the body and the iron deficiency is not corrected, iron deficiency anemia results.

Iron metabolism include: dietary allowance; sources; absorption; transport; storage; daily loss or excretion.
1. Dietary allowances: the total iron content of the adult is approximately 55 mg/kg body weight or about 4g in 70 kg man. About 65% of which is in the form of Hb, 4% is in the form of myoglobin, 1% is in the form of the various heme compounds, 15 – 30% is stored in the liver cells in the form of ferritin, and 0.1% is combined blood plasma. Recommended daily intake of iron is 10-20 mg for females, because female lose additional iron as a result of menstrual bleeding and therefore require more dietary iron than do males. Average adult male needs 1-1.5 mg of dietary iron each day.


2. Sources: The main sources are vegetables, cereals, fruits, molasses, iron – fortified food and eggs. Organ meats, red meats and myoglobin from animal muscle tissues, are essential sources of dietary heme iron.
Milk and milk products are poor sources. In the dietary food iron is in the form of ferric (Fe3+) form.
3. Absorption: The primary absorption site for iron is in the duodenum
and jejunum of the small intestine. Iron can cross the intestinal cell
membrane only in the ferrous (Fe2+) form.
factors that enhance iron absorption include:1.Vitamin C.
2. Ascorbic acid. 3.HCl in gastric juice.( Note: Gastric secretion dissolve the iron and permit it to form soluble complexes with ascorbic acid and other substances that aid its reduction to the Fe2+ (ferrous) form. The importance of this function in humans is indicated by the fact that iron deficiency anemia is troublesome and frequent complication of partial gastroectomy). 4. Fish. 5. red meat.
factors that inhibit iron absorption include: a.Calcium (an individual consuming a high calcium diet could develop iron deficiency anemia).
Milk. c. Drugs such as tetracycline and antacid. d. Tannins in tea and polyphenol in coffee. E.geophagia. f.. Phytic acid in cereals.g.Pancreatic secretion.

Regulation of total body iron by controlling rate of absorption: when the body has become saturated with iron the rate of absorption of iron from the intestinal tract becomes greatly decreased. On the other hand, when the iron stores have been depleted of iron, the rate of iron can becomes accelerated to five times as great as when iron stores are saturated e.g. iron deficiency anemia.

4. Transport: When the iron is absorbed from the small intestine it immediately combines in the blood plasma with β– globulin transferrin. The major role of transferrin is to transport iron from reticulendothlelial system (R-E-S) & the small intestine to the bone marrow for fetal need; to all cells for iron – containing enzymes.
5. Storage: Iron in excess of need is stored intracellularly as ferritin & hemosiderin. Ferritin can store about 4500 atoms of iron per molecule. Small amount of iron are stored in the form of hemosiderin.

Daily loss of iron i.e. excretion of iron: Under normal conditions the amounts excreted in the urine is small. Excretion of iron in urine ranges from o.2 – 0.3 mg / day. About 5 – 25 mg or more is excreted in feces / day. Iron also through the skin. In the women the mean monthly menstrual loss of iron is about 16mg / month and the average is 0.5 mg/day, it can be higher in those with menorrhagia who may become iron deficient.

Function of red blood cells

The major function of erythrocytes (RBC’s) is to carry blood gases. The primary functions of erythrocyte are to transport O2 from the lungs to the various tissues of the body and also to transport carbon dioxide (CO2) from the tissue to the lungs. These functions are accomplished mainly by the protein hemoglobin which is ideally suited to carry O2 and CO2 i.e. hemoglobin makes RBC’s such efficient carrier of blood gases.
1. Approximately 98.5% of the O2 transported in the blood from the lungs to the tissue is transported in combination with Hb in the erythrocytes.
2. About 23% of CO2 is transported in combination with blood protein (mostly Hb).
3. The erythrocytes have other functions besides transport of Hb. For instance, they contain a large quantity of carbonic anhydrase which catalyzes the reaction between carbon dioxide (CO2) and water, increasing the rate of this reversible reaction several thousand fold. The rapidity of this reaction makes it possible for the water in blood to react with large quantities of CO2 and there by transport it from the tissue to the lungs in the form of HCO3- carbonic anhydrase (C.A) is located primarily within erythrocytes.
CA
CO2 + H2O H2CO3 H+ + HCO3
Carbonic Acid
4.Hb in the erythrocytes is an excellent acid-base buffer so that the RBC’s are responsible for most of the buffering power of whole blood.
Hb- + H+ HHb

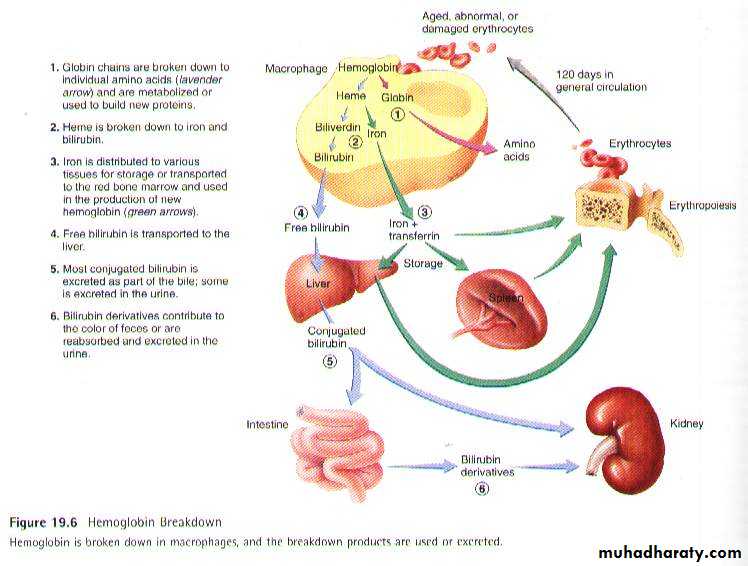

Life span and destruction of RBC :Erythrocytes normal stay in the circulation for about 120 days in males and 110 days in females. As their proteins, enzymes, cell membrane components, and other structures degenerate, the erythrocytes become old and abnormal in form and function. Erythrocytes can also be damaged in various ways while passing through the circulation. Old damaged erythrocytes are removed from the blood by macrophages located in the spleen, liver and other lymphatic tissue. Within the macrophages, lysosomal enzymes break open erythrocytes and being to digest Hb. Globin is broken down into its components amino acids, most of which are reused in the production of other proteins. In humans most of the biliverdin is converted to bilirubin and excreted in the bile. The iron from the heme is reused for the hemoglobin synthesis.

Jaundice (Icterus):

Jaundice means a yellowish staining of the skin & sclera by bile pigments, associated with a buildup of bilirubin in the circulation and interstitial spaces. The normal total plasma bilirubin concentration is 0.5 mg/dL and the jaundice is usually detectable when the total plasma bilirubin is greater than 2mg/dL (hyperbilirubinamia). Types
1. Hemolytic jaundice: for example sickle cell anemia; hereditary spherocytosis; erythroblastosis fetalis.
2.Obstructive jaundice: e.g. hepatitis (damage to hepatic cells).
Treatment of jaundice:
Phototherapy (exposure to light) is of value in treating infants with jaundice due to hemolysis. Exposure of the skin to white light converts bilirubin to lumirubin, which has a shorter half-life than bilirubin.
