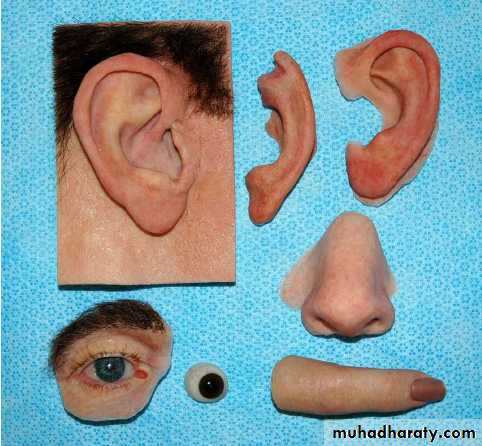

Eye prosthesis

Restoration of eye defects

Types of eye prosthesis

Ocular conformer
Ocular shell

Ocular prosthesis

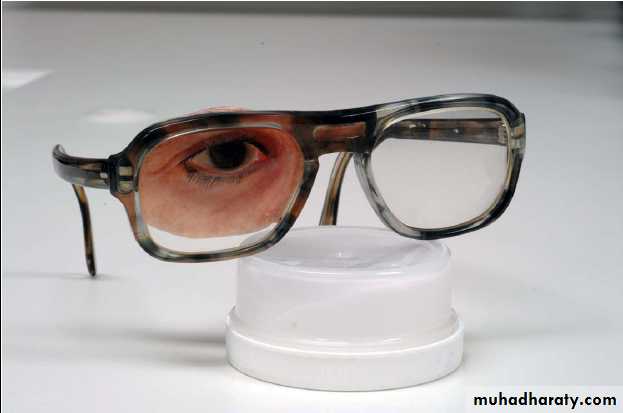

Orbital prosthesis

Ocular conformer

Ocular shell

Ocular prosthesis

Orbital prosthesis

Electronic visual prosthesis

Custom made

Ready made
Ocular prosthesis

Fabrication of custom ocular prosthesis

Retains the shape of the defect socket.
Prevents collapse or loss of shape of the lids.
Provides proper muscular action of the lids.
Prevents accumulation of fluid in the cavity.
Maintains palpebral opening similar to the natural eye.
Mimics the coloration and proportions of the natural eye.
Has a gaze similar to the natural eye.

External tray technique

Stock ocular tray technique
Ocular impression techniques

black iris disk technique

Paper iris Disk Technique
Custom Ocular Prosthesis Fabrication

Digital imaging

Custom Ocular Prosthesis Fabrication

• The paper iris disk technique utilizes readily available materials and techniques familiar to the dental office and allows almost limitless adjustment of coloration. The black iris disk technique requires significantly greater mastery of color matching and painting skills but produces a three dimensional value to the resulting iris-lens assembly because of a laminating effect in the painting
difference

A feeling of fullness is natural upon placement. Adjustment is contraindicated for the first few days unless obvious irritations are detected.
The patient should be instructed on how to remove and place the prosthesis.
The patient should return in 1 day, 3 days, and 1 week for follow-up.
There is no need for the patient to remove the prosthesis except for cleaning. Once a week the prosthesis should be removed by the patient and cleaned with mild soap and rinsed well.


Placement of the Custom Ocular Prosthesis

The prosthesis should be inspected for scratches or deposits.

The patient should return to have the prosthesis re-polished.
The patient should return at about 6-month intervals to have the defect and prosthesis evaluated and adjusted as necessary.

Placement of the Custom Ocular Prosthesis

An ocular implant is a body implanted inside the bed on anophthalmic socket during surgically removing the globe in order to prevent :

atrophy of the orbital tissues
dropping of upper lid
slower growth rate of the orbit in children.
ocular implants supporting ocular prosthesis

During the recent years, there have been attempts to improve the cosmetic appearance by implanting a foreign material into eye socket, which render the ocular prosthesis
to be less shrunken
appear natural
have better mobility as implant transmits movement of ophthalmic socket to ocular prosthesis.

The material should not be irritant, allergic or carcinogenic.

It has a mean of attachment with extra-occular muscle..
Able to move the prosthesis.
Sufficient volume to replace the lost tissue without being shrunken.
Requirements for an ideal ocular implant

Fabrication of esthetic orbital prostheses is a most difficult challenge.

Orbital prosthesis fabrication

impression and working-cast fabrication
Sculpture and formation of the pattern
Mold fabrication.
Processing of the prosthesis material.

Digital imaging in formation of the prosthesis pattern

Computer imaging may be used to assist establishment of the correct ocular positioning
Using a digital camera, an image of the patient is made. Using image-editing software the normal eye can be reversed and superimposed over the orbital defect
A similar image is made of he working cast at the same object-lens distance with the ocular segment positioned in the wax up
Simple cut and paste operations allow the image of the actual eye to be superimposed over the orbital prosthesis to verify the ocular and eye lid position


Improved retention and stability of the prosthesis,
Elimination of occasional skin reaction to adhesives,
Ease and enhanced accuracy of prosthesis placement,
Improved skin hygiene and patient comfort
Advantages of osseointegrated implants

decreased daily maintenance associated with removal and reapplication of skin adhesives,

increased life span of the facial restoration (when skin adhesives are used for retention, they must be removed and reapplied each day, leading to loss of colorants at the margin of the prosthesis and rendering the prosthesis un acceptable,
Enhanced esthetics of the lines of junction between the prosthesis and skin. When an implant-borne prosthesis is fabricated, its margins can be made thinner, and positive pressure can be developed by the margins of the prosthesis with the movable peripheral tissues.
Advantages of osseointegrated implants
