Post and core

Prepared by :Mustafa moniem
Bahoz Himdad. Ari Aso
Supervised by :Dr. hisham


Post and core




Post and core




Post and core




Post and core

Post Diameter

The diameter of the post is dictated by the root canal anatomy.
A minimal dentin thickness of 1 mm around the post should be provided.
The width of the post should not be greater than one third of the width of the root at any point along the dowel.
Smaller posts not only conserve tooth structure, but also provide increased resistance to fracture compared with larger posts.

(A) too narrow (B) optimum size post (C) too large

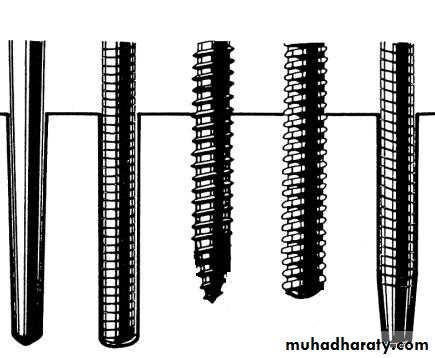

Post Design
Posts can be serrated, smooth, roughened or threaded.
Parallel, serrated posts are cemented into the canal passively. They are retentive and produce less stress in the root dentin than threaded systems


Post and core




Post and core

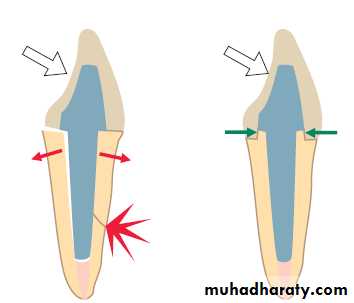

The Ferrule Effect

The ferrule is the circumferential ring of sound tooth structure that is enveloped by the cervical portion of the crown restoration.
A minimum sound dentine height of 1.5-2 mm is required between the core and crown margins.
This should provide adequate resistance to the lateral forces imparted on the restored tooth.
Ideally, this ferrule should be continuous around the entire circumference of the tooth.

The Ferrule Effect

The ferrule provides bracing or casing action to protect the integrity of the root.


Post and core

Requirements of An Ideal Post

• Minimum preparation.
• Resistance to fatigue.
• Elastic modulus similar to dentin.
• Non corrosive.
• Retentive (post & Head).
• Easy to adjust and fit.
• Radiopaque.
• Adequate material
• Easy Removal

Types of Posts

Prefabricated Post

Cast Post

(wax pattern needed)
Post and core


Post and core

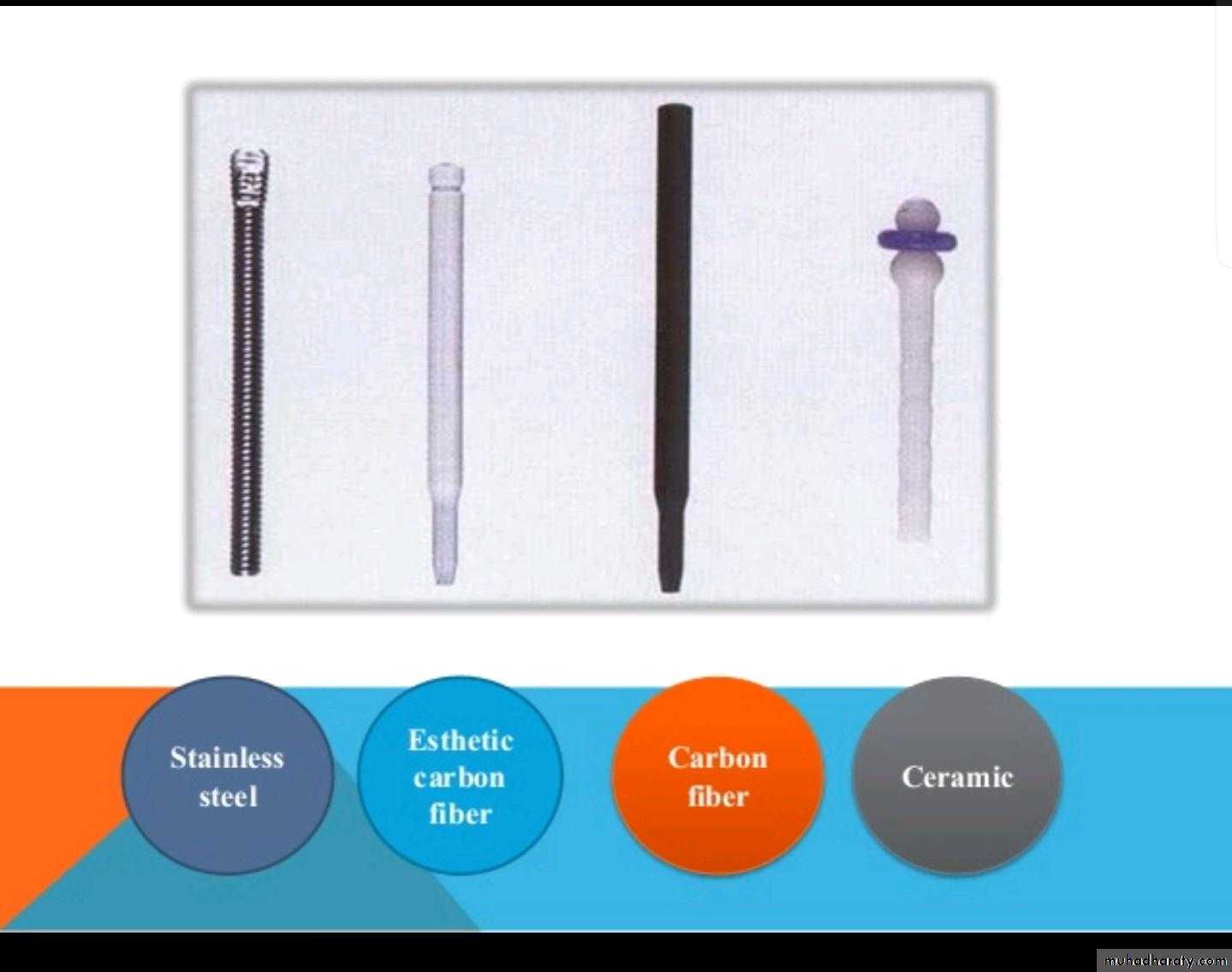

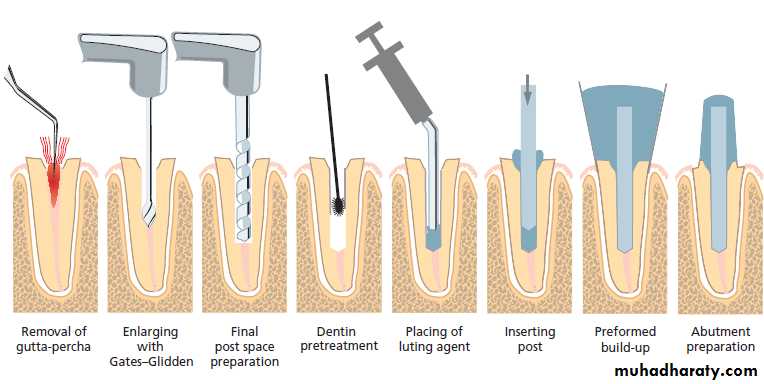

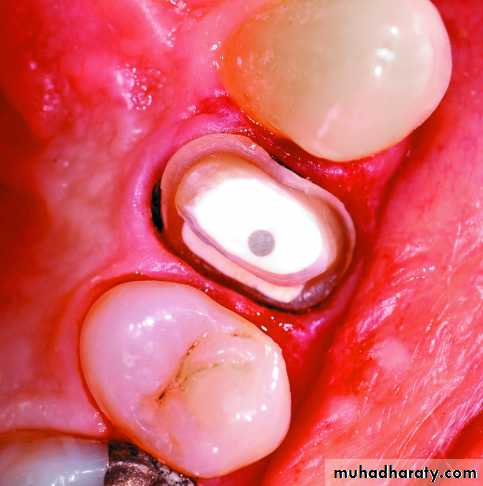

Prefabricated Post

Post and core

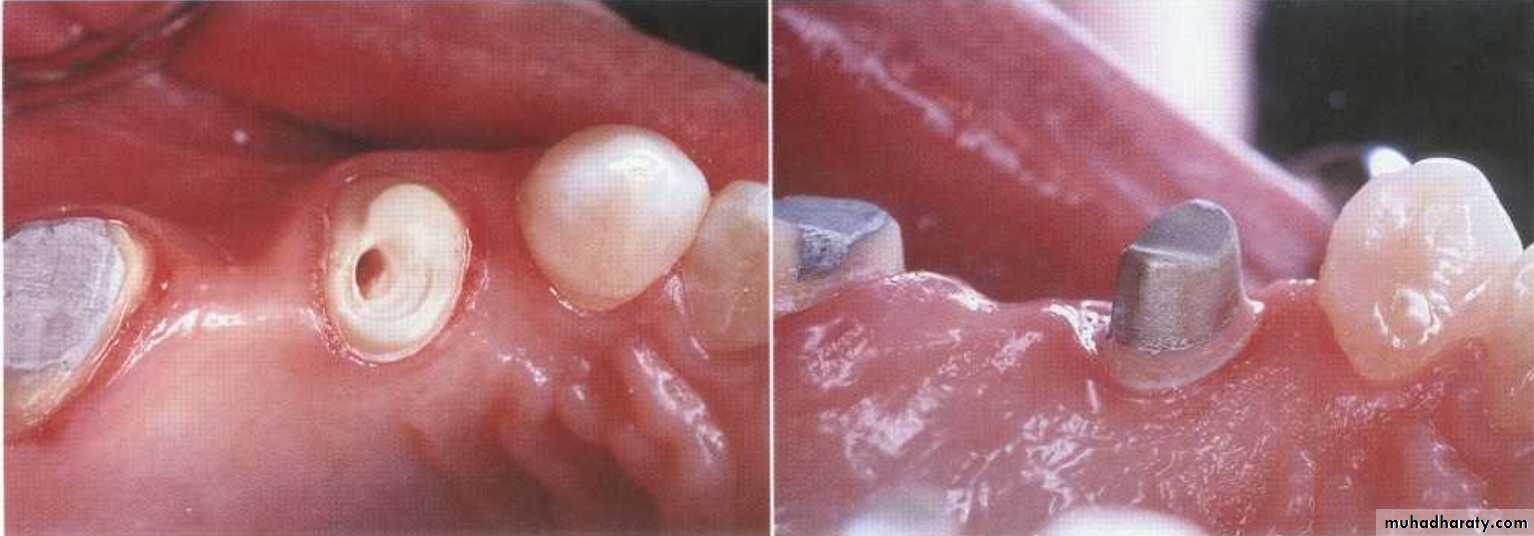

Cast post direct waxing

Post and core


Post and core


Post and core

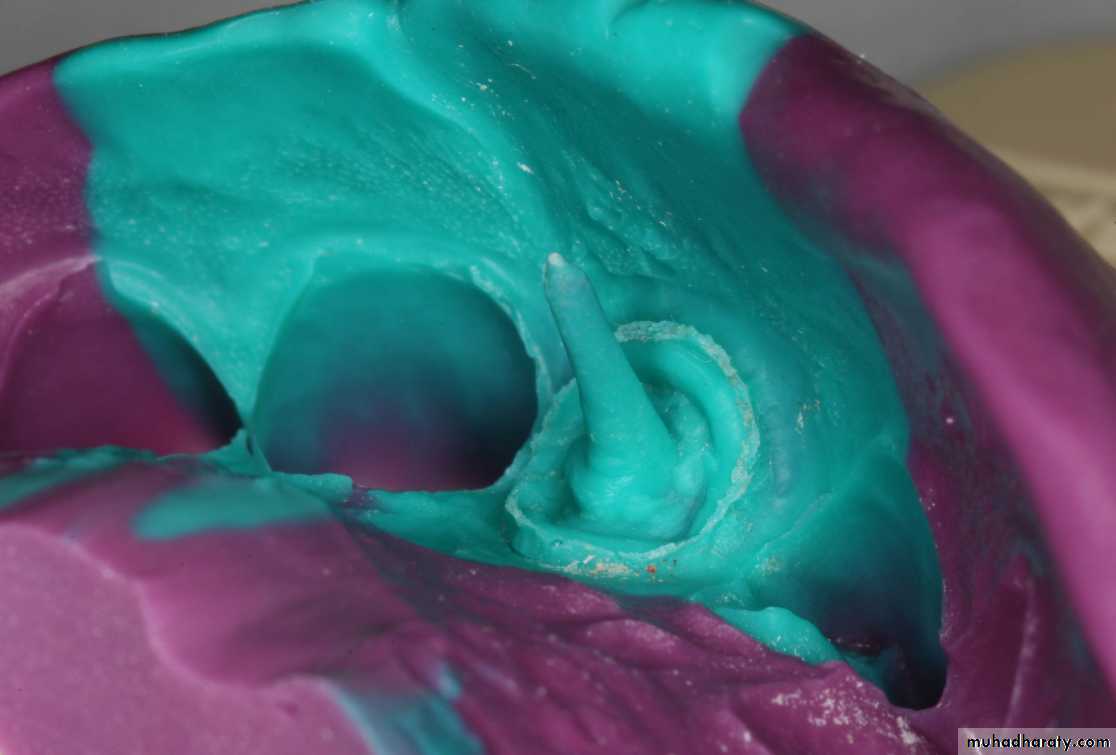

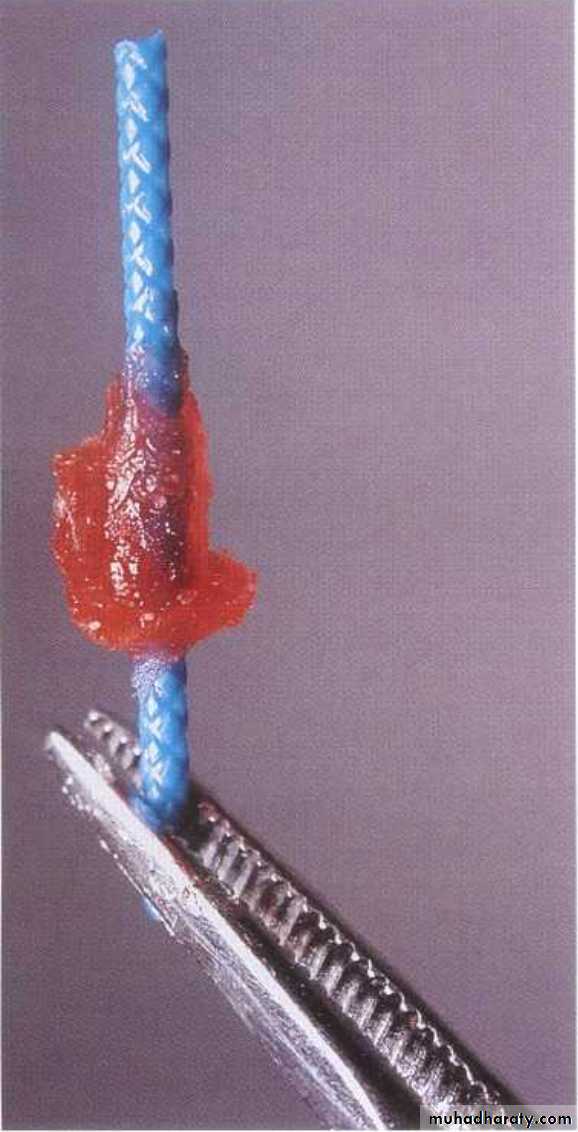

Indirect impression technique

Post and core


Post and core

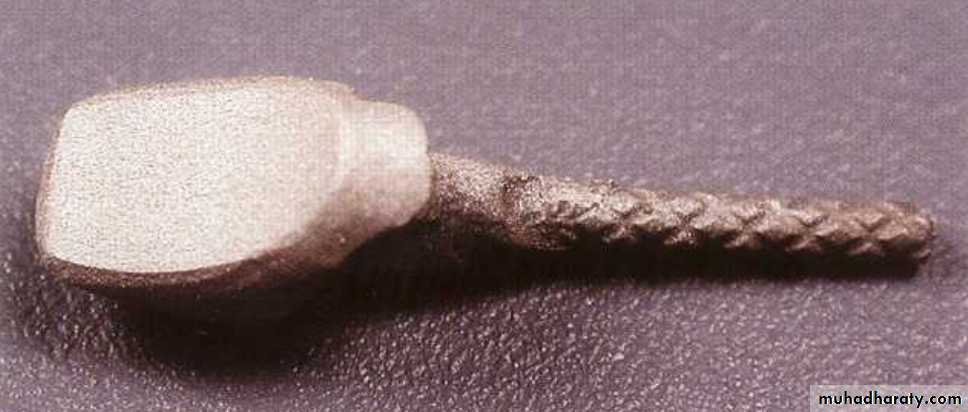

Cast Posts

Advantages
• Preservation of maximum tooth structure
• Provision of anti-rotational properties
• Core retention
• Less chances of vertical fractures during preparation
• High strength
Disadvantage
• Time consuming
• complex procedure
Indications:
• Elliptical canals
• Flared canals

Prefabricated Tapered Posts

Advantages:
• Conserves tooth structure
• High strength and stiffness

Disadvantages:

• Low retention
• Longitudinal splitting of remaining root

Indications:

• Small circular canals
• Very tapered canals

Prefabricated Threaded Posts

Advantage
High retention

Disadvantages

• Stresses generated in canal may lead to fracture
• Does not conserve coronal and radicular tooth structure

Indication

Only when maximum retention is essential

Fiber Reinforced Post

Advantage
Esthetic

Disadvantage

low strength

Indication

• when there is sufficient tooth structure
• when there is no high occlusal loads

Fiber Post

Post and core




Post and core

CORE part

Materials Used For Core Build Up
Direct Placement:
• Amalgam
• Composite
• Glass ionomer type II
Indirect Placement
Casting

Composite Core

Advantages
• Good compressive strength
• Easy to manipulate
• Rapid polymerization
• Dentin bonding
Disadvantages
• Polymerization shrinkage
• Poor dimensional stability
• Water sorption
• Technique sensitive
• Air bubbles and spaces
Indication
Excellent build-up material for posterior and anterior teeth if isolation assured

Amalgam core

Advantages
• Reduced marginal leakage
• Better dimensional stability
• Better compressive strength
• Better modulus of elasticity

Disadvantages

• Mercury sensitivity
• Low tensile strength
• Corrosion with base metal
Indication
Molars with adequate coronal tooth structure

Glass Ionomer Core

Advantages
• Anticariogenic
• Adhesive
• Easy to manipulate

Disadvantages

• Low resistance to fracture
• Low retention to preformed post
• Sensitive to moisture

Indication

Teeth with minimum tooth structure missing

Gingival management

• Retraction cord
• Gingivectomy
• Laser
• Electro-cautery
• Rubber dam

Post and core


Post and core


Post and core


Post and core




Post and core
