Investigations of CVS

Investigations of the Cardiovascular system

1

At the end of this lecture, you should be able to appreciate

The usefulness of each investigation in diagnosing cardiac disease
Each type of investigation clarifies and detects a certain aspect of cardiac pathology
Non-invasive investigations are increasingly replacing the old, invasive techniques.
Rapidly evolving methods of investigation because of the advances achieved in technology

Investigations of the CVS

BNP, Troponin
Electrocardiography
Radiology
Echocardiography
CT imaging
MRI
Cardiac catheterization
Radionuclide imaging
3


BNP, Pro-BNP
Peptide released from the atria in response to stretch
Very sensitive for the diagnosis of congestive heart failure
Levels fall with improvement of heart failure on treatment, rise with worsening
4

Troponin

Protein contained within cardiac muscle
Released when cardiac muscle is injured e.g. ischemia or inflammation
Very useful in the diagnosis and follow up of patients with acute coronary syndrome
5

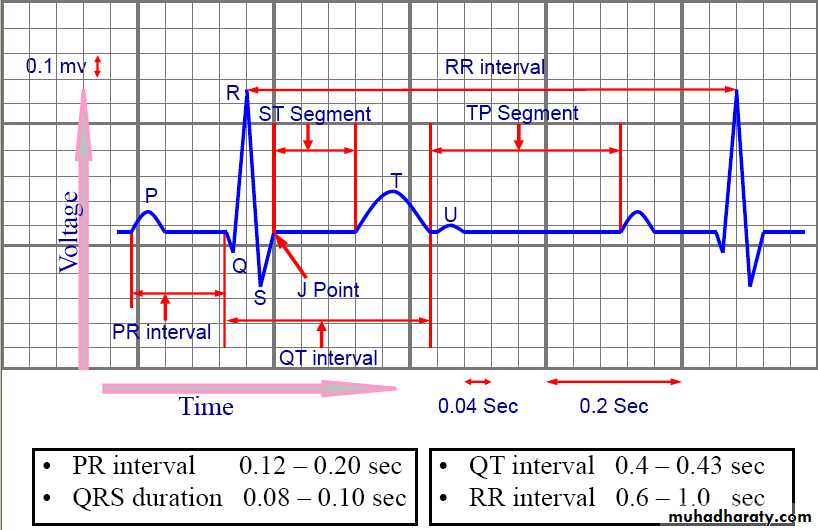

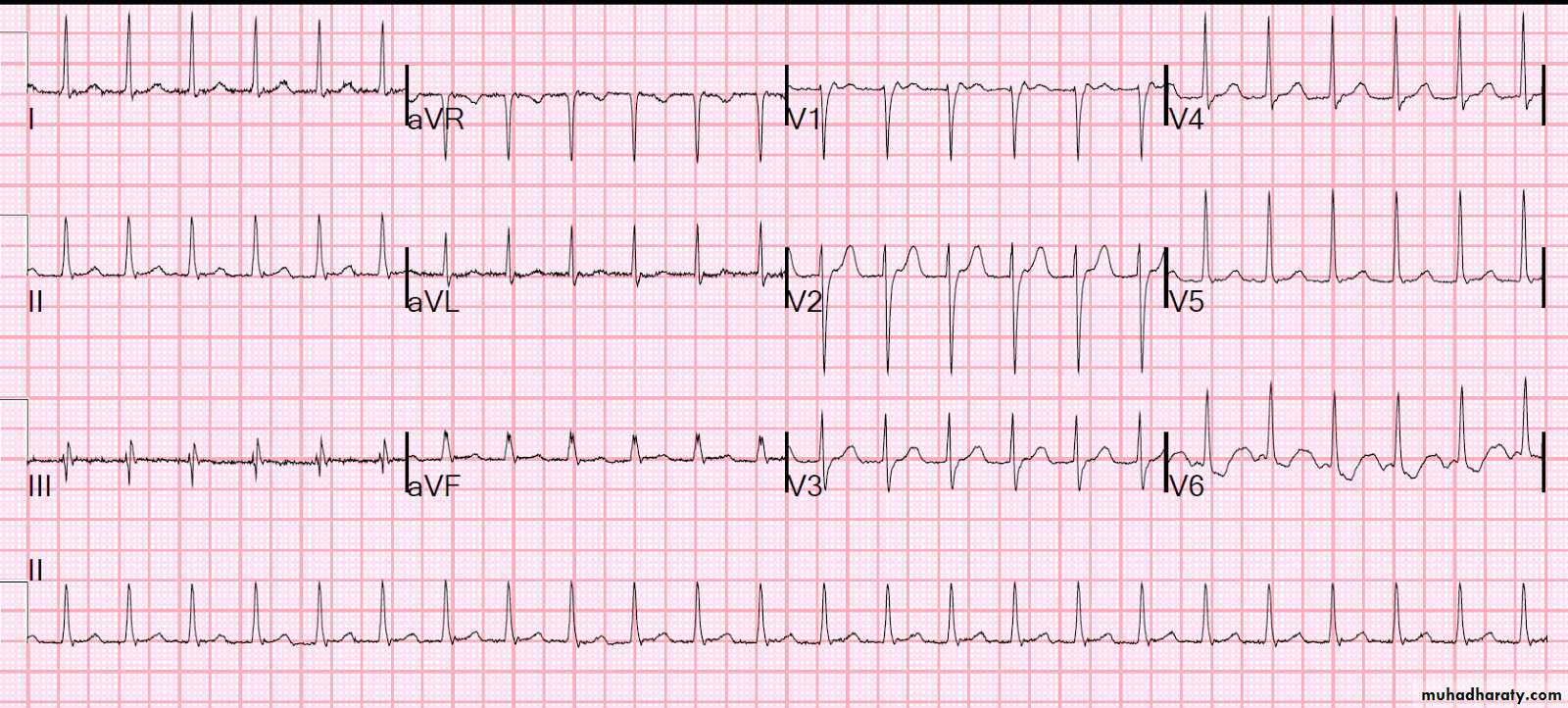

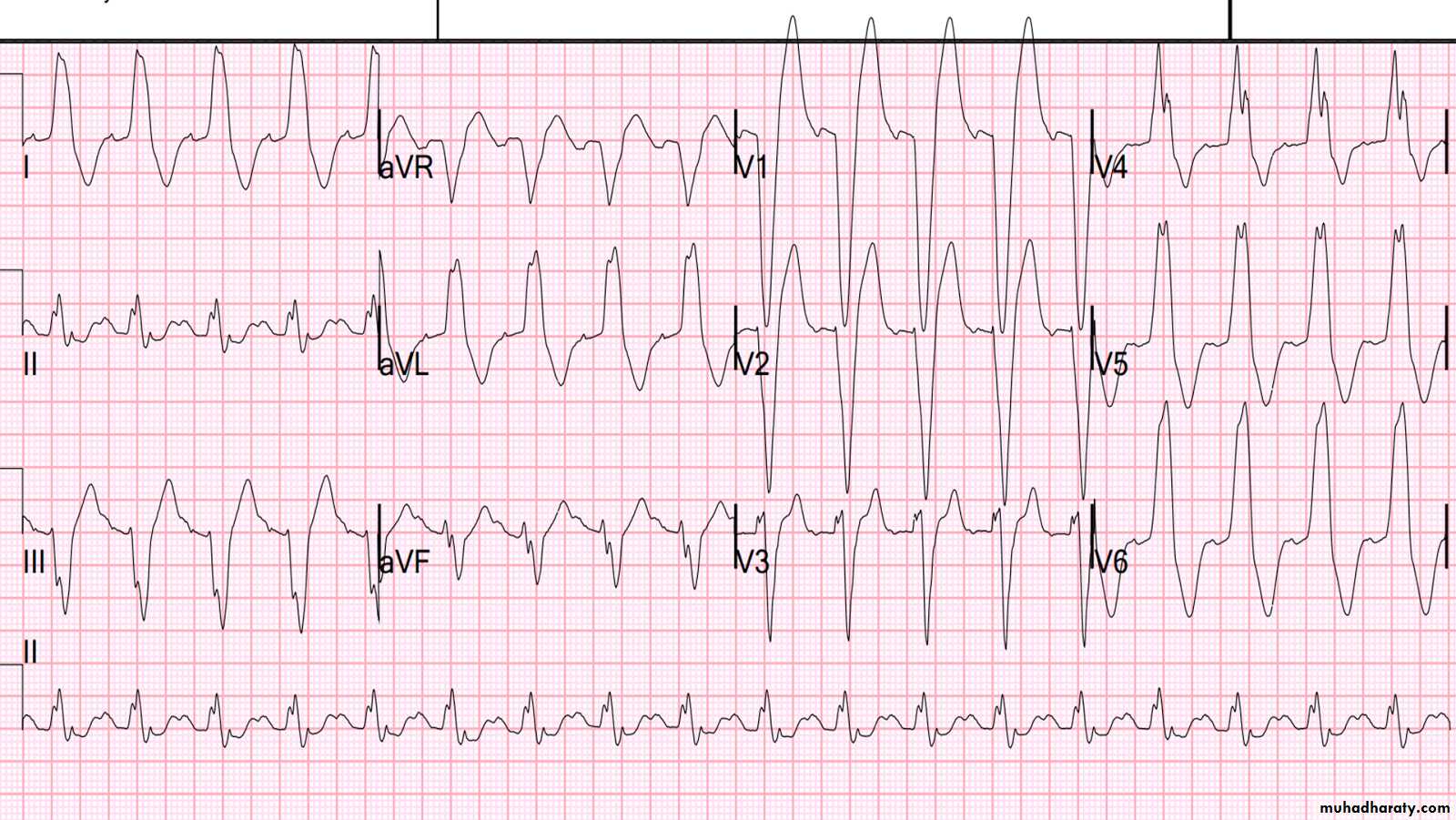

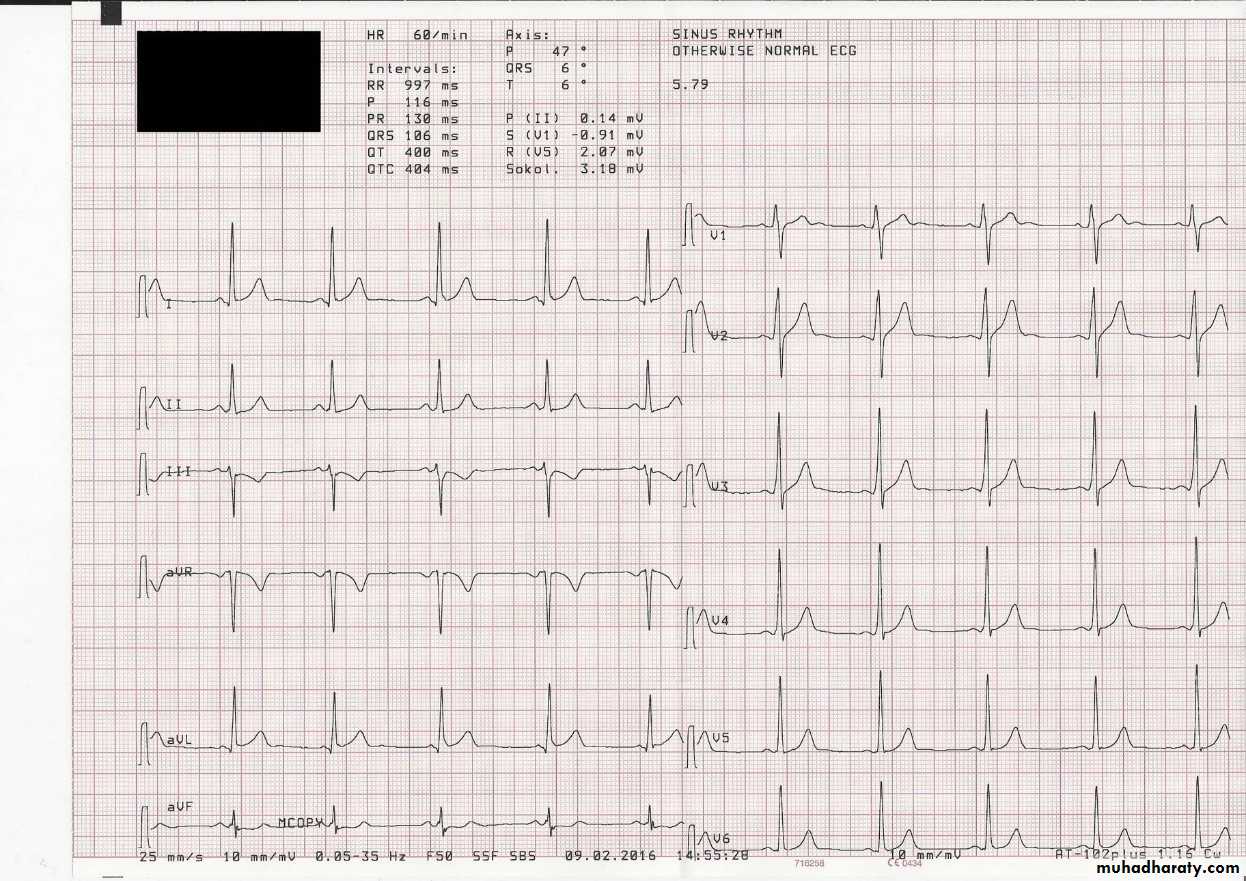

Electrocardiography (ECG)

uses:
To determine heart rhythm
Status of the conducting system

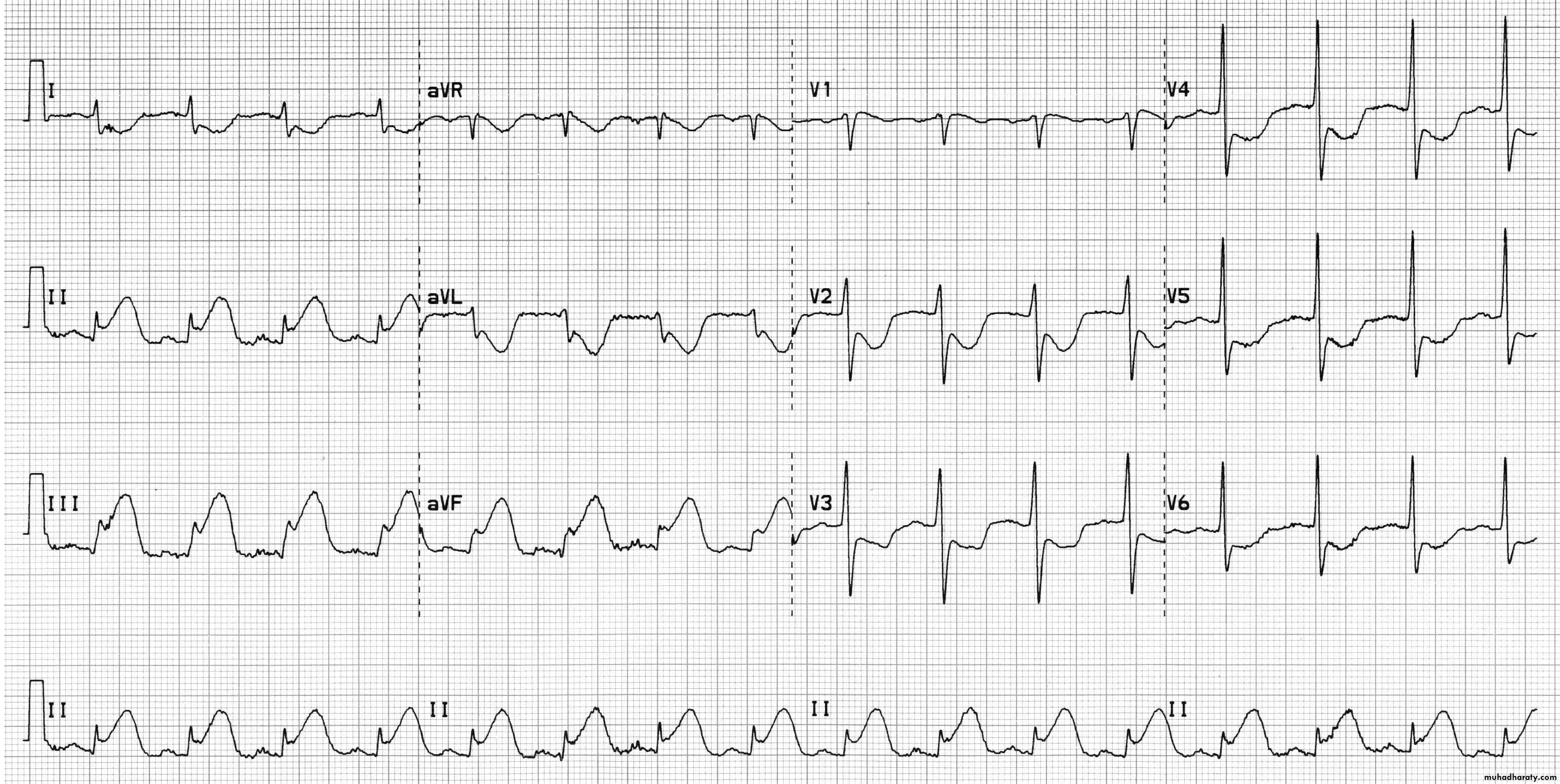

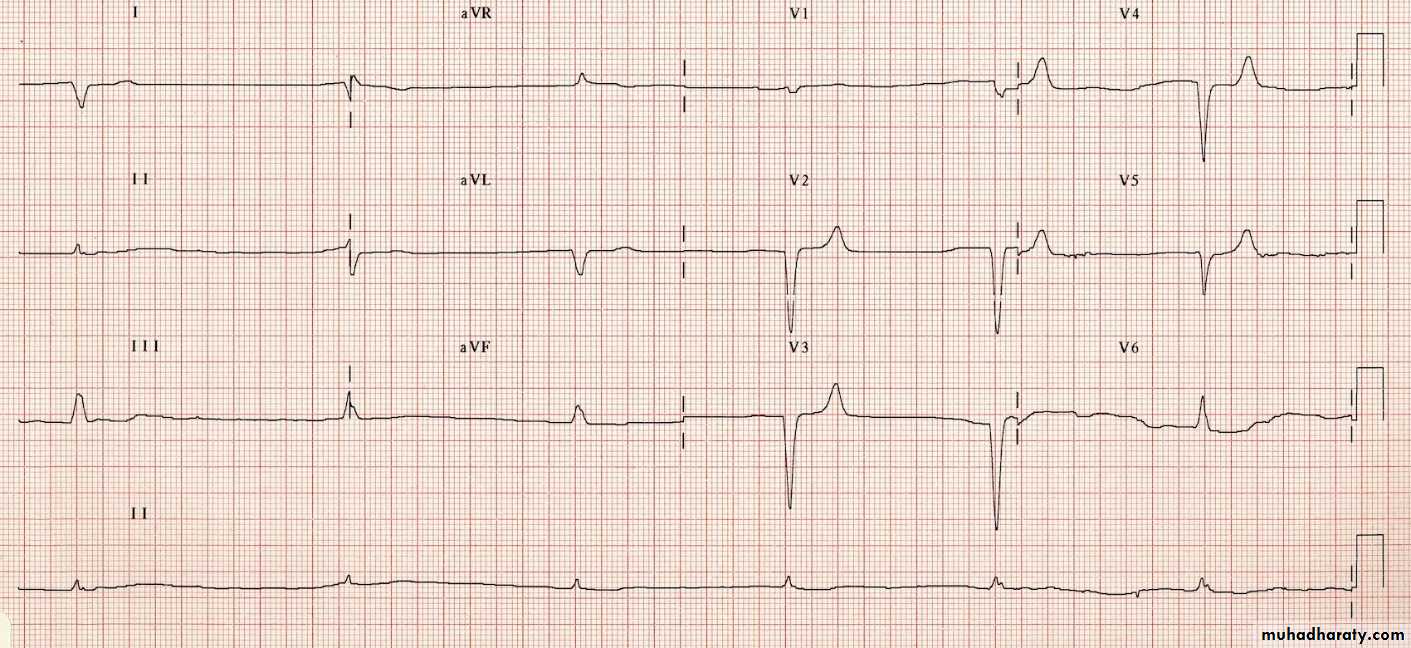

To diagnose myocardial ischemia or infarction
Chamber enlargement and hypertrophy
Effects of drugs & metabolic disorders (electrolyte imbalance, acidosis, etc.)
6





7




8





9









10











11

12

Exercise ECG

In patients with angina, the resting ECG may be normal
The principle of the test is to stress the heart and observe for ECG changes of ischemia
ECG and BP are continuously recorded while the patient is exercising on a bicycle or a treadmill
13


Ambulatory ECG Monitoring (Holter)
Continuous recording of ECG over 24 hours or more
Used to detect transient episodes of ischemia or arrhythmia which can rarely be captured during routine, ordinary ECG recording
14

Imaging

The principle of imaging is to reconstruct a three-dimensional structure out of a group of two dimensional images:
Silhouette imaging: various structures are overlapped over each other e.g. CXR, angiography, nuclear imaging
Tomographic imaging: a group of sections through the structure to be examined e.g. echo, CT, MRI

15

Radiology of the Heart

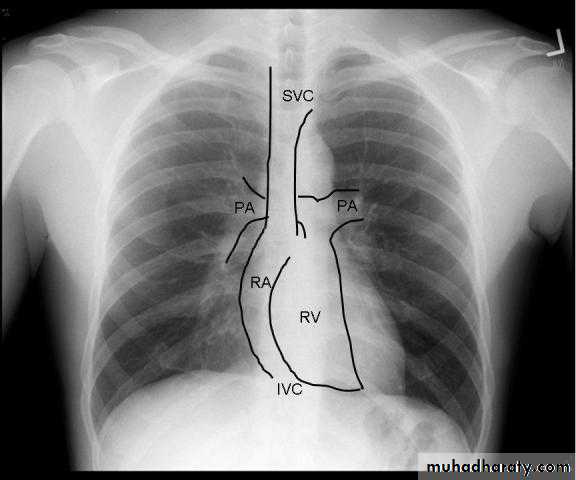

Chest X-ray: Postero-anterior view (PA view):
Size of the heart
Shape of the heart
Specific chamber enlargement
Status of the pulmonary circulation
16

Radiology of the Heart

Cardiac size:

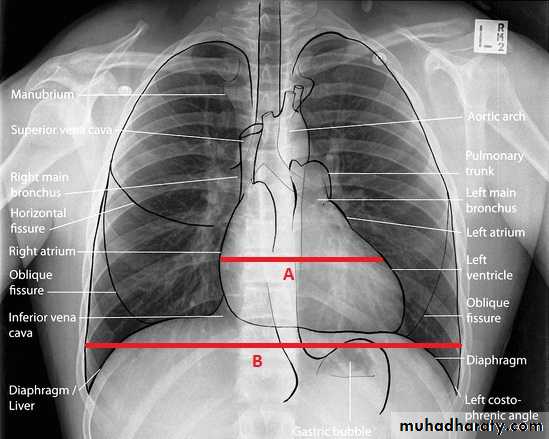

Cardio-thoracic ratio (CTR):
Normally < 0.5
Enlargement of the heart (cardiomegaly):


LV dilatation and dysfunction
Pericardial effusion




17




18




19

Radiology of the Heart

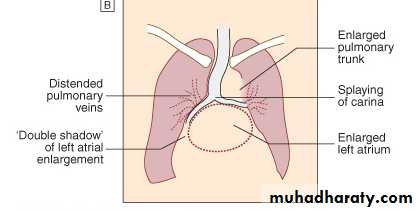

Left atrial enlargement:
Straight heart border (LA appendage)
Widening of the carinal angle
Double contour of the right heart border





20

Radiology of the Heart

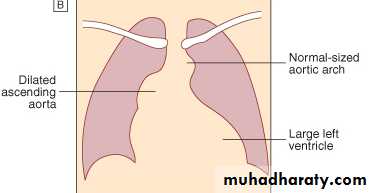

LV enlargement:
Enlarged cardiac silhouette
Prominent left heart border




21

Radiology of the Heart

RV enlargement:
Cardiomegaly
Straightening of the left heart border
Apex displaced upwards


Right atrial enlargement:
Prominence of the right border of the heart

22

Radiology of the Heart

Lung fields:
Congestion & edema in patients with left heart failure
Increased blood flow (prominent arteries and veins) in shunt lesions
Oligemic lungs in pulmonary stenosis
Pleural effusions in advanced heart failure
23

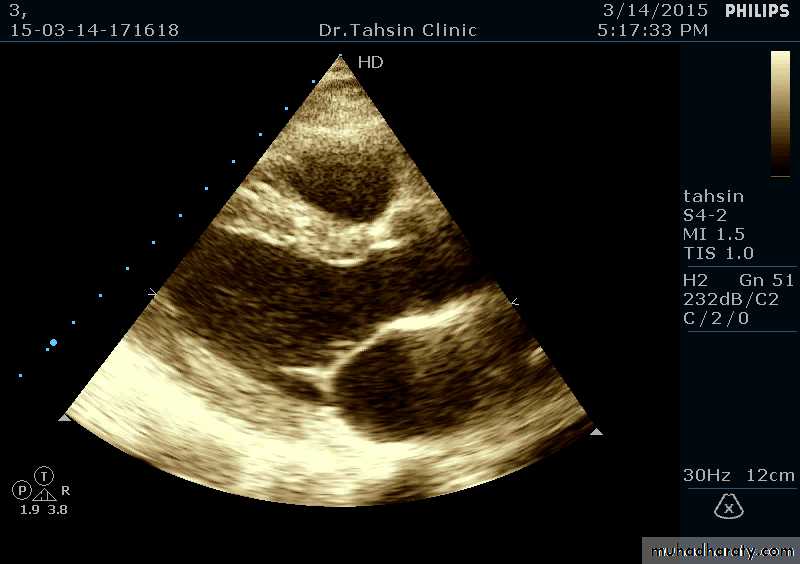

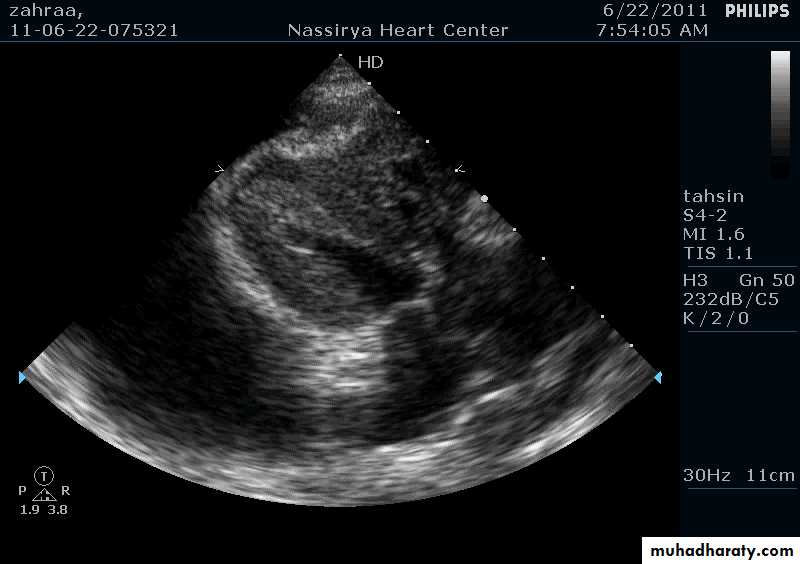

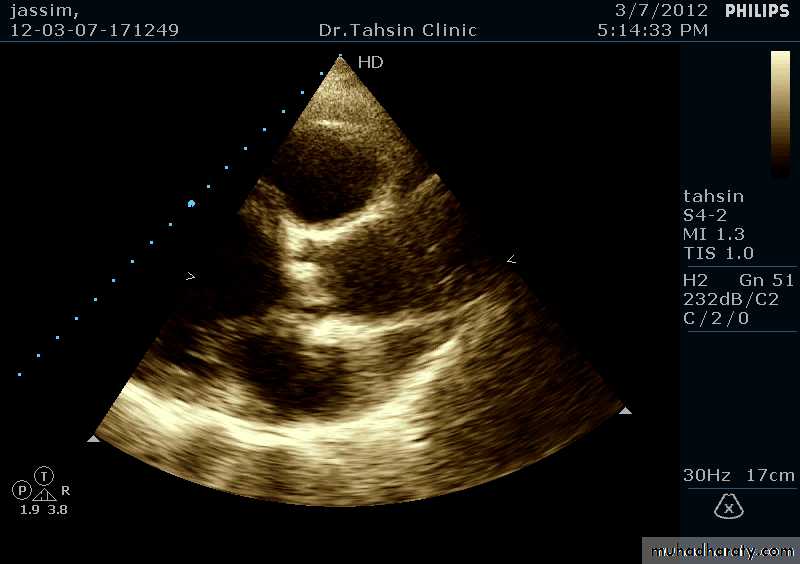

Two Dimensional Echocardiography

Ultrasound beam passing through the heart generates cross sectional images or “slices” of the heart
Various structures can be seen in real time



24





25

Two Dimensional Echocardiography indications

Assessment of LV function
Diagnosis & quantitation of severity of valvular lesions
Identification of vegetations
Identifying the source of systemic embolism
Detection of pericardial effusion
26




27





28




29




30

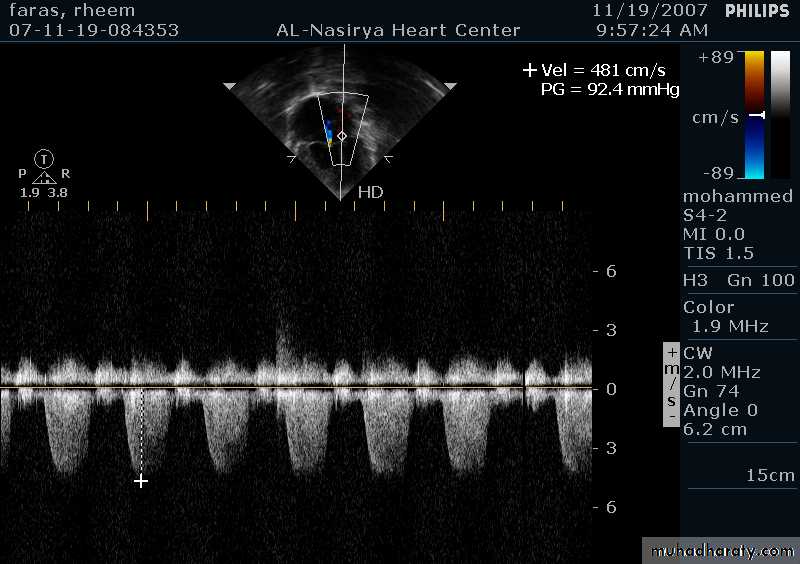

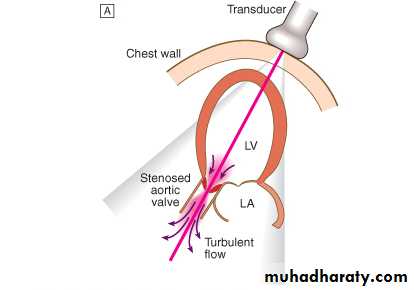

Doppler Echocardiography

Sound waves reflected from moving RBCs undergo frequency shift
The faster the blood velocity , the greater the frequency shift
The direction of moving blood determines whether the reflected signal is positive or negative

31





32




33

Doppler Echocardiography

The derived signal can be plotted graphically against time

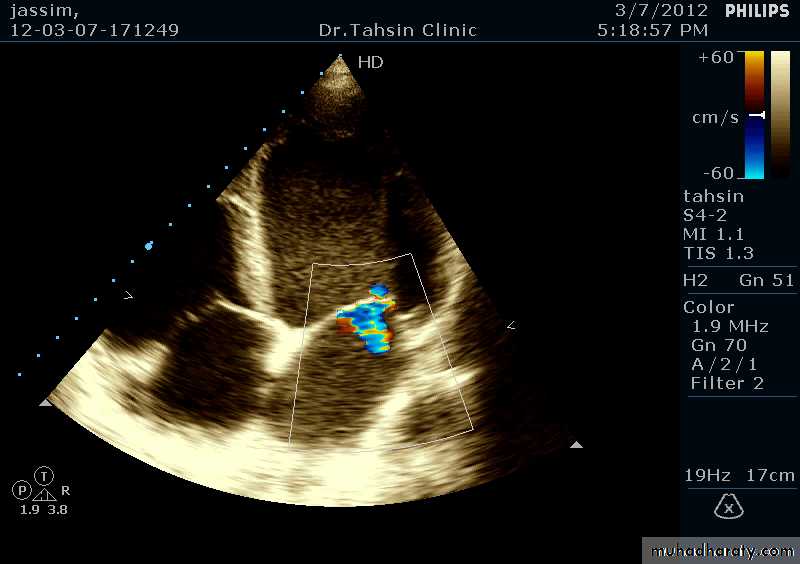

Or, color can be assigned for the reflected signal and superimposed over the 2D image (color flow mapping)
34

3-Dimentional Echocardiography

35

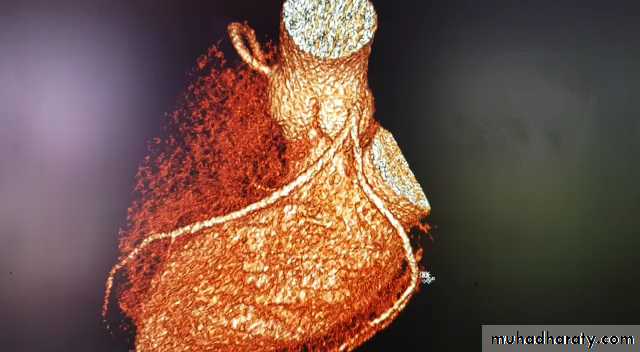

Other non-invasive imaging:CT and MRI

Chambers of the heart
The great vessels
The pericardium
Diseases of the aorta
The pulmonary arteries
Non-invasive imaging of the

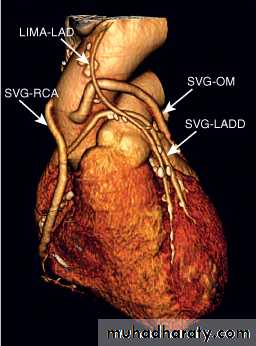

coronary arteries



36

37

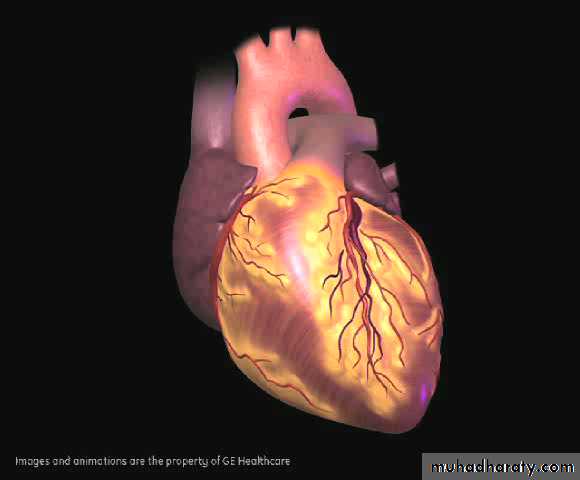

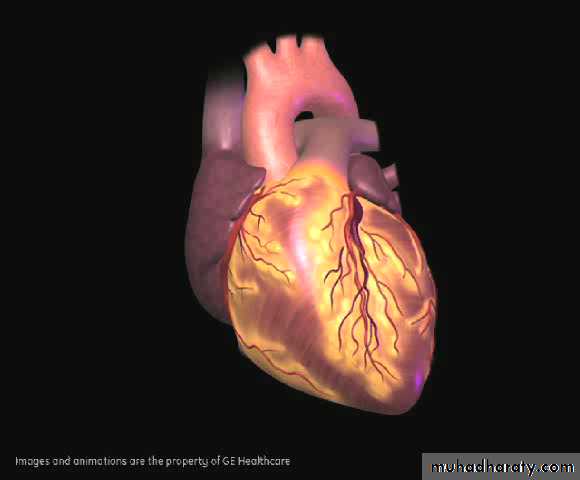

Invasive investigation: cardiac catherization

A small tube (catheter) is passed into the heart via a peripheral artery or vein under fluoroscopic guidance
Pressure can be measured, flow volumes calculated, radiographic dyes can be infected to outline the specific chamber or vessel (angiography)
38
