Dr Hadi Al -Sagur

1
Practical Medical Physics
College of Medicine
Physiology and Medical Physics Department

Figure 1: NET -280 B Series Wireless Visual System for ENT

Practical Medical Physics
2

 In this experiment we have a visual system used for correct

diagnosis and procedures in the field of otorhinolaryngology.
Practical Medical Physics
3
Otoscope or auriscope : is a medical device which is used to look into
the ears.

Introduction

 This is performed in order to examine the ear canal that leads
from the outer ear (pinna) to the eardrum.

Practical Medical Physics

4
Otorhinolaryngology :

The word otorhinolaryngology or its shorter form, otolaryngology , is

derived from the Greek root words: otos (ear), rhino (nose ), laryngo
(windpipe) and logos (science). Ear , Nose , Throat (ENT ).

Also it is a surgical subspecialty within medicine that deals with the

surgical and medical management of conditions of the head and neck .

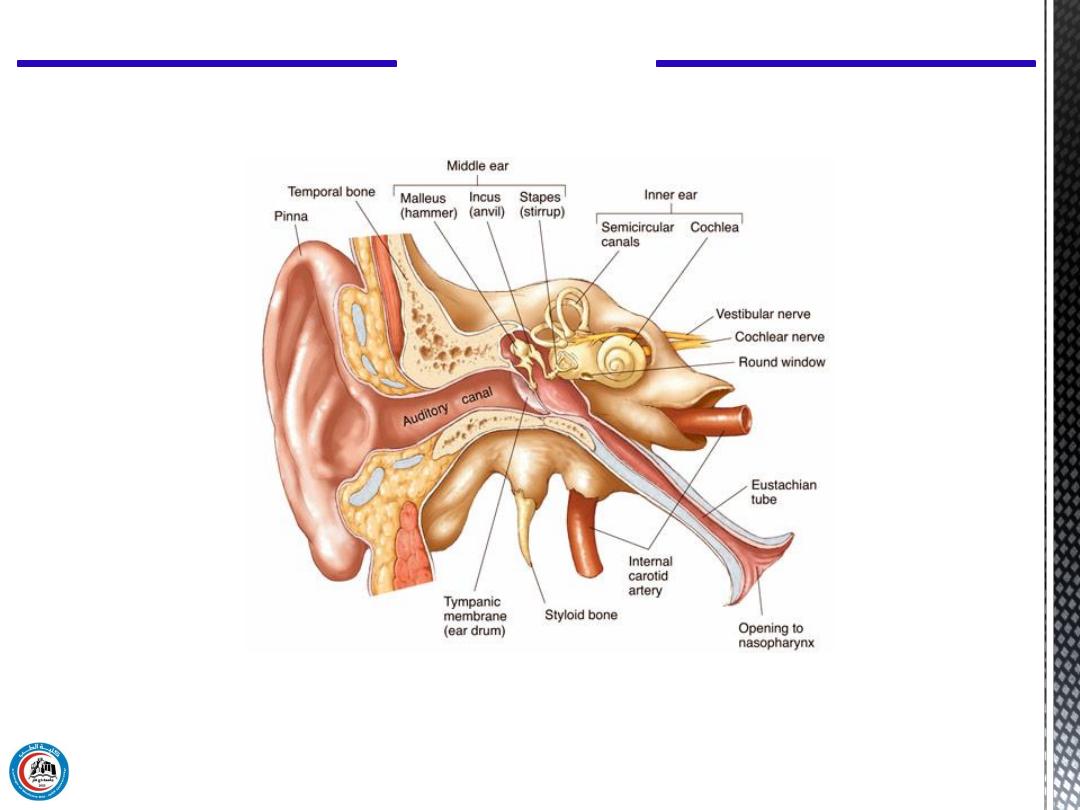

Figure 2: Cross -section of the ear

Practical Medical Physics
5

Practical Medical Physics

6

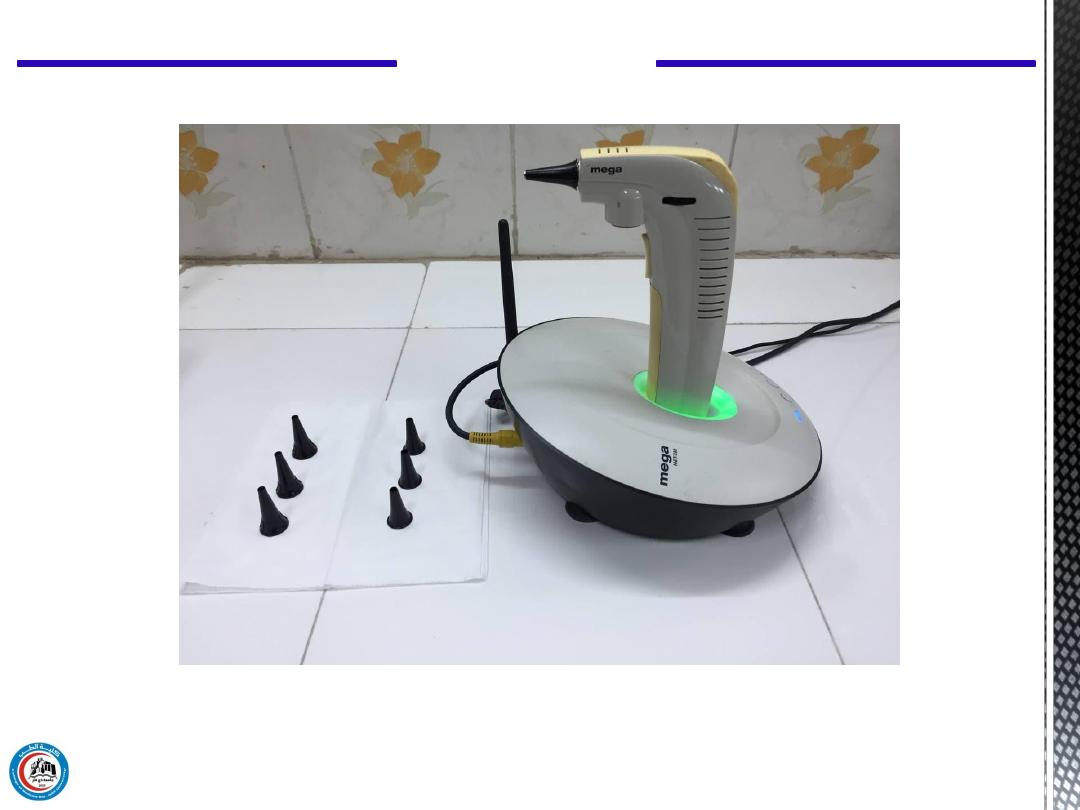

Figure 3: NET -280 B Series Wireless Visual System in our lab

Practical Medical Physics

7
S tandard Accessories

The standard accessories of our otoscope are:

- Wireless handgun camera
- Wireless camera cradle
- Freezing system (built -in )
- Telescope(Built -in )
- AC Power adaptor
- Protection tip
- LAN Cable
- PC S/W CD

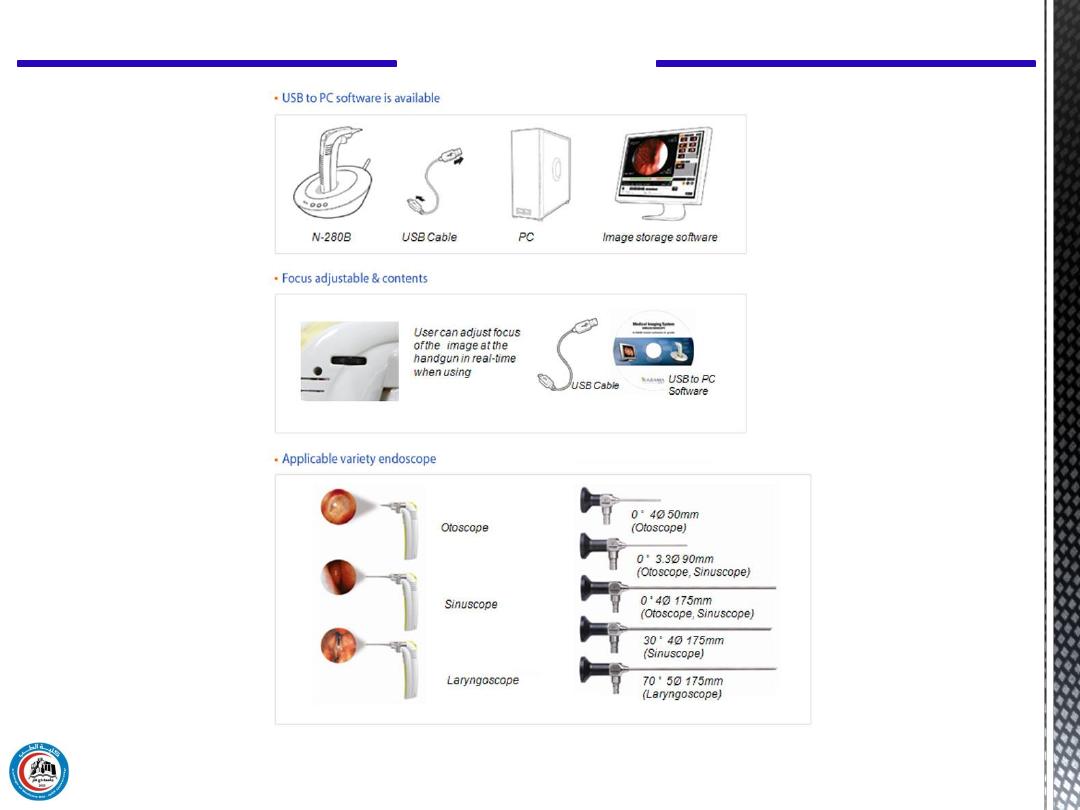

 Focus Adjustable: This is used for enhance the captured picture .

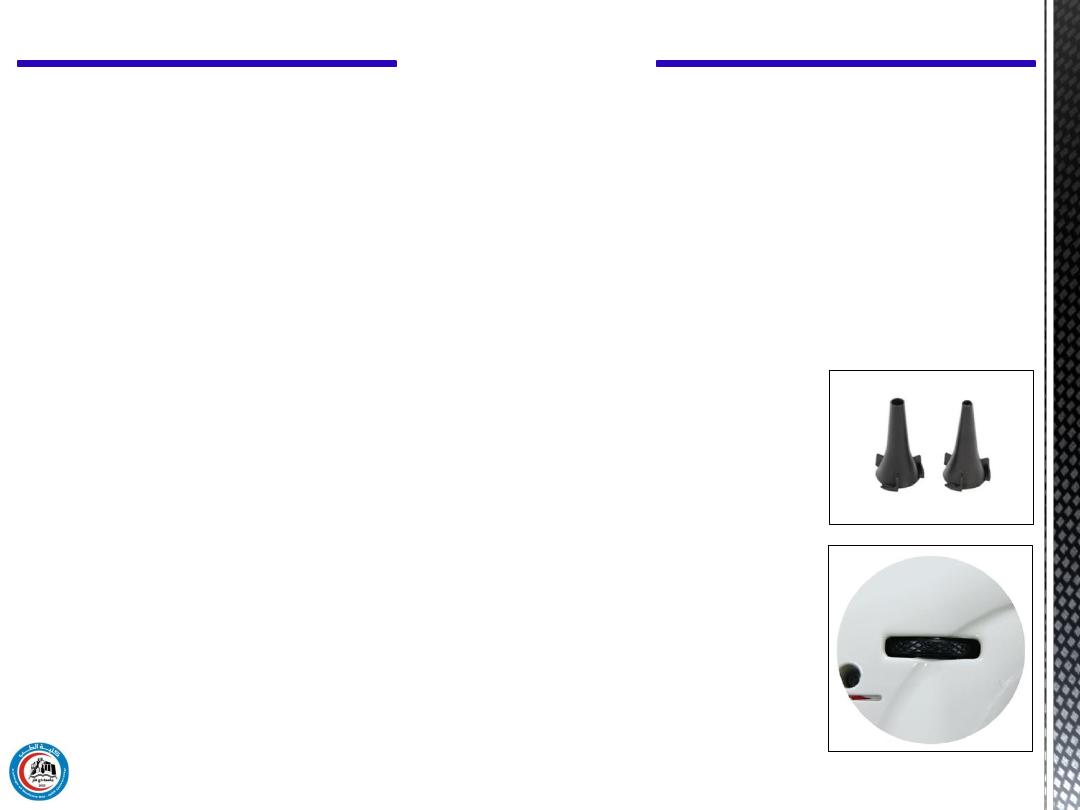

 Protection tip : ENT Otoscope disposable specula tips.

Practical Medical Physics

8
Figure 4: Setting and adjusting of the otoscope

Practical Medical Physics

9

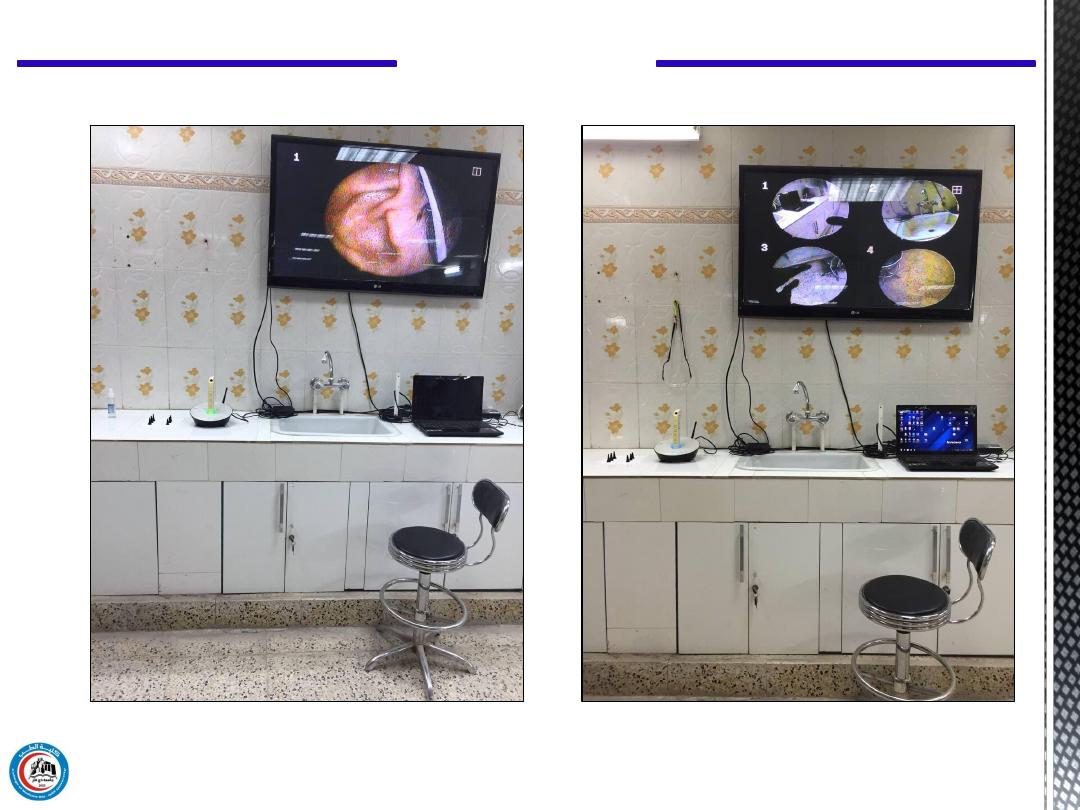

Figure 5: Practical test in our lab

Practical Medical Physics

10
Examination of the tympanic membrane and middle ear by
otoscopic examination can help providers diagnose a wide variety
of conditions, including:
Clinical Significance (Usage)
It is a painful type of ear infection. It occurs when the area behind
the eardrum, the middle ear becomes inflamed and infected.
1. Acute otitis media

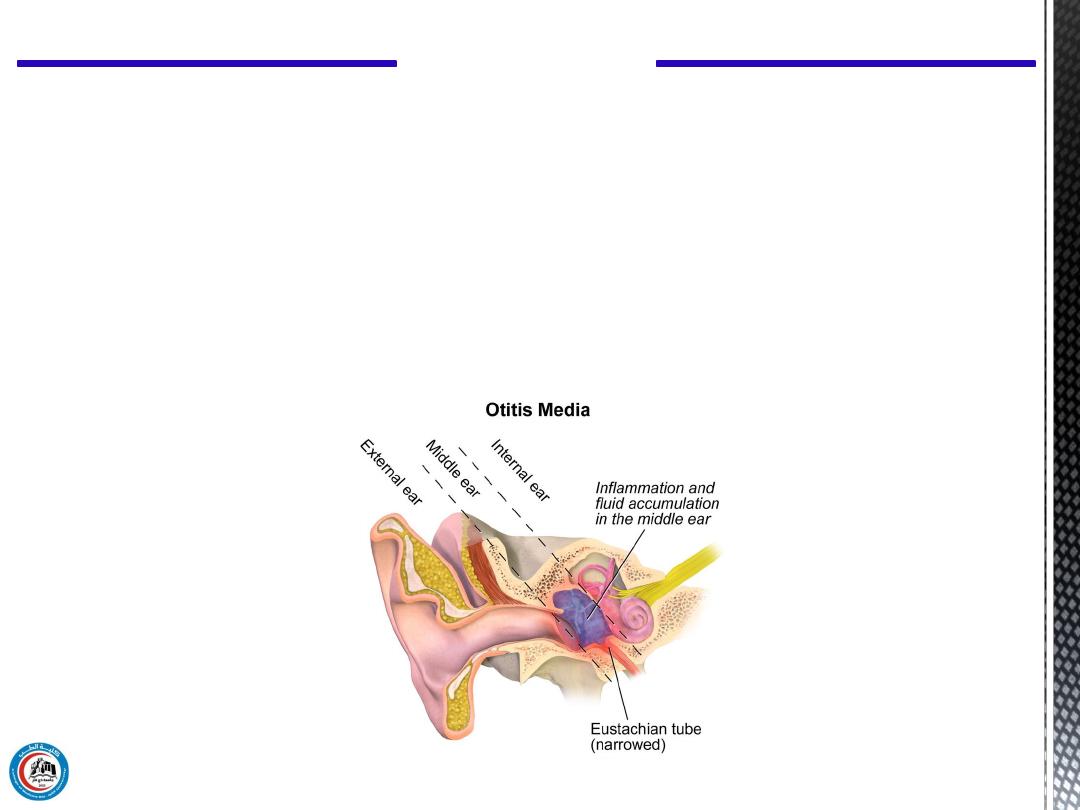

Figure 6: cross -section of the ear shows the acute otitis media

Practical Medical Physics

11
2. Traumatic perforation (ruptured) of the tympanic membrane

This ruptured causes sudden severe pain sometimes followed

by bleeding from the ear, hearing loss, and tinnitus.

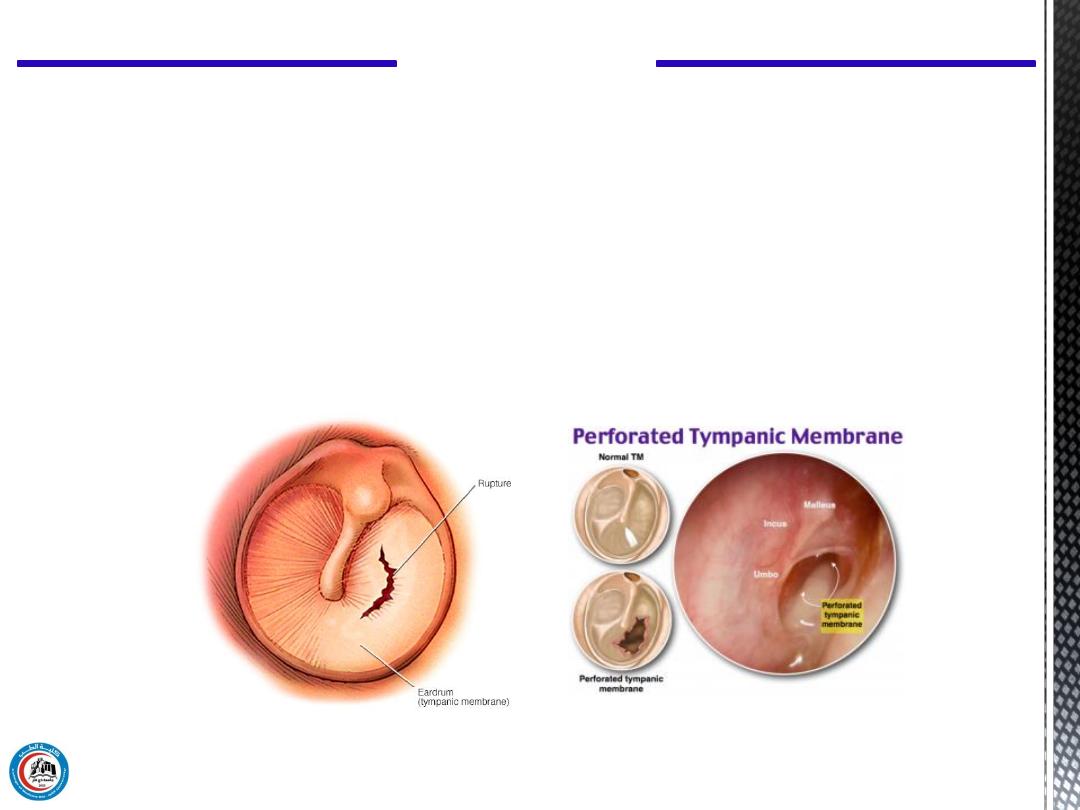

Figure 7: Ruptured of the tympanic membrane

Practical Medical Physics

12
3. Cholesteatoma
It is an abnormal growth of skin within the middle ear. It
begins in the middle ear and may spread to the mastoid bone
behind the ear.

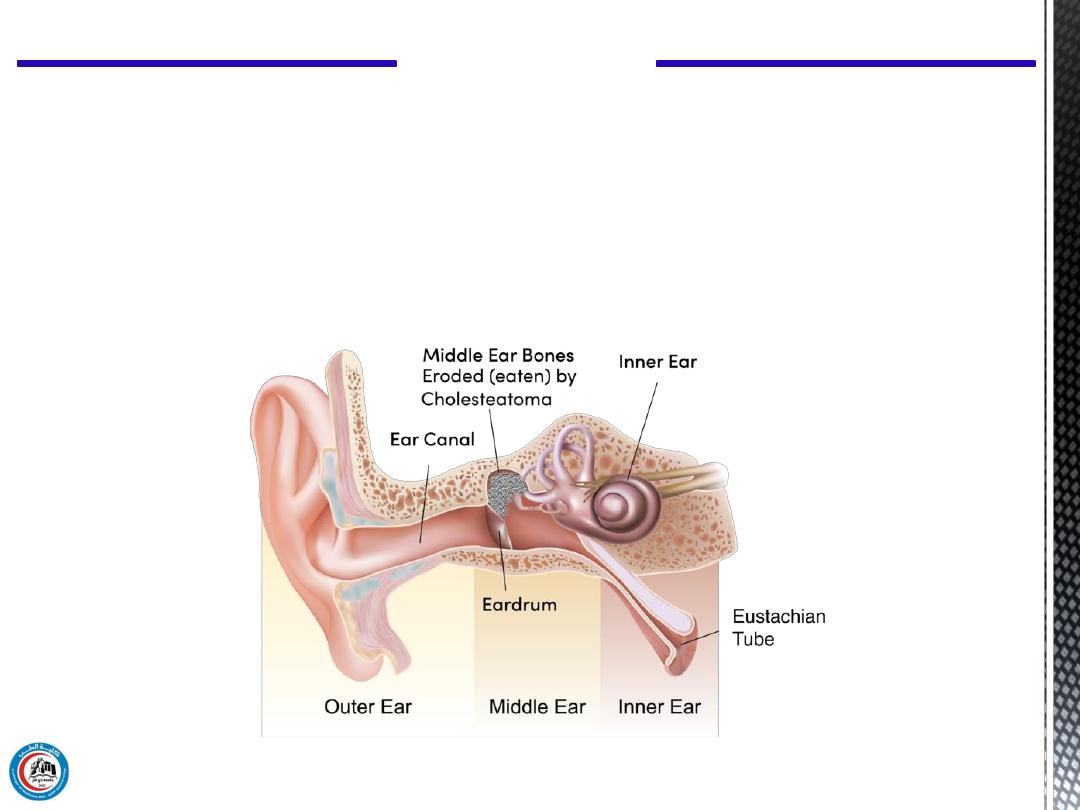

Figure 8: Cholesteatoma grows around and destroys middle ear structures

Practical Medical Physics

13
Other generations of otolaryngology instruments:
Figure 9: Otoscope
1. Otoscope

Practical Medical Physics

14
Workstation

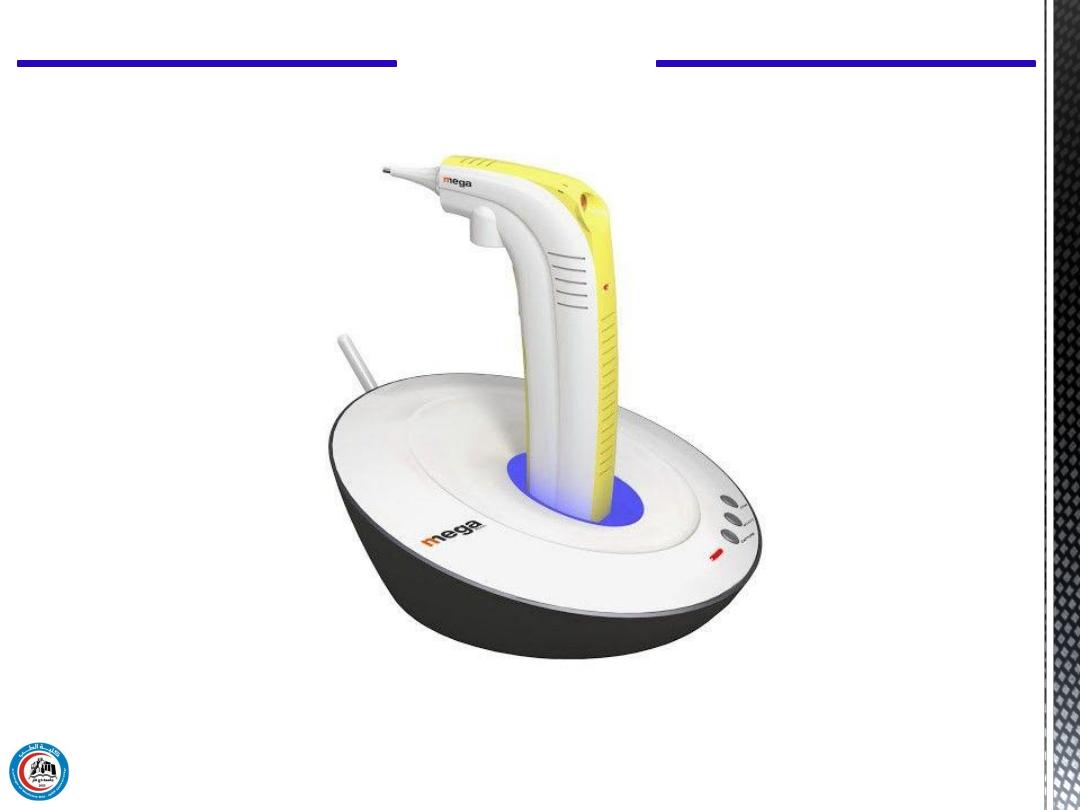

Figure 10 : NET -280 B Series Wireless Visual System for ENT
2. NET -280 B Series Wireless Visual System for ENT

Practical Medical Physics

15

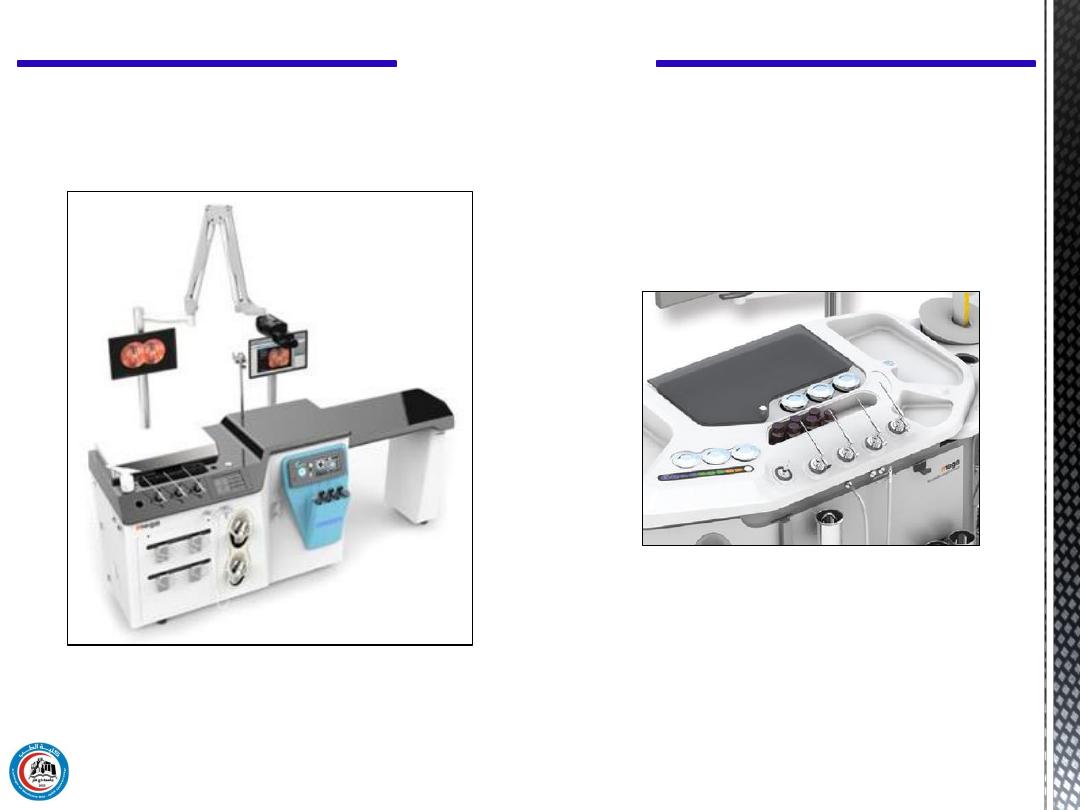

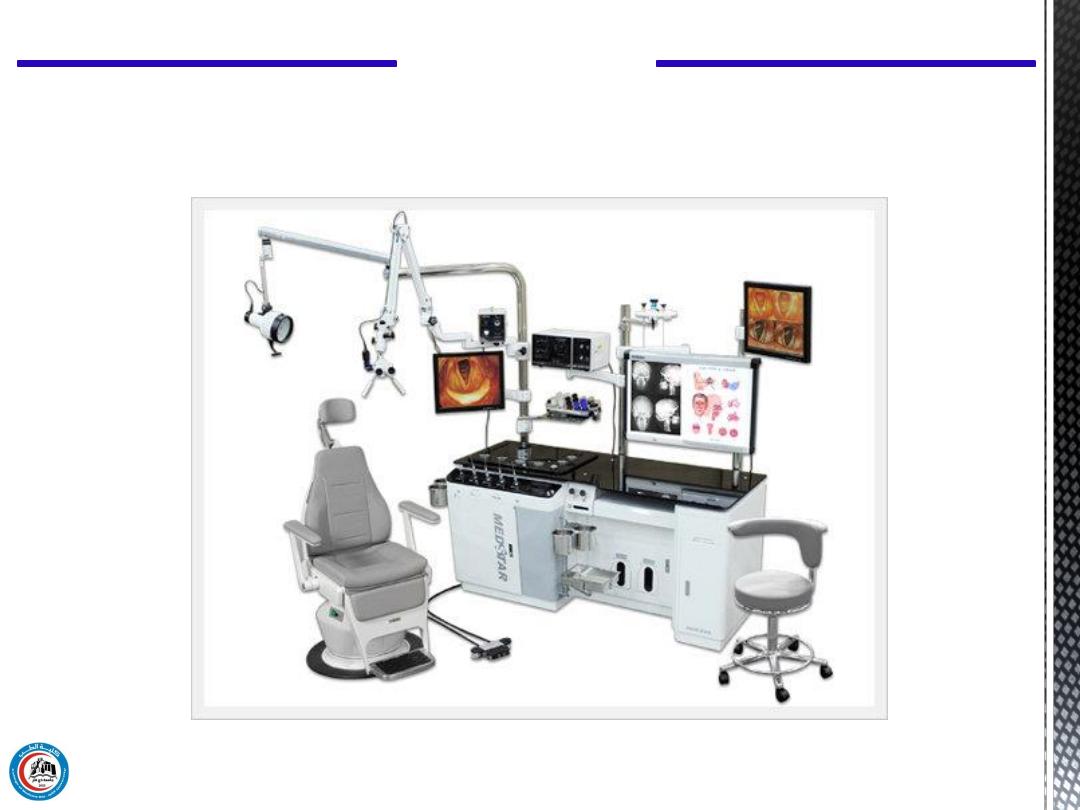

Figure 11 : ENT Total Treatment Unit
3. ENT Total Treatment Unit

Thank you

16

Questions

17
