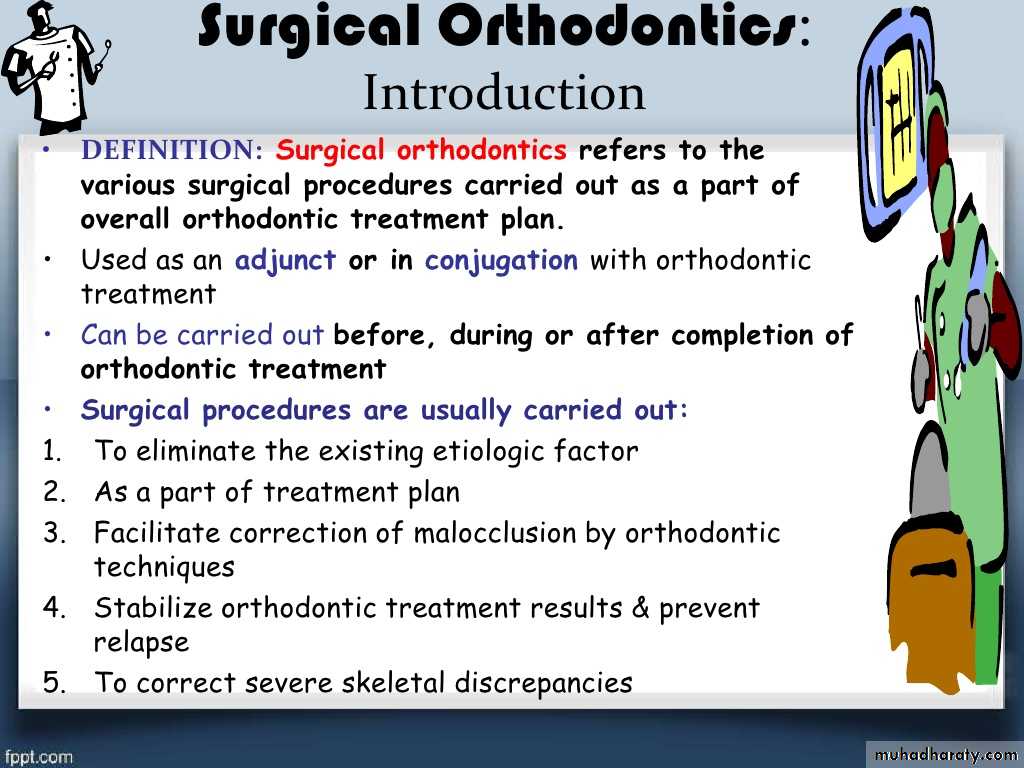

Surgical aids to orthodontics

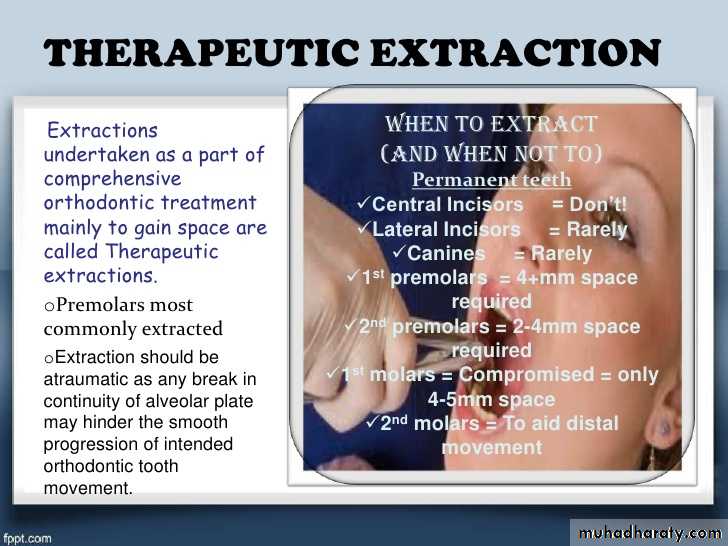

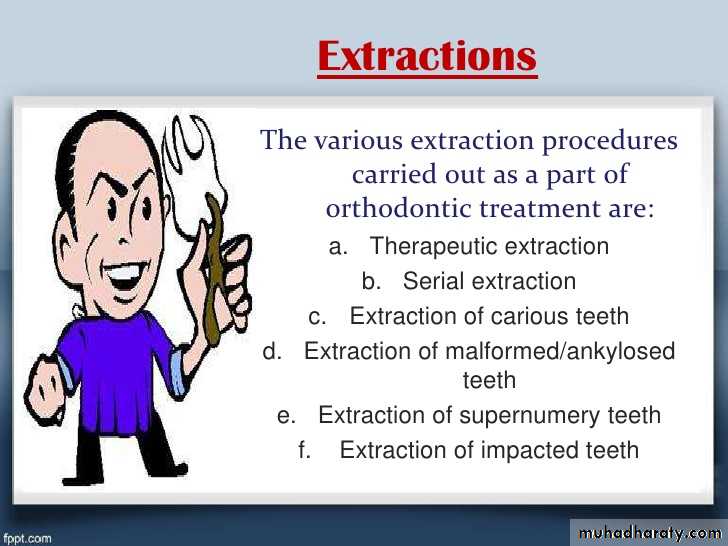

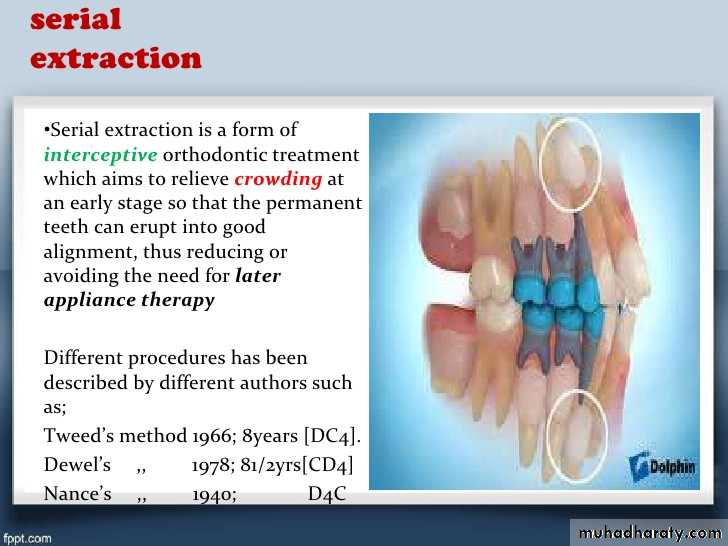

Extraction of :healthy normal fully erupted teeth
Unerupted, semierupted, misplaced, superneumerary teeth, dilacerated and submerged teeth

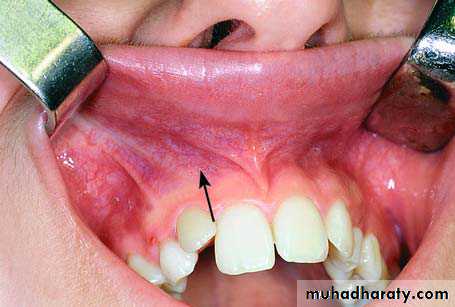

Persistant abnormal labial frenum
Surgical aids to orthodontics

Tooth Impaction

• Third Molars – Most common
• Maxillary Cuspids
• Maxillary Central Incisors
• Mandibular/Maxillary second premolar

Impacted Canines

Impacted maxillary canines are quite common, and approximately 12%–15% of the population present with impacted canines. They are localized palatally more often than labially.
Even though positions vary, the impacted canine presents five basic localizations (contralateral or ipsilateral and deep in the bone) as follows:
1. Palatal localization
2. Palatal localization of crown and labial localization of root
3. Labial localization of crown and palatal localization of root
4. Labial localization
5. Ectopic positions


Sequelae of Canine Impaction
• Labial or lingual malpositioning of the impacted tooth,
• Migration of the neighboring teeth and loss of arch length,
• Internal resorption,
• Dentigerous cyst formation,
• External root resorption of the impacted tooth, as well as the neighboring teeth,
• Periodontal defects,
• Tooth transposition,
• Infection particularly with partial eruption, and
• Referred pain and combinations of the above sequelae.

Etiology of impacted canine

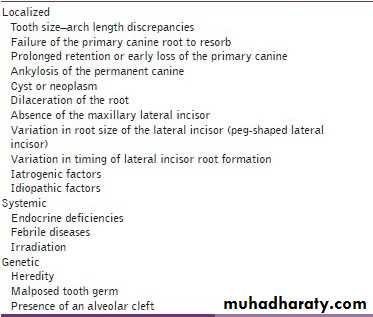

Several etiologic factors for canine impactions have been proposed: localized, systemic, or genetic



Two major theories associated with palatally displaced maxillary canines are the guidance theory and genetic theory.

The guidance theory proposes that the canine erupts along the root of the lateral incisor, which serves as a guide, and if the root of the lateral incisor is absent or malformed, the canine will not erupt.

The genetic theory includes other possibly associated dental anomalies, such as missing, or small lateral incisors, also it may associated with anomalies such as enamel hypoplasia, infraocclusion of primary molars, and aplasia of second premolars.


Diagnosis of Canine Impaction
The diagnosis of canine impaction is based on both clinical and radiographic examinations.
Clinical Evaluation
• Delayed eruption of the permanent canine or prolonged retention of the deciduous canine beyond 14–15 years of age,
• Absence of a normal labial canine bulge,
• Presence of a palatal bulge in the canine region,
• Delayed eruption, distal tipping, or migration (splaying) of the permanent lateral incisor, and
• Loss of vitality and increased mobility of the permanent incisors

Radiographic Evaluation

Periapical films
A single periapical film provides the clinician with a two-dimensional representation of the dentition. It would relate the canine to the neighboring teeth both mesiodistally and superoinferiorly. To evaluate the position of the canine buccolingually, a second periapical film should be obtained by one of the following methods.
Tube-shift technique or Clark's rule or (SLOB) rule
Two periapical films are taken of the same area, with the horizontal angulation of the cone changed when the second film is taken. If the object in question moves in the same direction as the cone, it is lingually positioned. If the object moves in the opposite direction, it is situated closer to the source of radiation and is therefore buccally located.

Occlusal films

Also help to determine the buccolingual position of the impacted canine in conjunction with the periapical films, provided that the image of the impacted canine is not superimposed on the other teeth.
Extraoral films
Frontal and lateral cephalograms
These can sometimes aid in the determination of the position of the impacted canine, particularly its relationship to other facial structures (e.g., the maxillary sinus and the floor of the nose).

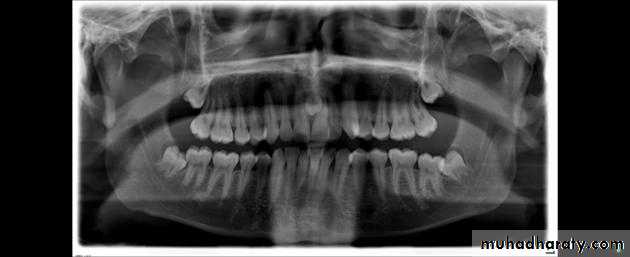

Panoramic films
These are also used to localize impacted teeth in all three planes of space, as much the same as with two periapical films in the tube-shift method, with the understanding that the source of radiation comes from behind the patient; thus, the movements are reversed for position. *(image size distortion; object further away from the image receptor (film) will be depiceted more magnified than objects closer to the film


CT/CBCT
Clinicians can localize canines by using advanced three-dimensional imaging techniques. Cone beam computed tomography (CBCT) can identify and locate the position of impacted canines accurately.
By using this imaging technique, dentists also can assess any damage to the roots of adjacent teeth and the amount of bone surrounding each tooth. However, increased cost, time, radiation exposure, and medicolegal issues associated with using CBCT limit its routine use.

• Pre-Surgical Preparation

Treatment options
Several factors must be taken into consideration in determining
the treatment option chosen for management of the impacted canine, including:
• Patient age
• General dental health and oral hygiene
• Whether space is available within the arch or if it can be established with orthodontic manipulation
• Suitability of the first bicuspid to replace the canine
• Favorability of the position of the impacted canine and the likelihood
of being able to get it into position with orthodontic treatment
• Patient motivation for orthodontic treatment
• Medical contraindications for surgery

Treatment options

• Retention of the impacted canine in place with serial radiographic observation to check for development of asymptomatic pathosis with or without retention of the primary canine
• Extraction of the impacted tooth and retention of the primary canine with restorative procedures to improve its esthetic contours
• Extraction of the impacted tooth and primary canine followed by orthodontic space closure, substituting the first bicuspid for the extracted canine (“bicuspid substitution”)
• Extraction of the impacted tooth and primary canine with replacement using an implant-supported crown
• Surgical exposure of the impacted canine with orthodontic alignment of the ectopic tooth after its surgical exposure
• Autotransplantation of the impacted tooth into its anatomic position in the arch after orthodontic pretreatment for space opening


When to Extract an Impacted Canine
If it is ankylosed and cannot be transplanted,
If it is undergoing external or internal root resorption,
If its root is severely dilacerated,
If the impaction is severe (e.g., the canine is lodged between the roots of the central and lateral incisors and orthodontic movement will jeopardize these teeth),
If the occlusion is acceptable, with the first premolar in the position of the canine and with an otherwise functional occlusion with well-aligned teeth,
If there are pathologic changes (e.g., cystic formation, infection), and
If the patient does not desire orthodontic treatment.

Extraction Using Labial Approach

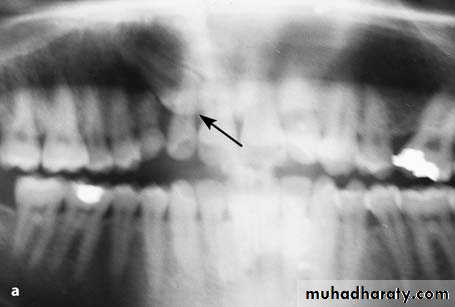

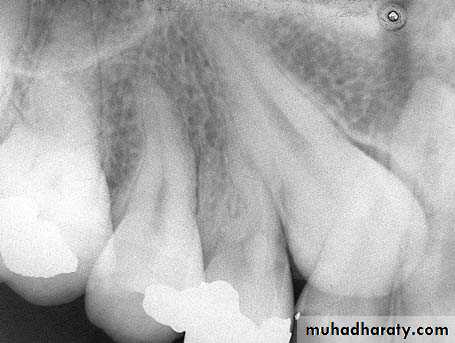

Radiograph showing impacted maxillary canines. Right canine is located labially while left canine is located palatally

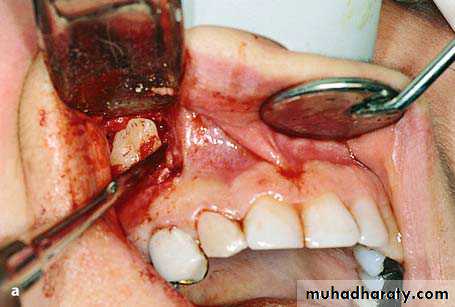

Clinical photograph of the labial area where the right canine is localized labially

right canine





Surgical procedure for removal of right impacted canine. A trapezoidal incision is created buccally. It is desirable to make an intersulcular incision extending to at least one to two teeth in each direction from the area of interest

Reflection of the mucoperiosteal flap

Note: A common error is to develop a small flap and extend it conservatively. This approach, although reasonable in theory, in practice often leads to tearing of the flap and/or inadequate exposure, ultimately resulting in a poor outcome. A well planned and properly retracted large flap generally heals as well, if not better, than a traumatized small flap.

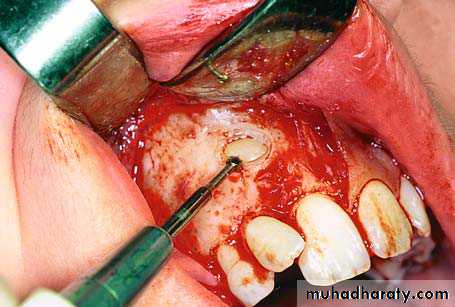

A round bur is used to remove the bone covering the crown of the tooth

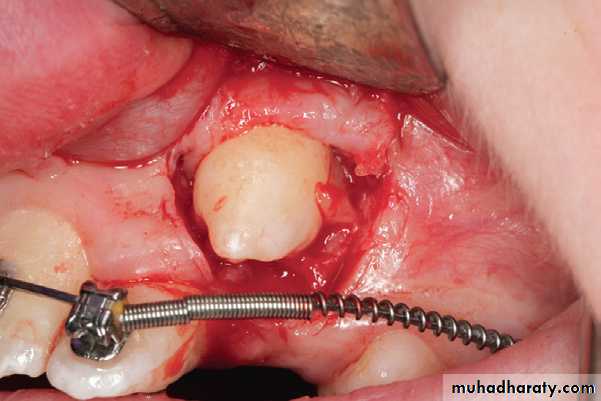

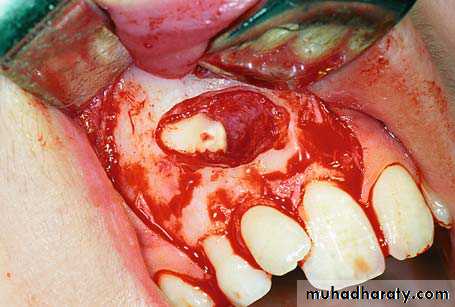

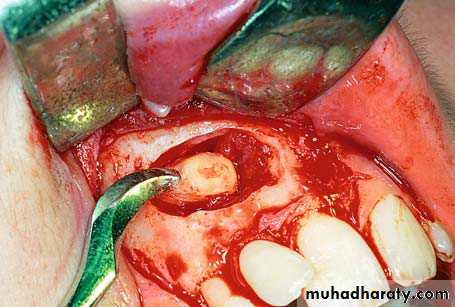

Complete exposure of the crown of the tooth and part of the root

Sectioning of the crown–root at the cervical line of the tooth, using a fissure bur

Removal of the crown of the impacted tooth using a straight elevator

Root of the tooth after removal of the crown

Purchase point created on the root for placement of the elevator blade

Luxation of the root using a curved Chompret elevator

Final step of root extraction

Removal of follicle using a hemostat and periapical curette

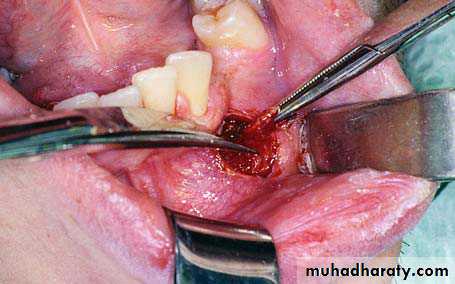

Surgical field after removal of the tooth

Smoothing of the bone edges of the wound using a bone file

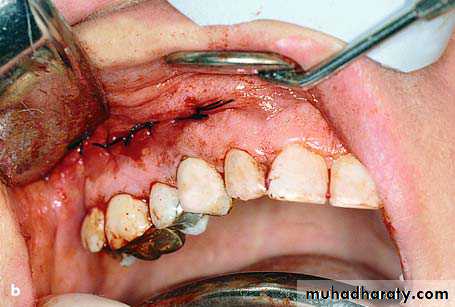

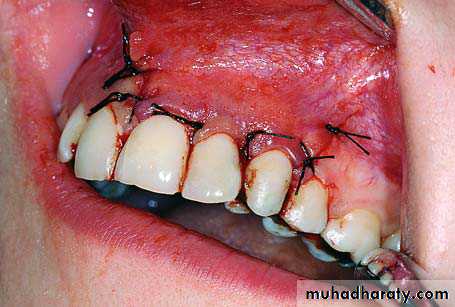

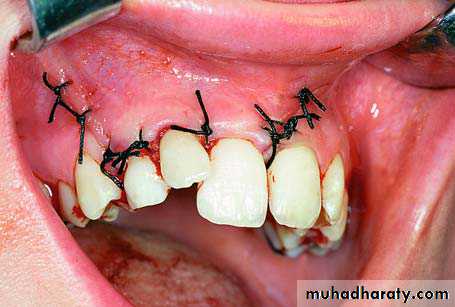

Surgical field after suturing

Extraction of Impacted Canine with Partial Bone Impaction

Radiograph showing an impacted maxillary canine with a labial localization

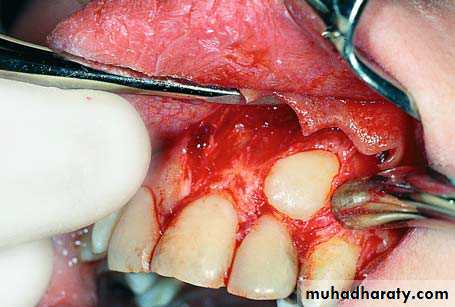

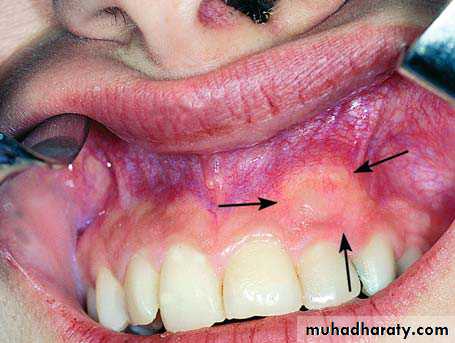

Clinical photograph of the area of impaction. The ischemic protuberance, shown by arrows, indicates the position of the crown of the impacted tooth

Trapezoidal incision and reflection of the mucoperiosteal flap

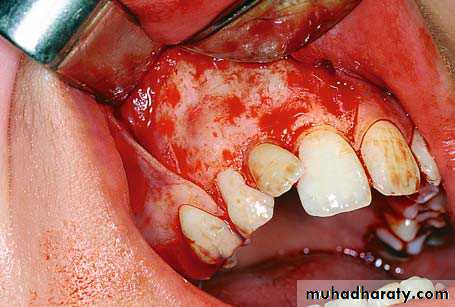

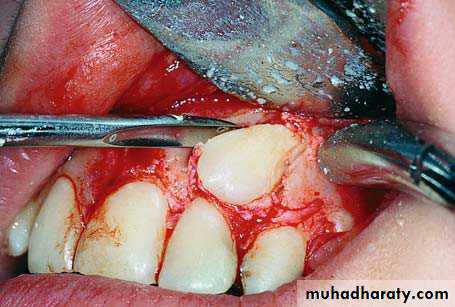

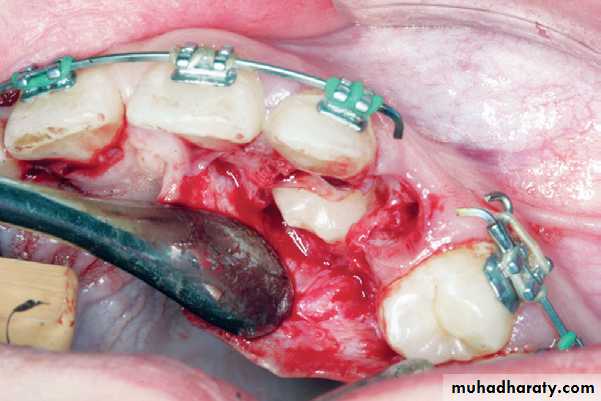

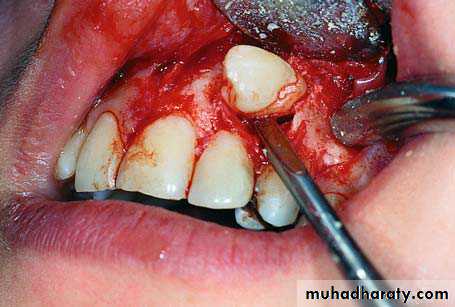

Reflection of the flap and exposure of the crown of the impacted tooth, which was not covered by bone

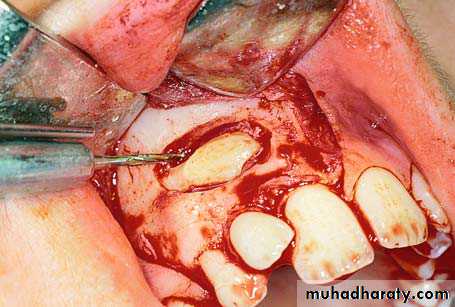

Creation of a groove between the crown and bone, allowing for positioning of the elevator

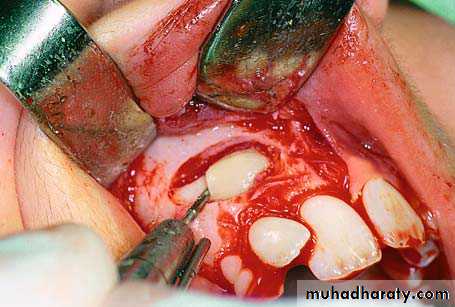

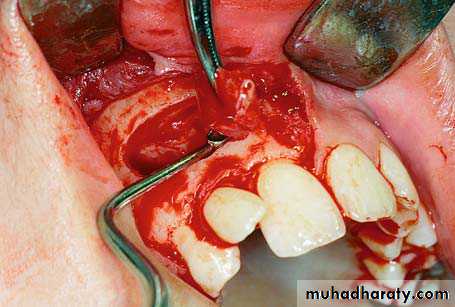

Placement of the straight elevator in a groove created for tooth luxation

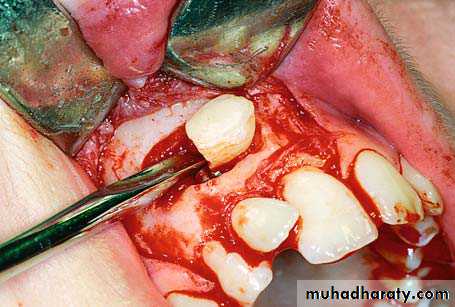

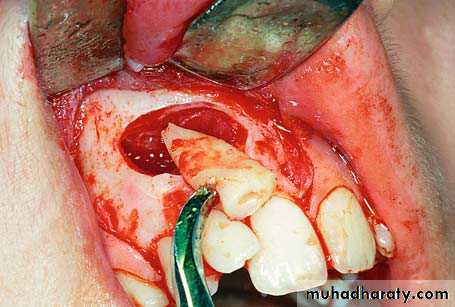

Removal of the tooth in a mesial, upward and outward direction

Smoothing of bone edges of the wound using a bone file

Surgical field after placement of sutures

Extraction Using Palatal Approach
When the impacted tooth is positioned palatally, the approach is achieved using a bilateral palatal flap. The incision for creation of the flap begins at the first or second ipsilateral premolar and, after continuing along the cervical lines of the teeth, ends at the first premolar on the contralateral side

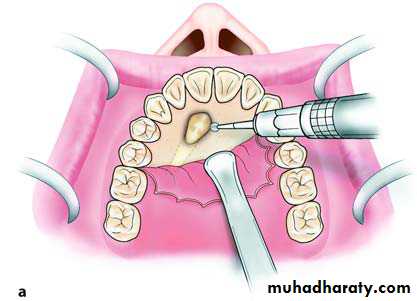

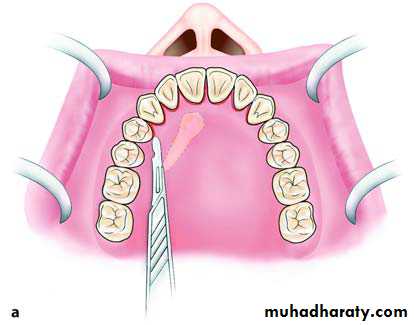

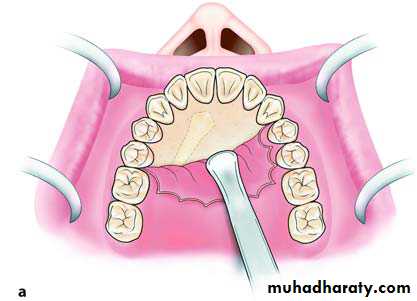

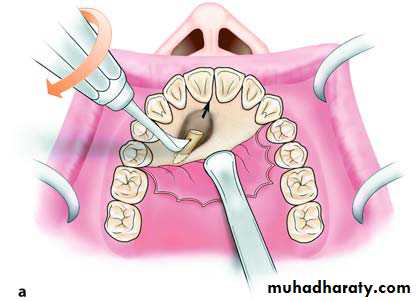

Palatal incision along the cervical lines of the teeth. a Diagrammatic illustration. b Clinical photograph

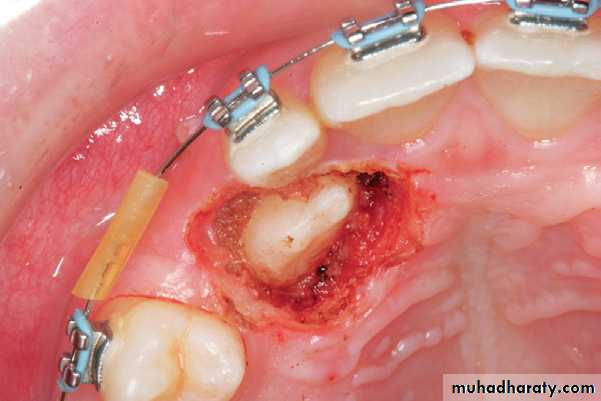

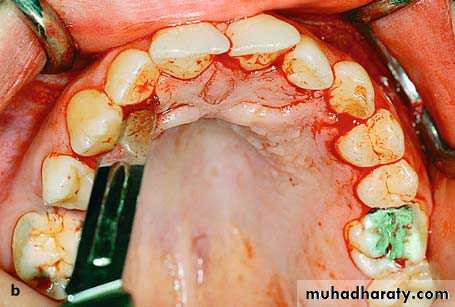

After careful reflection of the mucoperiosteum, part of the crown of the tooth may be exposed, or the entire crown may be covered by bone, resulting in protuberance at that site

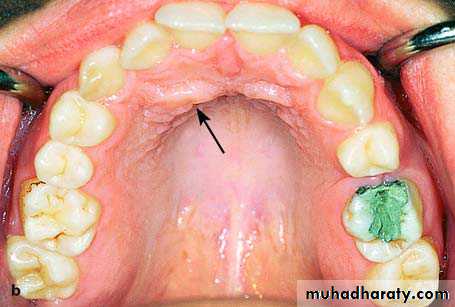

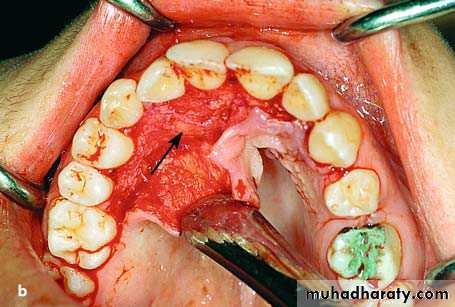

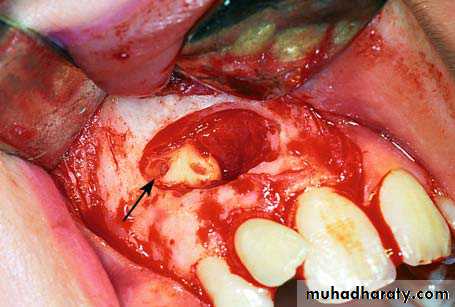

reflection of the flap. Arrow points to the protuberance of bone, which indicates the position of the crown of the impacted tooth

Enough bone must be removed to expose the entire crown, so that the tooth may be extracted using forceps or an elevator. If the tip of the crown is positioned between the roots of the lateral and central incisors, there is a risk of injuring their roots during the exposure attempt. That is why extraction of the canine must be achieved using the technique of separating the crown from the root.

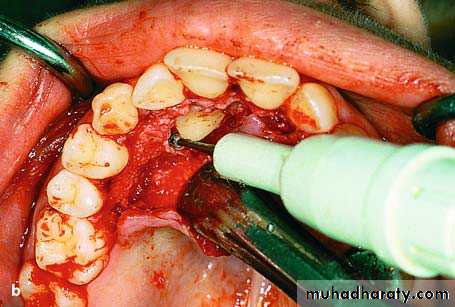

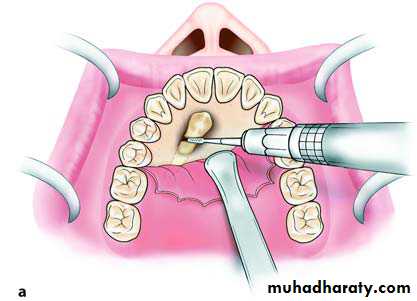

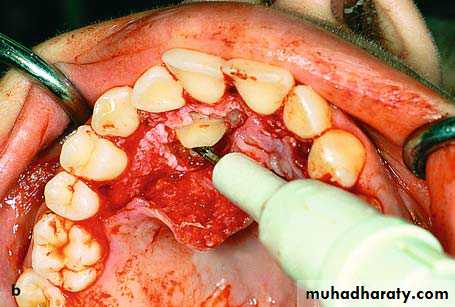

Removal of bone using a round bur, to expose the crown of an impacted tooth

More specifically, a groove is created on the cervical line of the tooth using a fissure bur and, after placing the elevator blade in the groove created, the instrument is rotated until the crown is separated from the root. The crown is then removed, and, after using the round bur to create a purchase point on the root for placement of the angled elevator’s tip, the root is elevated from its bed.

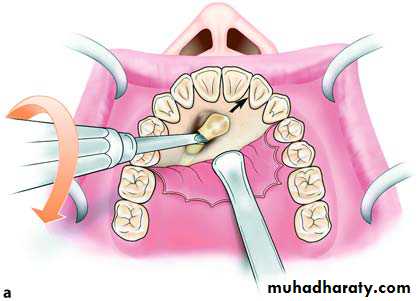

Sectioning of an impacted tooth at the cervical line and separation of the crown from the root






Placement of the straight elevator in the groove created to separate the crown from the root and removal of the crown.

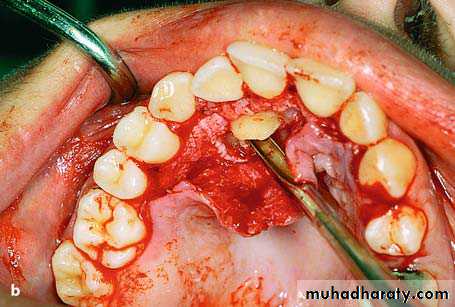

Removal of root from its position in the bone using an angled elevator

After this procedure, the bone edges are smoothed, and the area is thoroughly irrigated with saline solution, while the flap is repositioned and sutured with interrupted sutures

Surgical field after removal of the impacted tooth

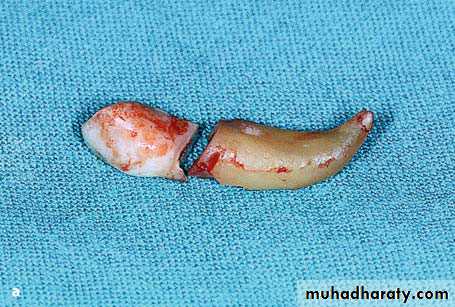

The two segments of tooth after removal

The flap is repositioned in its initial position and pressure is applied to the area with the index finger for a few seconds.

Surgical field after suturing

Ectopic Impacted Canine
The presence of ectopic impacted teeth is relatively rare. Ectopic teeth are usually localized in the following places: underneath permanent teeth, near the angle of the mandible, inside the ramus, near the mandibular notch, the coronoid process, the maxillary tuberosity, the wall of the maxillary sinus, the nasal cavity and, rarely, near the orbit.

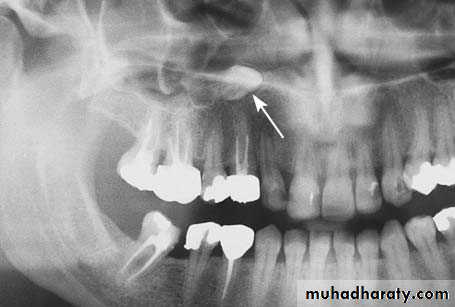

Radiograph showing impacted canine with a labial localization, which is in contact with the anterior wall of the maxillary sinus

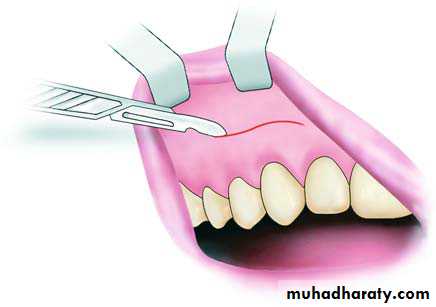

Incision in canine fossa region, for sinus trephination using the Caldwell–Luc approach

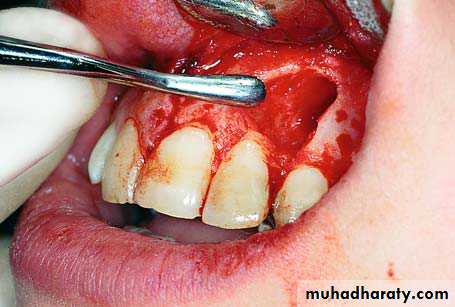

Reflection of the mucoperiosteal flap and exposure of the anterior wall of maxillary sinus
First a horizontal incision is made in the region of the canine fossa, from the lateral incisor as far as the first molar.

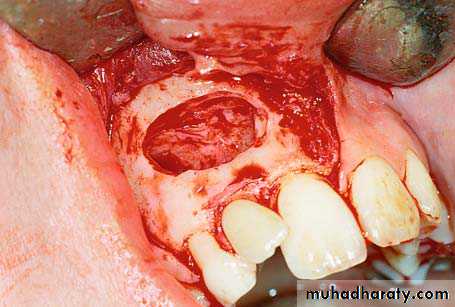

The mucoperiosteum is then reflected and the bone of the anterior wall of the maxillary sinus is exposed.

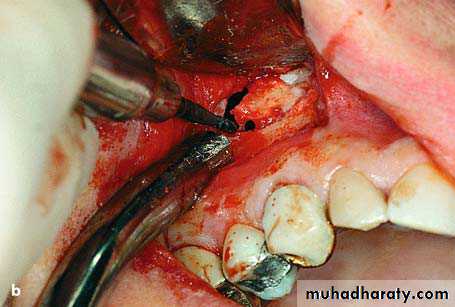

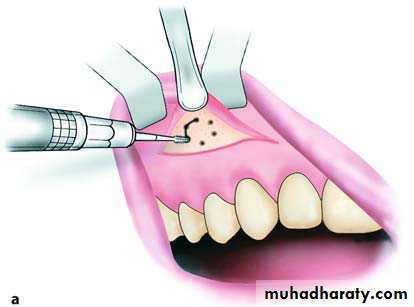

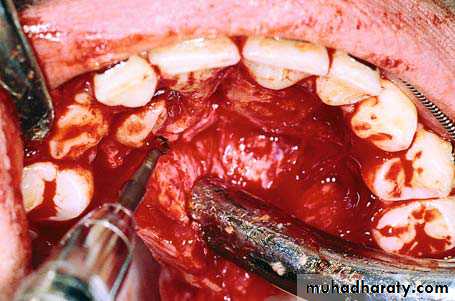

Holes are drilled through the bone using a small round bur where the impacted tooth is estimated to be, and these holes are then joined together. After removal of the bone surface, the impacted tooth is exposed and carefully luxated outwards.

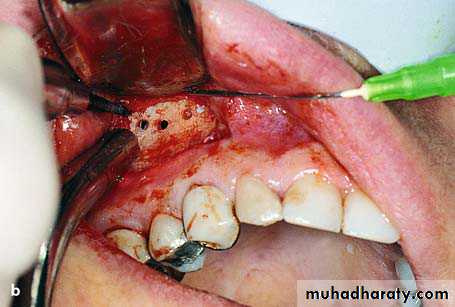

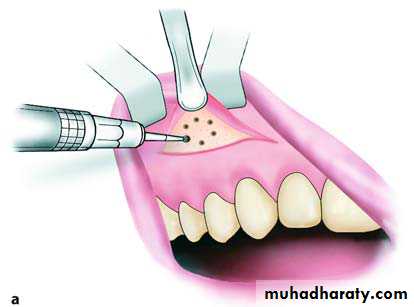

Holes drilled through the bone surface defining the border of bone to be removed

Connecting holes to remove the bone covering the impacted tooth.

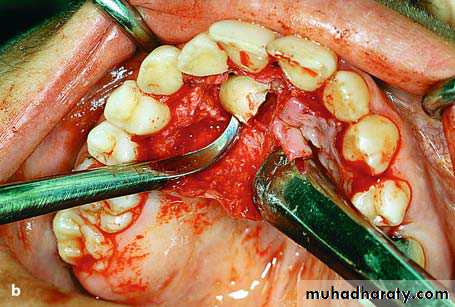

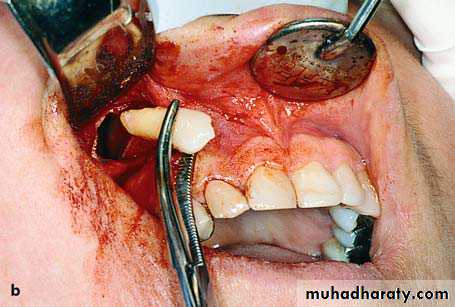

a Exposure and luxation of the impacted tooth using straight elevator. b Removal of tooth using a hemostat
After smoothing the bone edges of the wound, the area is irrigated thoroughly with saline solution and any foreign matter that has entered the maxillary sinus is aspirated with the suction tip.
Finally, the flap is sutured and nasal decongestants are prescribed.

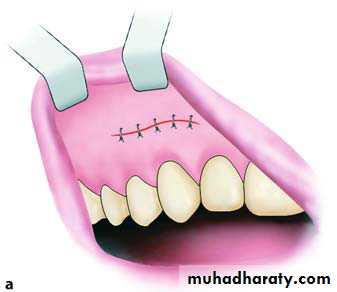

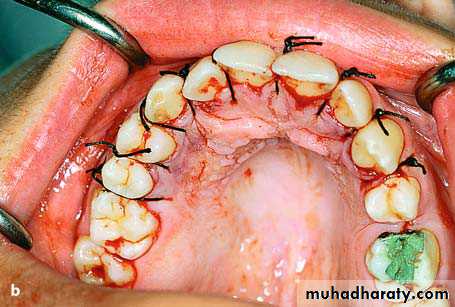

Surgical field after suturing. a Diagrammatic illustration. b Clinical photograph

Exposure of Impacted Teeth for Orthodontic Treatment
Four basic surgical techniques have been described by Kokich and Cooke for managing the impacted canines
1.Gingivectomy/soft tissue window
2. Apically positioned flap
3. Open eruption—replaced flap with a soft tissue window or tissue excision without flap
4. Closed eruption—replaced flap without a soft tissue window removed

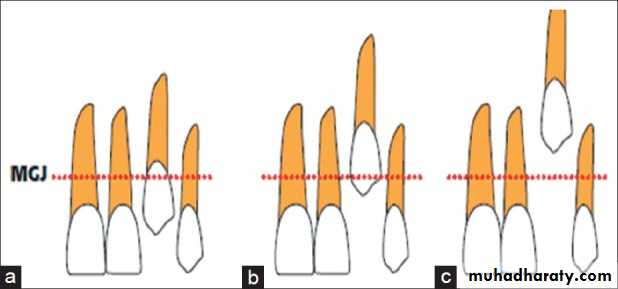

Recommended surgical techniques relative to the mucogingival junction (MGJ) when the canine cusp is (a) coronal to the MGJ: gingivectomy; (b) apical to the MGJ: creating an apically positioned flap; and (c) significantly apical to the MGJ: using a closed eruption technique

LABIAL/BUCCAL IMPACTIONS

If the crown of the impacted tooth is mostly below the mucogingival junction and an adequate zone of attached tissue is present such that a 3-mm wide band of keratinized tissue can be maintained, a gingivectomy exposing one half to two thirds of the crown can be done. It is unusual for this to be the case, because the buccally impacted canine usually has relatively thin, non keratinized tissue overlying the crown.

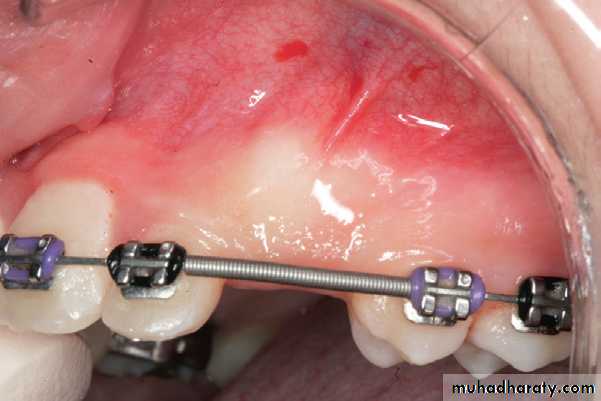

Labially positioned impacted tooth exposed by gingivectomy

When the labially positioned canine overlaps the lateral/central incisors, an apically positioned flap (APF) allows exposure of the tooth with maintenance of an adequate zone of keratinized gingiva.
An apically positioned flap is designed as a full-thickness mucoperiosteal flap starting from the crest of the alveolar ridge with an adequate amount of attached mucosa. The flap is mobilized by creating vertical releasing incisions on each side; subperiosteal dissection is then carried out to the level of cemento-enamel junction of the erupted tooth.
. Bone overlying the unerupted tooth is removed to facilitate bonding of a
bracket. Upon completion of the bonding the flap is positioned apically at the cemento-enamel junction and sutured to the periosteum. Then placement of a periodontal dressing such as PerioPackTM over the exposed crown to limit the soft tissue overgrowth.

Apically positioned flap

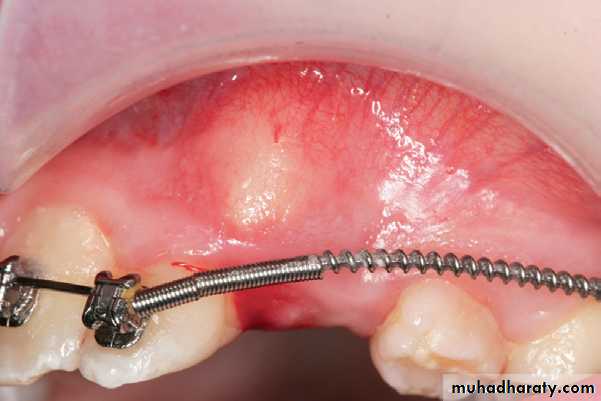

Labially impacted canine tooth managed with an apically positioned flap.

Two basic approaches, either a “closed” or “open” technique, are used to provide access to the impacted canine.

In the “closed eruption” Technique, the crown of the canine is exposed, the orthodontic eruption device is attached to the crown, and the flap is sutured back over the tooth, leaving only the eruption chain exposed for orthodontic manipulation. The eruption chain is usually exited through either the crestal incision or the extraction site of the primary canine and ligated to the archwire or brackets on the adjacent teeth.
“closed eruption”technique
Surgical exposure of impacted canine






Flap, closed eruption procedure for exposure (A) and bonding (B) of palatally impacted tooth (C), Flap sutured back over
the tooth, leaving only the eruption chain exposed.



C
A
B

In the “open eruption” technique, the crown of the impacted tooth is exposed with either an opening cut into the overlying tissue without flap reflection, or a flap is reflected, a window cut in it, and then the flap is repositioned.
“open eruption”technique

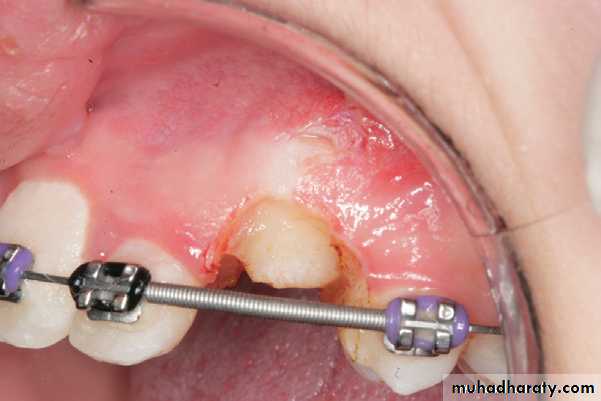

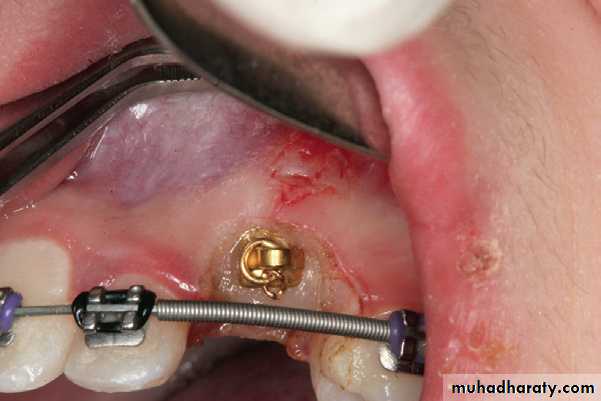

Flapless open procedure (A) with periodontal dressing applied (B) for palatally impacted tooth
open procedure

PALATALLY IMPACTED CANINES

The treatment options for the palatally impacted canine include open or closed eruption techniques.
After removal of the deciduous teeth, a palatal flap is created, underneath which part of the bone covering the teeth is exposed. A round bur is then used to remove the bone covering the crowns and orthodontic brackets are placed for traction of the teeth into their normal position in the dental arch. The area is then irrigated with saline solution and the flap is closed with interrupted sutures.
In simple palatal impactions that are not deep within the bone, either the open or closed technique can be utilized. In cases of more deeply impacted canines, the open technique is more difficult because it can be challenging to avoid the tissue closing back over the hole, even with periodontal packings used to initially keep the site open..

Disadvantage of open technique

• Impairment of healing and recovery time
• Pain
• Oral function impairment e.g (ability to eat and enjoy food, swallowing, and mouth opening), and
• Food accumulation after an open eruption technique

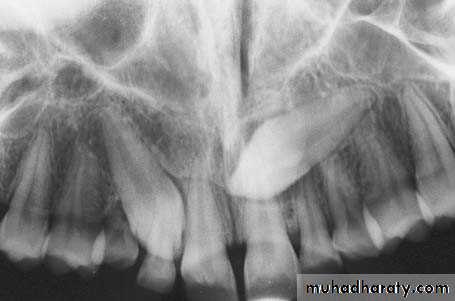

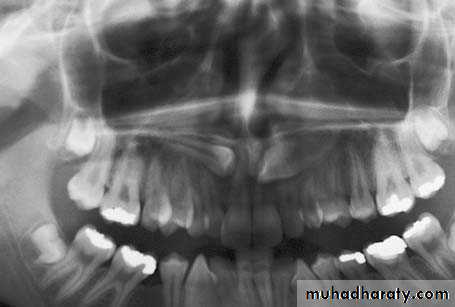

Radiograph showing impacted maxillary canines with a palatal localization

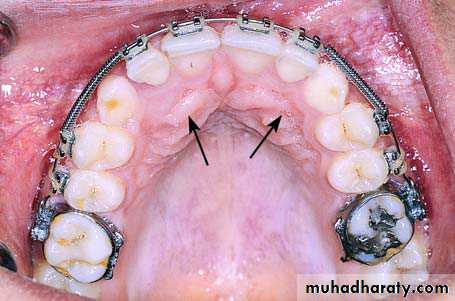

Clinical photograph of the area of impaction

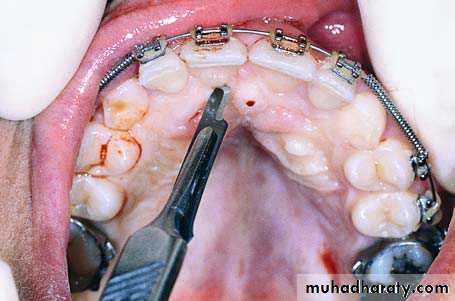

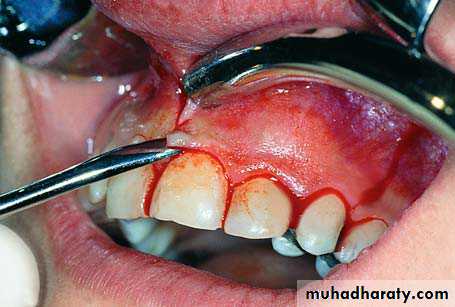

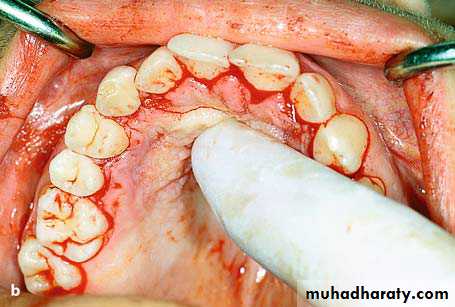

Palatal incision along the cervical lines of teeth using a scalpel with a no. 15 blade

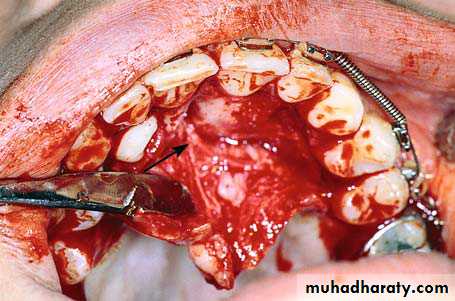

Reflection of the mucoperiosteal flap. Arrow points to the nasopalatine nerve

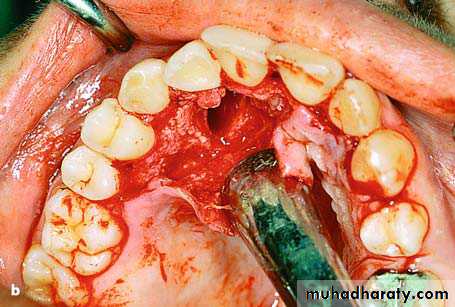

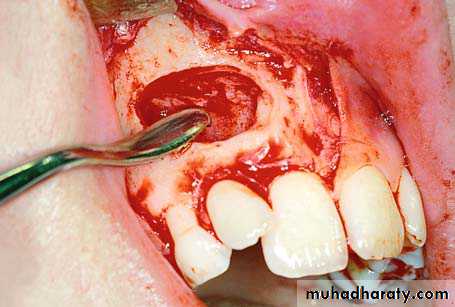

Removal of the bone covering the crowns of impacted teeth

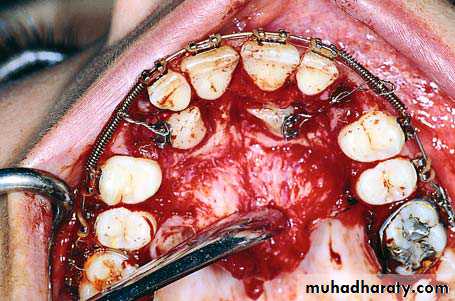

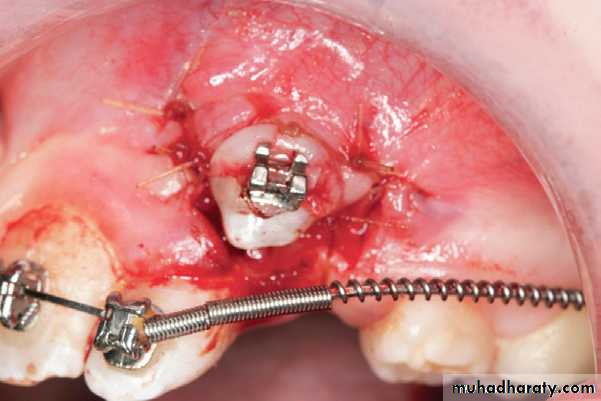

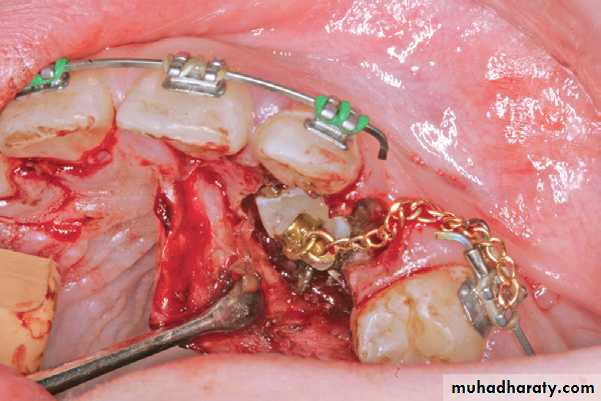

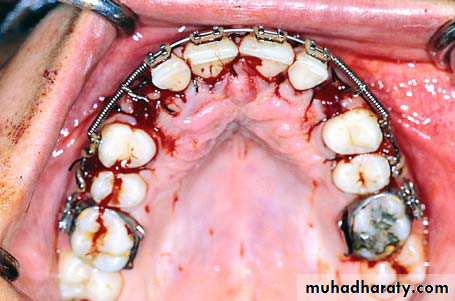

Surgical field immediately after exposure of

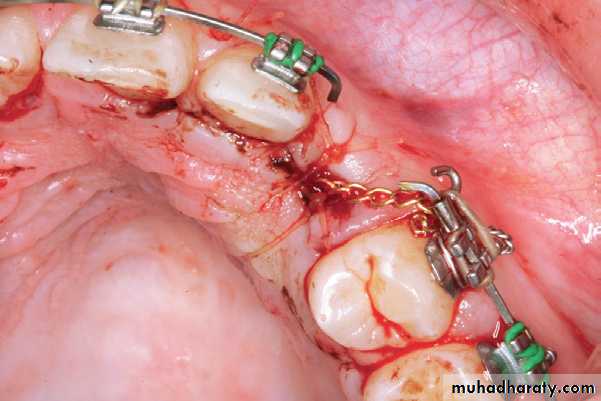

impacted teeth. Orthodontic brackets have been placed on exposed parts of the crowns of the teeth



Surgical field after suturing

INTRA-ALVEOLAR IMPACTIONS

Intra-alveolar impaction is suspected when the tooth is seen in the edentulous area on a radiograph but the crown is not palpable on the buccal or palatal aspect of the ridge.
Intra-alveolar impactions are typically a result of inadequate space in the arch for eruption; pathosis, such as a supernumerary tooth or a dentigerous cyst blocking eruption; or sometimes it is idiopathic.
In most intra-alveolar cases, a buccal flap procedure with bonding of an eruption bracket/chain device and closure of the flap is the procedure of choice.

Impacted Mandibular Canine

with Labial Position
The first technique, if the area locating the impacted canine presents a slight protuberance and the crown of the tooth is covered by soft tissue only. To expose the tooth, first an incision using an electrosurgical blade is made over the crown, and then the soft tissue is excised using scissors and a periosteal elevator, so that exposure is adequate. Afterwards, a surgical dressing is applied to the wound until the day the orthodontist bonds the bracket for traction of the tooth to its normal position in the dental arch.

The second technique involves exposure of the crown by creating a flap. More specifically, after creating an L-shaped incision, a small flap is reflected and the crown of the impacted tooth is exposed. The tooth is then dried and after the orthodontist has placed the bracket on the crown of the tooth, the flap is repositioned and the wound is sutured.
Impacted Mandibular Canine

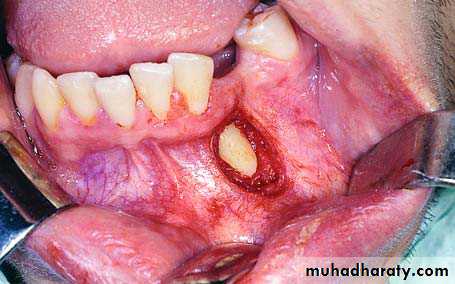

with Labial Position

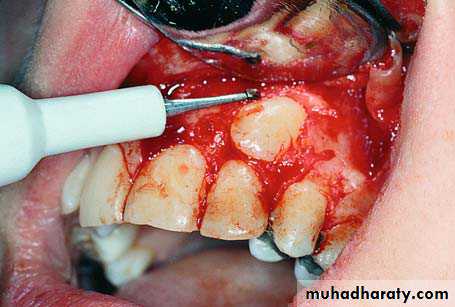

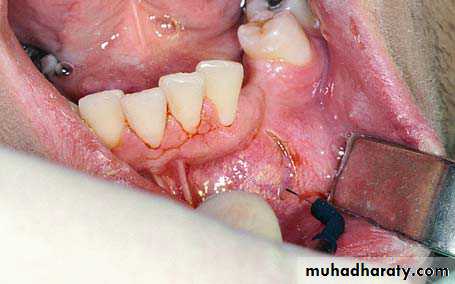

Incision created using an electrosurgical blade to expose the crown of the impacted tooth

Removal of soft tissues covering the crown of the tooth

Surgical field after exposure of the crown

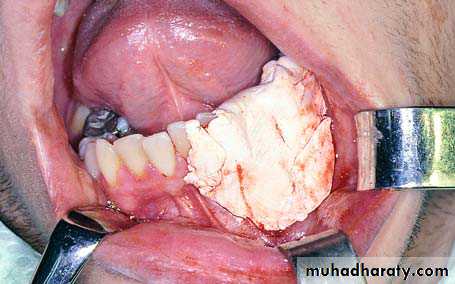

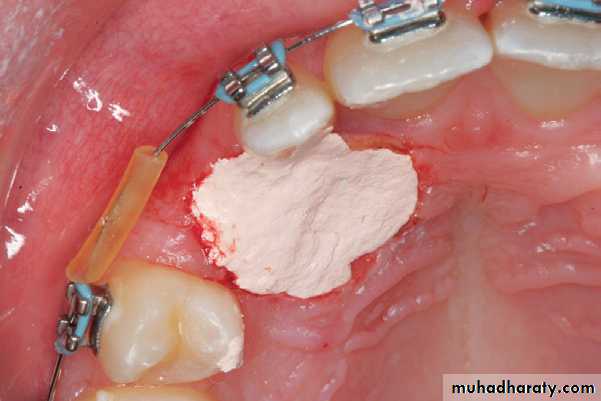

Operation site covered with surgical dressing

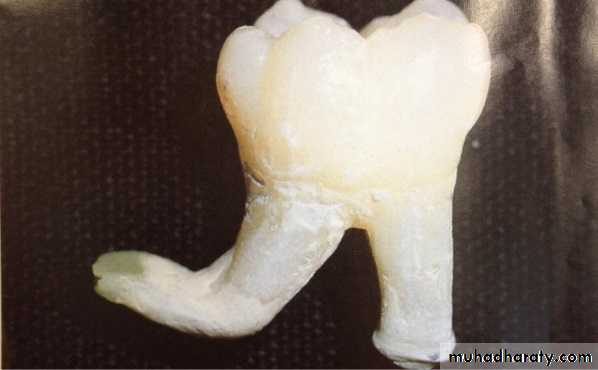

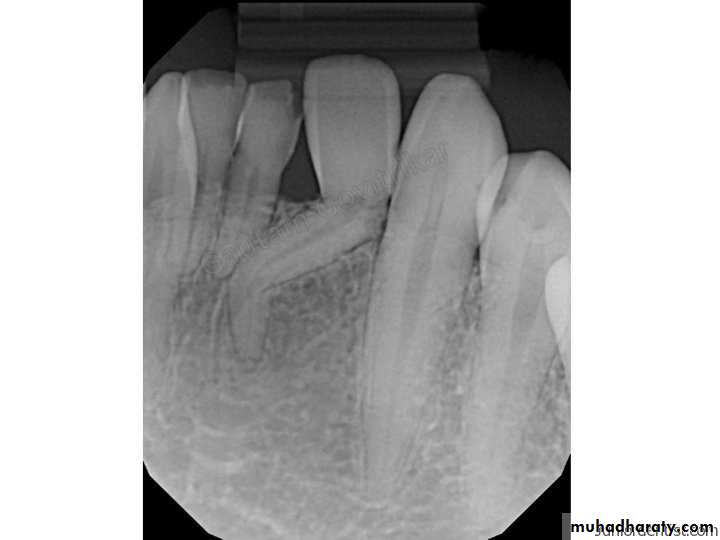

Dilaceration

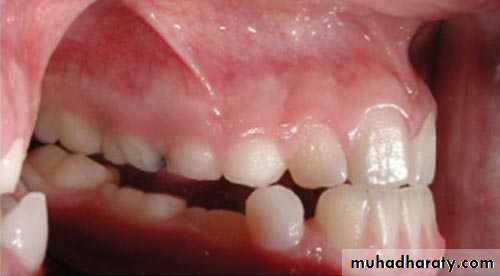

Dilaceration: Is a developmental disturbance in shape of teeth. It refers to an angulation, or a sharp bend or curve, in the root or crown of a formed tooth.
Etiology: The condition is thought to be due to trauma or possibly a delay in tooth eruption relative to bone remodeling gradients during the period in which tooth is forming. Developmental disturbances,
Developmental syndromes,
Trauma secondary to neonatal laryngoscopy,
Endotreacheal intubation.

Treatment and prognosis

• Extraction of primary deciduous teeth, if they demonstrate undesired resorption and result in delayed eruption.
• Grossly deformed teeth required surgical extraction because of extensive deformation of the affected tooth, repositioning and perforation of buccal alveolar ridge by the mispositioned root.
• In mild dilaceration cases, no treatment is required.

Definition: Is the most common supernumary (extra) tooth. It is located in the maxilla in the midline (hence the special name which means "middle tooth").
They can be well formed or just little clumps of tooth like stuff. A related phenomenon is the odontoma.
Mesiodens tooth
Aetiology
possible causes include
• restricted increase in the activity of the dental lamina (hyperactivity theory)
• splitting of the tooth bud into two equal or unequal sections (dichotomy theory)
Genetics
An X-linked inheritance documented.




Associations
it is often an isolated finding
may be part of a syndrome:
• cleft lip and palate
• cleidocranial dysostosis
• Gardner syndrome
Radiographic features
classified into eumorphic (similar to a normal-sized central incisor) and dysmorphic
three common dysmorphic shapes
• conical or peg shaped (most common ~70%)
• tuberculate (more than one cusp or tubercle)
• supplemental (duplication of a normal tooth)
55% grow in the downward position (35% are inverted and 7% are horizontal)
most remain impacted but 25% will erupt (usually eumorphic or conical shape)

Treatment and prognosis

immediate extraction if there is a complication
early extraction before root formation of the permanent incisors
late extraction after root formation of the permanent incisors
Complications
impaction or delayed eruption of adjacent incisors
widening of the gap between the incisors (diastema)
axial rotation or inclination of erupted permanent incisors
abnormal curving of teeth (dilaceration)
resorption of adjacent teeth
development of dentigerous cysts (5%)
eruption into the nasal cavity


Infra-eruption or submersion of a tooth is due to a failure in eruption in line with adjacent teeth in the vertical plane of occlusion.

Aetiology

The causes include ankylosis, impaction, absence of a permanent successor, disturbances in local metabolism, gaps in the periodontal membrane, trauma, infection, chemical or thermal irritation, failure in bone growth and abnormal tongue pressure..

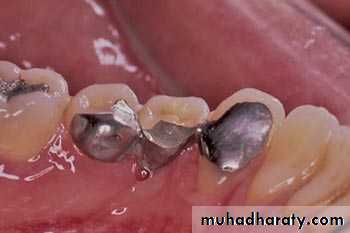

submerged teeth

Potential complications
1. An infraerupted tooth can result in insufficient development of adequate width and height of supporting bone.
2. Insufficient bone may also result in dehiscences, periodontal pocketing and root exposure of the adjacent teeth.
3. The infraerupted tooth and adjacent teeth are also at increased risk of developing a carious lesion due to plaque accumulation surrounding the crown and difficult access for proper oral hygiene.
Diagnosis
• Clinical examination reveals a primary tooth that is below the level of the occlusal plane.
• Tapping on the tooth reveals an abnormal percussive 'cracked tea-cup' sound and is indicative of ankylosis.
• Evaluation with a periapical radiograph is indicated and can illustrate the lack of a well defined periodontal ligament and lamina dura space and fusion of the root with bone.

Treatment

Treatment of a tooth that is not ankylosed

• If the tooth is not ankylosed, it has been suggested to wait for normal exfoliation.

• To prevent tipping of the adjacent tooth and over eruption of the opposing tooth, restoration of the occlusal surface is recommended.
• Extraction is recommended if there is a progressive, deep infraocclusion below the gingival margin, severe tipping, ectopic eruption of the permanent successor or caries and abscess formation.
• If a malocclusion is present, the patient should be referred to an orthodontist for evaluation as extraction of the non-ankylosed infraerupted tooth may influence future orthodontic treatment.


Treatment of a tooth that is ankylosed

• The vast majority of infraerupted teeth are ankylosed. If ankylosis is diagnosed, the tooth should be monitored until the time that it interferes with eruption of the succendaneous tooth, tipping of the adjacent teeth occurs or supraeruption of opposing teeth occurs. Restoration as crown buildup should be done to maintain the space.
• If tipping is occurring and space is lost, the tooth should be extracted and space maintenance should be undertaken until the permanent successor has erupted.
• If there is no permanent successor, early extraction is recommended followed by orthodontic treatment to close the space and prevent the formation of a bony defect.



Illustration of edentulous space following extraction of infraerupted primary molar is replaced with a Maryland bridge .

Thanks for your attention
