Cardiovascular system CVS

Fourth stage

Medicine(CVS)
Lec-
Dr.Jasim

1/3/2015

Congenital Heart Disease
Aetiology and incidence
The incidence 0.8% of live births.
Maternal infection or exposure to drugs or toxins may cause congenital heart disease. Maternal rubella infection is associated with persistent ductus arteriosus, pulmonary valvular stenosis, and atrial septal defect. Maternal alcohol misuse is associated with septal defects, and maternal lupus erythematosus with congenital complete heart block. Genetic or chromosomal abnormalities such as Down’s syndrome may cause septal defects.
Divided into noncyanotic (L R) and cyanotic (R L) categories based on direction of shunting
Incidence of congenital cardiac malformation
Ventricular septal defect 30
Atrial septal defect 10
Patent ductus arteriosus 10
Pulmonary stenosis 7
Coarctation of aorta 7
Aortic stenosis 6
Tetralogy of Fallot 6
Complete transposition of great arteries 4
Noncyanotic CHD (L R)
Atrial septal defects (ASD)
Ventricular septal defects (VSD)
Patent ductus arteriosus (PDA)
Obstruction to blood flow
Pulmonic stenosis (PS)
Aortic stenosis (AS)
Aortic coarctation
Atrial Septal Defect
Three major types:
Ostium secundum
most common



In the middle of the septum in the region of the foramen ovale
Ostium primum
Low position
Form of AV septal defect
Sinus venosus
Least common
Positioned high in the atrial septum

Clinical Features

Most children are asymptomatic for many years and the condition is often detected at routine clinical examination
Qp/Qs > 1.5: symptoms (+) :-
Effort dyspnea (exercise intolerance)
Palpitation (Af/AF)
Paradoxical embolism
Pulmonary hypertension
Eisenmenger's syndrome ((If severe pulmonary hypertension develops,
a left-to-right shunt may reverse, resulting in right-to-left shunt and marked cyanosis with clubbing))
signs:
Right ventricular heave
S2 widely split and usually fixed
Systolic murmur at left 2nd insterconstal space
mid-diastole rumble at LLSB (tricuspid flow)
Investigations
EKG: SR / Af / AF; RBBB
CXR: cardiomegaly, dilated PA
Echo: TTE, TEE
Cath: Qp / Qs, PA pressure


Treatment
Closure generally recommended when ratio of pulmonary to systemic blood flow (qP/qS) is > 1.5:1
Closure can also be accomplished at cardiac catheterisation using implantable closure devices.
Ventricular Septal Defect


Single most common congenital heart malformation, accounting for almost 30% of all CHD
Defects can occur in both the membranous portion of the septum (most common) and the muscular portion
Two major types:
Small, All close spontanously (90% by 6 years)
Large VSDs with normal PVR (Usually requires surgery, otherwise patient will develop CHF).

Clinical features

Asymptomatic
may present as cardiac failure in infants.
rarely as Eisenmenger’s syndrome
Systolic thrill and Harsh pansystolic murmur heard best at the left sternal border with radiation over the entire precordium
Treatment
Small ventricular septal defects require no specific treatment. Cardiac failure in infancy is initially treated medically with digoxin and diuretics.
Persisting failure is an indication for surgical repair of the defect. Percutaneous closure devices are under development

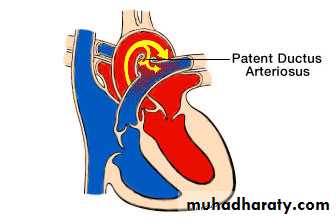

Patent Ductus Arteriosus
Persistence of normal fetal vessel joining the pulmonary artery to the aorta.
Normally, the ductus closes soon after birth but sometimes fails to do so.
Accounts for about 10% of all cases of CHD.
More common in females

Clinical Features

Clinical findings and course depend on size of the shunt and the degree of associated pulmonary hypertension.
With small shunts there may be no symptoms for years, but when the ductus is large, growth and development may be retarded.
Usually there is no disability in infancy but cardiac failure may eventually ensue.
Pulses are bounding and pulse pressure is widened
A continuous ‘machinery’ murmur is heard with, maximal in the second left intercostal space below the clavicle.
Treatment
consists of surgical correction when the PDA is large.
Transcatheter closure of small defects has become standard therapy
In preterm infants indomethacin is used (80-90% success in infants > 1200 grams)

Coarctation of the aorta

Narrowing of the aorta occurs in the region where the ductus arteriosus joins the aorta, i.e. at the isthmus just below the origin of the left subclavian artery
The condition is twice as common in males
Simple coarctation
Complex coarctation: combine other lesions (bicuspid aortic valve, intracranial aneurysm)
Clinical Features
Epistaxis ,headache, leg weakness on exertion
Leg claudication is rare
Brachial pressure> popliteal pressure 10mmHg
The BP is raised in the upper body but normal or low in the legs. The femoral pulses are weak, and delayed in comparison with the radial pulse
A systolic murmur is usually heard posteriorly, over the coarctation.


Investigations
Chest X-ray in early childhood is often normal but later may show changes in the contour of the aorta (indentation of the descending aorta, ‘3 sign’) and notching of the under-surfaces of the ribs from collaterals.
MRI is ideal for demonstrating the lesion .
The ECG may show left ventricular hypertrophy.

"pre-stenotic and post-stenotic dilatation to form “3” shape"

Treatment
Interventional indication:
Arm > leg systolic BP 10mmHg
Radial-femoral pulse delay
Peak trans-coarctation pressure gradient >20mmHg
Methods:
Surgery
Transcatheter

Cyanotic CHD (R L)

Tetralogy of Fallot (TOF)
Tricuspid atresia (TA)
Total anomalous pulmonary venous return (TAPVR)
Truncus arteriosus
Transposition of the great vessels

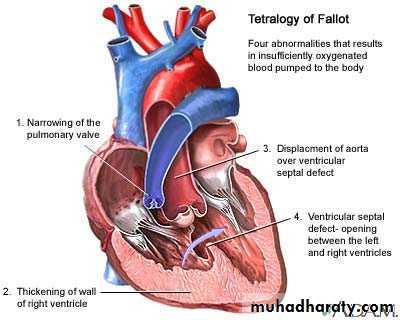

Tetralogy of Fallot
VSD
Overriding aorta
RVOT obstruction(PS)
RVH
ASD (pentalogy)

Most common cyanotic lesion

Clinical findings
vary depending on degree of RVOFT obstruction
Most patients are cyanotic by 4 months and it is usually progressive
Hypoxemic spells (“tet spells”) are one of the hallmarks of severe tetralogy
Clubbing
Systlic ejection murmur at the upper LSB

Tet spells most commonly start around 4 to 6 months of age and are charcterized by :

Sudden onset or deepening of cyanosis
Sudden onset of dyspnea
Alterations of consciousness
Decrease in intensity of systolic murmur

Investigations

ECG shows right ventricular hypertrophy
chest X-ray shows an abnormally small pulmonary artery and a ‘boot-shaped’ heart.
Echocardiography is diagnostic and demonstrates that the aorta is not continuous with the anterior ventricular septum


Treatment
Surgical Repair may be staged (modified BT shunt) or complete.
