PERSPECTIVE DRAWINGS

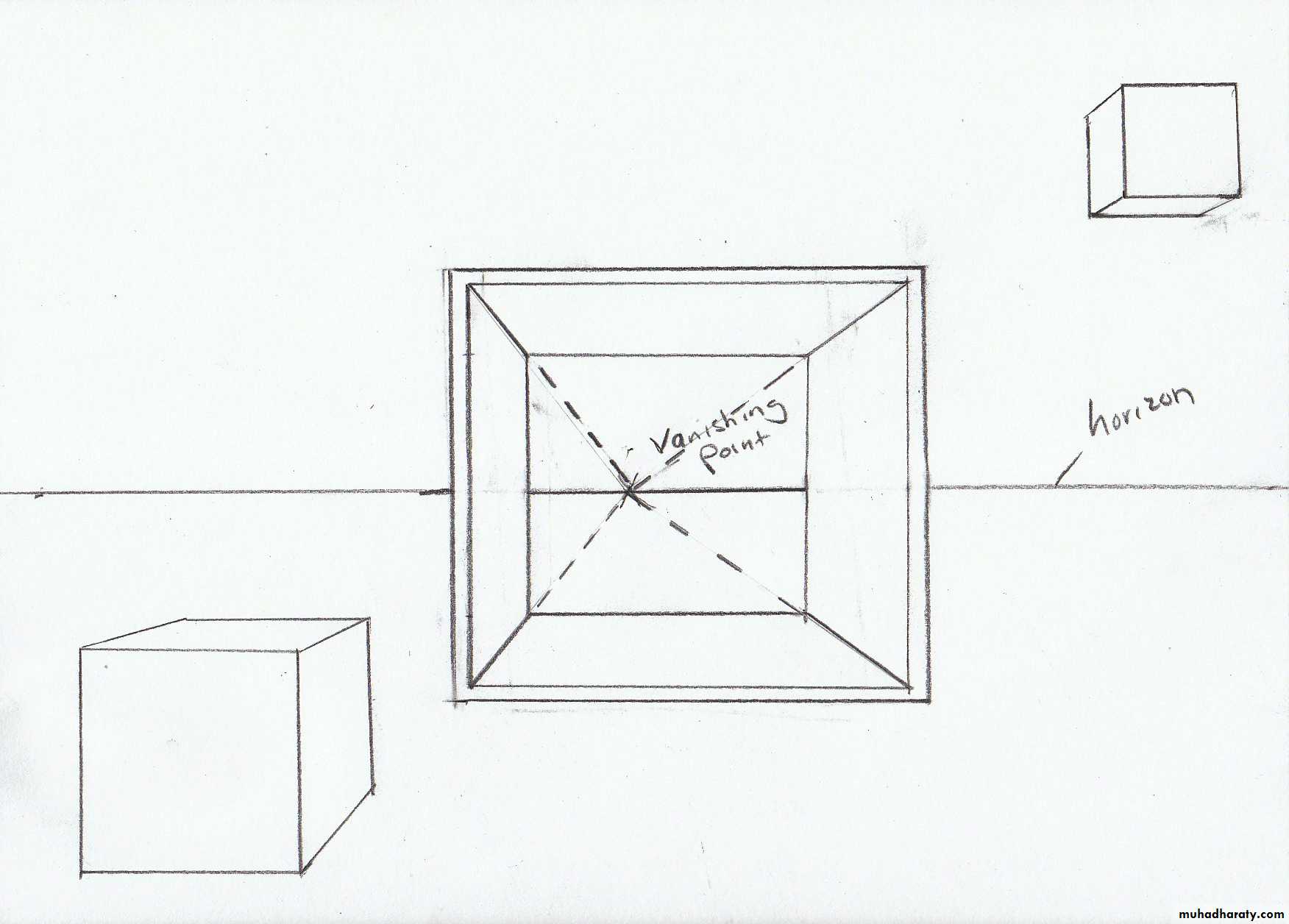

Details about one vanishing point perspective
Dr. Hasan Al.Sanjary

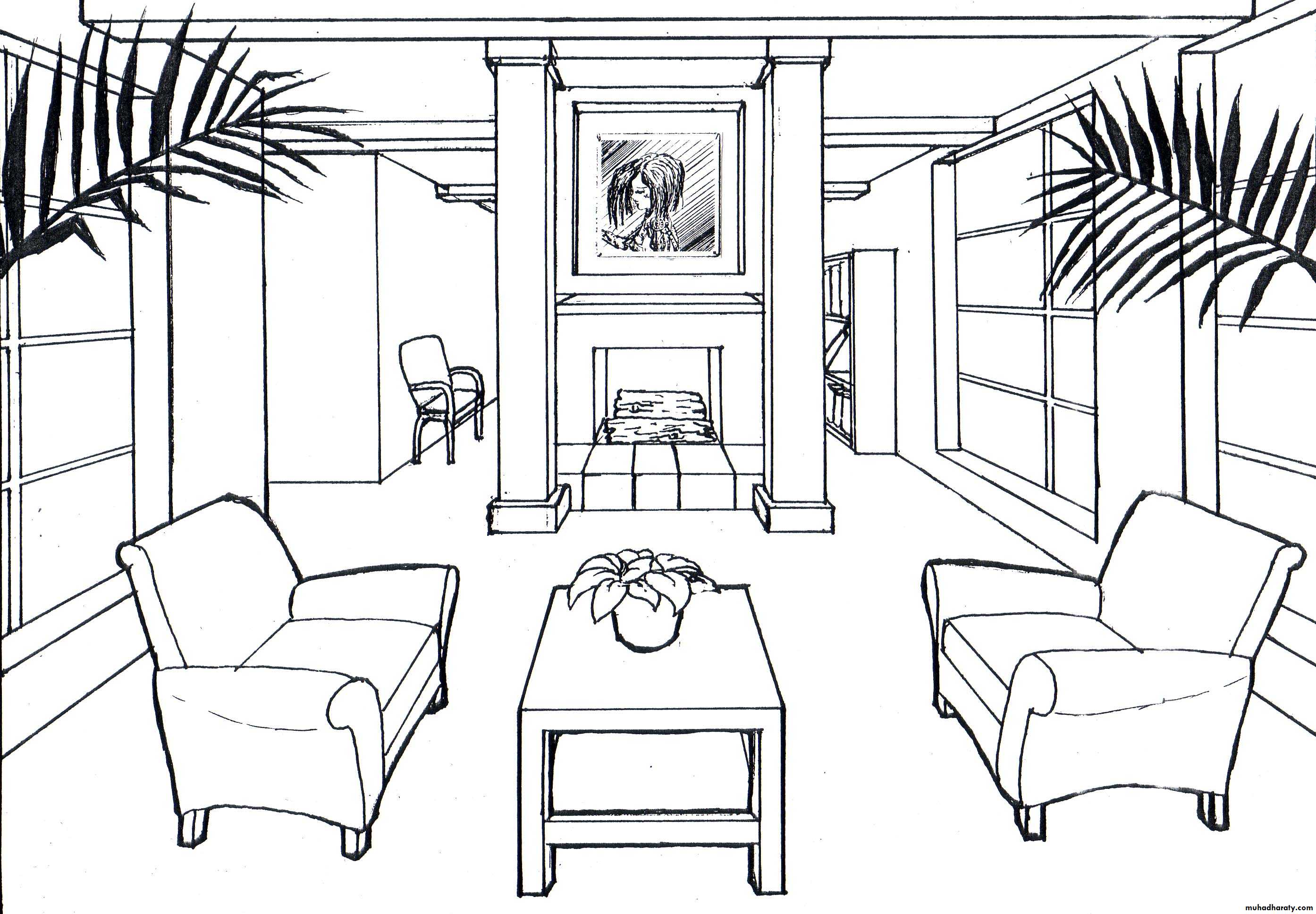

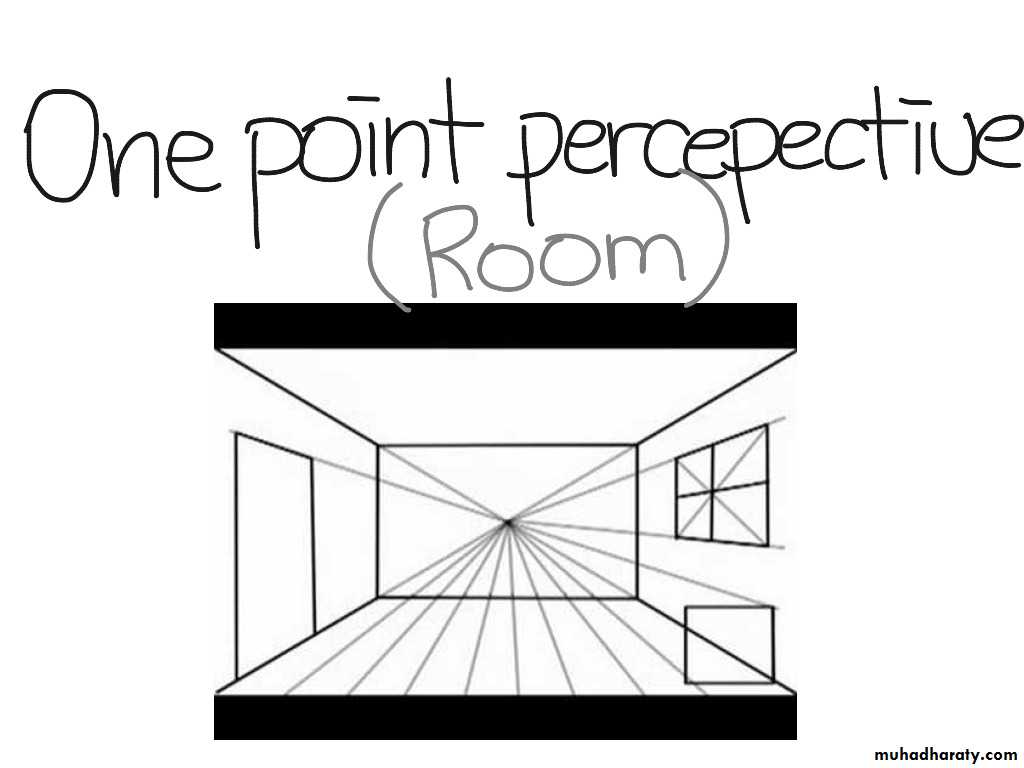

One vanishing point for interior design

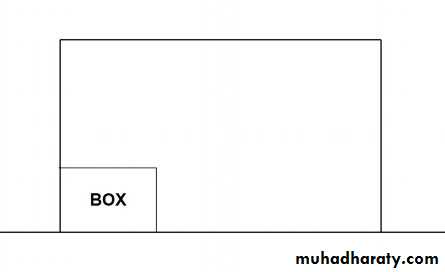

ELEVATION

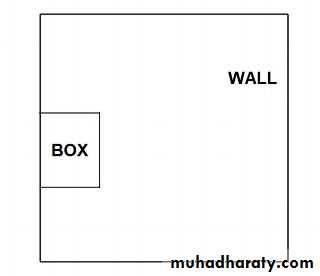

PLAN
DRAWING ONE-POINT PERSPECTIVE

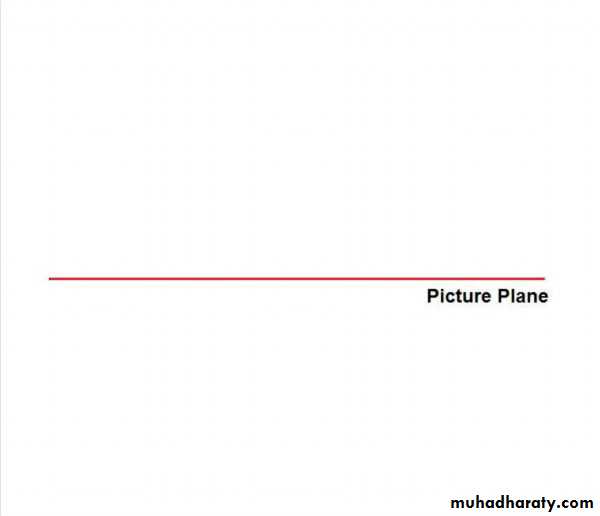

1) Draw the Picture Plane

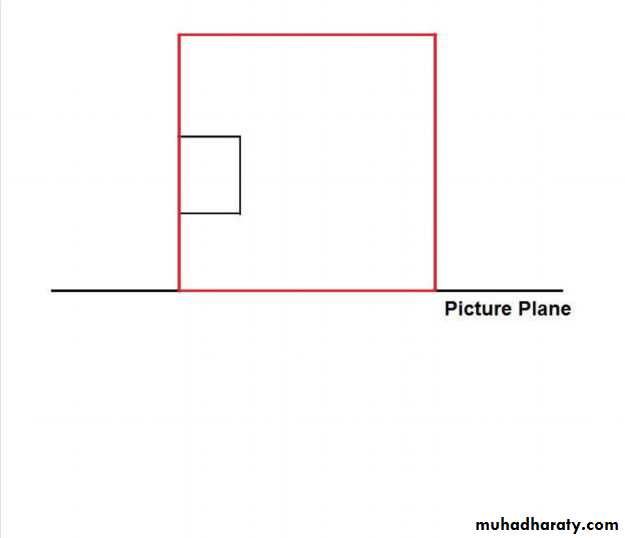

2) Put the Plan on the Picture Plane

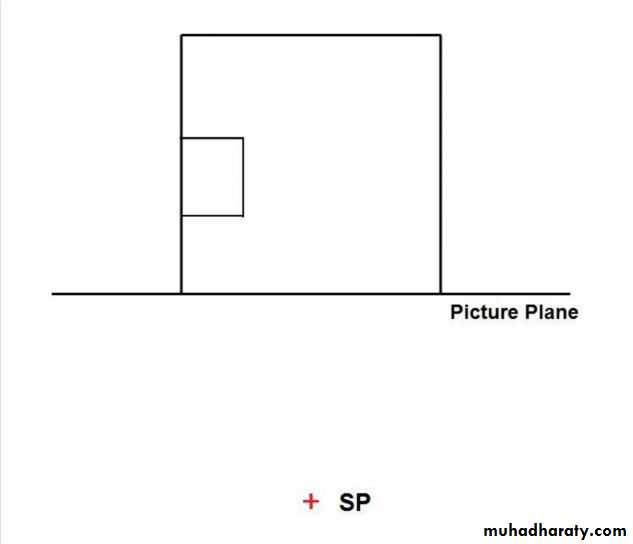

3) Decide the Station Point (SP)

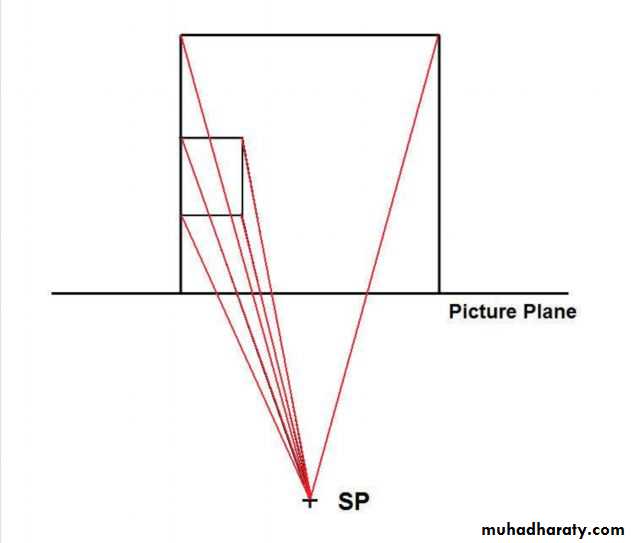

4) Draw the lines from every corner of

the room & box to the Station Point (SP)

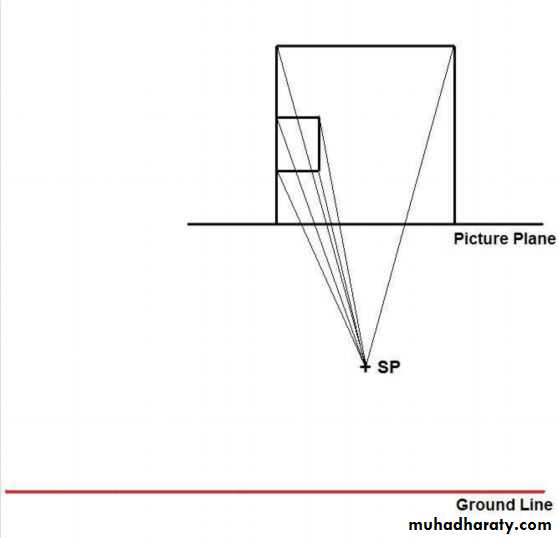

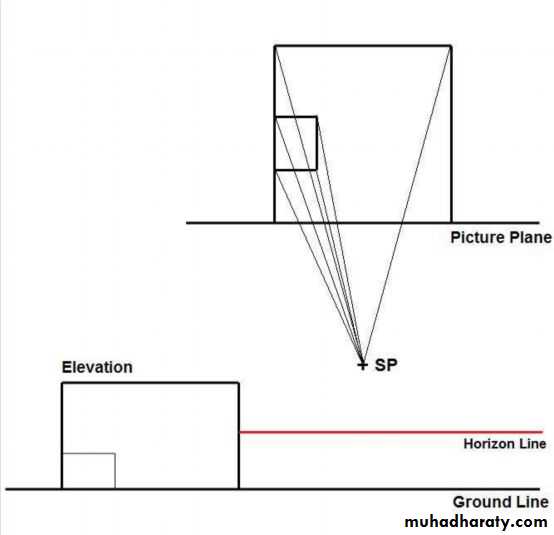

5) Draw the Ground Line below the

Station Point (SP) level

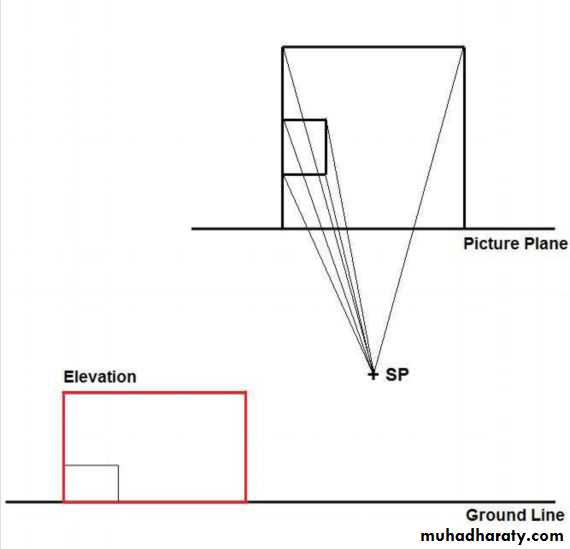

6) Put the Elevation on Ground Line

7) Draw the Horizon Line

8) Draw the straight line from SP to Horizon

Line to determine the Vanishing Point (VP)

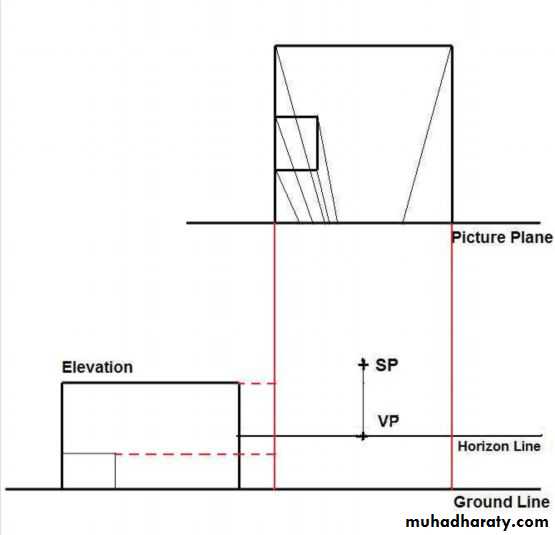

9) Draw the main lines from Picture Plane to Ground Line and find out the room & box’s levels

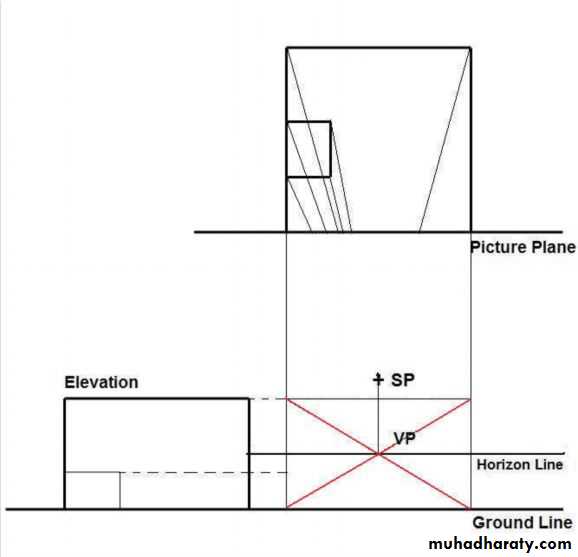

10) Draw the Convergence Lines from

corners of the room to Vanishing Point

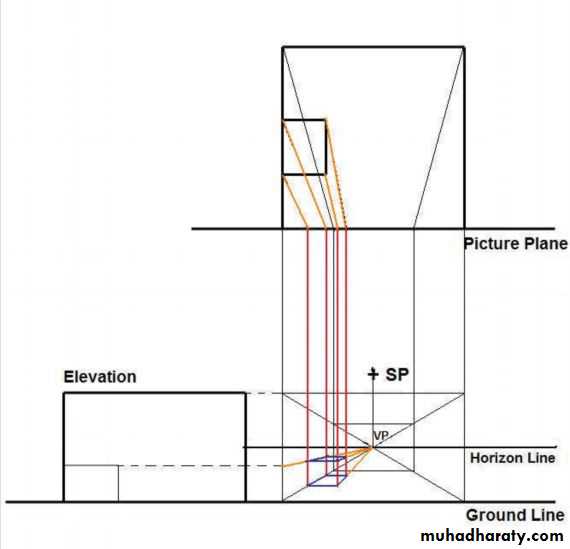

12) Draw the straight lines from Picture Plane (every

corner of the box) to the Convergence Lines

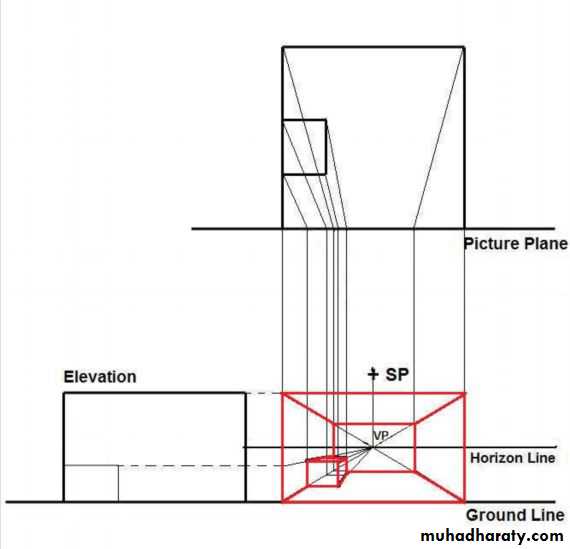

13) Darken the Actual Lines of the room & box

14) Finishing up the drawing (erase the

convergence lines, SP & VP)

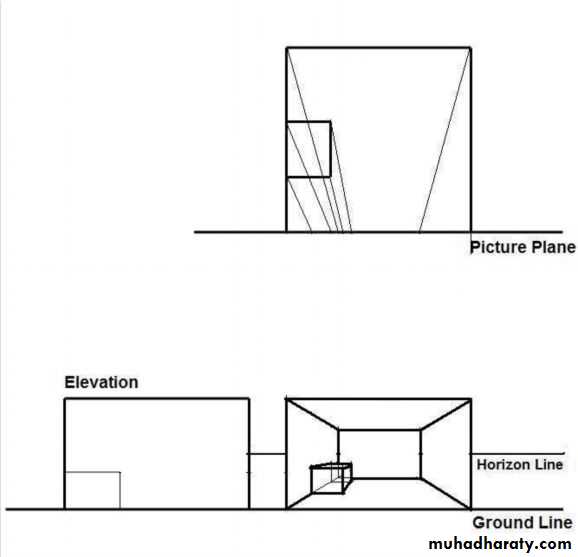

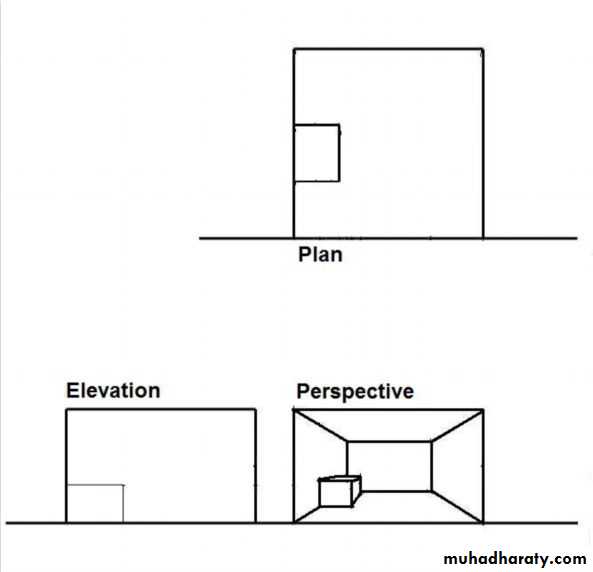

Final Drawing: Plan, Elevation & Perspective

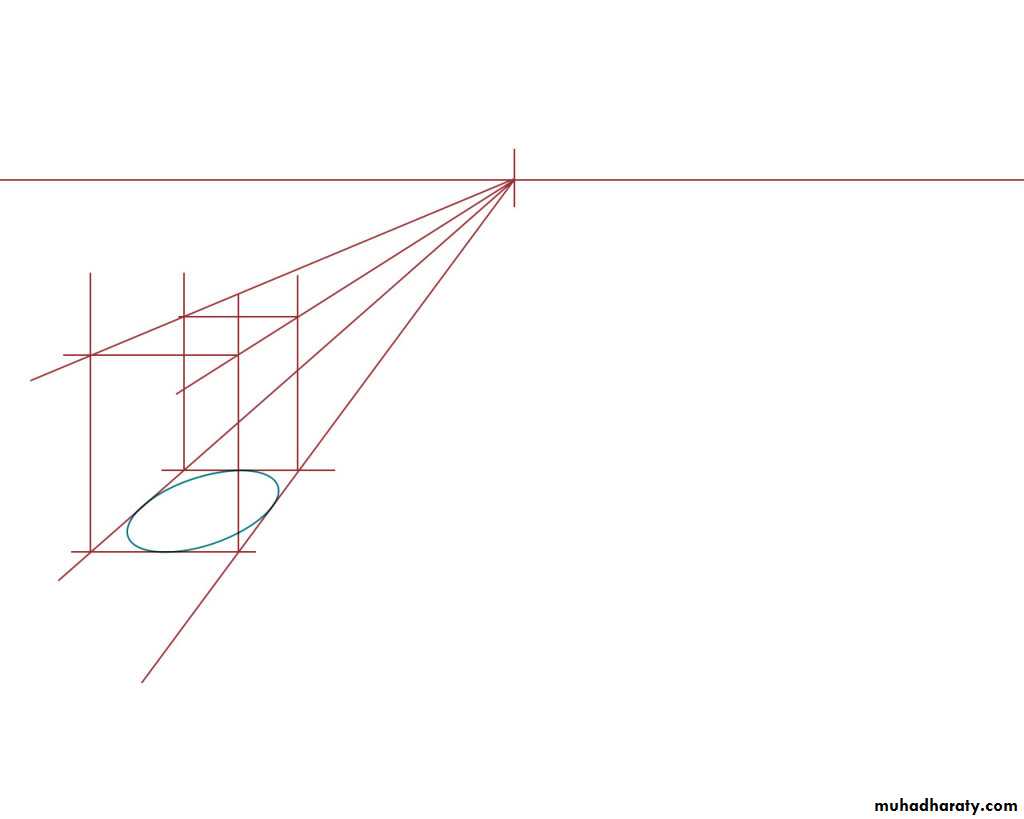

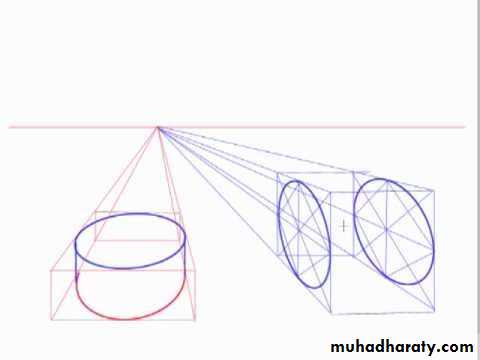

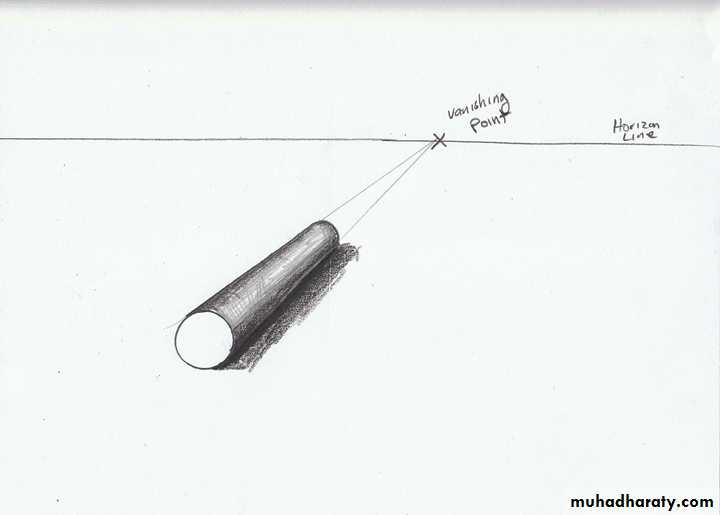

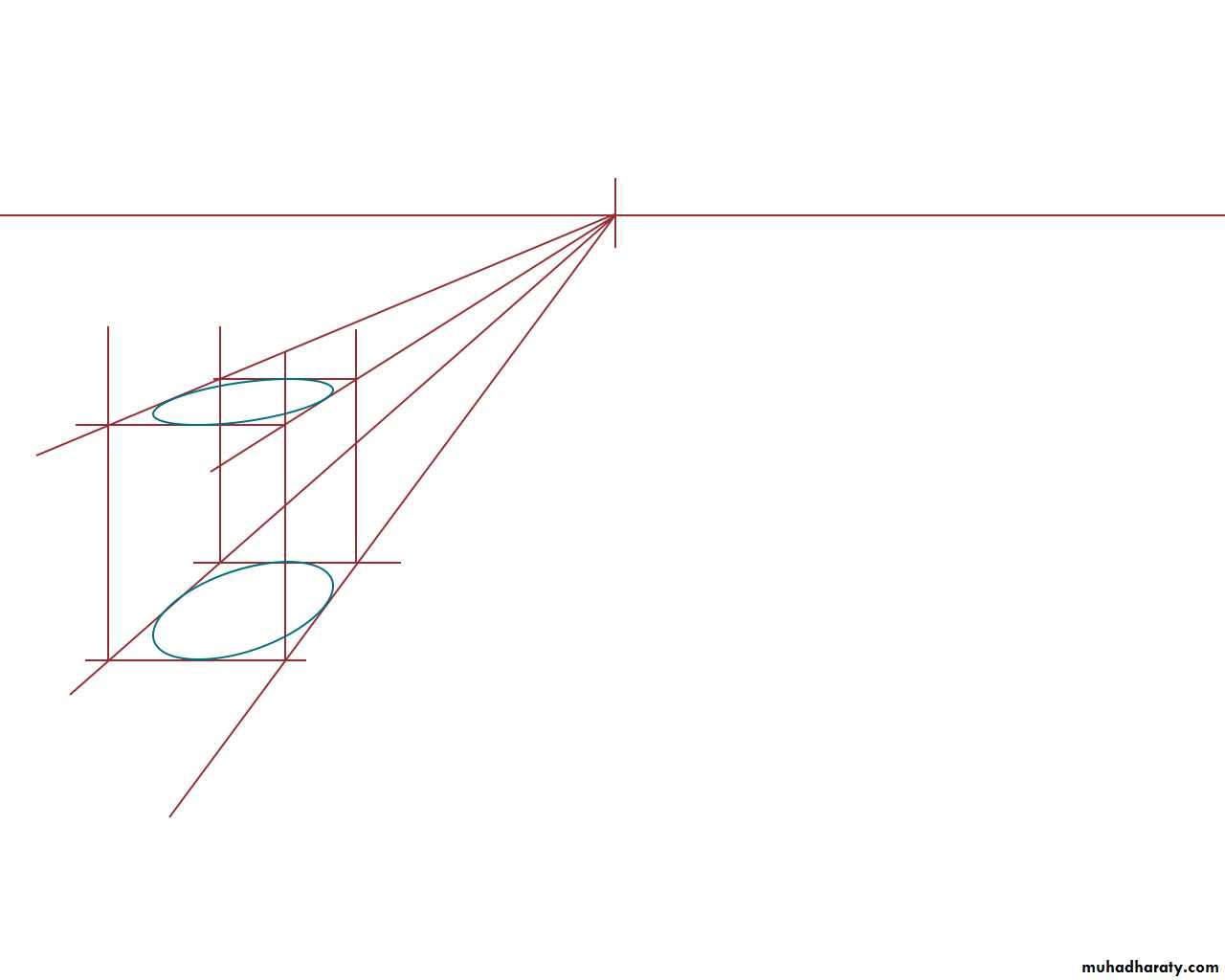

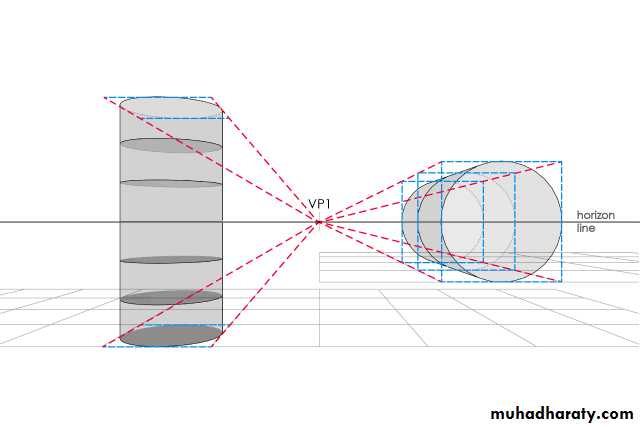

Cylindric shapes

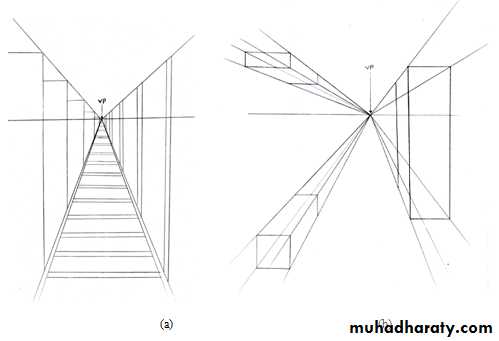

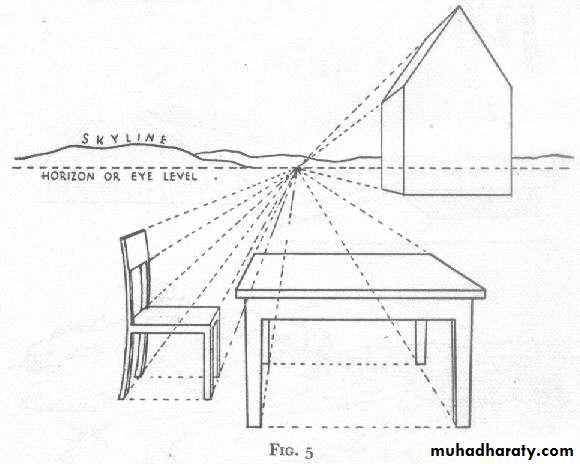

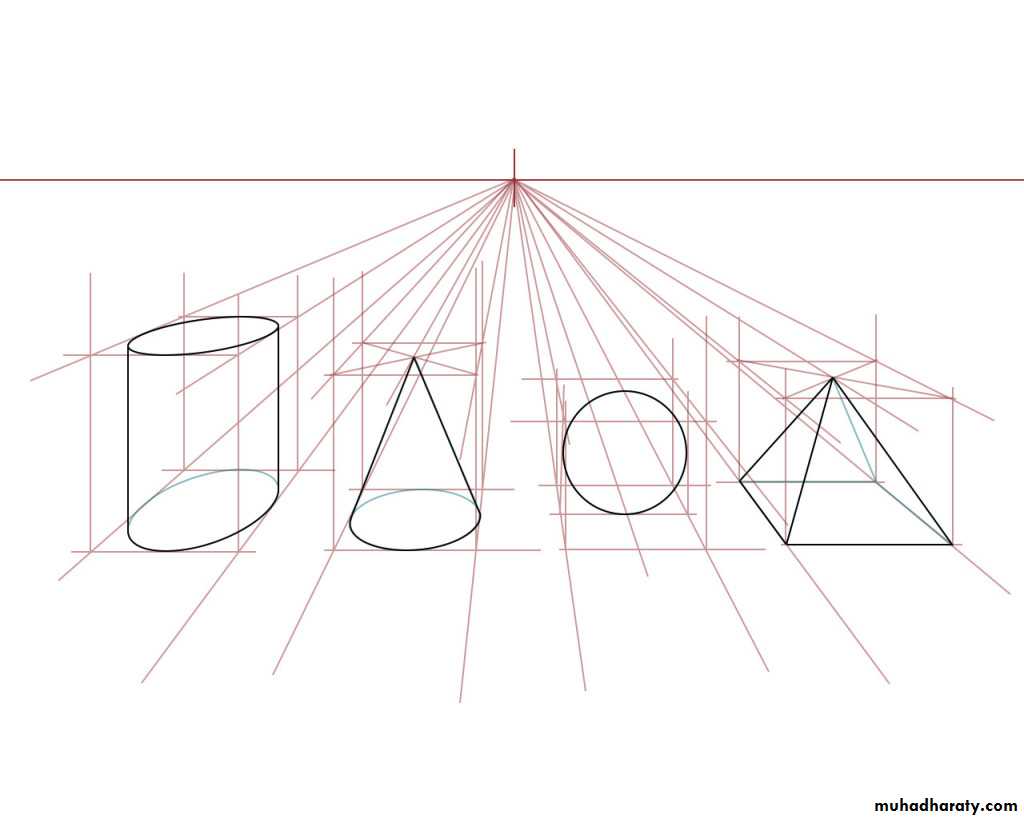

Different shapes

Steps

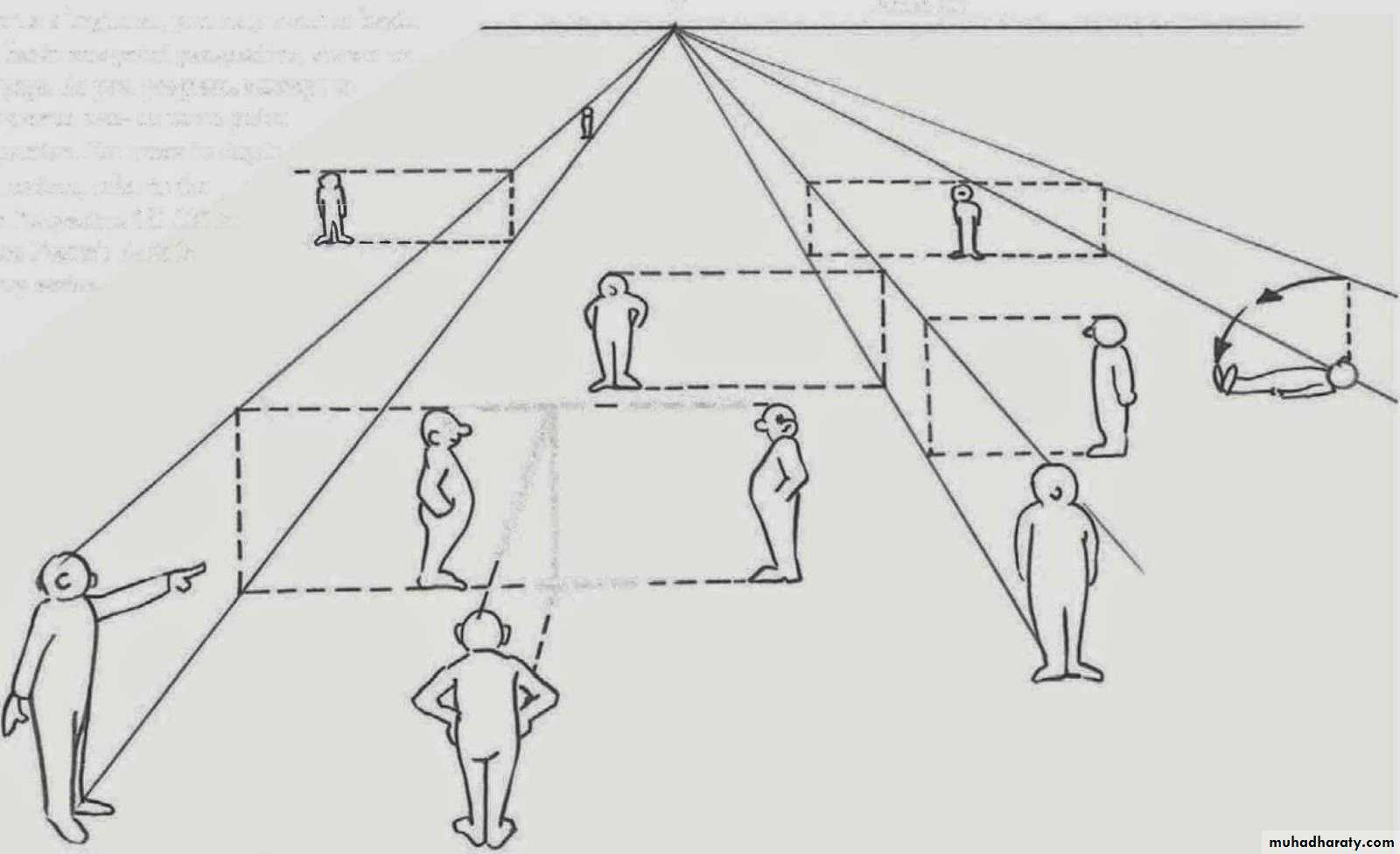

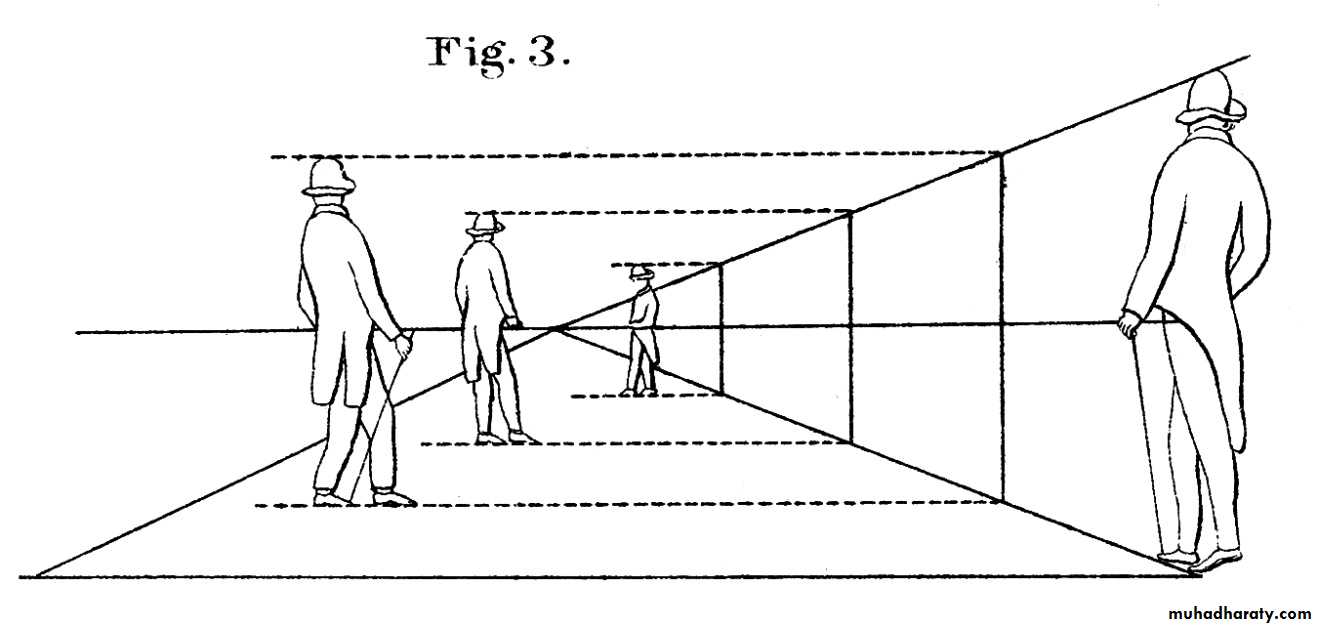

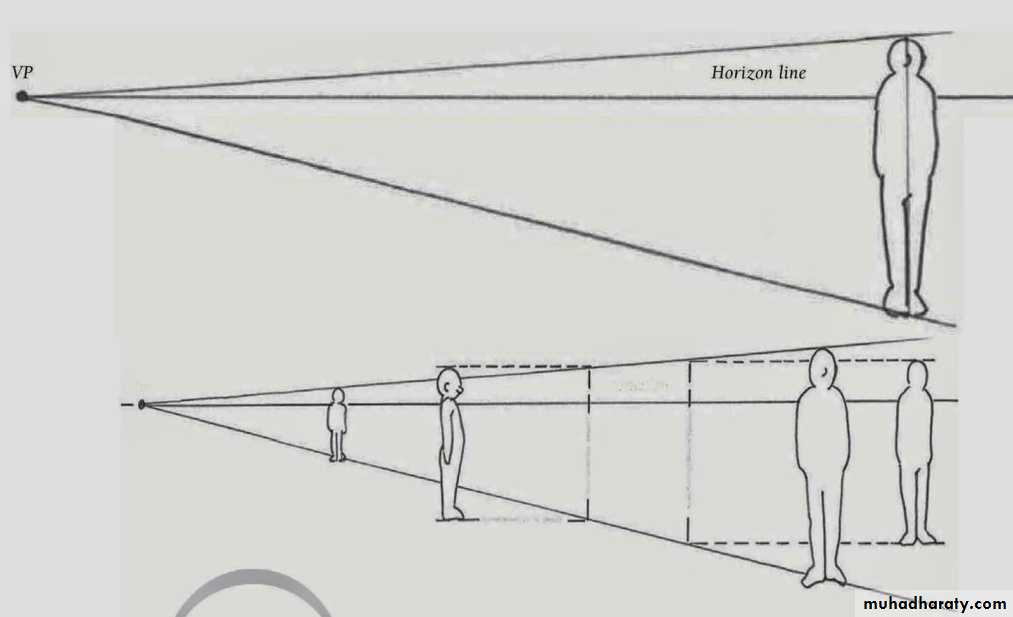

People in perspective
