Various Chest disease & their XR findings & appearance

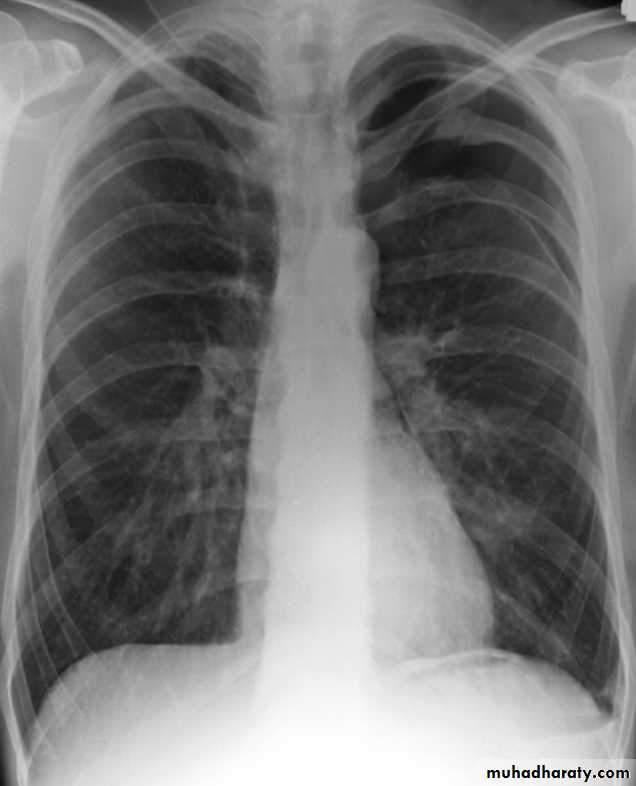

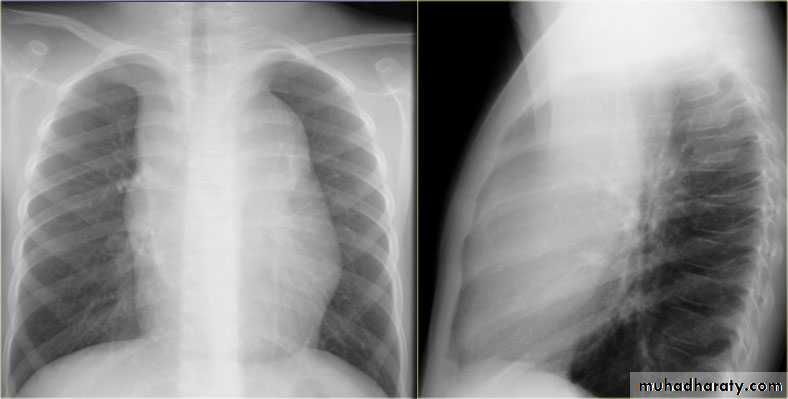

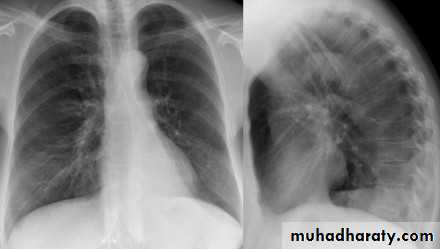

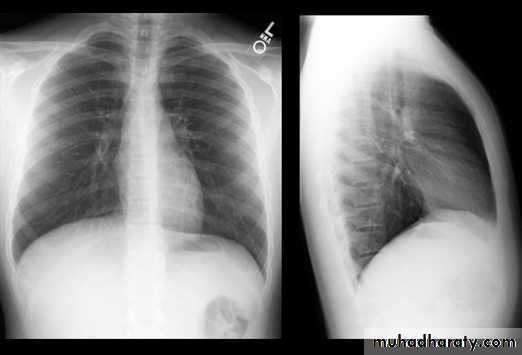

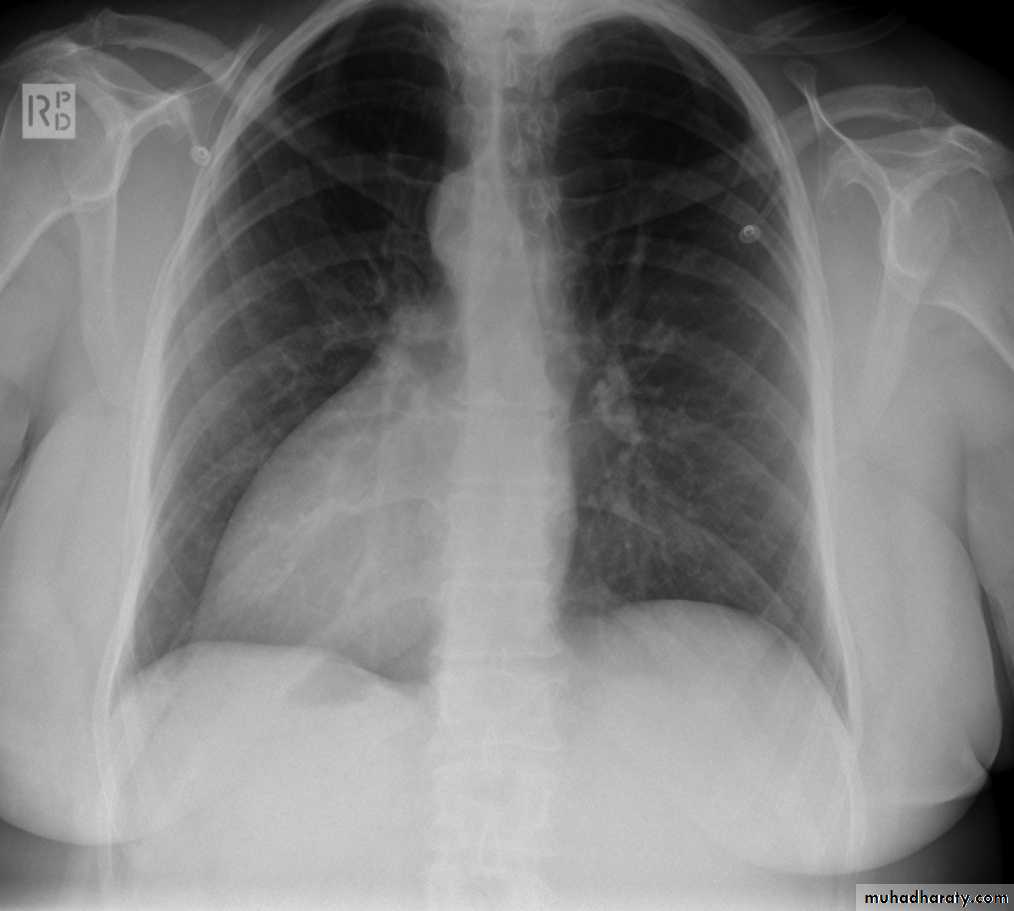

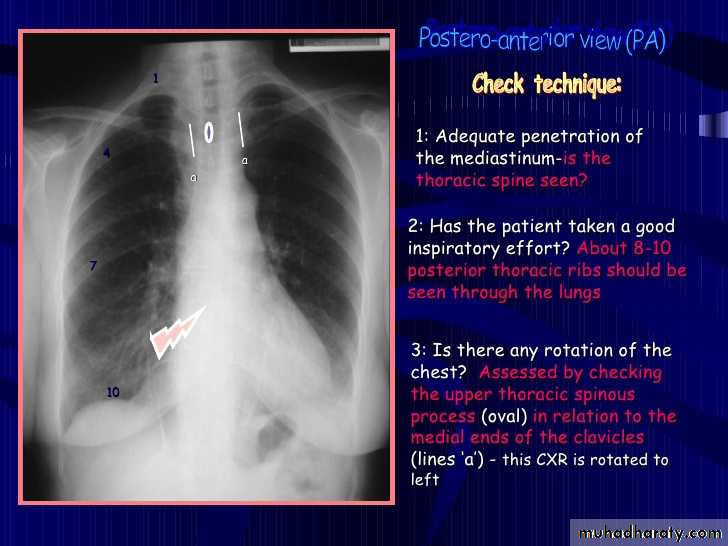

Normal chest XR PA & lateral view

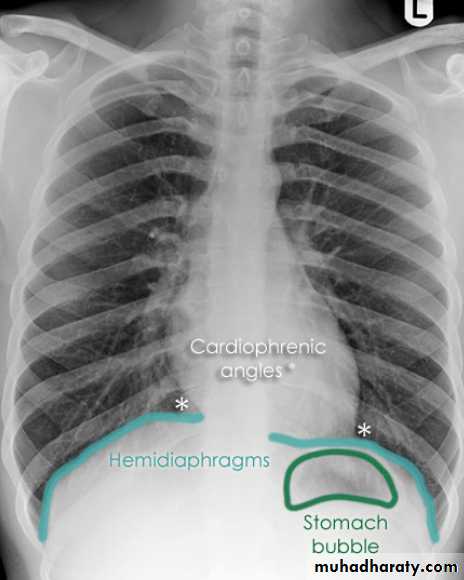

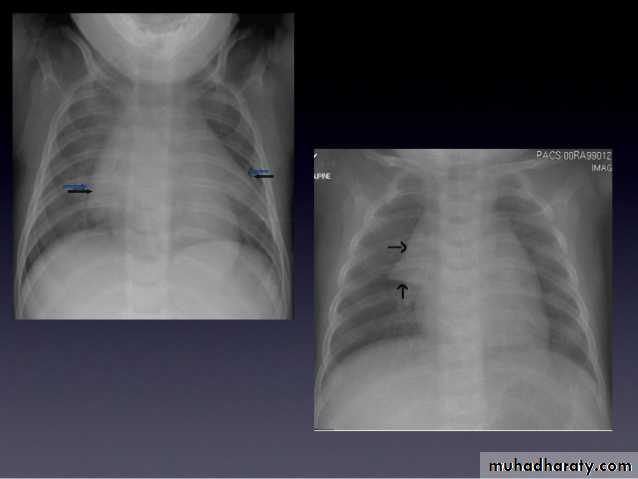

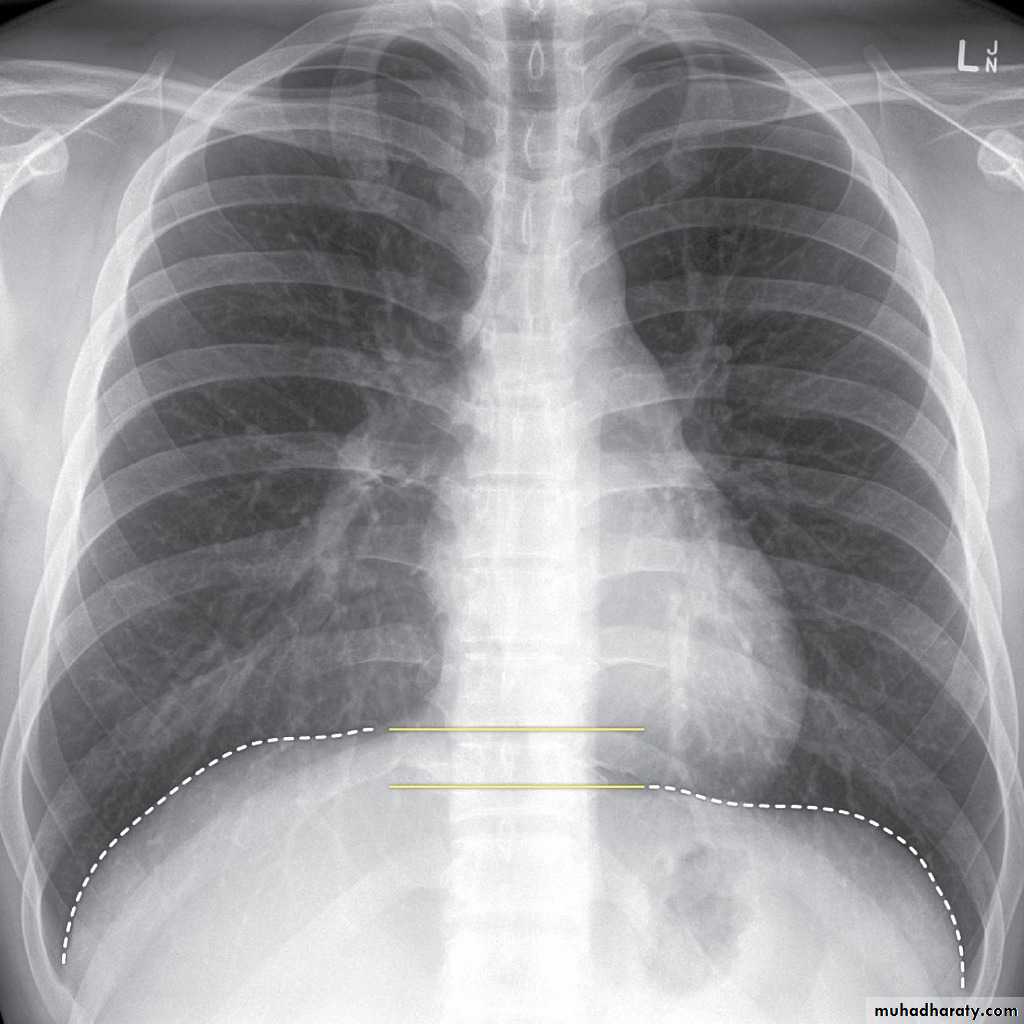

Look carefully on both diaphragmatic cruse costo & cardio phrenic angles
Don't forget to use rib in asses lung Zones

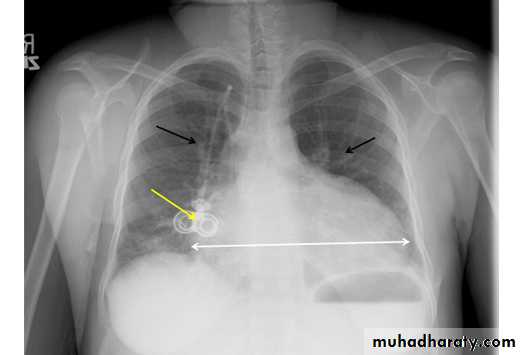

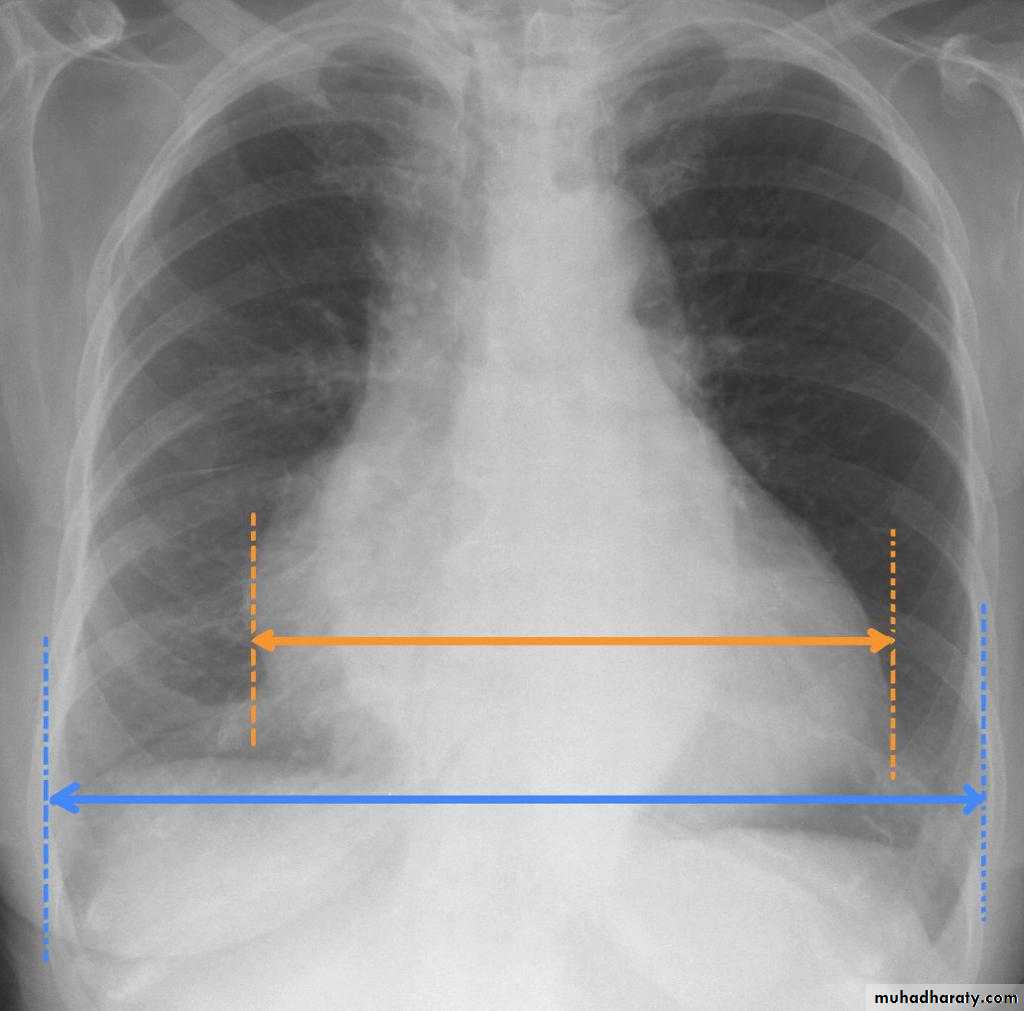

Who to asses cardiac size

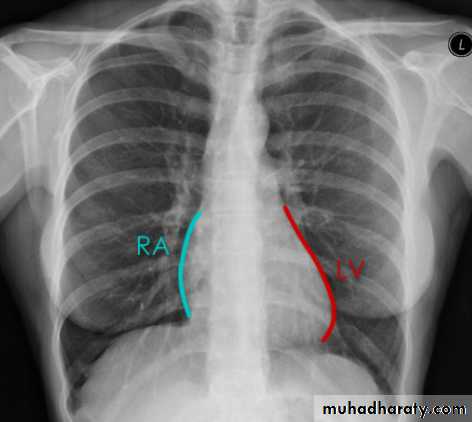

Cardiac borders in AP view
Mitral valve disease

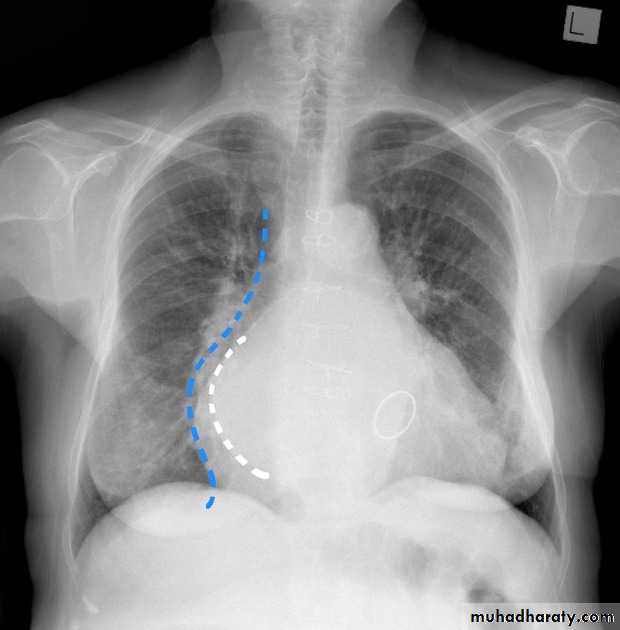

Mitral valve disease (double density RT cardiac border)

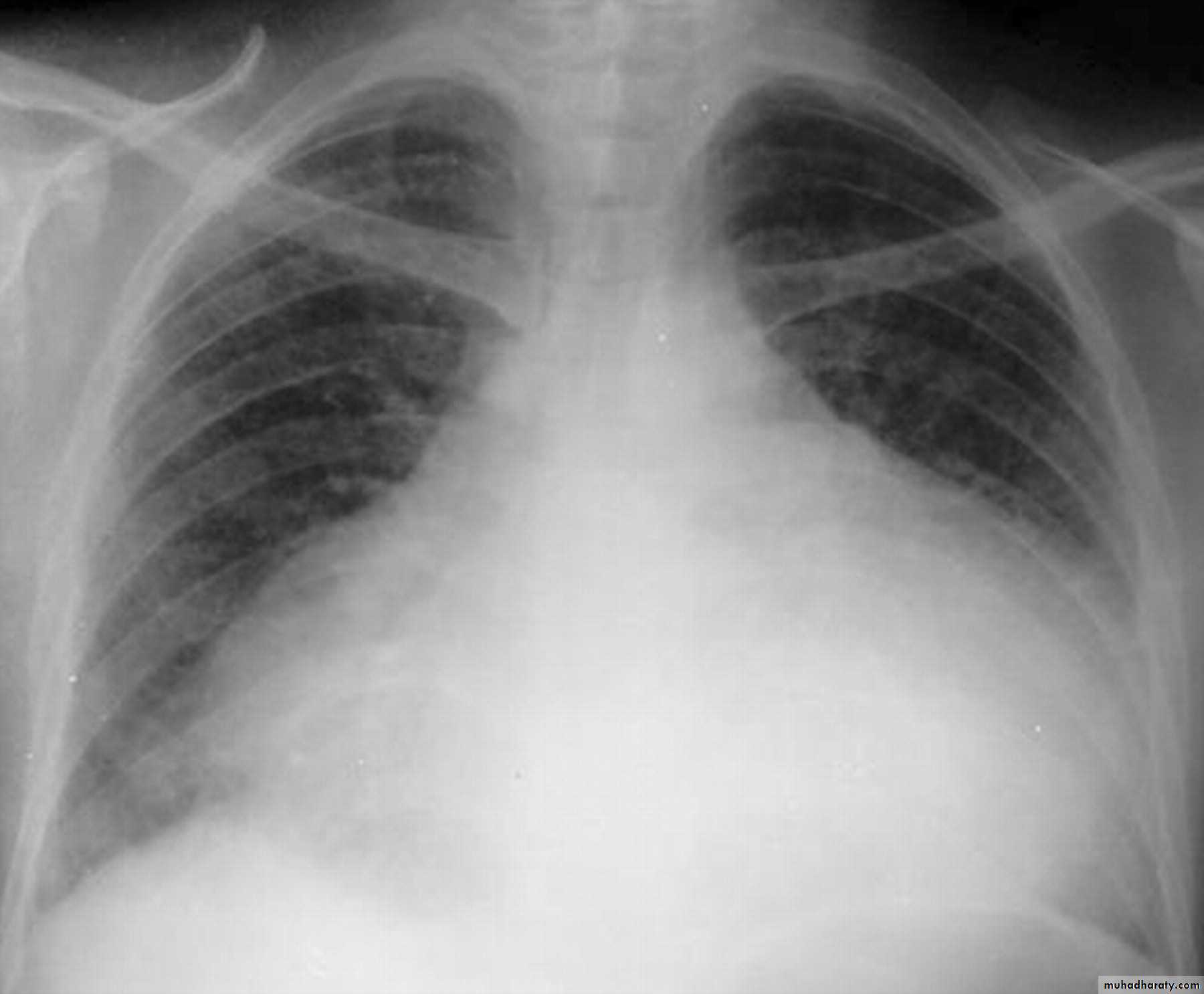

Pericardial effusion Globe shape

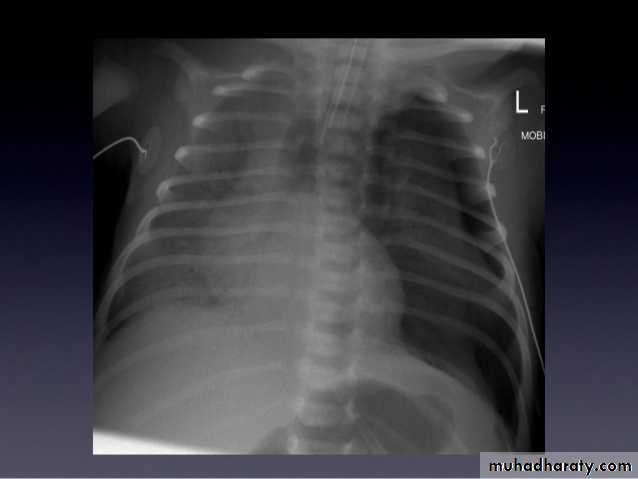

TGO
Ebstain anomaly box shape
Dextro cardia
Retrosternal Goiter
Lymphoma of middle mediastinum

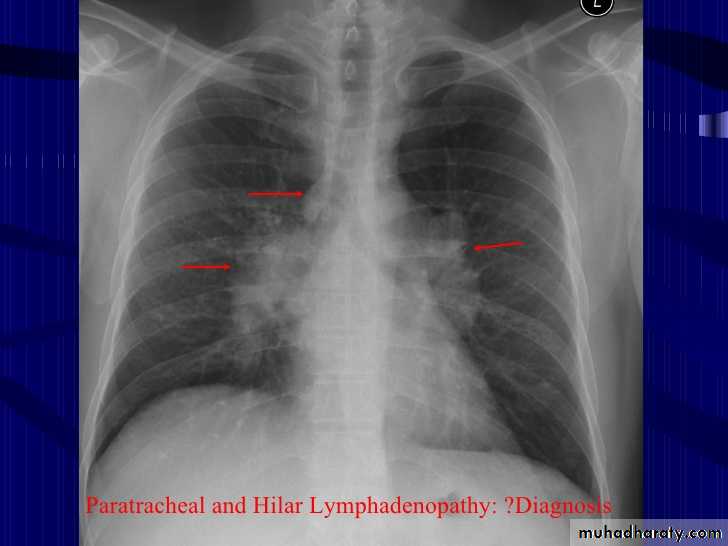

Lymph adenopathy
Bilateral hilar LAP

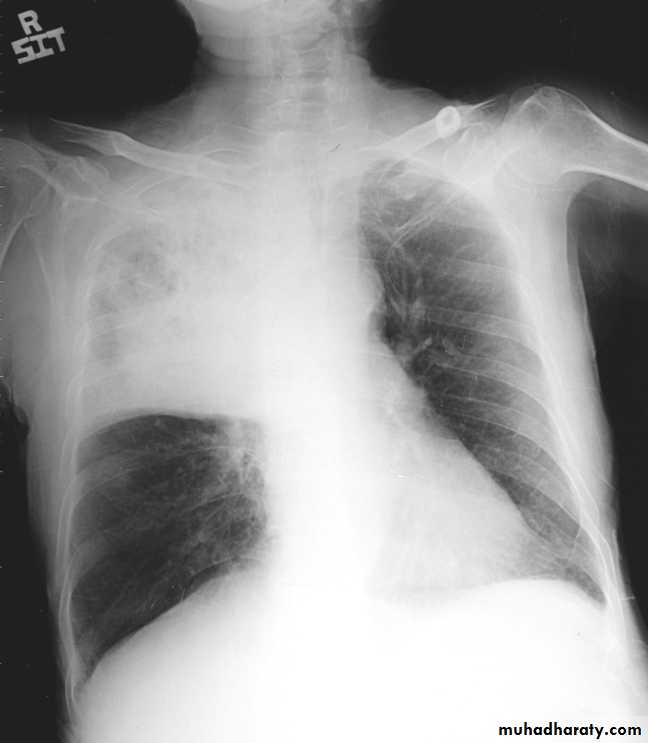

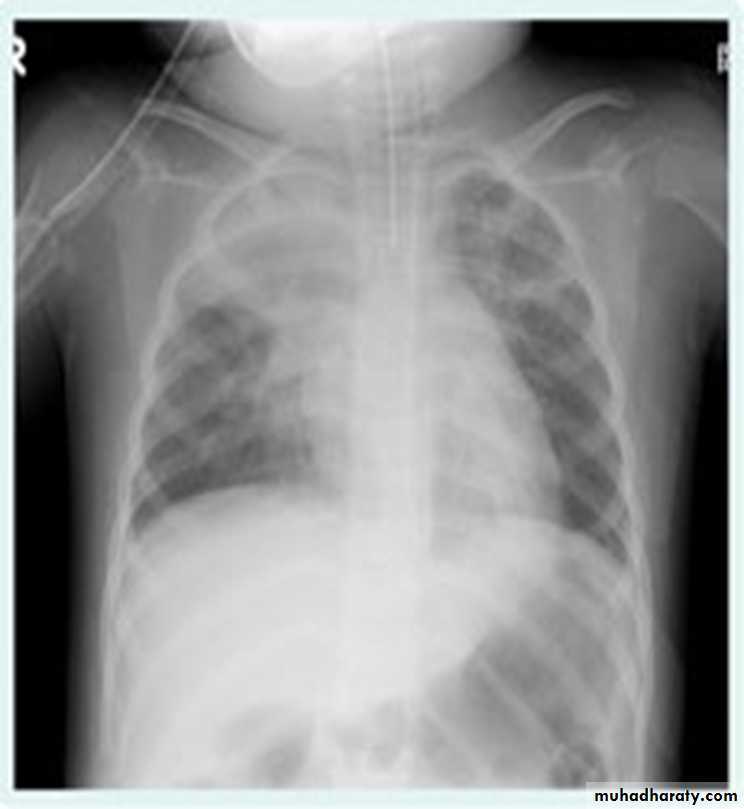

RT upper lobe consolidation
Bulging fissure sign
Lobular consolidation ( broncho pneumonia )
Very important to consider that pulmonary edema in normal sized heart have close similar appearance to broncho pneumonia
The important Golden Key differentiation is the cardiac size being enlarged in pulmonary edema .
Interstitial pulmonary edema

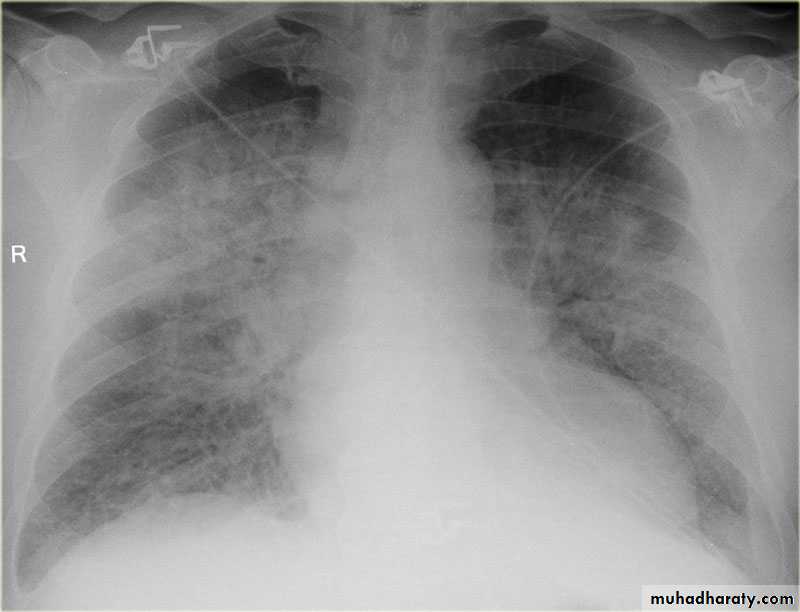

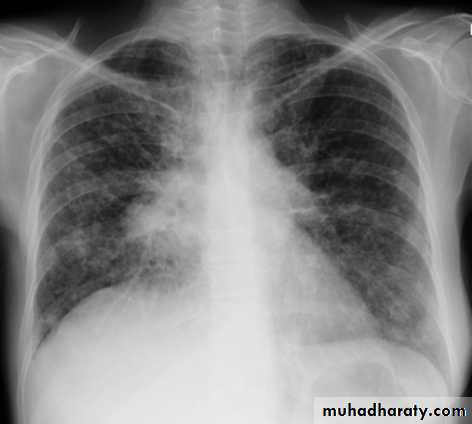

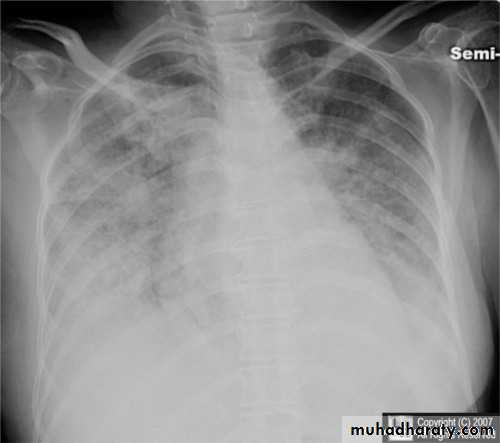

Pulmonary edema ( alveolar pulmonary edema)
Bat wing sign ( alveolar pulmonary edema)

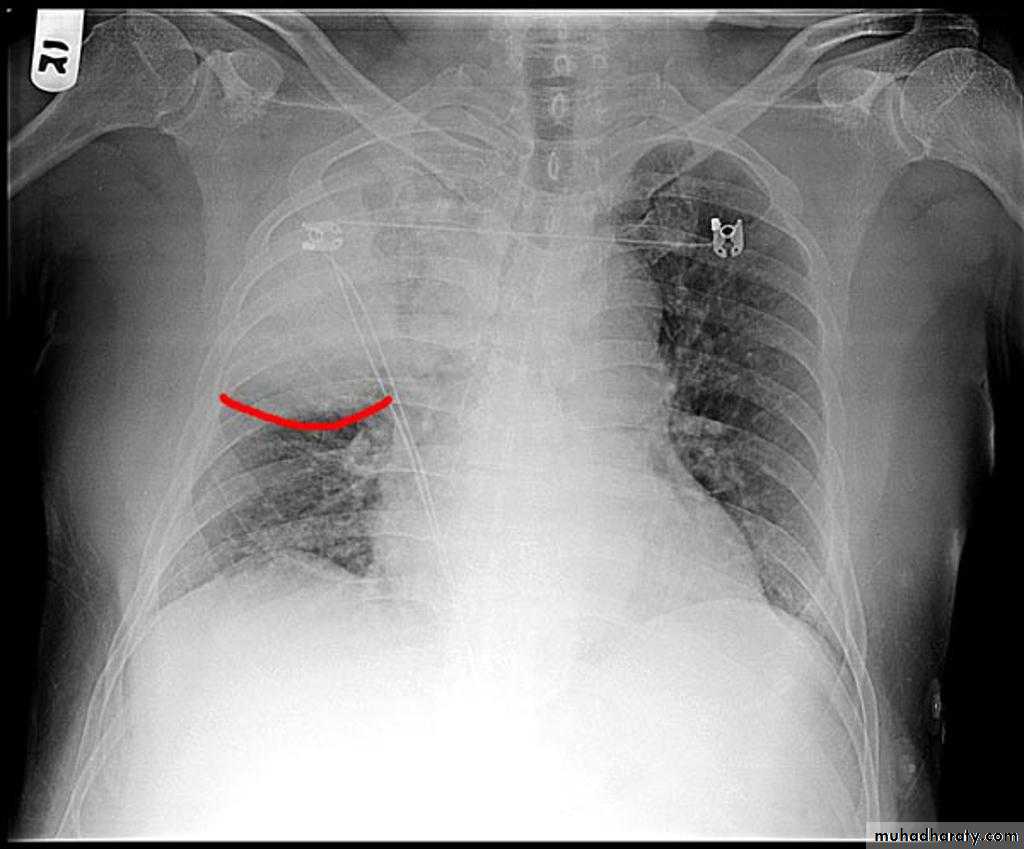

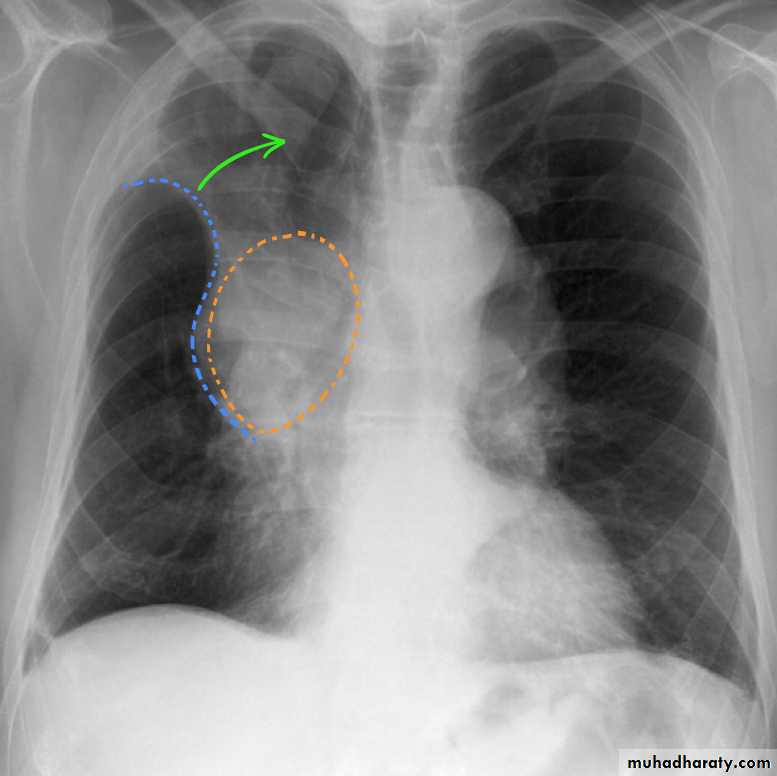

Golden S sign collapse with RT ULC
What is the main difference between 2 films ??? What is the shape of each one ??? A. B.

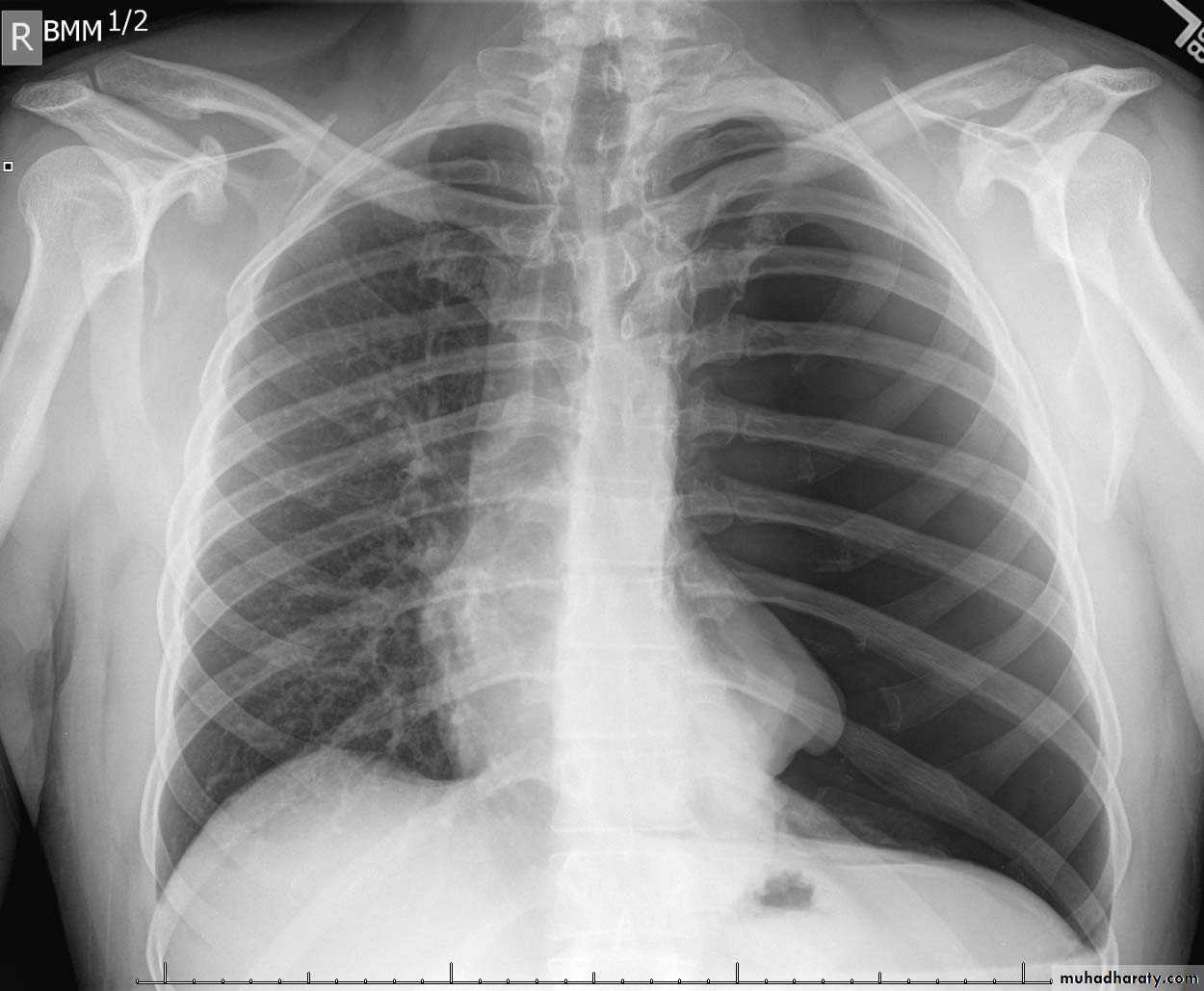

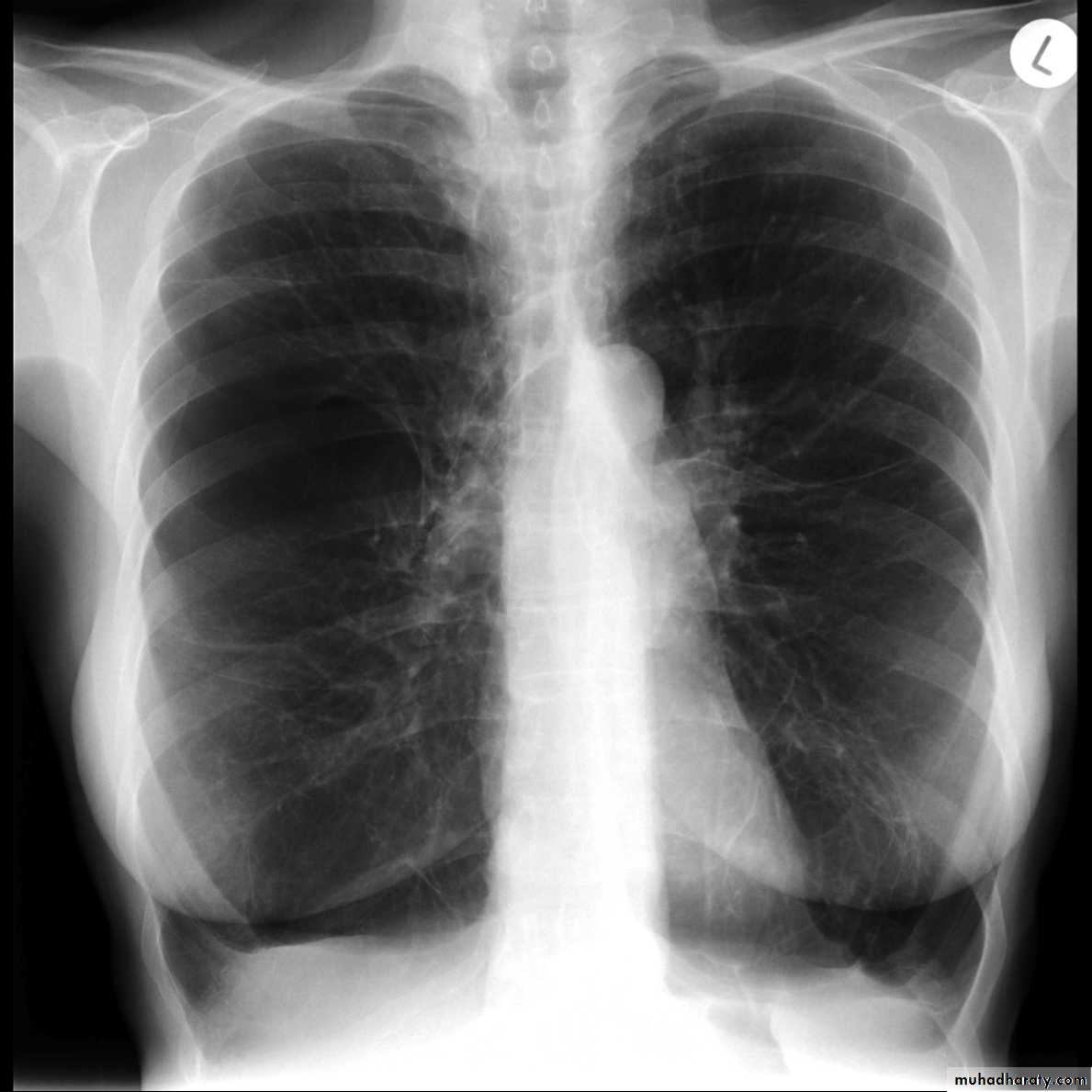

Emphysema

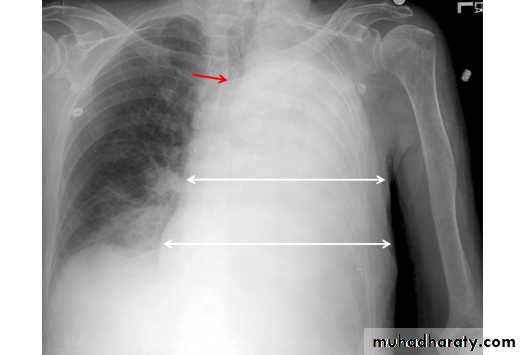

Total collapse total consolidation

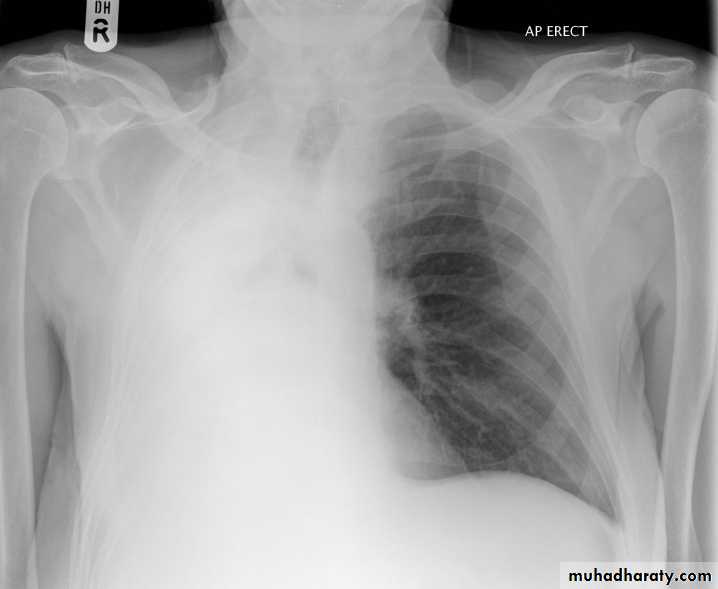

Total collapse

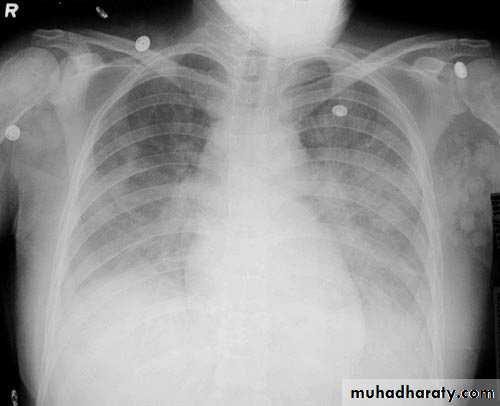

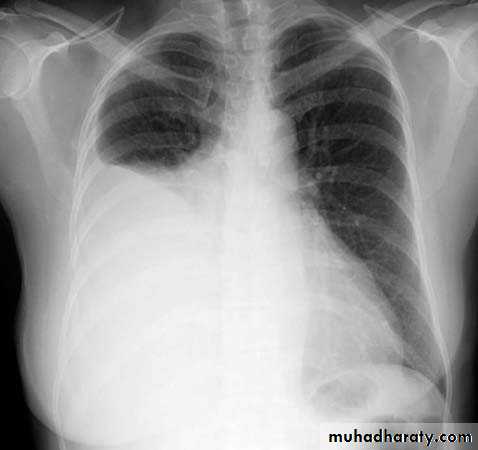

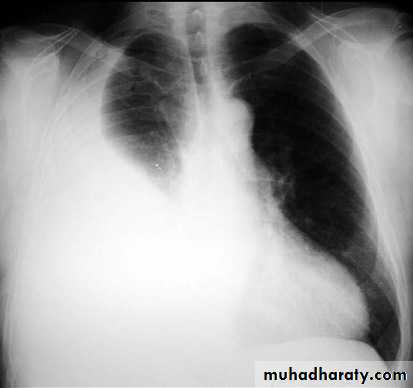

Pleural effusion
Pleural effusion

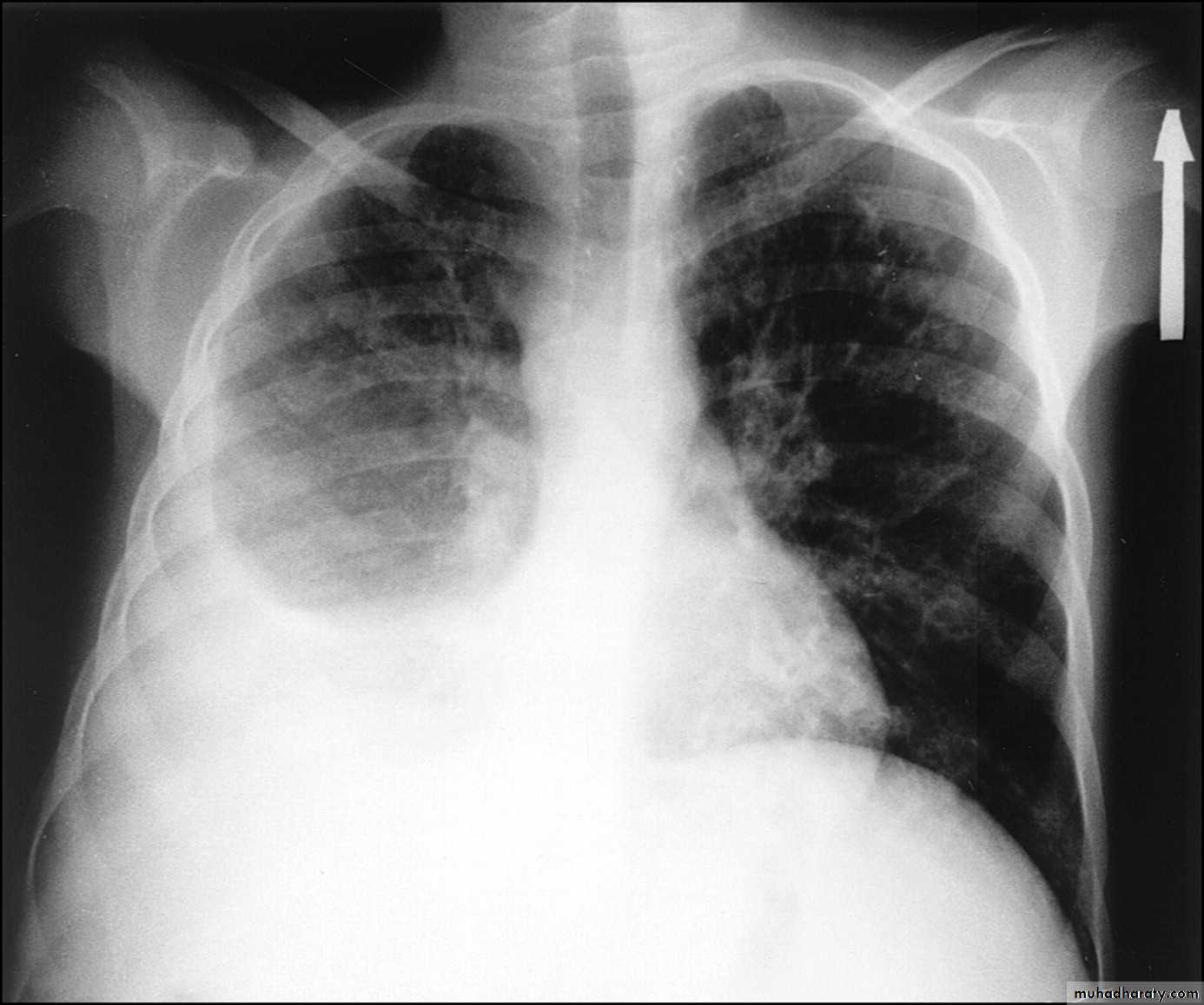

Encysted PE

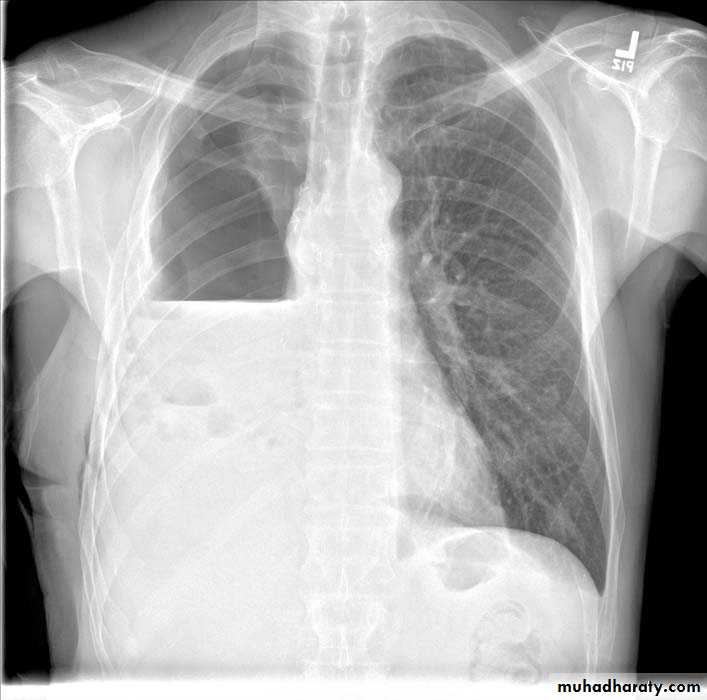

Pneumothorax

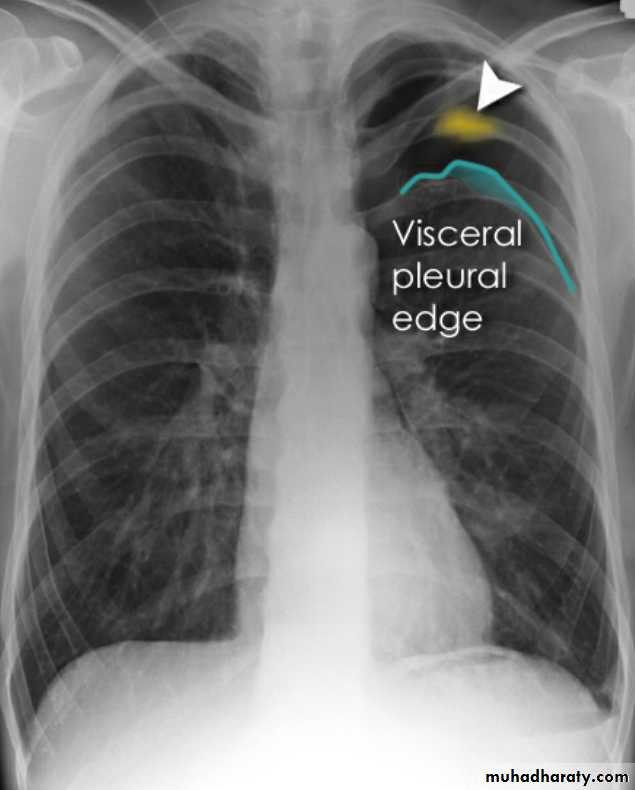

pneumothorax

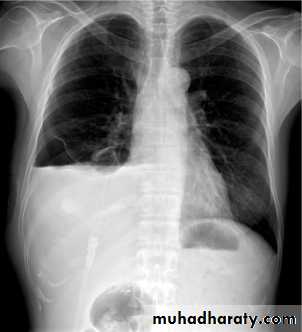

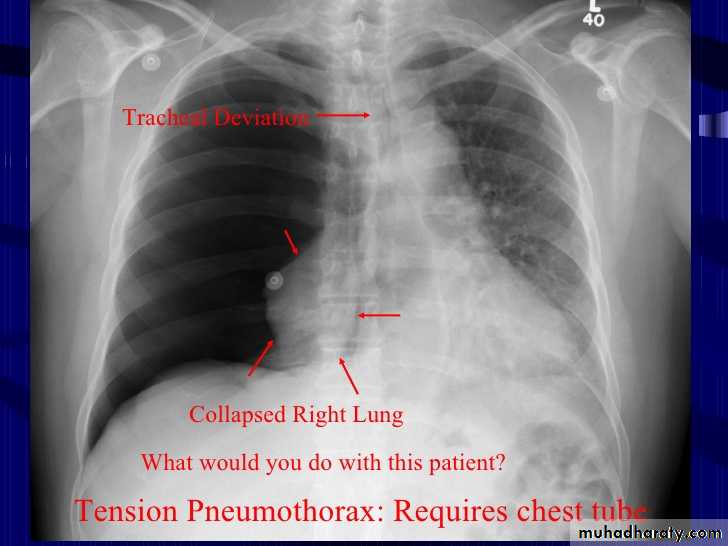

Tension pneumothorax
Hydro pneumothorax

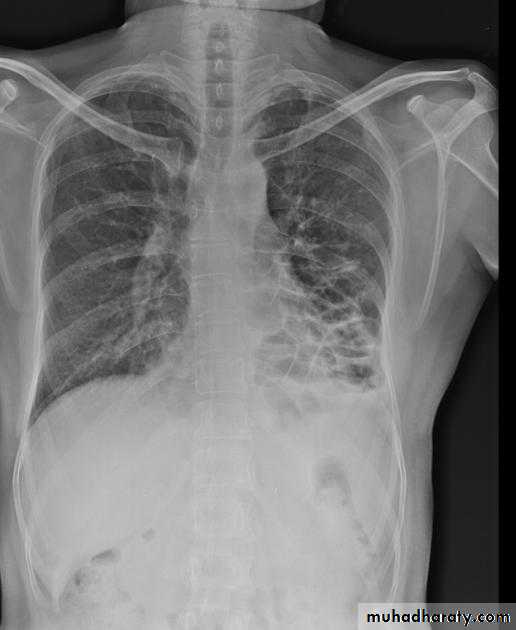

Bronchiectasis
Post primary TB broncho pneumoniacotton wool sign
Post primary TB Bronch pneumonia
Q ???? Be careful in description & DxBoth of them have similar appearance of broncho pneumonic shadow
??????What is being the pit fall in such films ???
Who can you differentiate ???

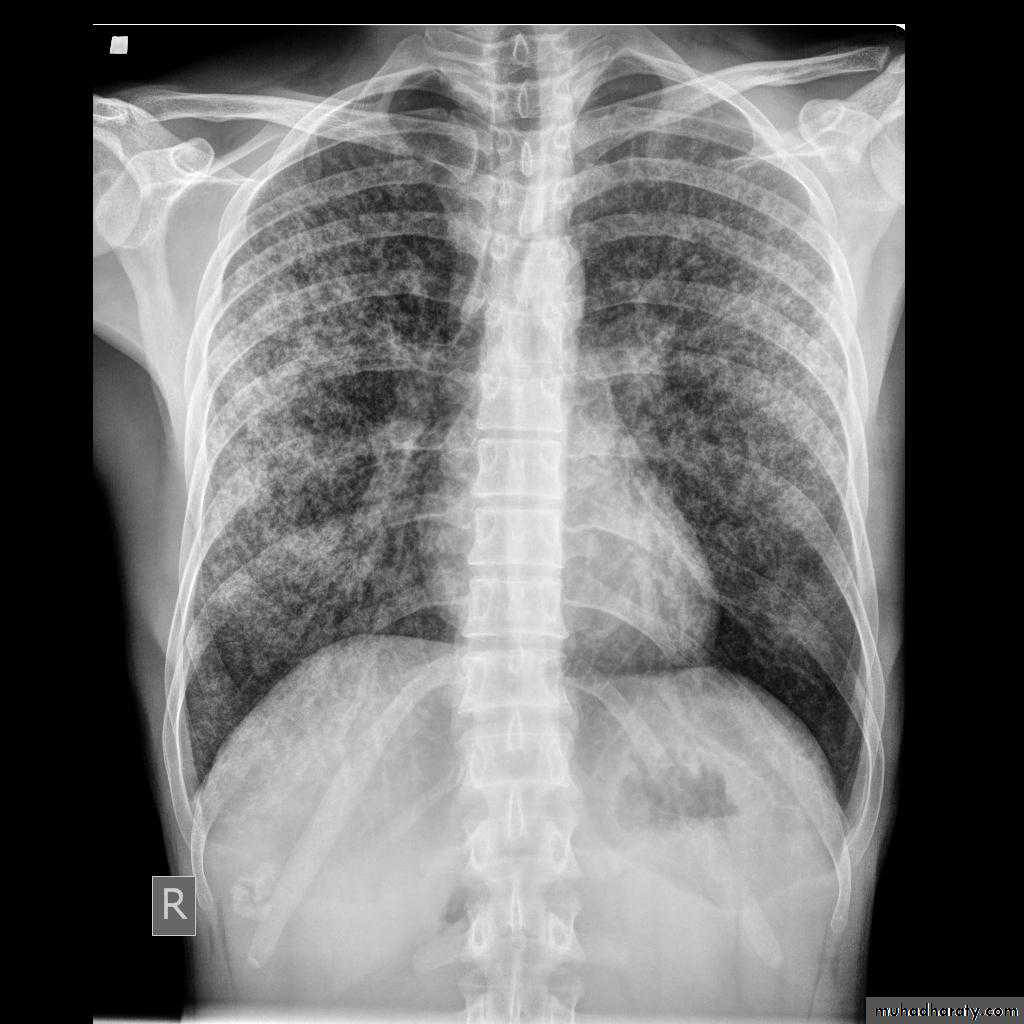

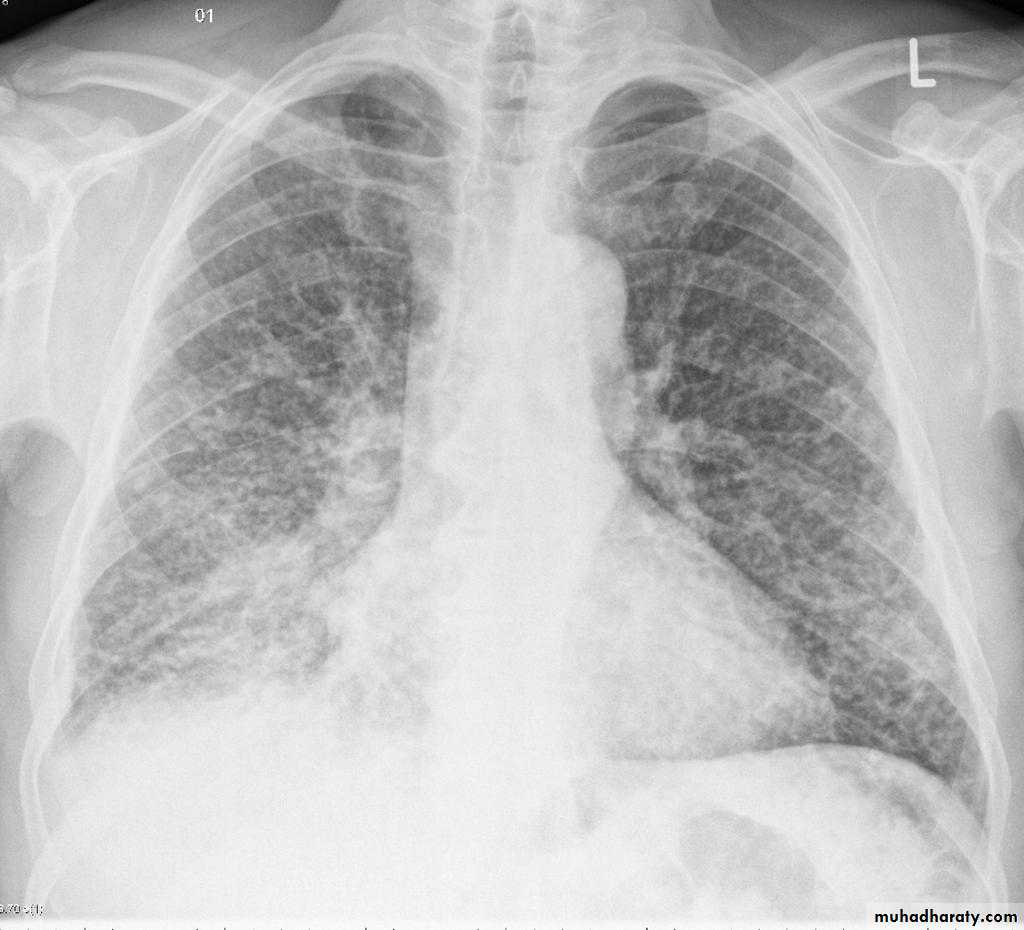

Miliary TB
miliary TB

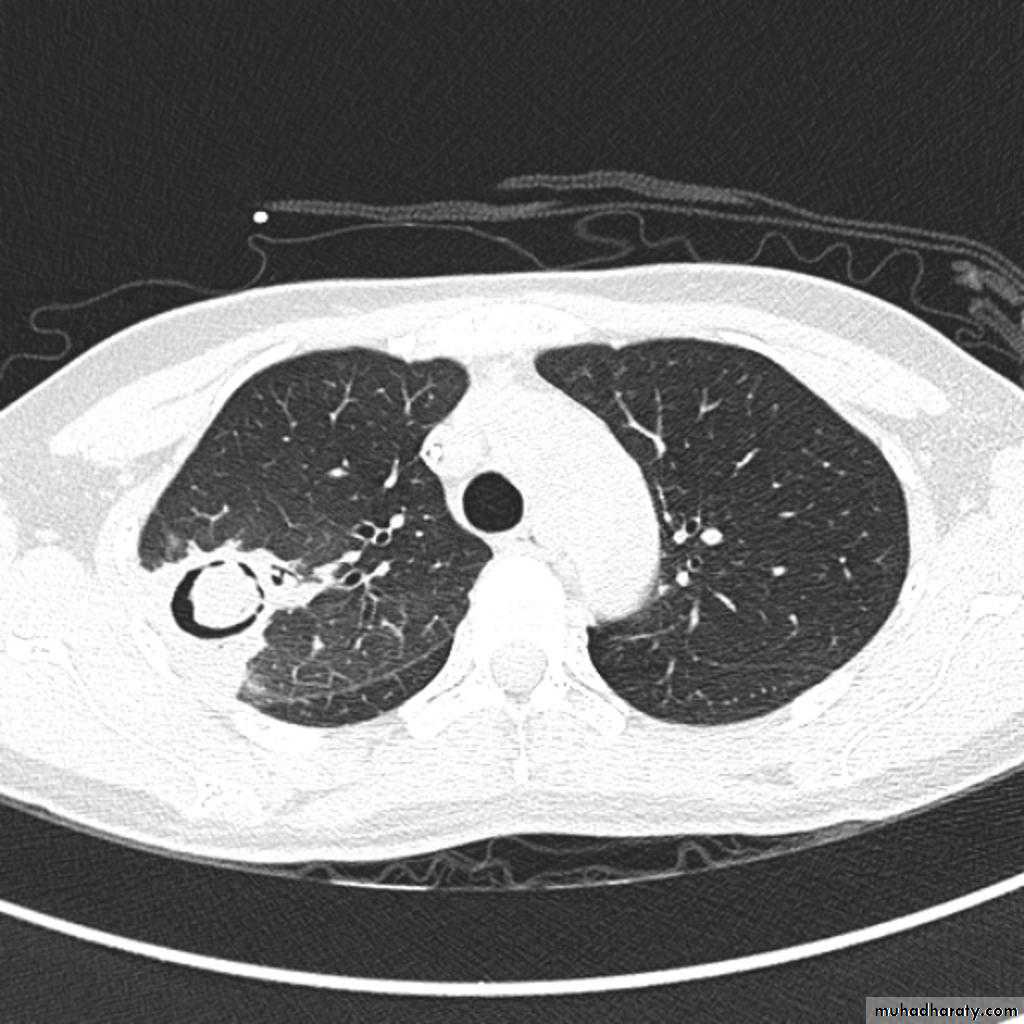

TB lung abscess

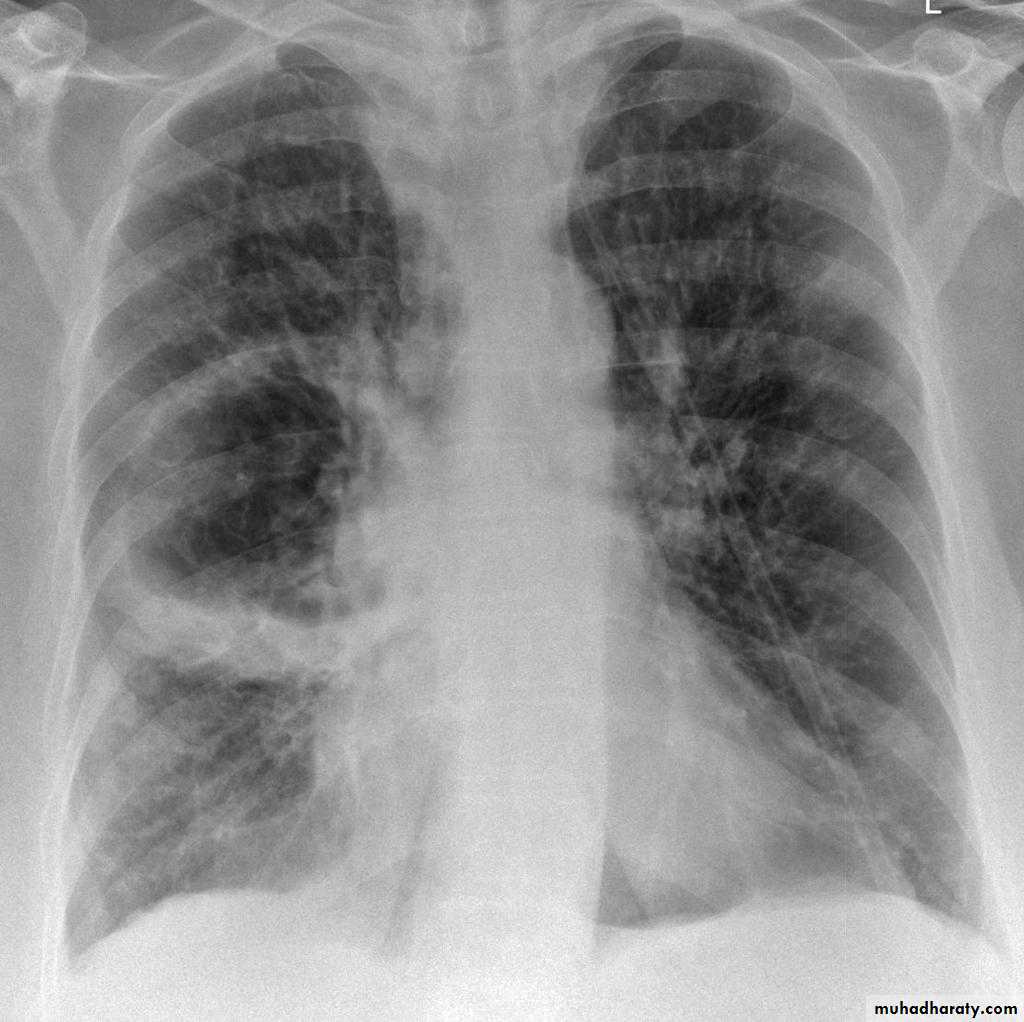

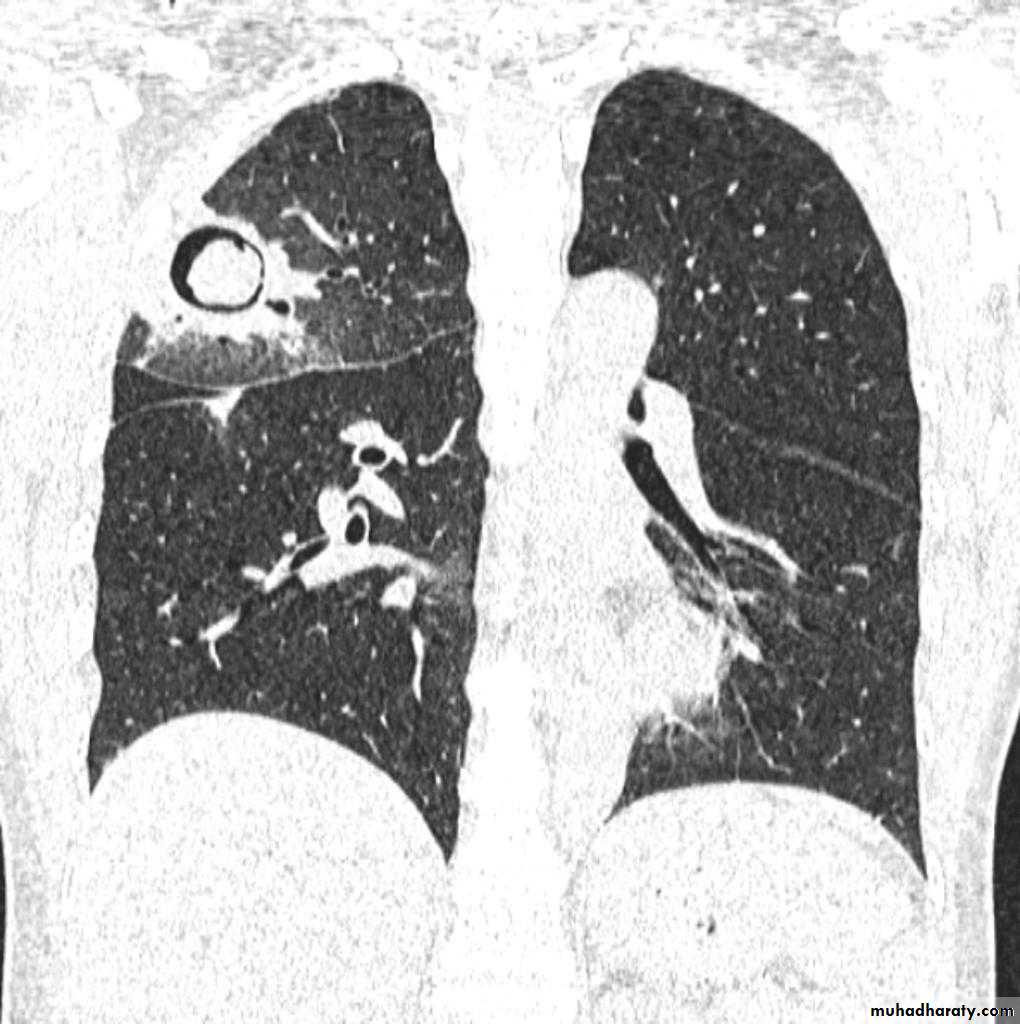

Aspergilloma
Hydatid cyst simple rupture ( water Lilly )

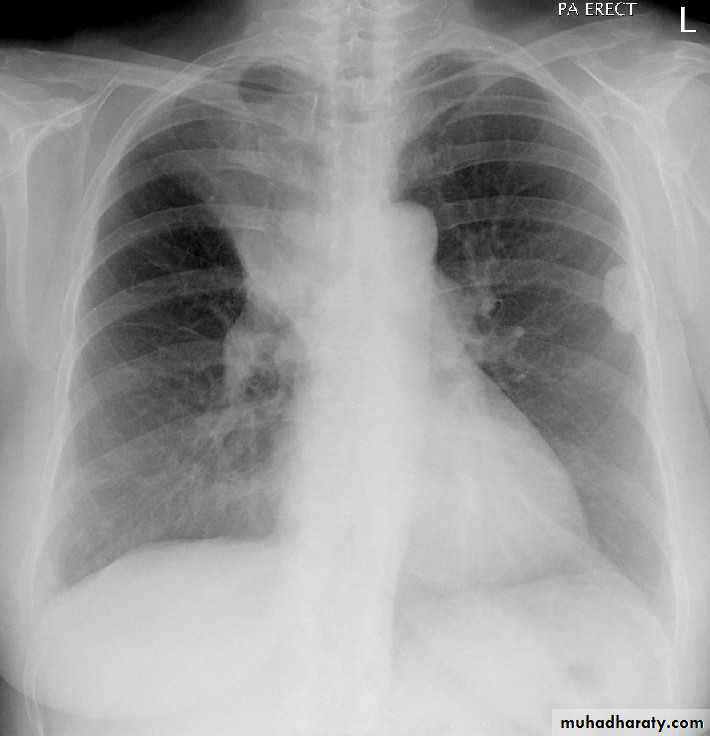

BGCA

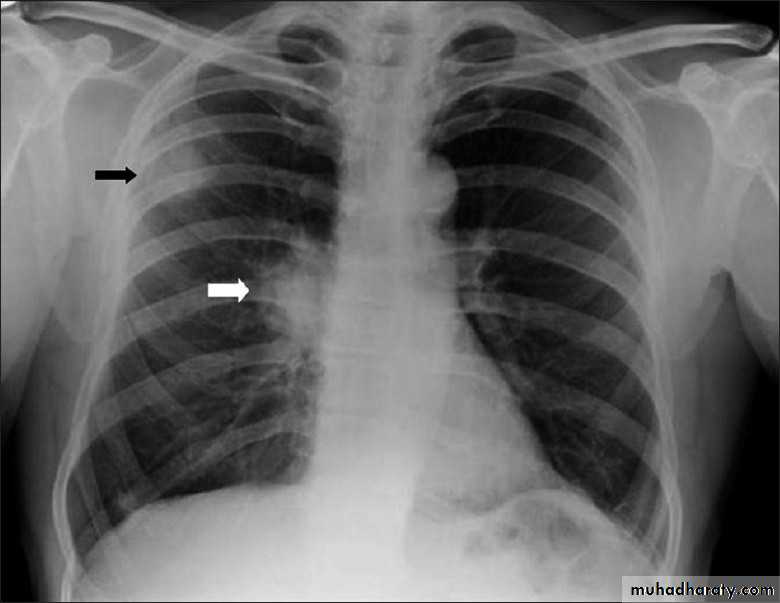

BGCA
BGCA
Secondary metastasis

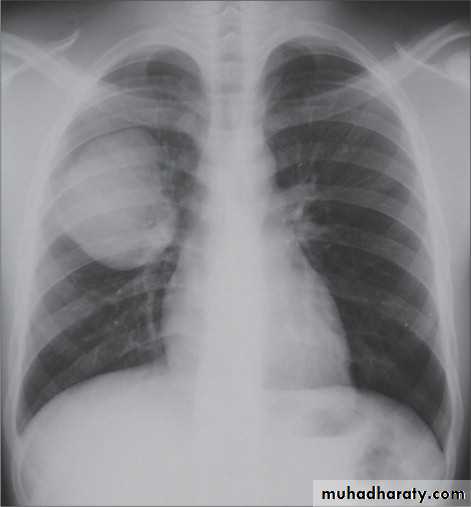

DDX of coin shadow
????????Answer
Lung abscess
abscess

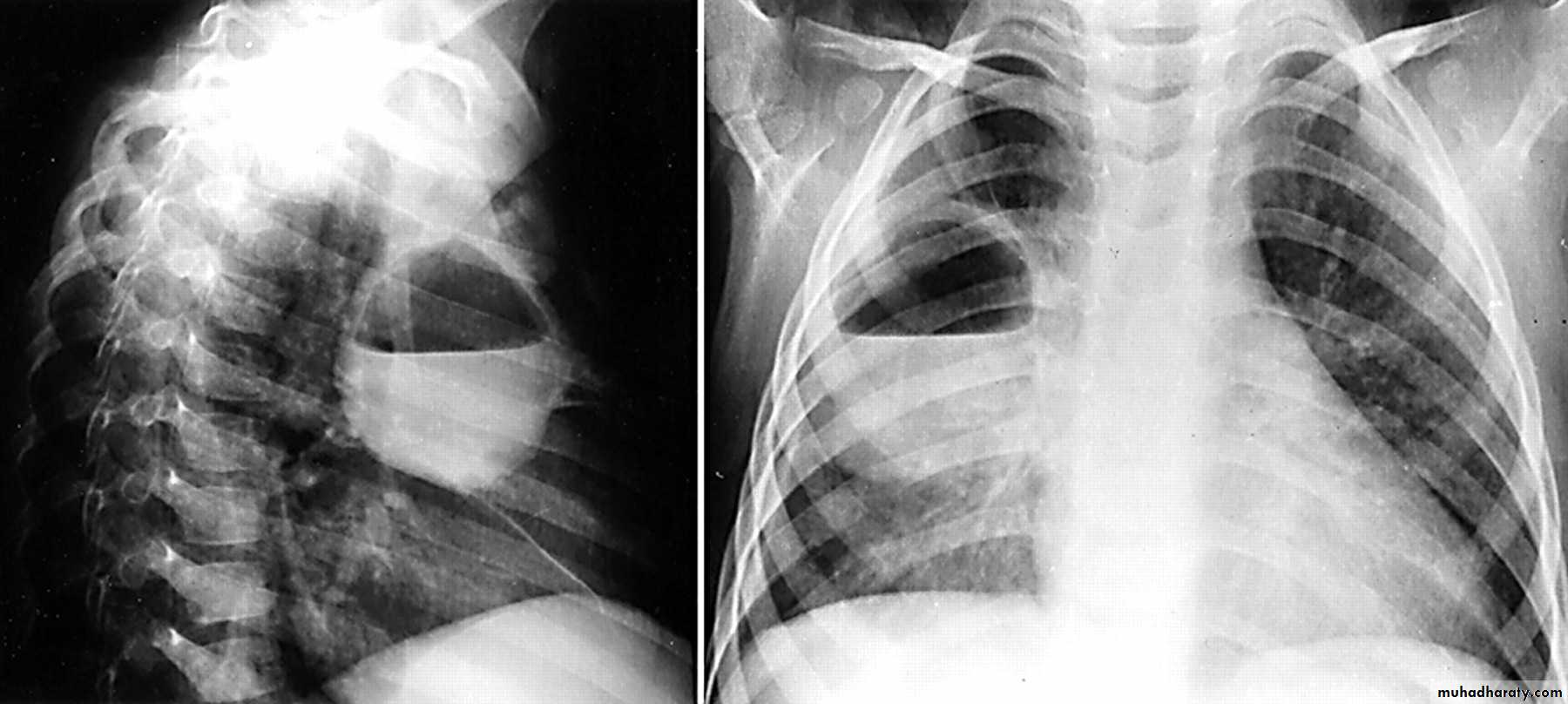

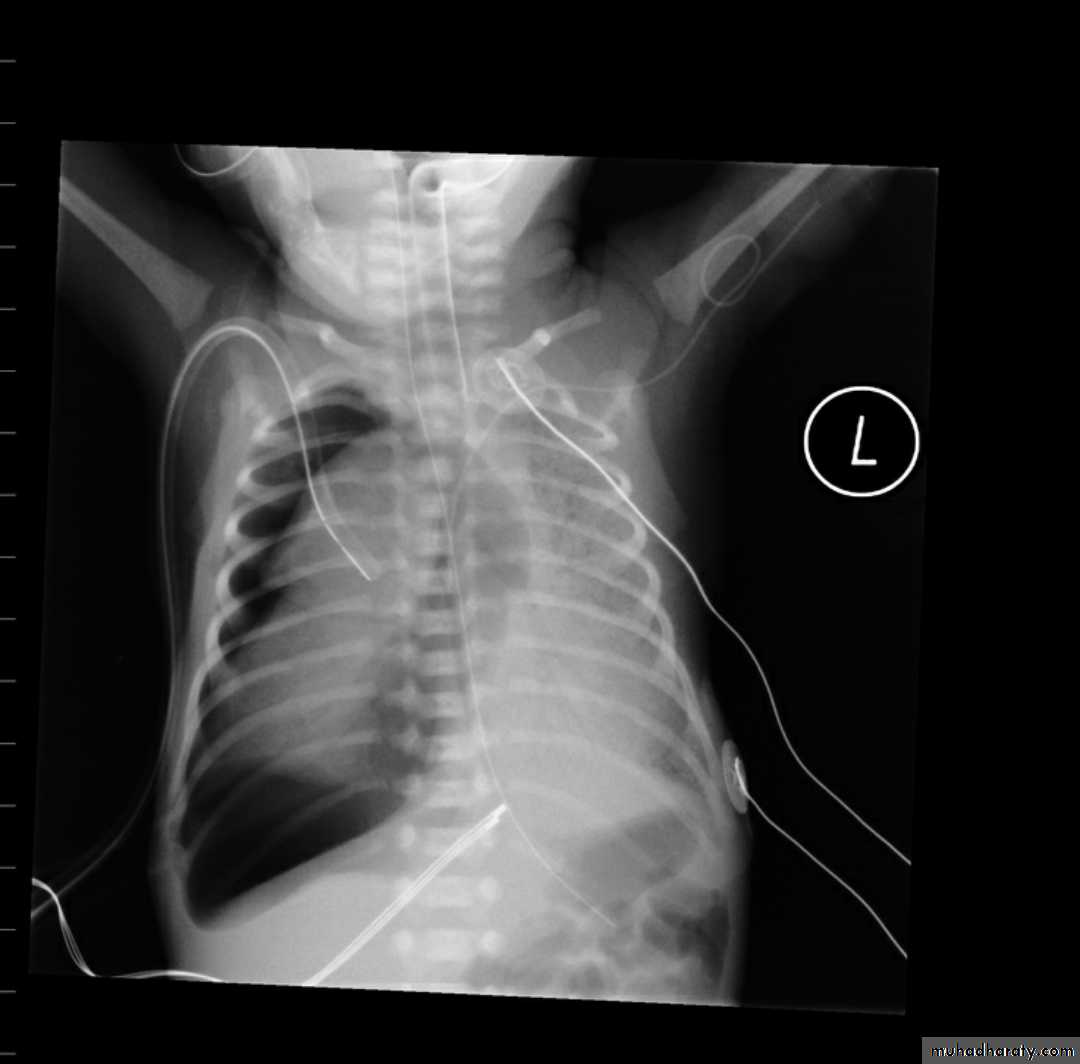

DDX of soap bubble appearance of the hemi thorax
Key of chest seminr
1,2,3 .presentation4.normal chest film ( PA ) view

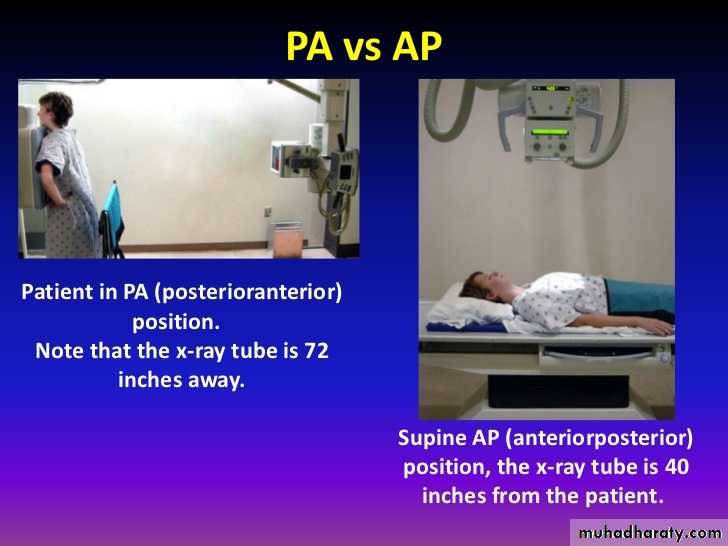

5.PA vs AP view

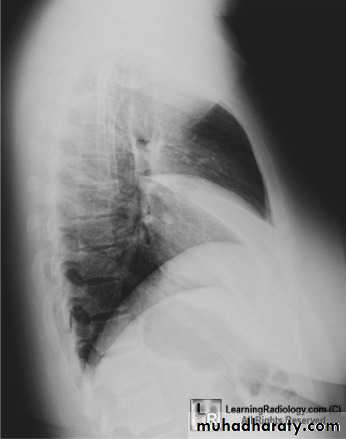

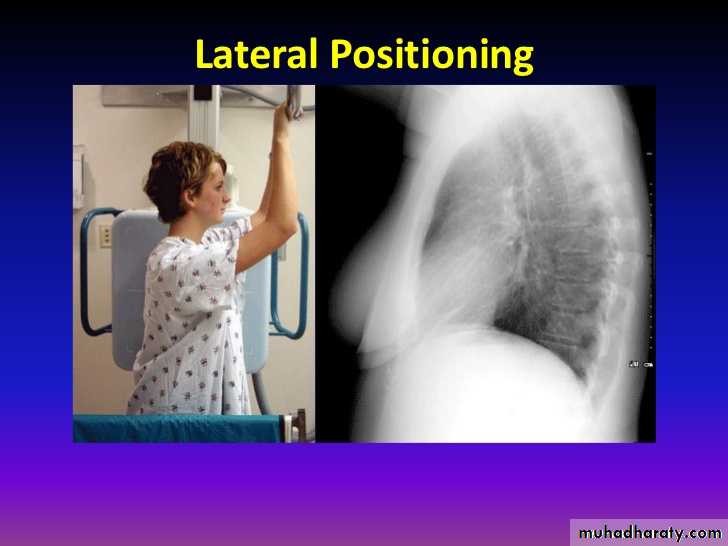

6.lateral film position

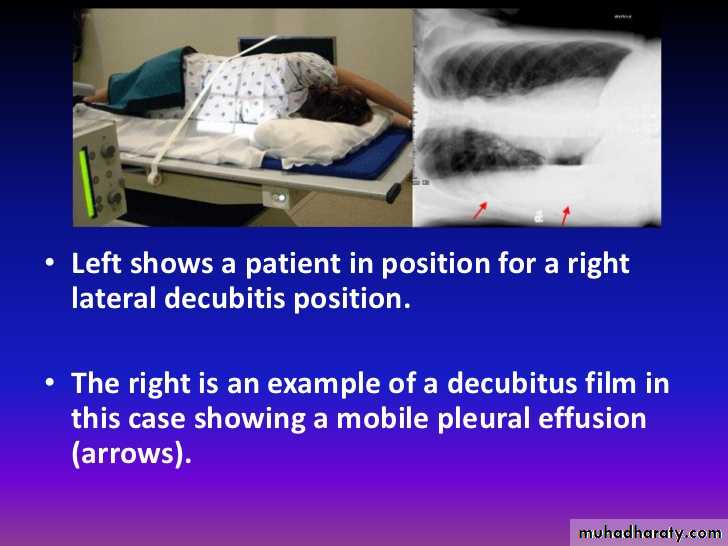

7.decubitus film

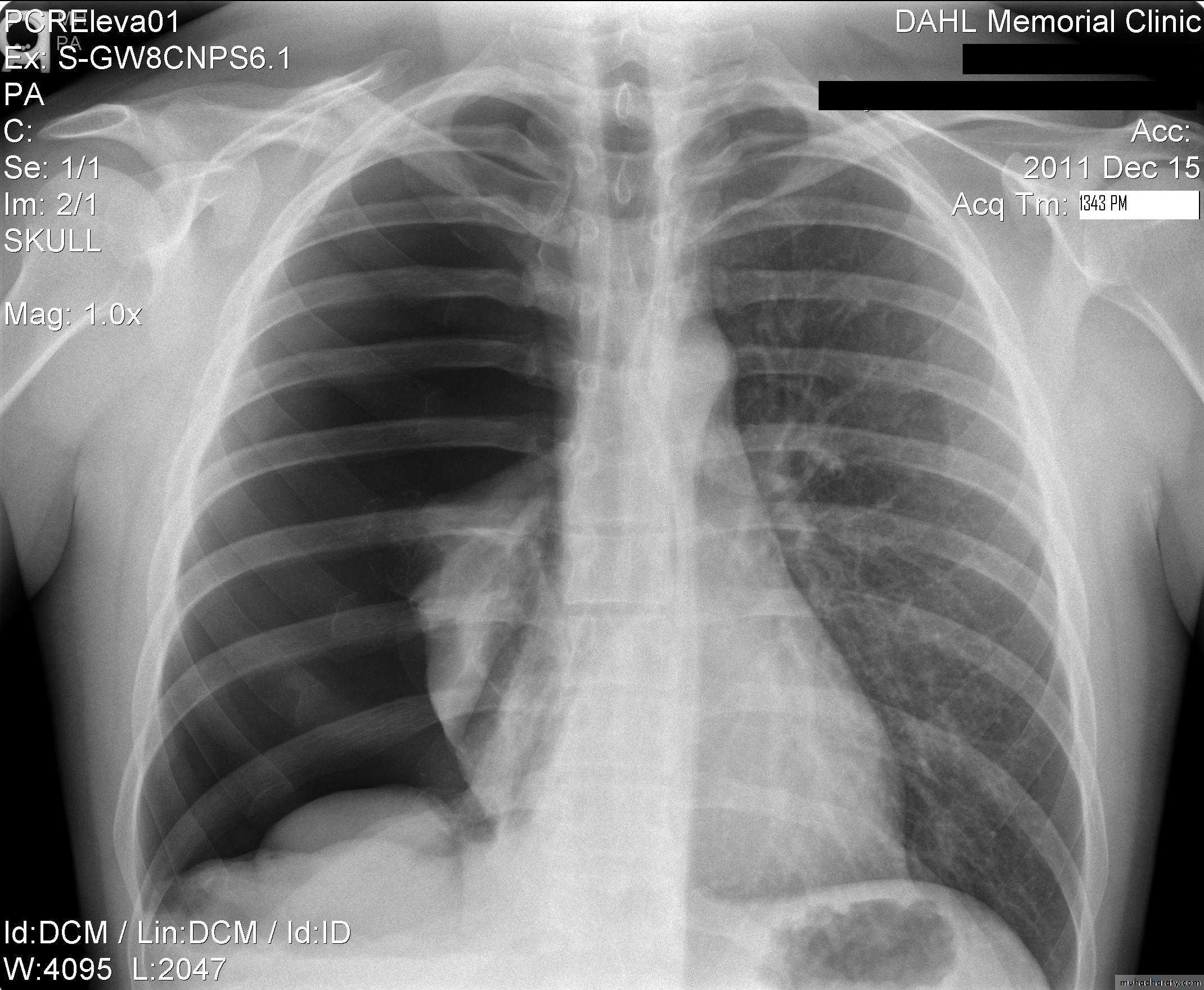

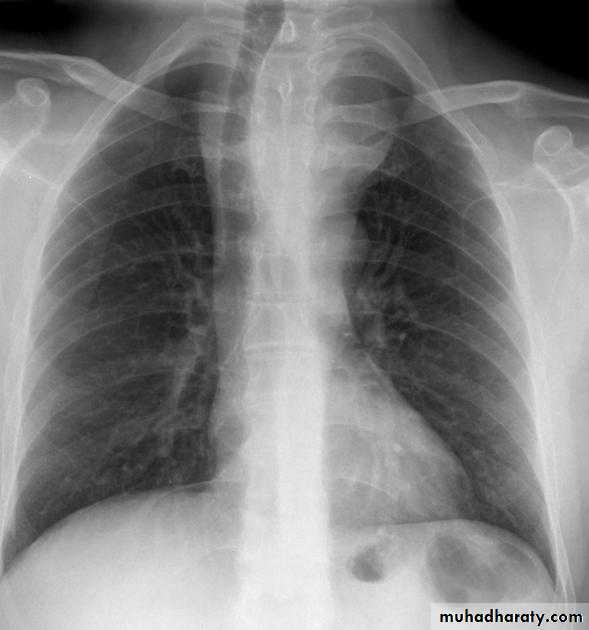

8.normal chest XR PA & lat. view
9.normal radiologic anatomy of the chest
10.normal chest anatomy

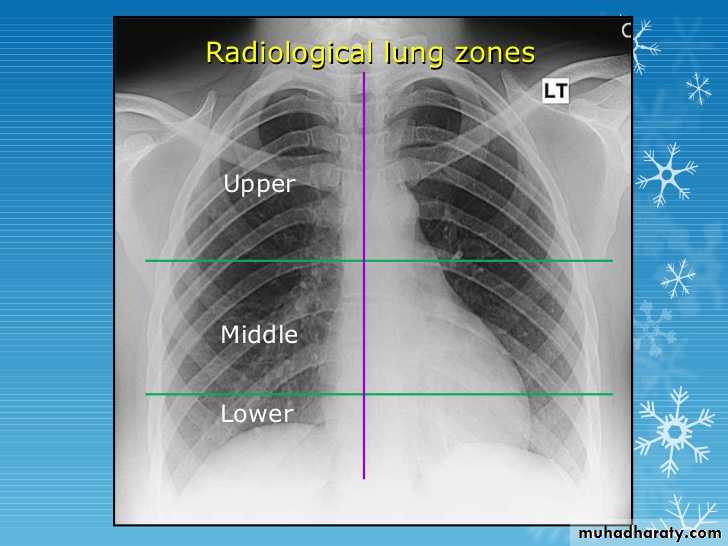

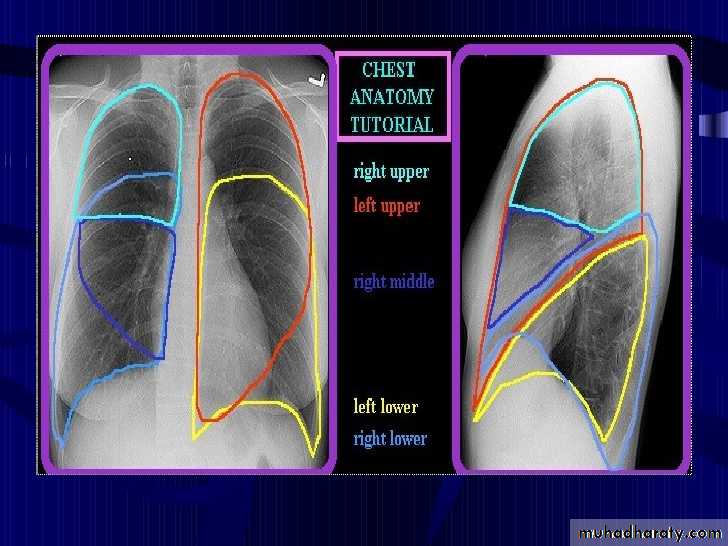

11.Radiological lung zone

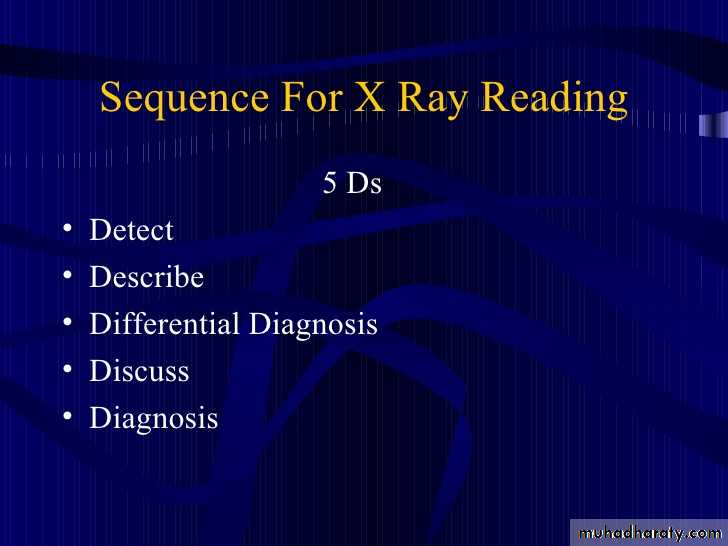

12.sequence for XR reading

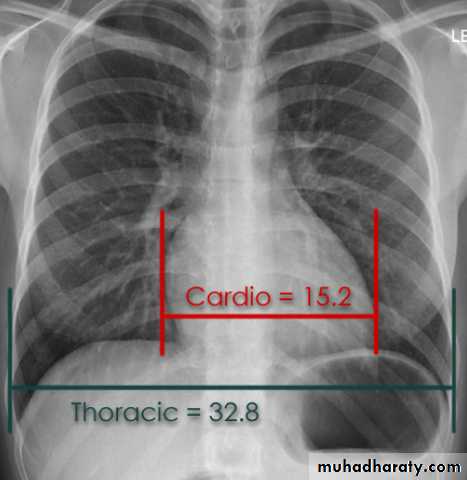

13.who to asses cardiac size

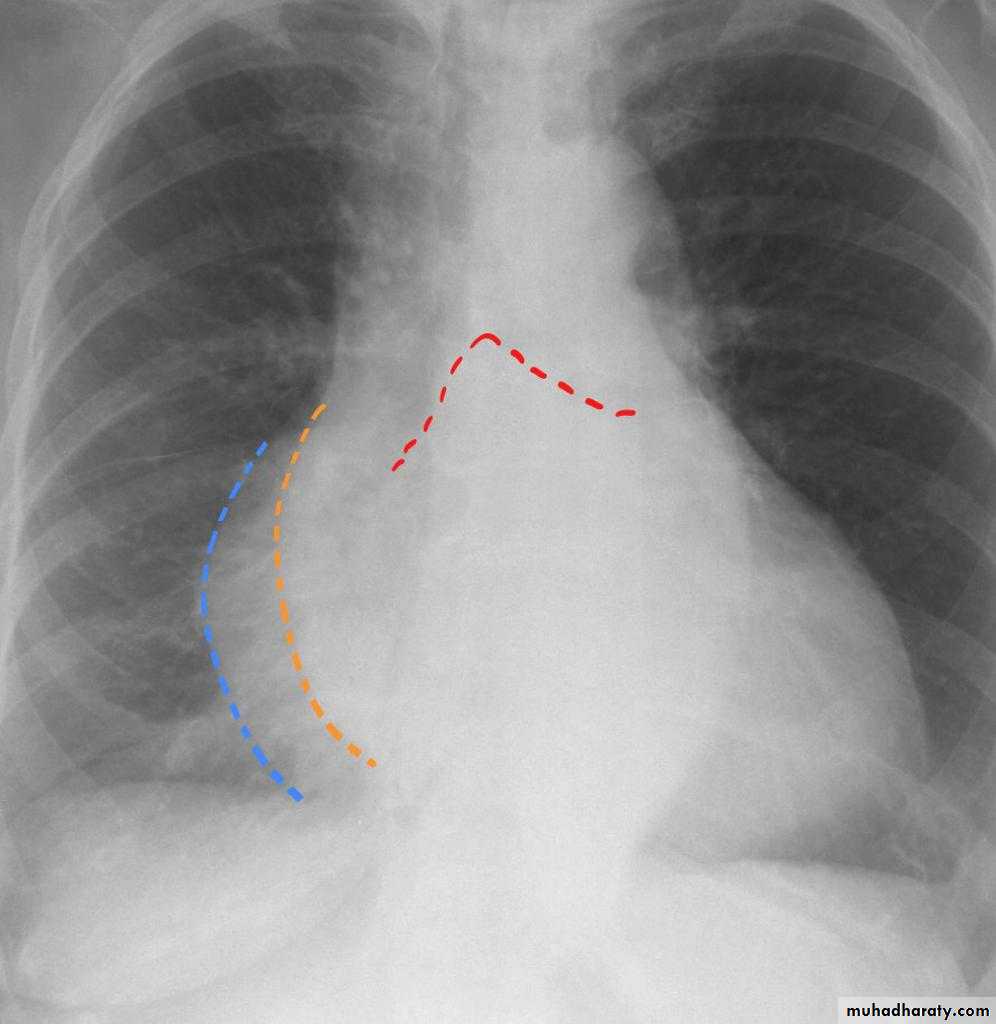

14.cardiac border in AP view

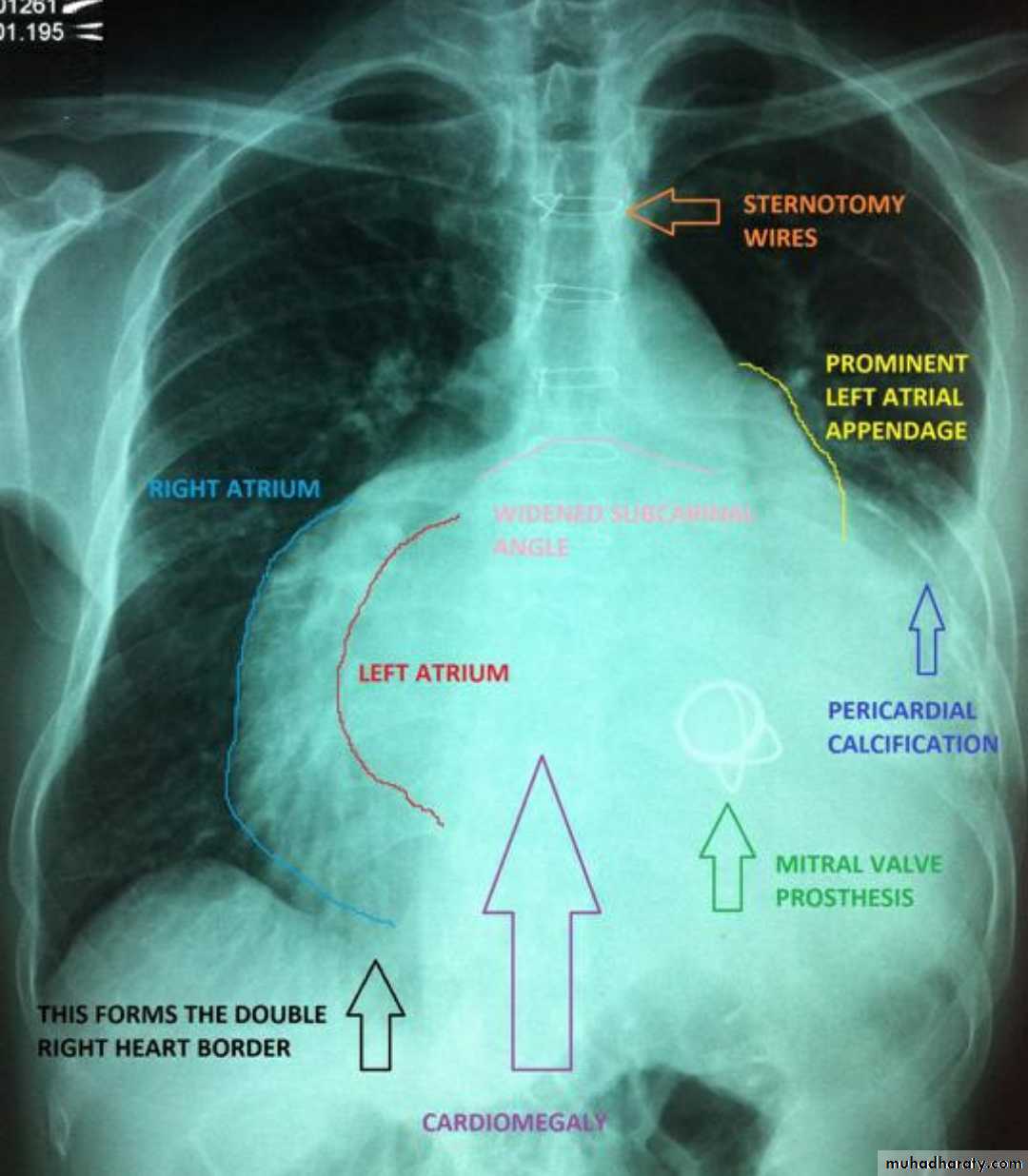

15.mitral valve disease & their sign
16.MVD
17. Globe shape heart (pericardial effusion )

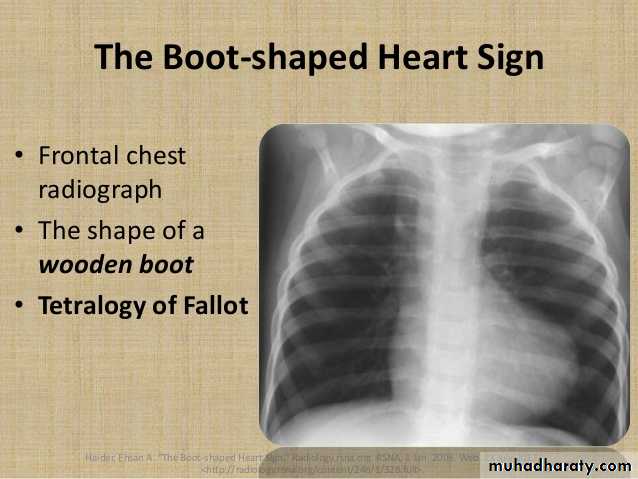

18.boot shape heart (TOF)
19.Egg on side heart y(Transposition f great vessels )
20.box shape heart (Ebestain anomaly)
21.Dextrocardia .

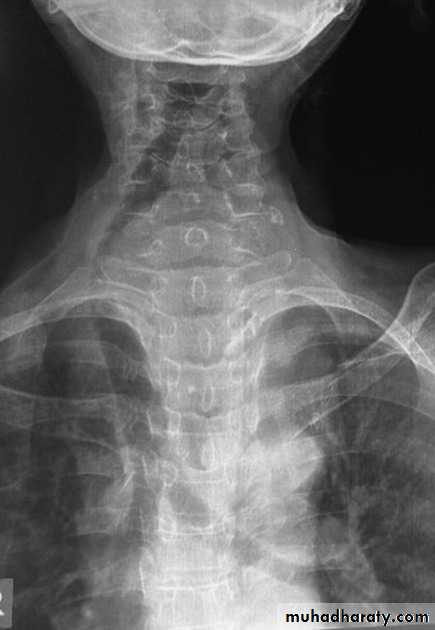

22.Retrophyrengeal abscess

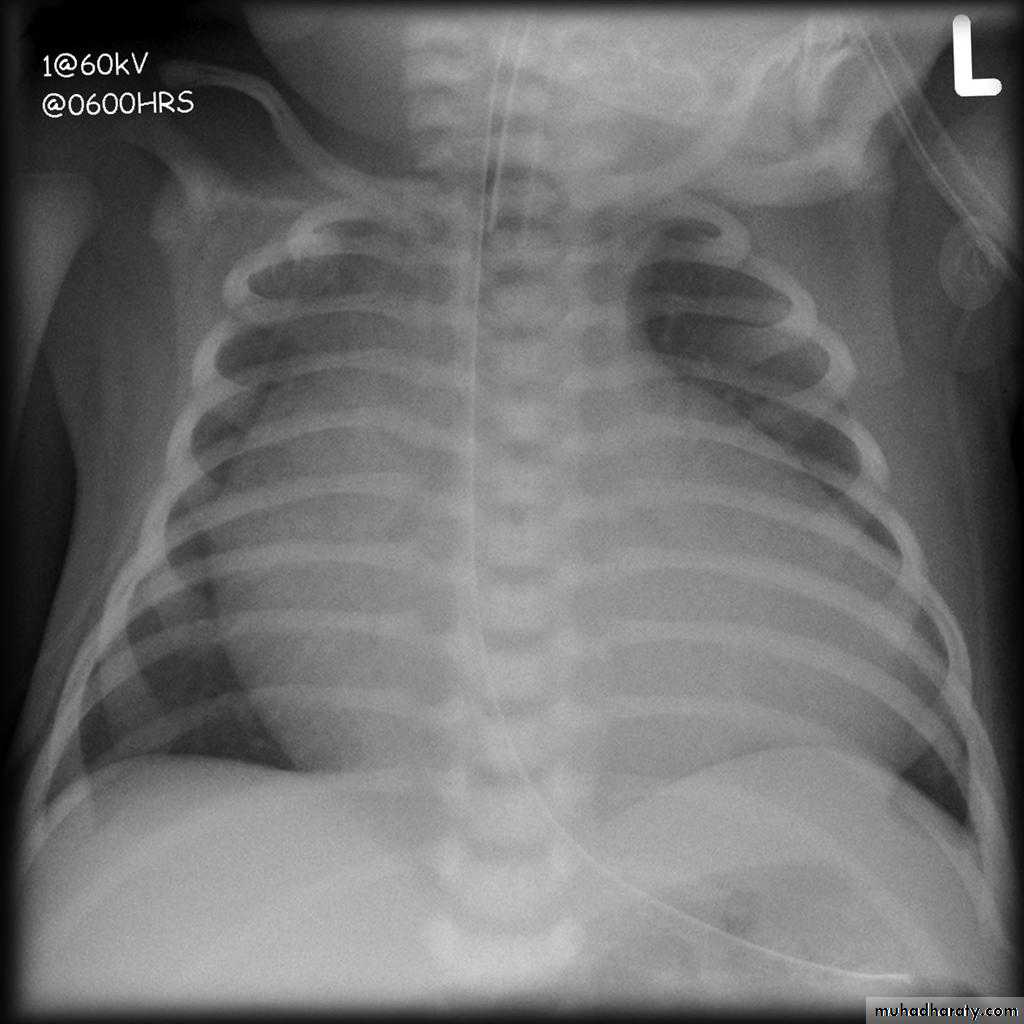

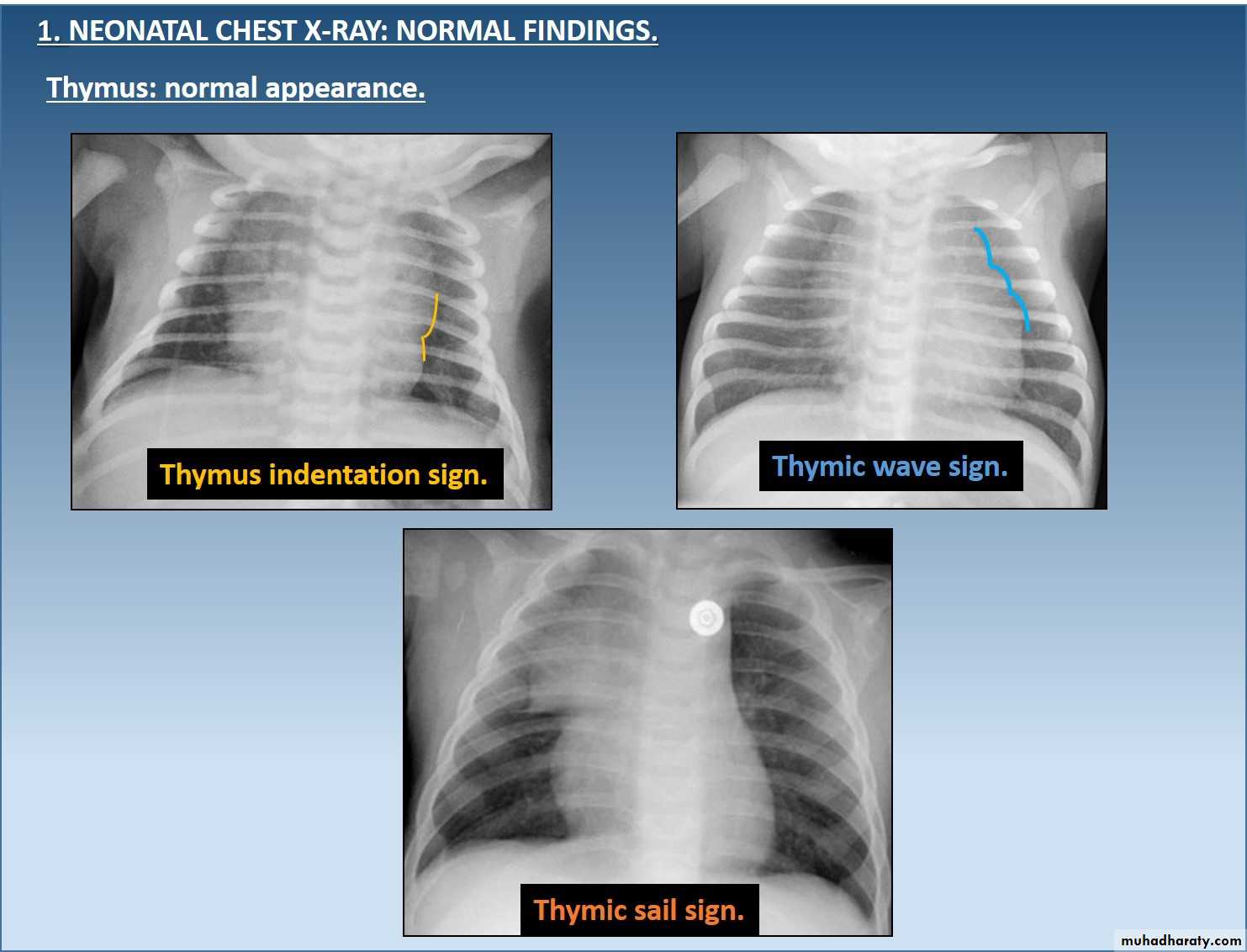

23.normal neonatal chest XR ( normal thymus gland )

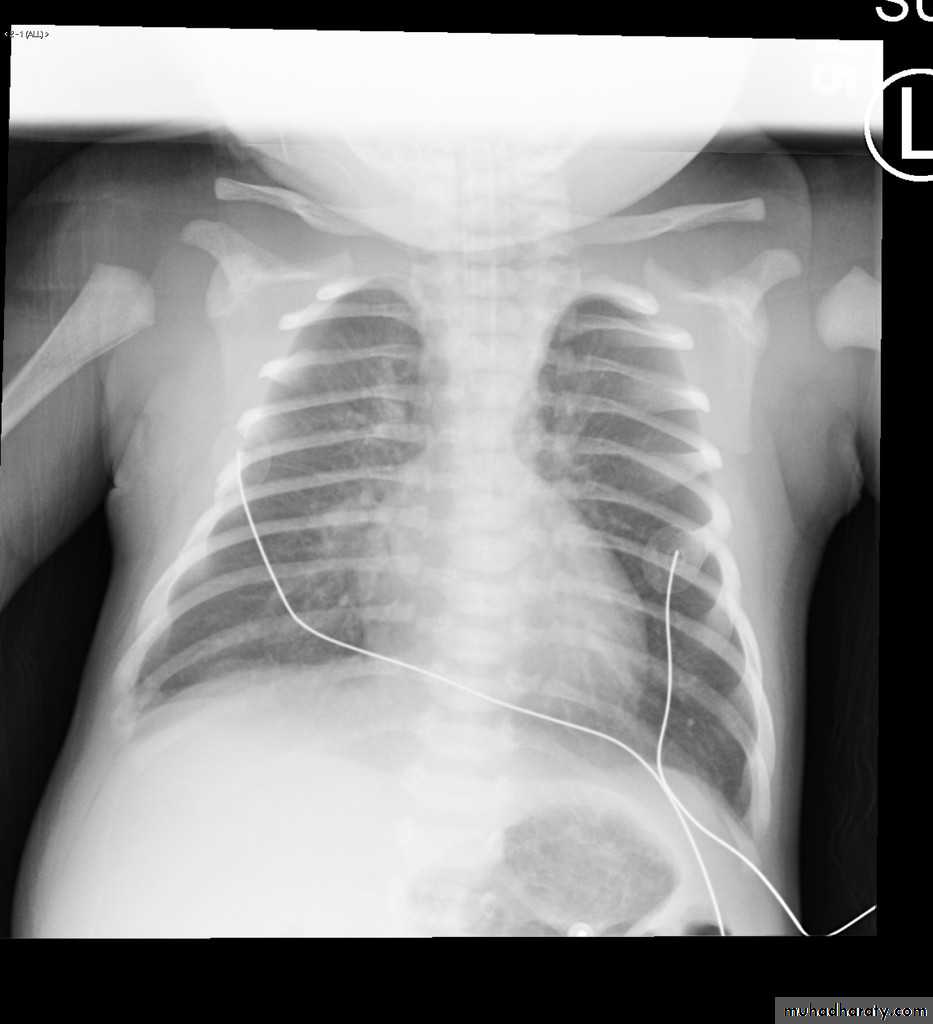

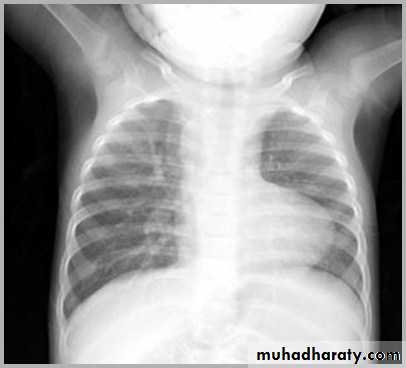

24. normal chest XR of the infant( normal thymus gland)

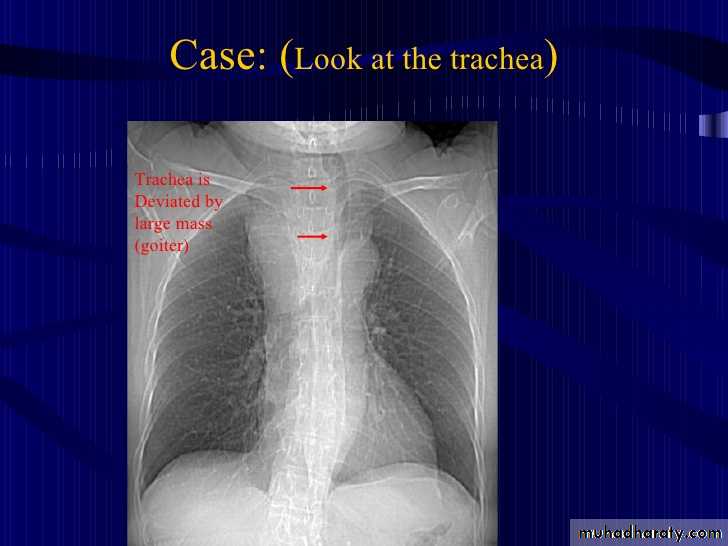

25.retrosternal Goiter
26.retrosternal Goiter
27.lymphoma of the middle mediastinum
28.chest XR ( bilateral hilar lymph adenopathy )
29.chest XR ( bilateral hilar lymph adenopathy )
30.RT UL consolidation

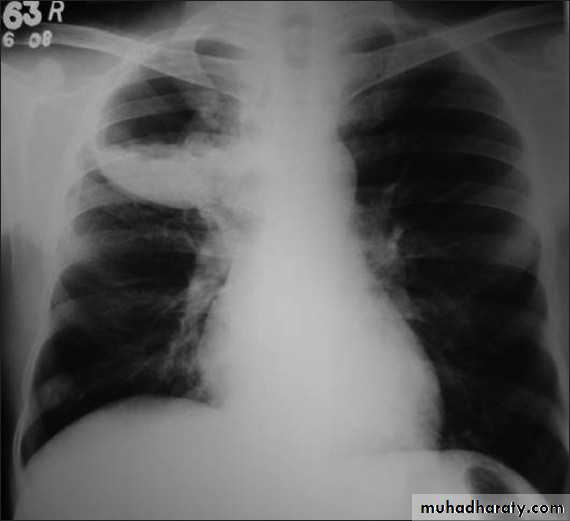

31. RT UL consolidation(bulging fissure sign ) klebsiella pneumonia .

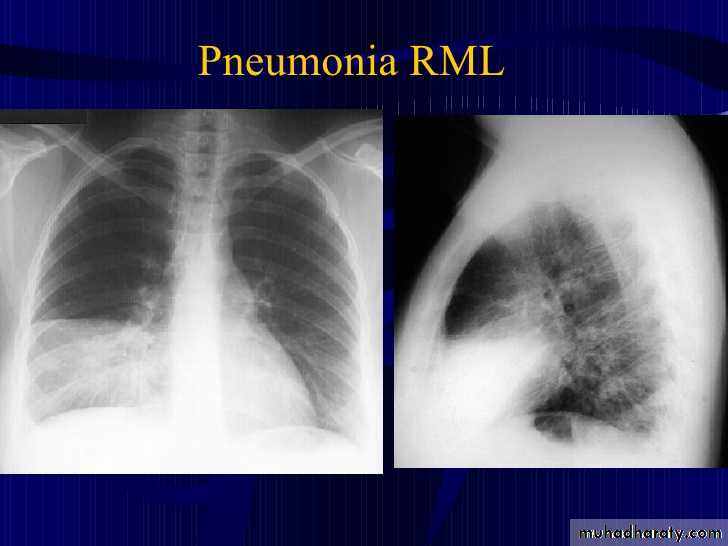

32.RT ML consolidation ( PA & lat. view )
33.RT ML consolidation (Lat. view )

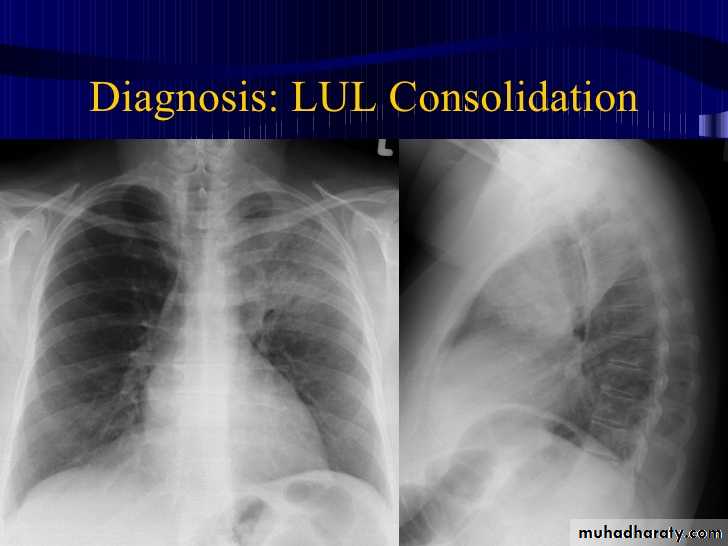

34.LUL consolidation (PA & Lat. View )

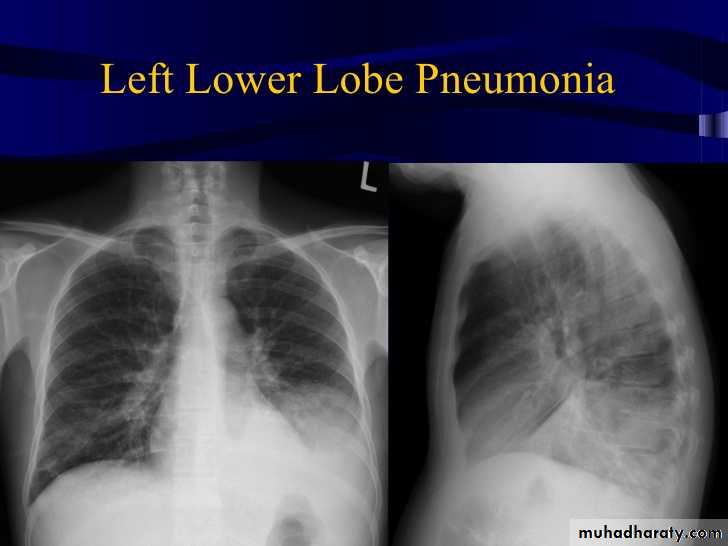

35.LT.lower lobe consolidation ( PA & Lat. view )
36.lobuler consolidation (lobular pneumonia )37.discussion
38.interstial pulmonary edema

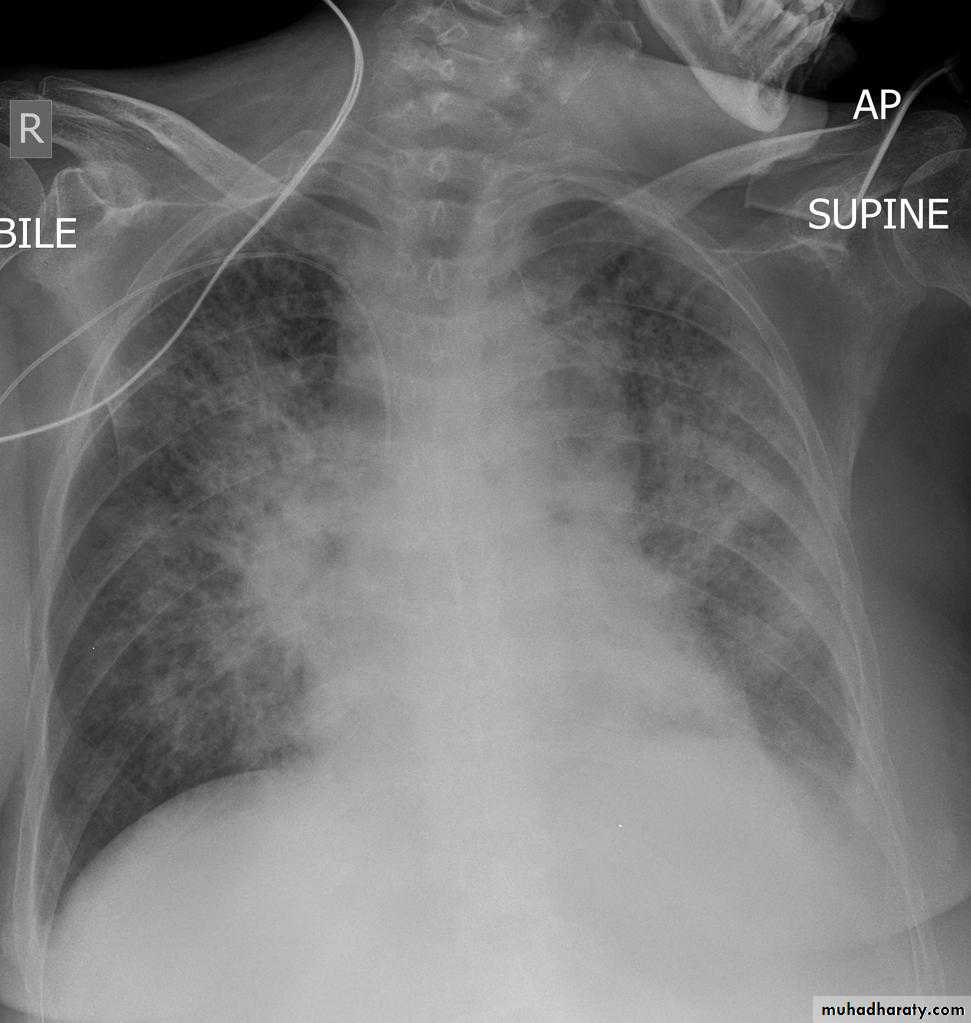

39.pulmonary edema ( alveolar pulmonary edema )
40.batwing sign ( alveolar pulmonary edema )

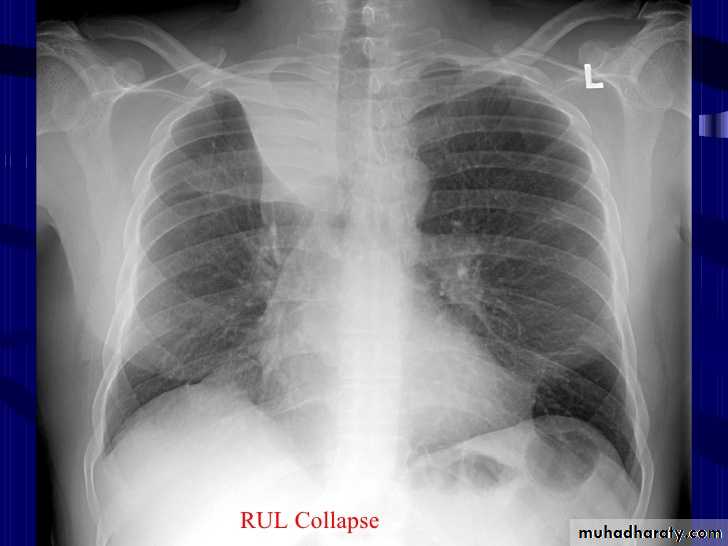

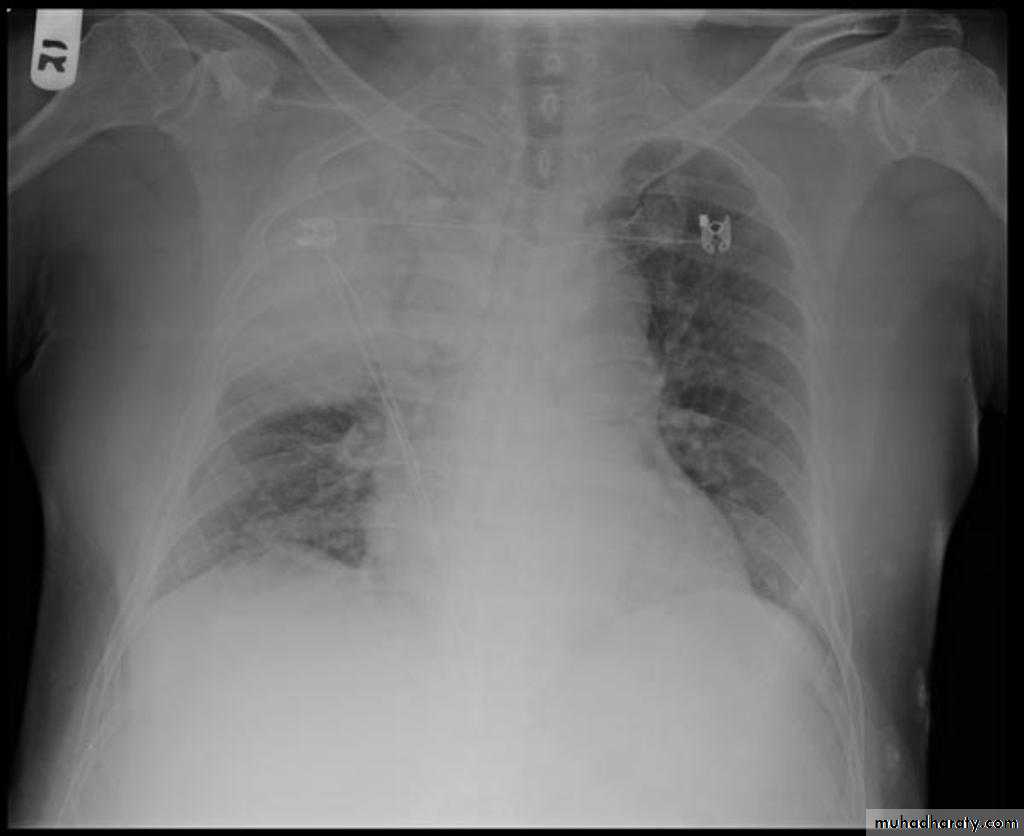

41.RT UL collapse
42.RT UL collapse
43.golden S sign
44.A.RT middle lobe consolidation
B.RT middle lobe collapse

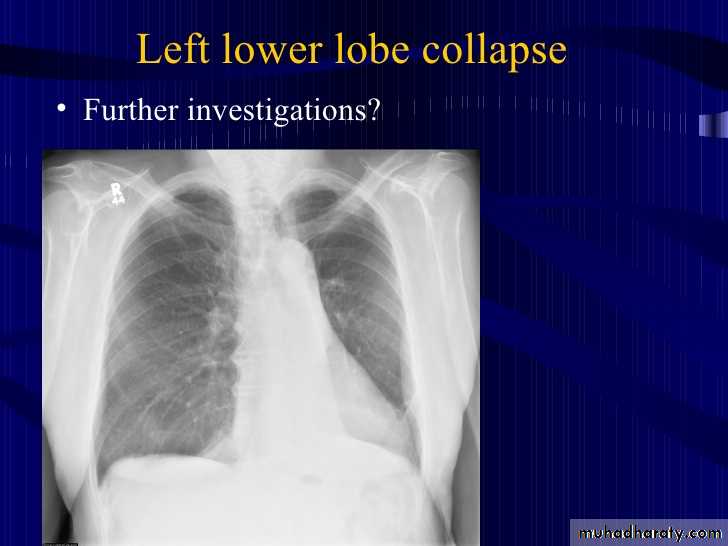

45.LT lower lobe collapse
46.LT lower lobe collapse
47.Emphyzema

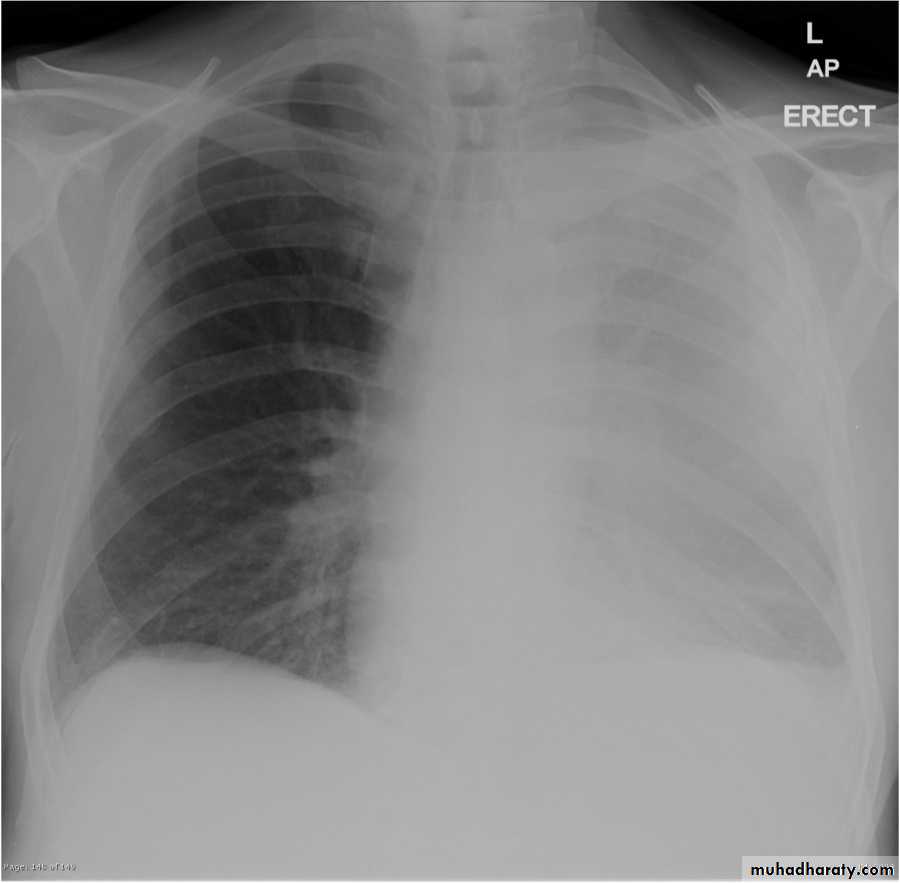

48.opasified hemi thorax
49.total collapse
50.pleural effusion
51.pleural effusion .
52.Encysted pleural effusion
53.pnuemothorax
54. pneumothorax
55. pneumothorax Right sided aspect

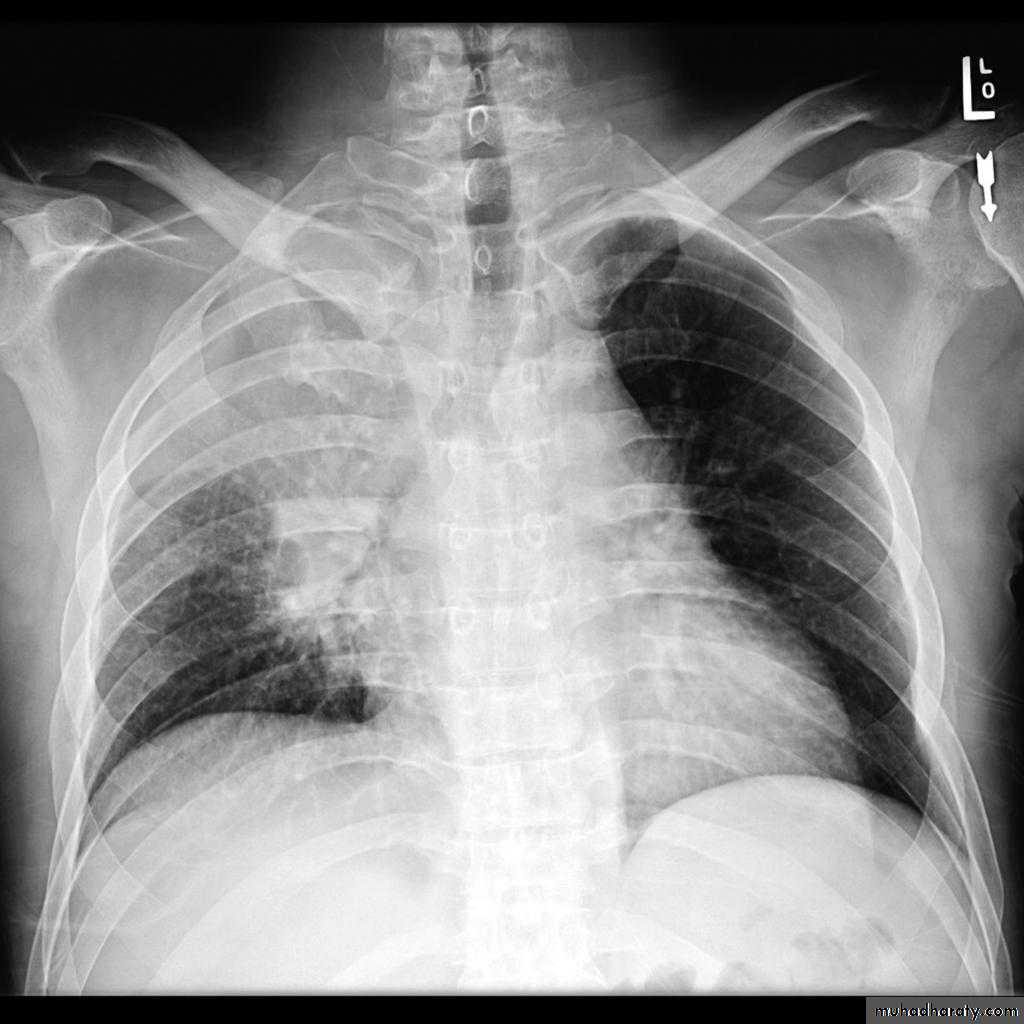

56.tension pneumothorax left sided aspect
57. tension pneumothorax right sided aspect

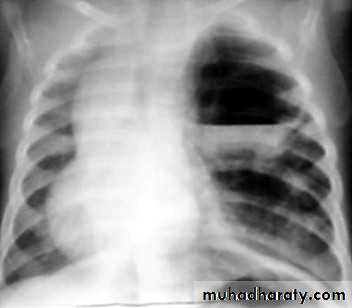

58.hydropneumothorax

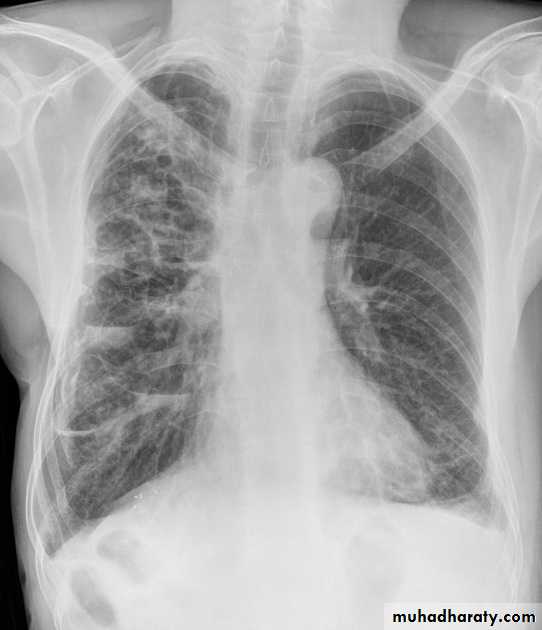

59.Bronchiactasis

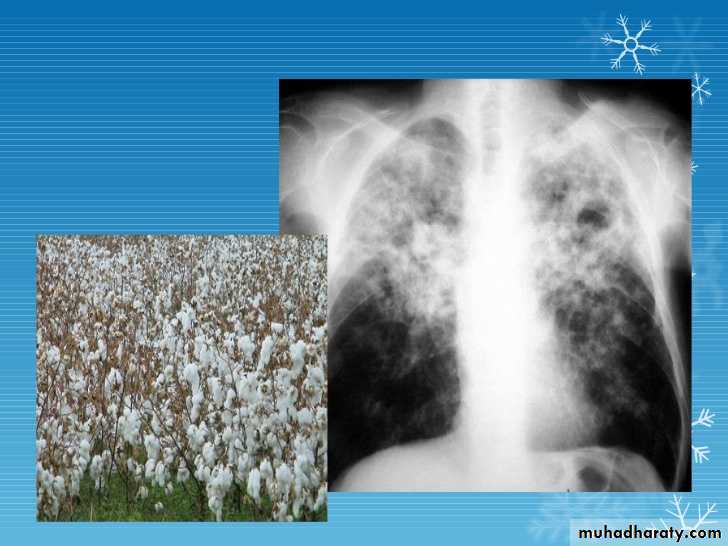

60.post primary TB ( cotton wool appearance )
61.post primary TB notice upper apical Broncho pneumonic shadow
62.Q??? Film
63.Q assessment
64.answer this film of Broncho pneumonic (lobular pneumonia ) VS upper zone apical Broncho pneumonic shadow due to post primary TB

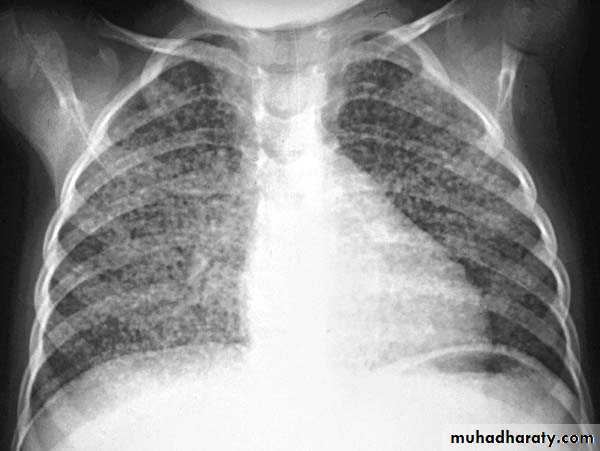

65.Miliary TB
66. miliary TB

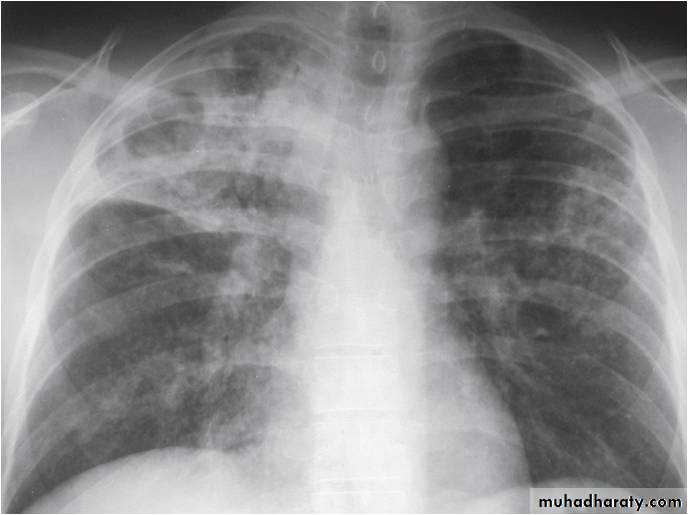

67. upper apical TB cavity68. Aspergilloma
69. Hydatid cyst simple & rupture water lily sign

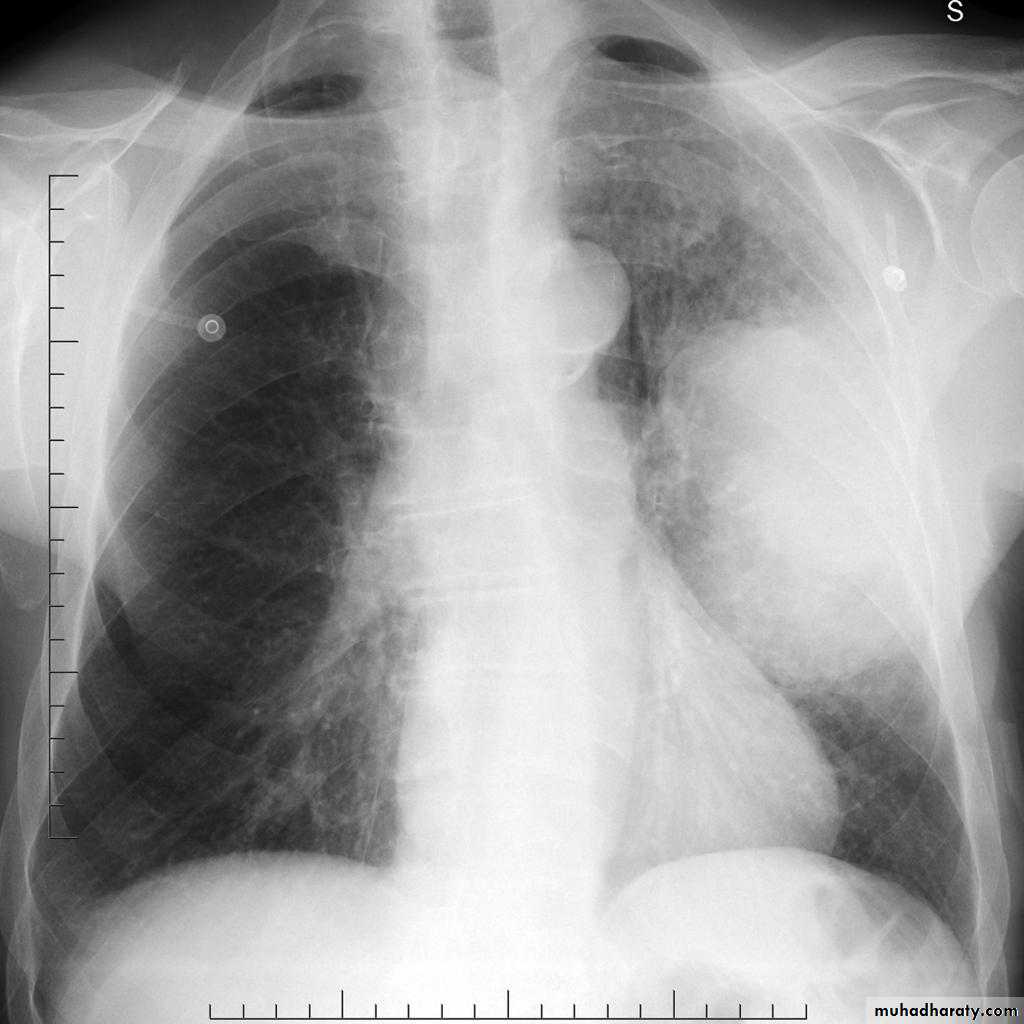

70. Bronchogenic CA.
71. BGCA
72. BGCA
73. pancosts tumor

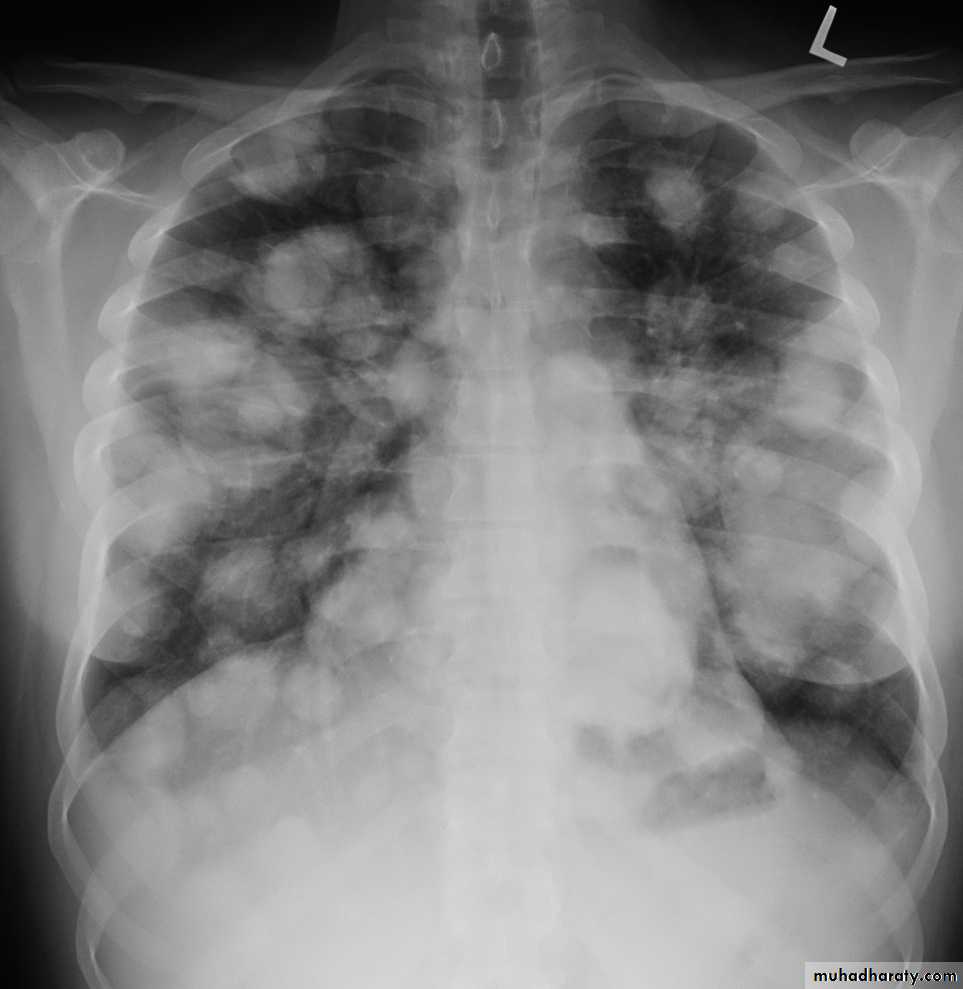

74. secondary metastasis to the lung ( canon ball appearance )
75. DDX of coin shadow

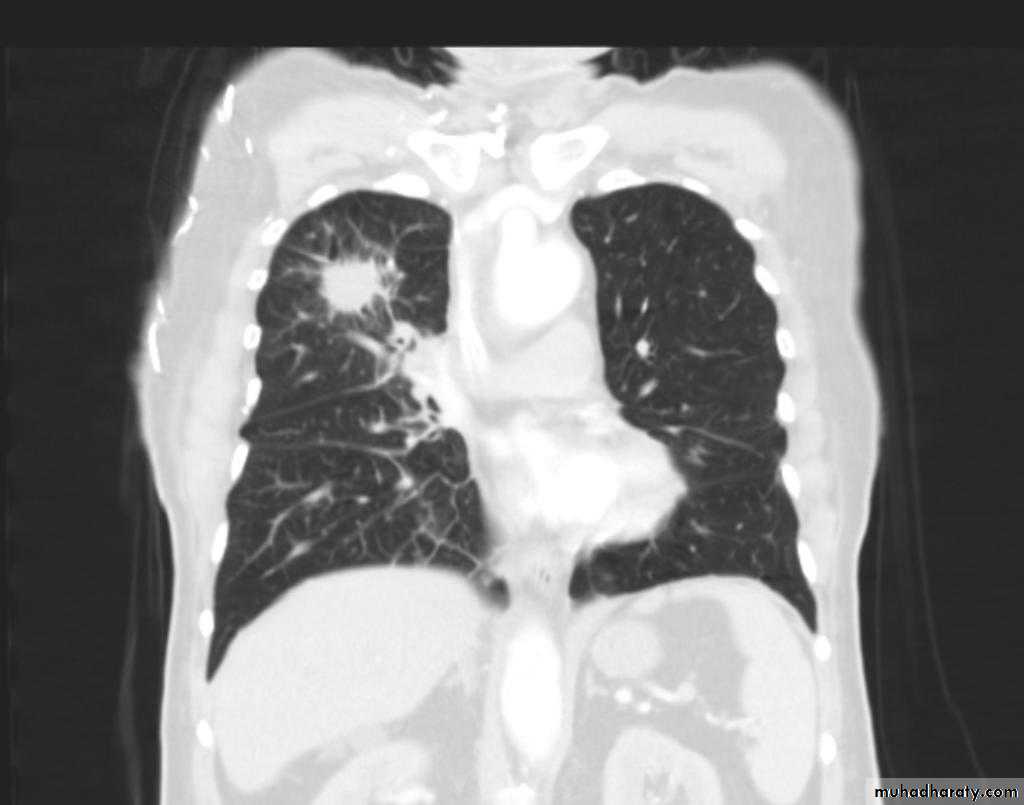

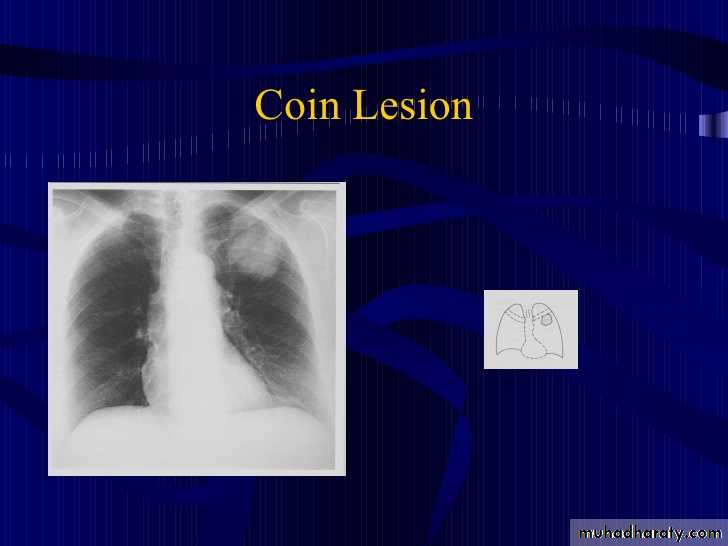

76. Coin lesion .
77. Lung abscess ( air fluid level )
78. Lung abscess

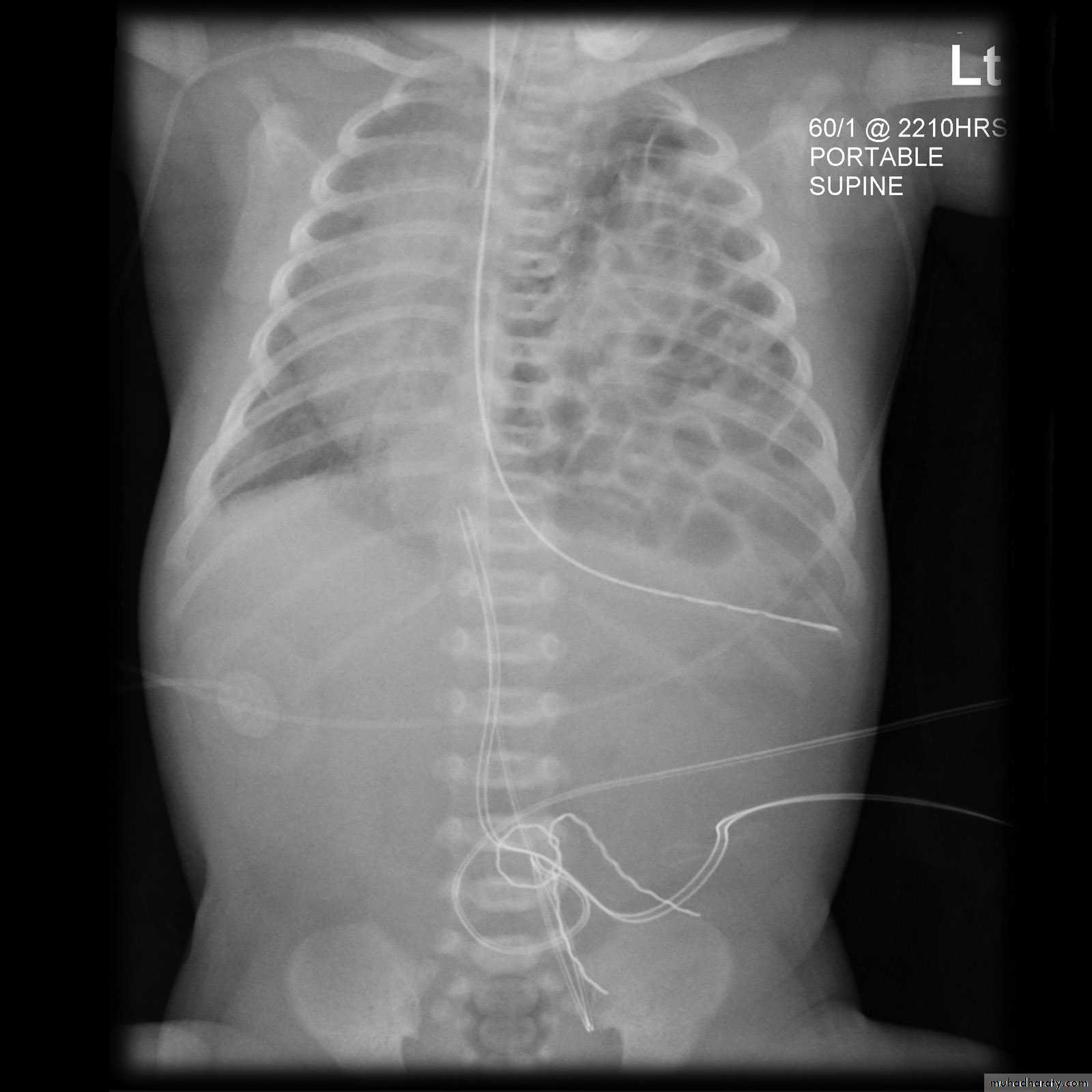

79. Diaphragmatic hernia Vs congenital cystic adenomatous malformation
