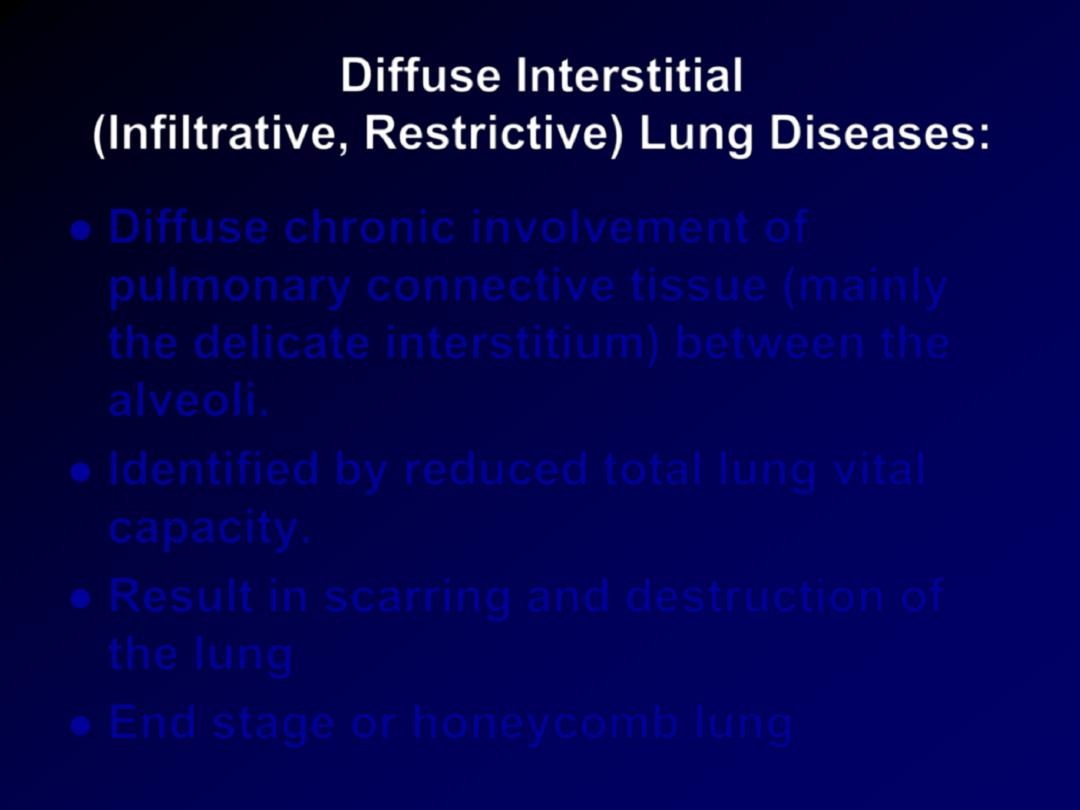

Diffuse Interstitial

(Infiltrative, Restrictive) Lung Diseases:

Diffuse chronic involvement of
pulmonary connective tissue (mainly
the delicate interstitium) between the
alveoli.

Identified by reduced total lung vital
capacity.

Result in scarring and destruction of
the lung

End stage or honeycomb lung


background image

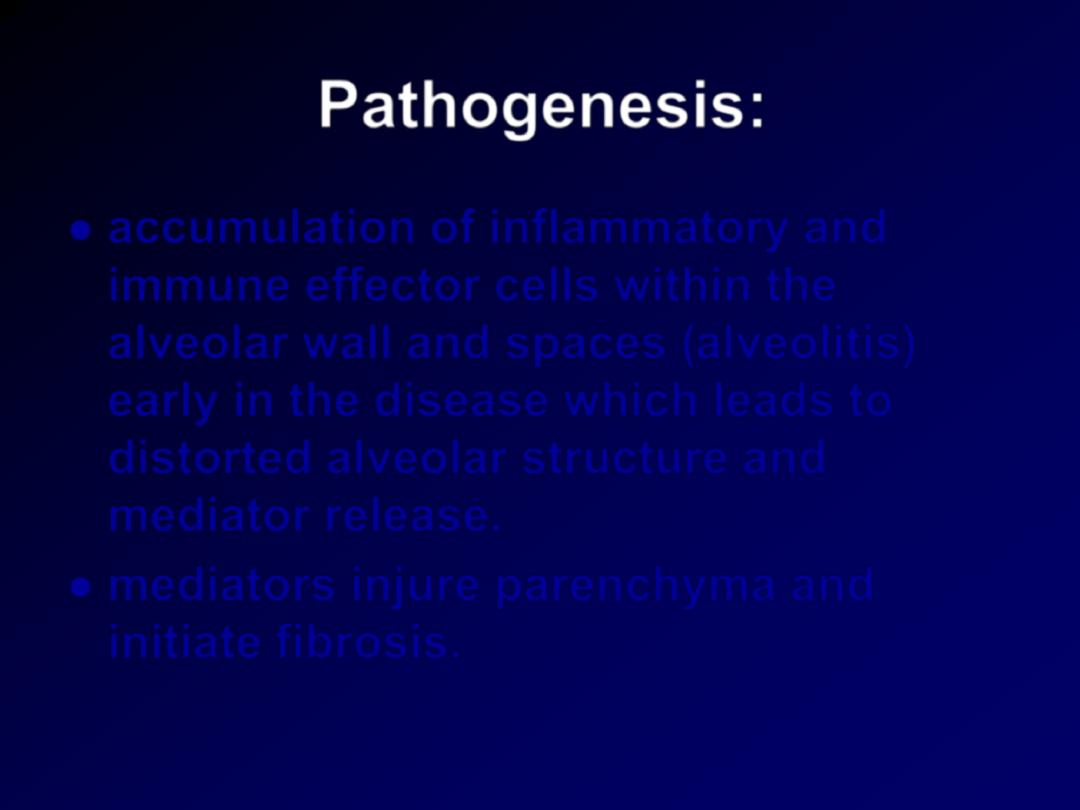

Pathogenesis:

accumulation of inflammatory and
immune effector cells within the
alveolar wall and spaces (alveolitis)
early in the disease which leads to
distorted alveolar structure and
mediator release.

mediators injure parenchyma and
initiate fibrosis.


background image

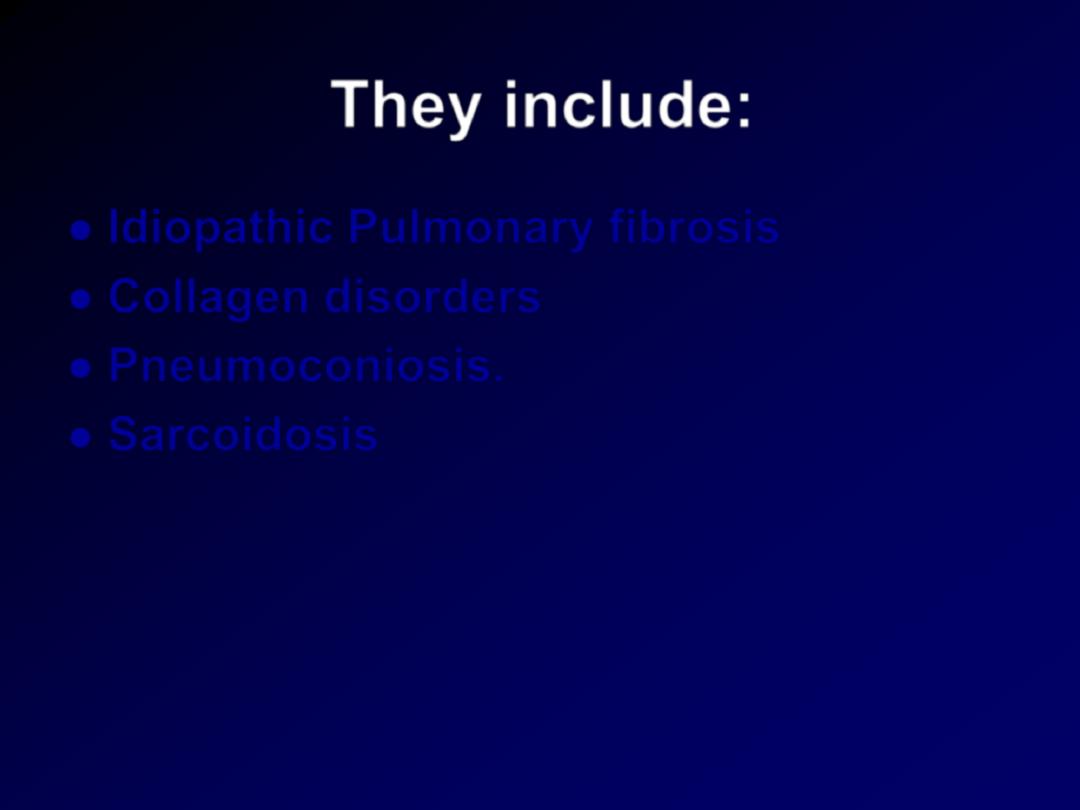

They include:

Idiopathic Pulmonary fibrosis

Collagen disorders

Pneumoconiosis.

Sarcoidosis


background image

Idiopathic

Pulmonary

Fibrosis

(IPF)

(cryptogenic fibrosing alveolitis)

is  characterized  histologically  by  diffuse  interstitial  fibrosis,
which  in  advanced  cases  results  in  severe  hypoxemia  and
cyanosis.

Males (usually over 60 years) are more often affected.

Grossly,

  the  pleural  surfaces  of  the  lung  have  cobblestone

appearance  because  of  the  retraction  of  scars  along  the
interlobular  septa.

The  histologic  hallmark  is  patchy

interstitial fibrosis, which varies in intensity



The  dense  fibrosis  causes  collapse  of  alveolar  walls  and
formation  of  cystic  spaces  lined  by  hyperplastic  type  II
pneumocytes (honeycomb fibrosis)

The  interstitial  inflammation  is  usually  patchy  and  consists
of lymphocytes. Secondary pulmonary hypertensive changes
are often present.




background image

The fibrosis, which varies in intensity, is more pronounced in the subpleural region (arrow)

Idiopathic pulmonary fibrosis


background image

Pulmonary  Involvement  in  Collagen
Vascular Diseases

Many  collagen  vascular  diseases  (e.g.,  SLE,
rheumatoid  arthritis,  systemic  sclerosis)  are
associated with pulmonary manifestations.

The  histologic  changes  are  in  part  similar  to  that
of  IPF,  vascular  sclerosis,  organizing  pneumonia,
and bronchiolitis.

Pleural  involvement  may  also  be  present.
Pulmonary involvement in these diseases is usually
associated with a poor prognosis.




background image

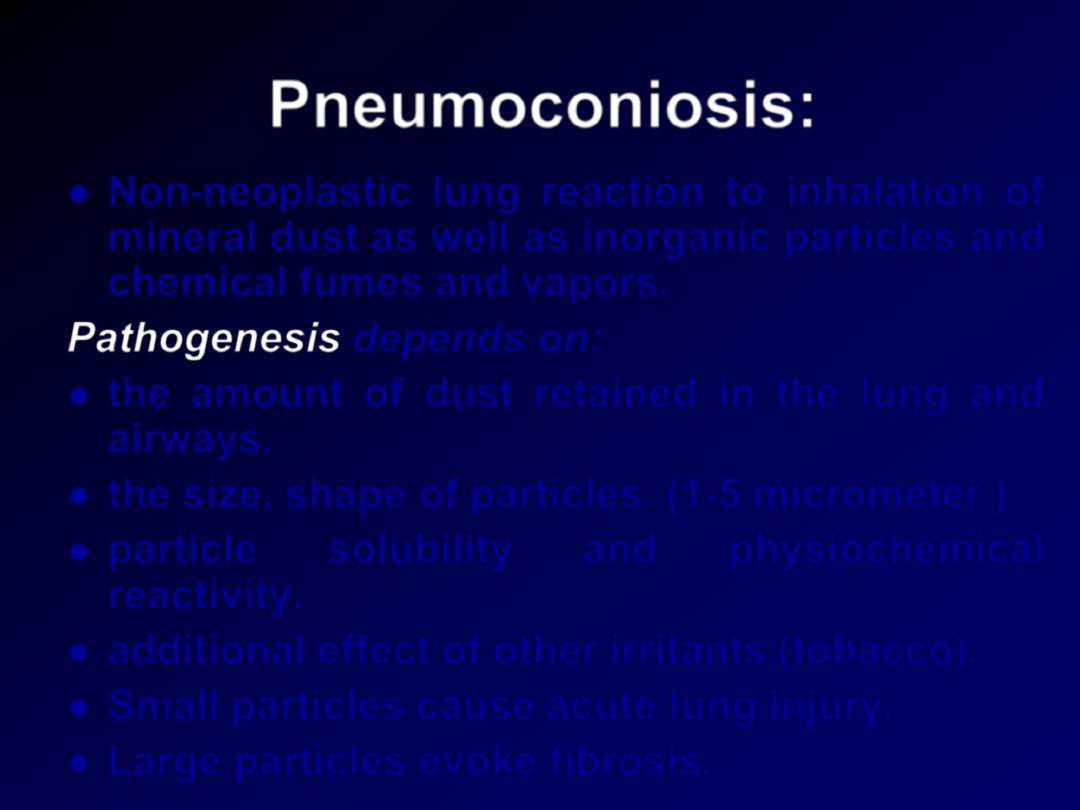

Pneumoconiosis:

Non-neoplastic  lung  reaction  to  inhalation  of
mineral dust as well as inorganic particles and
chemical fumes and vapors.

Pathogenesis

 depends on:

the  amount  of  dust  retained  in  the  lung  and
airways.

the size, shape of particles. (1-5 micrometer )

particle

solubility

and

physiochemical

reactivity.

additional effect of other irritants (tobacco).

Small particles cause acute lung injury.

Large particles evoke fibrosis.


background image

1. Coal Workers' Pneumoconiosis

The  spectrum  of  lung  findings  in  coal  workers
includes

a.  Asymptomatic  anthracosis

in  which

pigment  accumulates

without  cellular  reaction

.  It  is

also  commonly  seen  in  all  urban  dwellers  and
tobacco  smokers.  Inhaled  carbon  pigment  is
engulfed  by  alveolar  or  interstitial  macrophages,
which then accumulate in the connective tissue along
the  lymphatics,  including  the  pleural  lymphatics,  or
in lymph nodes.






background image

b.  Simple  coal  workers'  pneumoconiosis

is

characterized  by  nodules  that  consist  of  dust-laden
macrophages with small delicate network of collagen
fibers.

c. Progressive massive fibrosis

develops in 10% of those with the above; it occurs
through the coalescence of the fibrotic nodules.

The  fibrosis  is  extensive  and  lung  function  is
impaired

with

subsequent

pulmonary

hypertension, and corpulmonale.

There  is  no  increased  frequency  of  bronchogenic
carcinoma (cf. silicosis & asbestosis).


background image

background image

background image

background image

2. Silicosis

is the most common chronic occupational disease in the world. It is
caused  by

inhalation  of  silica  crystals  mostly  quartz

,  usually  in

occupational settings.

The  condition  is  characterized  by

the  formation  of  silicotic

nodules,

  at  first  tiny,  discrete,  pale  or  black  (when  mixed  with

carbon) involving the

upper zones of the lungs

.

Microscopically

,  the  silicotic  nodule  consists  of  concentrically

arranged  hyalinized  collagen  fibers  surrounding  an  amorphous
center.  Polarized  microscopy  reveals  weakly  birefringent  silica
particles, primarily in the center of the nodules. With progression,
the  individual  nodules

coalesce  into  large  collagenous  scars

,  and

eventually progressive

massive fibrosis

. Silicosis is associated with

an  increased  susceptibility  to

tuberculosis

  presumably  due

depression  of  cell-mediated  immunity.

Silica  from  occupational

sources  is  carcinogenic  in  humans.  However,  this  subject
continues to be controversial.




background image

M/69. Multiple silicotic nodules can be seen
under the pleura. This man had worked as a
miner for most of his life.

Silicosis lung


background image

Several coalescent collagenous silicotic nodules.

Silicosis lung


background image

3. Asbestosis and Asbestos-Related Diseases

Asbestos  is  a  family  of  silicate  crystals  with  a  fibrous  spatial  arrangement.
Occupational exposure to asbestos is associated with

1. Interstitial pulmonary fibrosis (asbestosis)

   2.

Localized

fibrous

pleural plaques

3. Pleural effusions









   4.  Bronchogenic

carcinoma

5.  Malignant mesotheliomas (pleural, peritoneal)      6. Laryngeal carcinoma

An  increased  incidence  of  asbestos-related  cancers  is  noted  in  family
members of asbestos workers.

Asbestosis

signifies

diffuse

pulmonary

interstitial

fibrosis

characteristically  shows the  presence of  asbestos  bodies,  which  are  seen  as
golden brown, beaded rods.

They consist of asbestos fibers coated with an iron-protein material.

In contrast to coal workers pneumoconiosis and silicosis, asbestosis begins
in  the  lower  lobes  and  subpleural  regions,  but  the  entire  lungs  become
affected  as  fibrosis  progresses.  Simultaneously,  the  visceral  pleura
undergoes fibrous thickening.




background image

High-power detail of an asbestos body, revealing the typical beading and knobbed ends (arrow).

Asbestos body


background image

Pleural  plaques

  are  the  most  common  manifestation  of

asbestos  exposure  and  are  well-circumscribed  patches  of
dense  collagen  that  develop  most  frequently

on  the  parietal

pleura and over the domes of the diaphragm.

The risk of bronchogenic carcinoma is increased about five
times for asbestos workers.

The risk for

mesotheliomas

, normally a very rare tumor, is

more than

1000 times greater

 Both  pleural  and  peritoneal  mesotheliomas  have  an
association with asbestos exposure.

Concomitant  cigarette  smoking  greatly  increases  the  risk
of bronchogenic carcinoma but not that of mesothelioma.

The  carcinoma  &  mesothelioma  associated  with  asbestos
exposure have a particularly poor prognosis.




background image

background image

HONEYCOMB LUNG

The lung has a honeycomb appearance grossly. There is prominent interstitial fibrosis. Etiologies
include DIP, UIP, interstitial pneumonitis associated with collagen vascular diseases, asbestosis,
berylliosis, sarcoidosis, LIP, DAD, recurrent aspiration, allergic alveolitis, and idiopathic.


background image

Granulomatous Diseases




background image

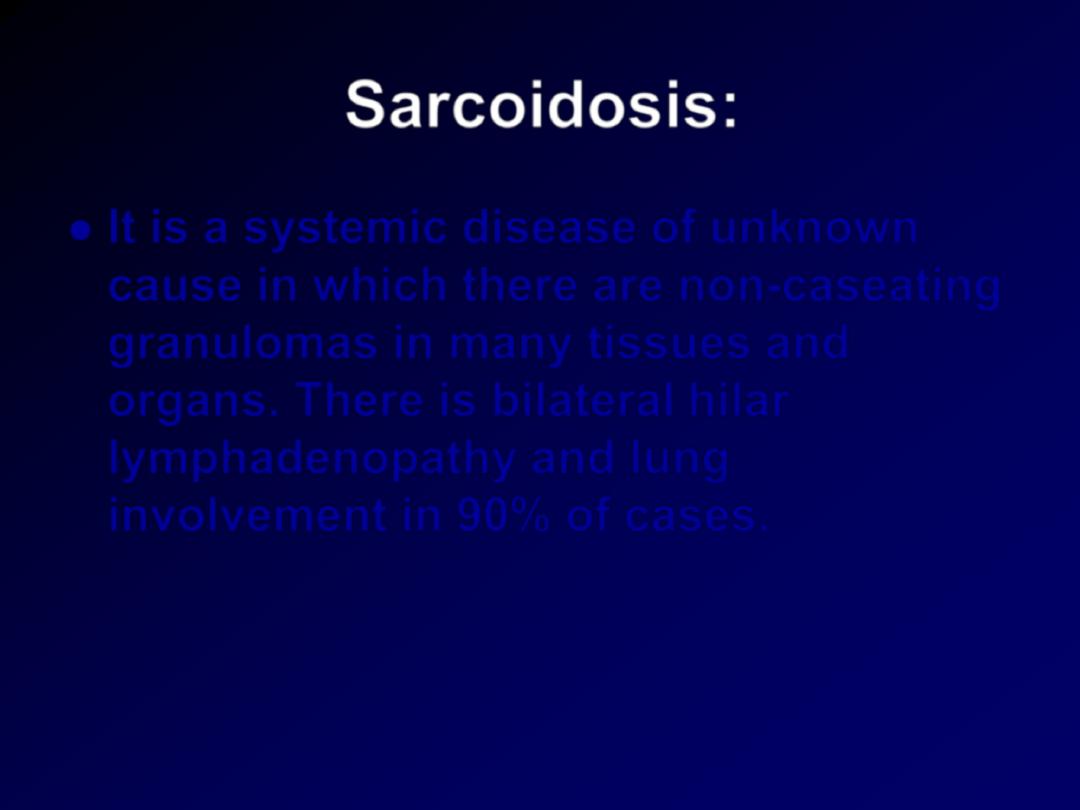

Sarcoidosis:

It is a systemic disease of unknown
cause in which there are non-caseating
granulomas in many tissues and
organs. There is bilateral hilar
lymphadenopathy and lung
involvement in 90% of cases.


background image

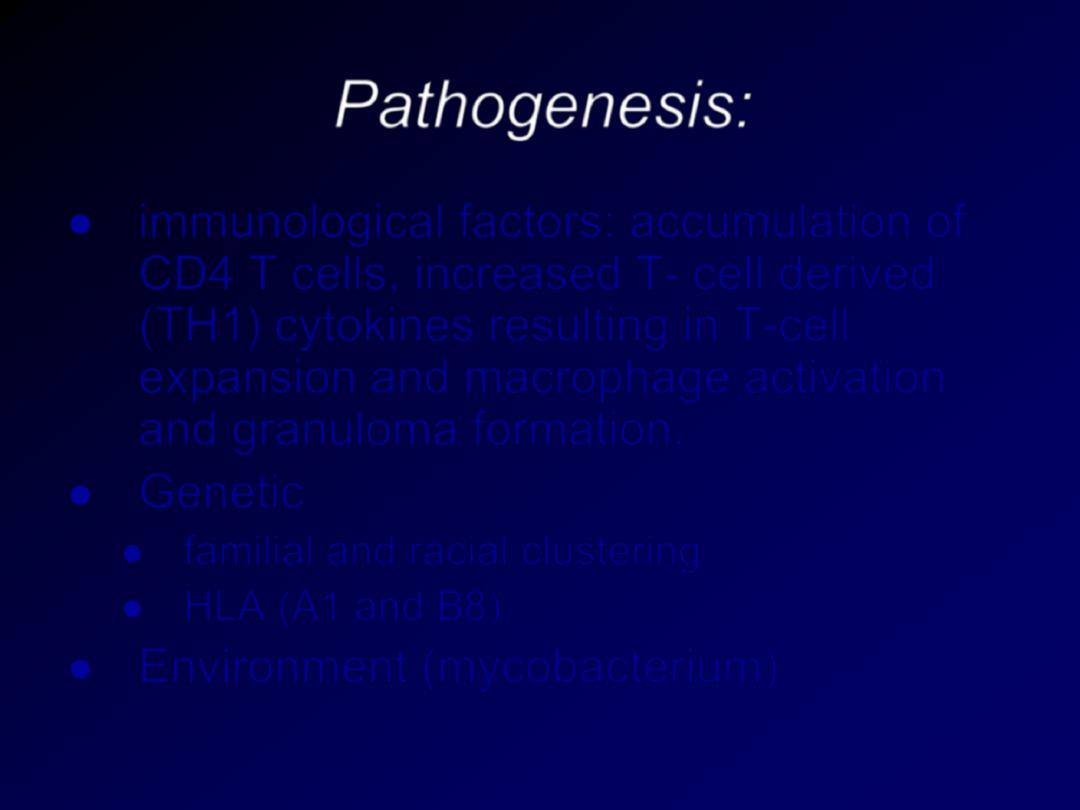

Pathogenesis:

immunological factors: accumulation of
CD4 T cells, increased T- cell derived
(TH1) cytokines resulting in T-cell
expansion and macrophage activation
and granuloma formation.

Genetic

familial and racial clustering

HLA (A1 and B8)

Environment (mycobacterium)


background image

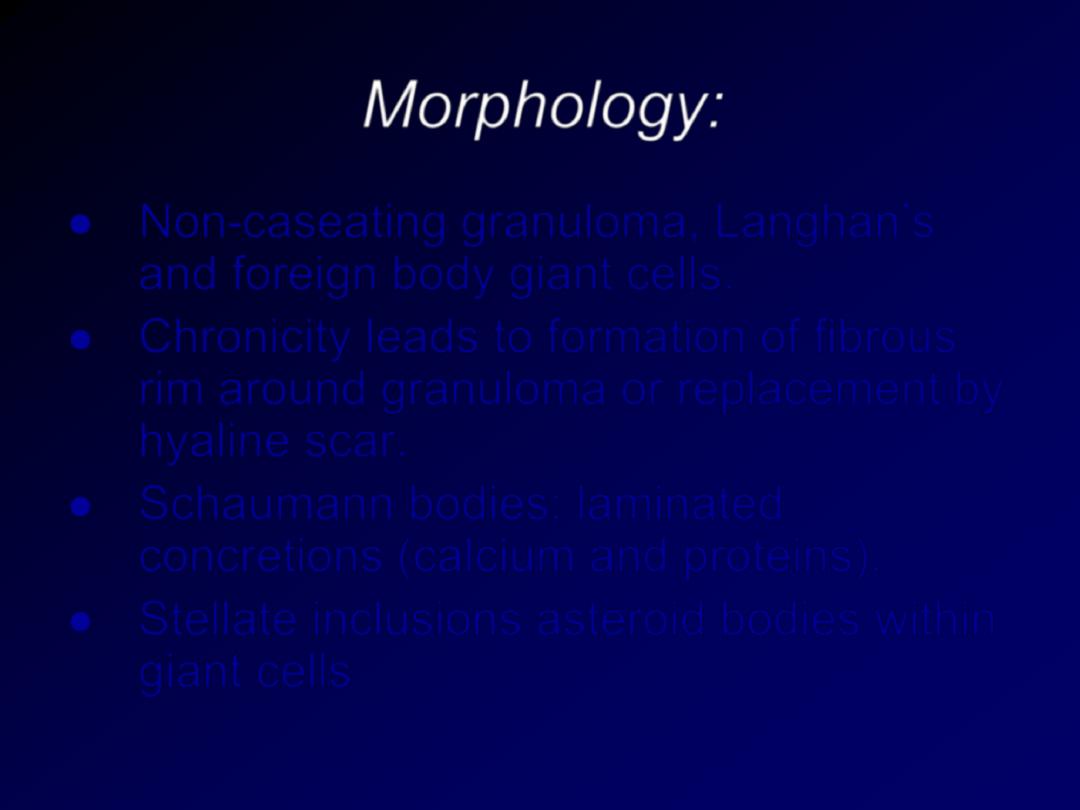

Morphology:

Non-

caseating granuloma, Langhan’s

and foreign body giant cells.

Chronicity leads to formation of fibrous
rim around granuloma or replacement by
hyaline scar.

Schaumann bodies: laminated
concretions (calcium and proteins).

Stellate inclusions asteroid bodies within
giant cells


background image

Sarcoidosis lung

Rt. Low poer: non caseating granulomas are present in the lung parenchyma. The inciting agent for
this granulomatous disease is unknown - speculation ranges from an unidentified microorganism to
tree pollen!. Sarcoidosis typically presents with non-caseating granulomas.
Lt.  Medium power: there is interstitial non-caseating granulomatous inflammation. Giant cells and
histiocytes form nodular aggregates without necrosis


background image

High power: characteristic sarcoid noncaseating granulomas in lung with many giant cells.

Sarcoidosis


background image

Each of the two multinucleated giant cells shown
here has an asteroid body with surrounding
vacuoles in the cytoplasm. The basophilic body in
the giant cell to the left may be an early, small
Schaumann body.

Sarcoidosis lymph node

Multiple noncaseating epithelioid

granulomas There is no caseation, but
some  contain calcified laminated
Schaumann bodies (arrows).



background image

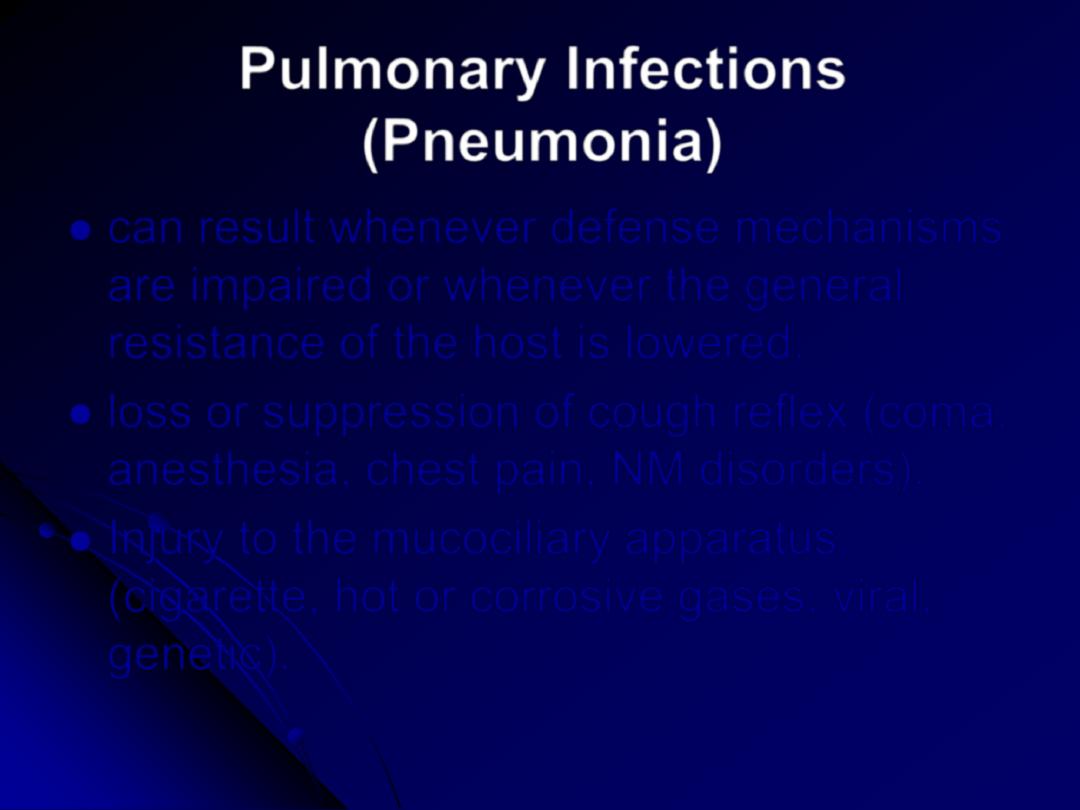

Pulmonary Infections

(Pneumonia)

can result whenever defense mechanisms
are impaired or whenever the general
resistance of the host is lowered.

loss or suppression of cough reflex (coma,
anesthesia, chest pain, NM disorders).

Injury to the mucociliary apparatus
(cigarette, hot or corrosive gases, viral,
genetic).


background image

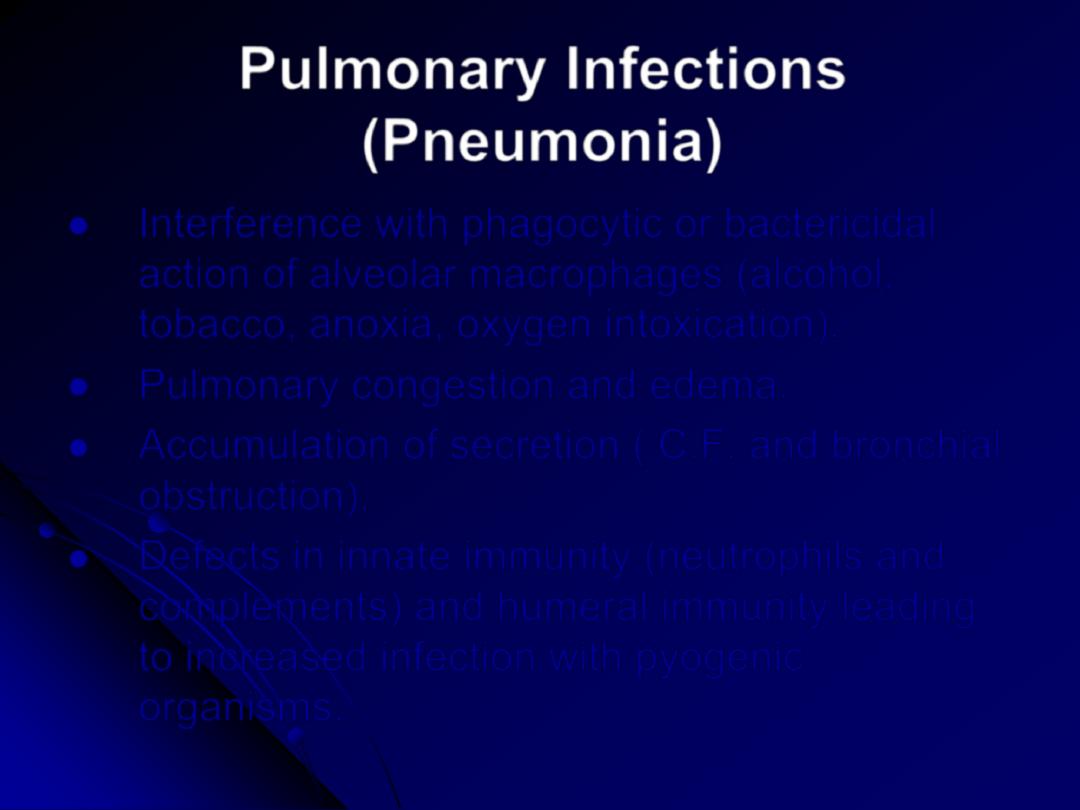

Pulmonary Infections

(Pneumonia)

Interference with phagocytic or bactericidal
action of alveolar macrophages (alcohol,
tobacco, anoxia, oxygen intoxication).

Pulmonary congestion and edema.

Accumulation of secretion ( C.F. and bronchial
obstruction).

Defects in innate immunity (neutrophils and
complements) and humeral immunity leading
to increased infection with pyogenic
organisms.


background image

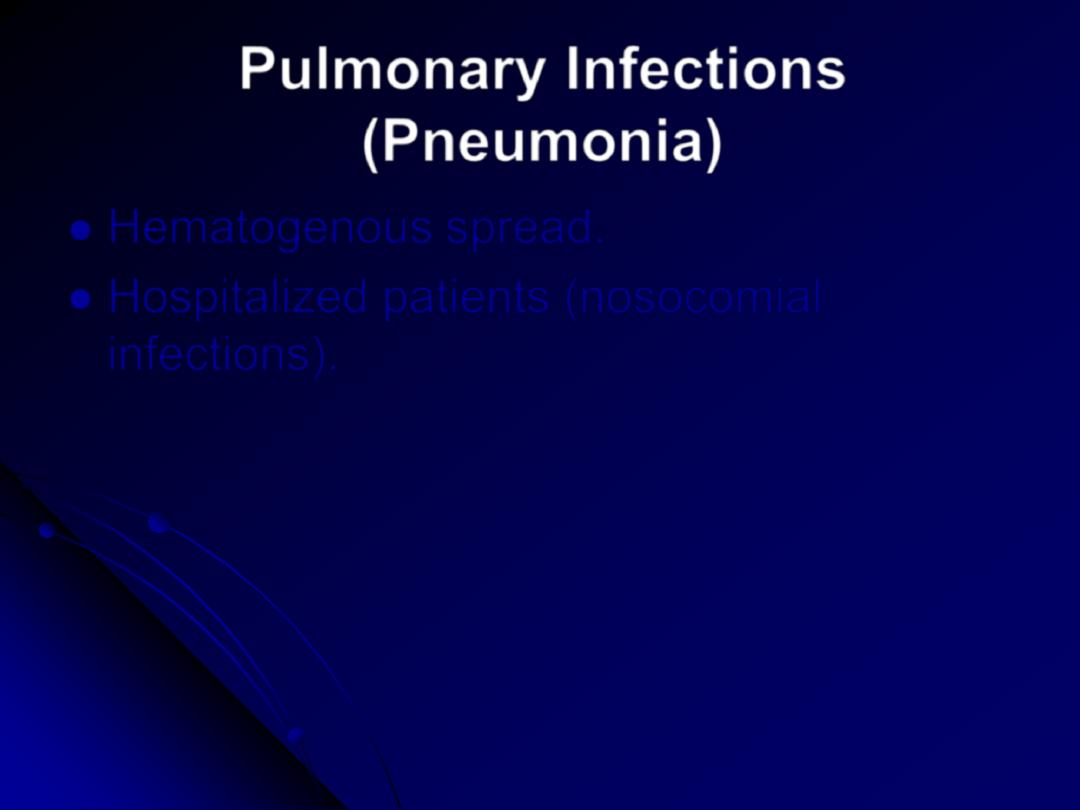

Pulmonary Infections

(Pneumonia)

Hematogenous spread.

Hospitalized patients (nosocomial
infections).


background image

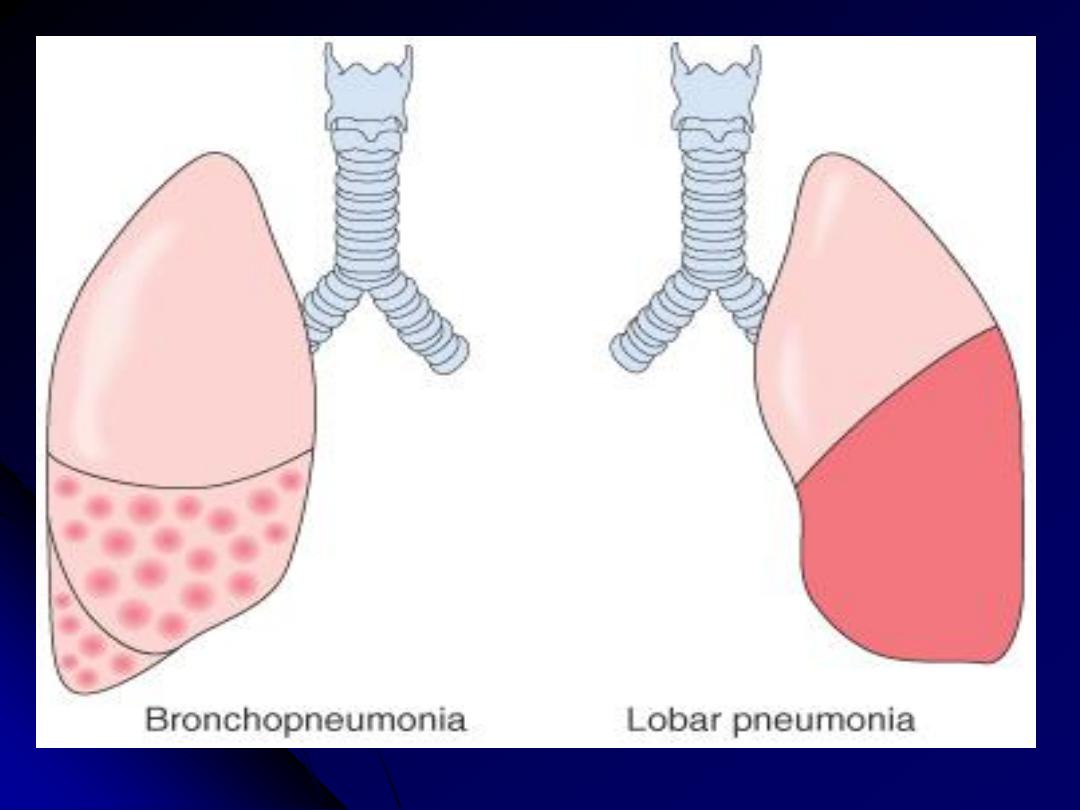

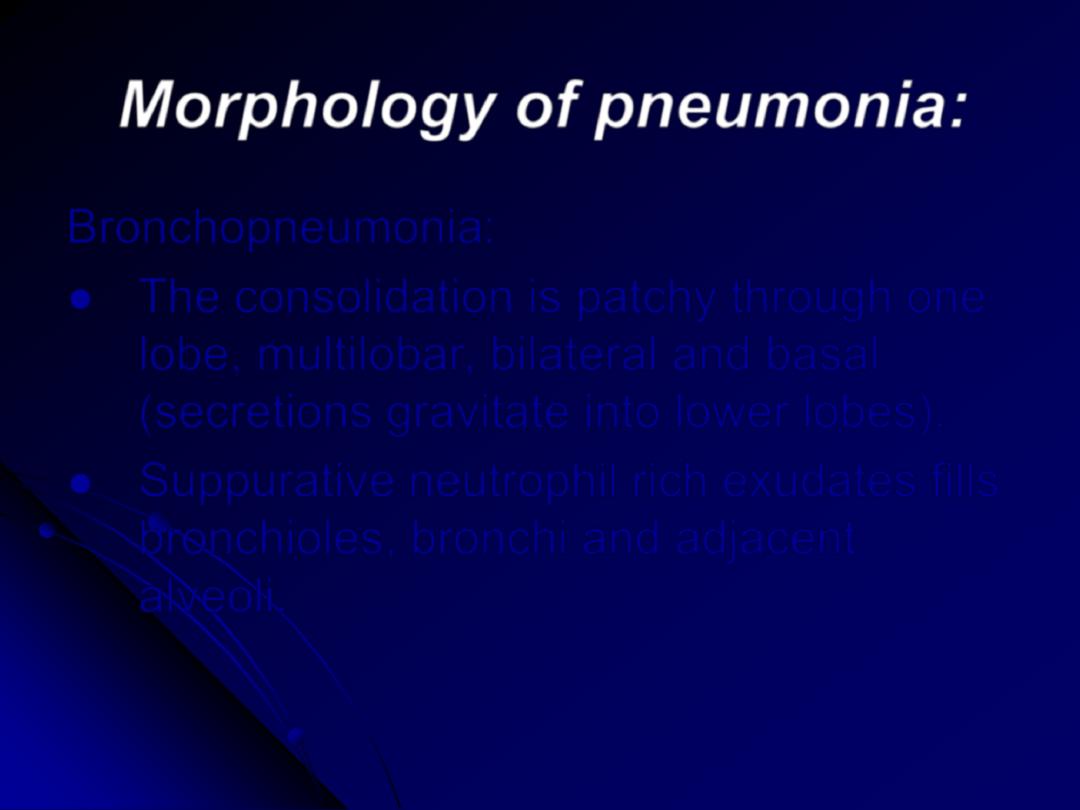

Acute  bacterial  pneumonias

can  present  as  one  of  two  anatomic

(and radiographic) patterns

1.  Bronchopneumonia

showing  a  patchy  distribution  of  inflammation  that

generally involves more than one lobe. The initial infection is of the bronchi and
bronchioles with extension into the adjacent alveoli.

2. Lobar pneumonia

, which is by contrast, affecting the contiguous airspaces of

part or all of a lobe; these are homogeneously filled with an exudate that can be
visualized on radiographs as a lobar or segmental consolidation

Streptococcus  pneumoniae

is  responsible  for  more  than  90%  of  lobar

pneumonias.  The  anatomic  distinction  between  lobar  pneumonia  and
bronchopneumonia  is  often  become  blurred  because  (a)  many  organisms  can
produce  either  of  the  two  patterns  of  distribution  and  (b)  confluent
bronchopneumonia  can  be  hard  to  distinguish  radiologically  from  lobar
pneumonia.

Classifying pneumonias by the setting in which they arise considerably narrows
the  list  of  suspected  pathogens  and  hence  help  choosing  the  suitable  empirical

antibiotic for treatment.

Pneumonia can arise in seven distinct clinical

settings  ("pneumonia  syndromes"),  and  the  causative  pathogens
are reasonably specific to each category.




background image

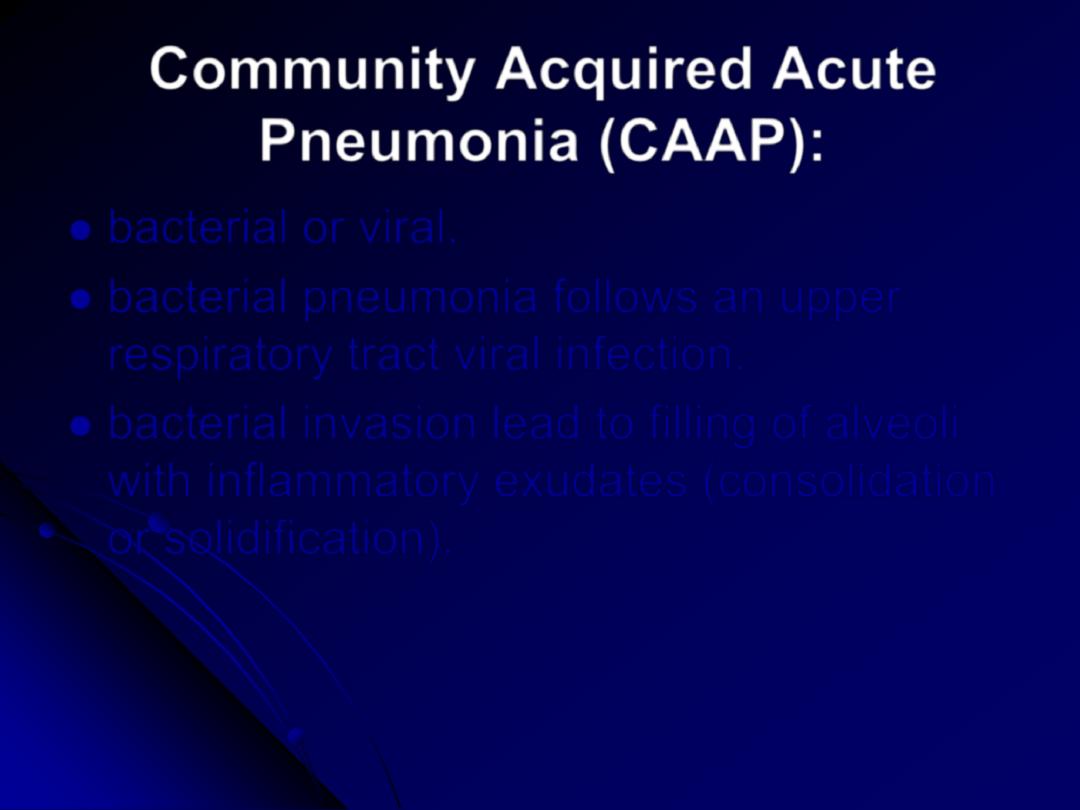

Community Acquired Acute

Pneumonia (CAAP):

bacterial or viral.

bacterial pneumonia follows an upper
respiratory tract viral infection.

bacterial invasion lead to filling of alveoli
with inflammatory exudates (consolidation
or solidification).


background image

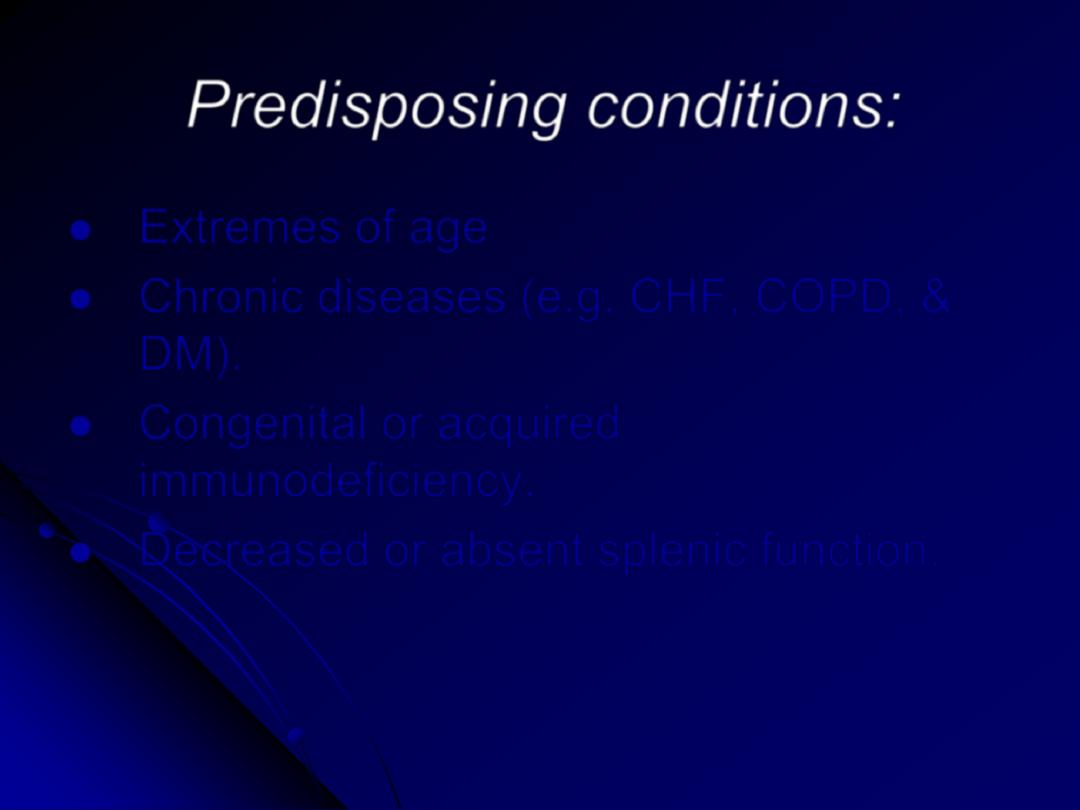

Predisposing conditions:

Extremes of age

Chronic diseases (e.g. CHF, COPD, &
DM).

Congenital or acquired
immunodeficiency.

Decreased or absent splenic function.


background image

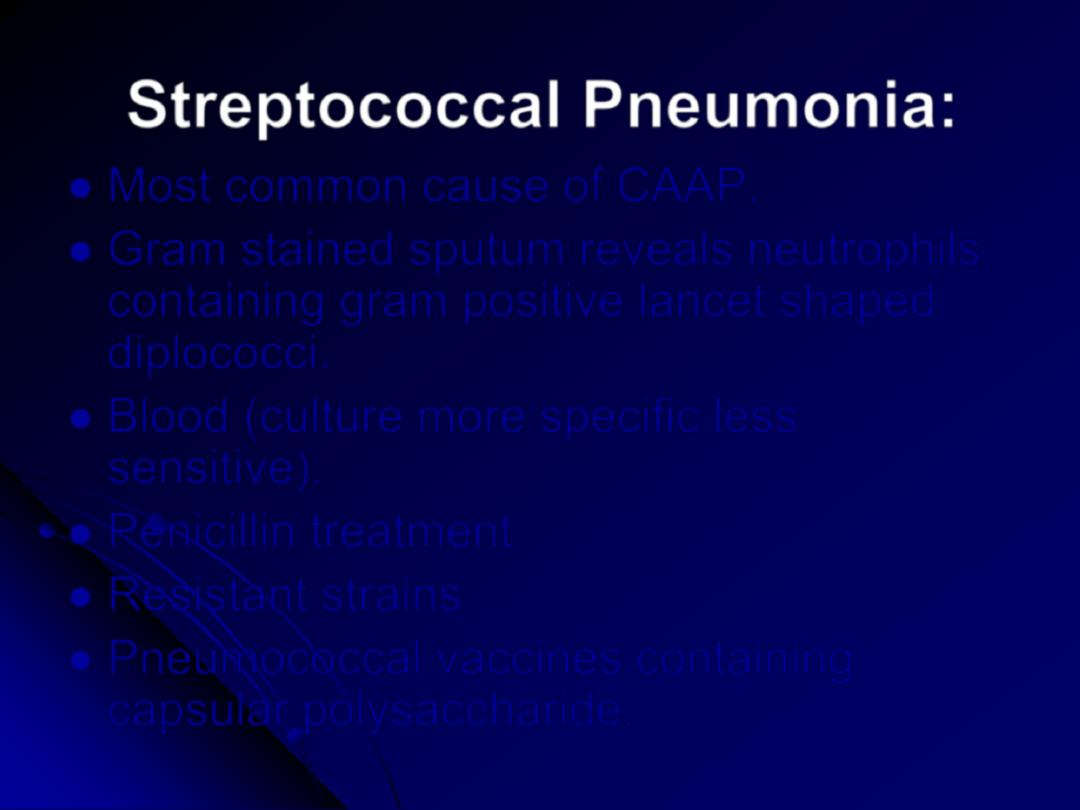

Streptococcal Pneumonia:

Most common cause of CAAP.

Gram stained sputum reveals neutrophils
containing gram positive lancet shaped
diplococci.

Blood (culture more specific less
sensitive).

Penicillin treatment

Resistant strains

Pneumococcal vaccines containing
capsular polysaccharide.


background image

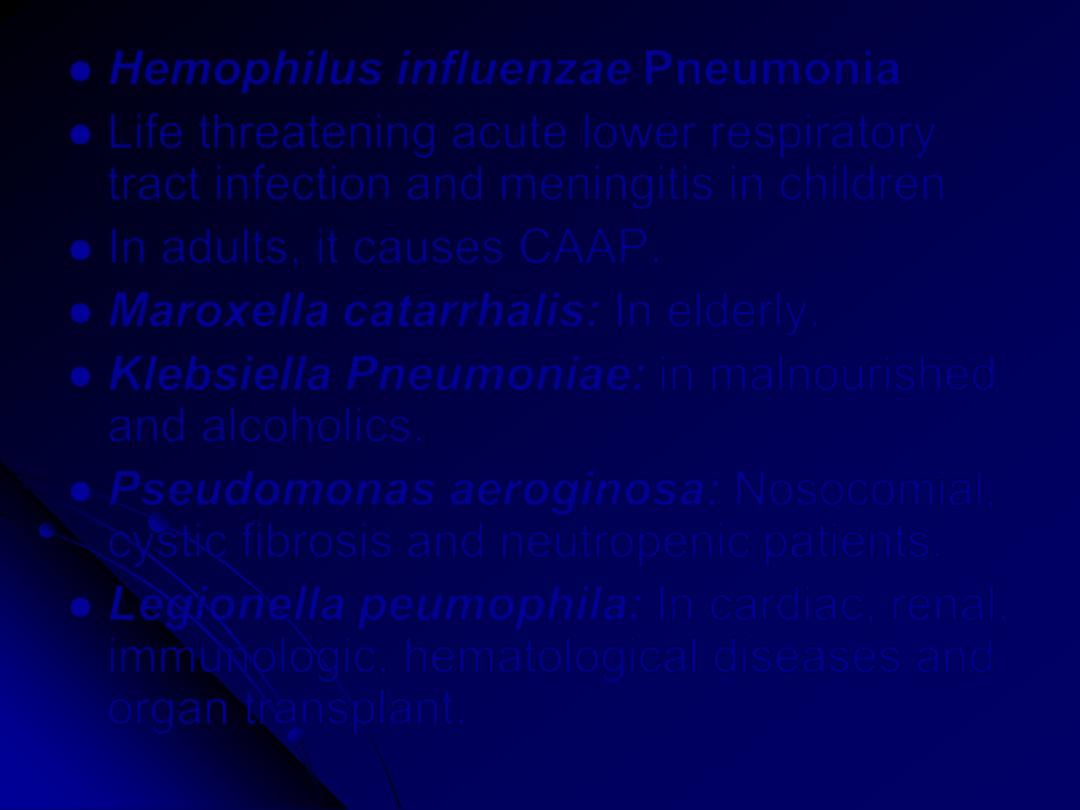

Hemophilus influenzae Pneumonia

Life threatening acute lower respiratory
tract infection and meningitis in children

In adults, it causes CAAP.

Maroxella catarrhalis

In elderly.

Klebsiella Pneumoniae

: in malnourished

and alcoholics.

Pseudomonas aeroginosa

: Nosocomial,

cystic fibrosis and neutropenic patients.

Legionella peumophila

In cardiac, renal,

immunologic, hematological diseases and
organ transplant.


background image

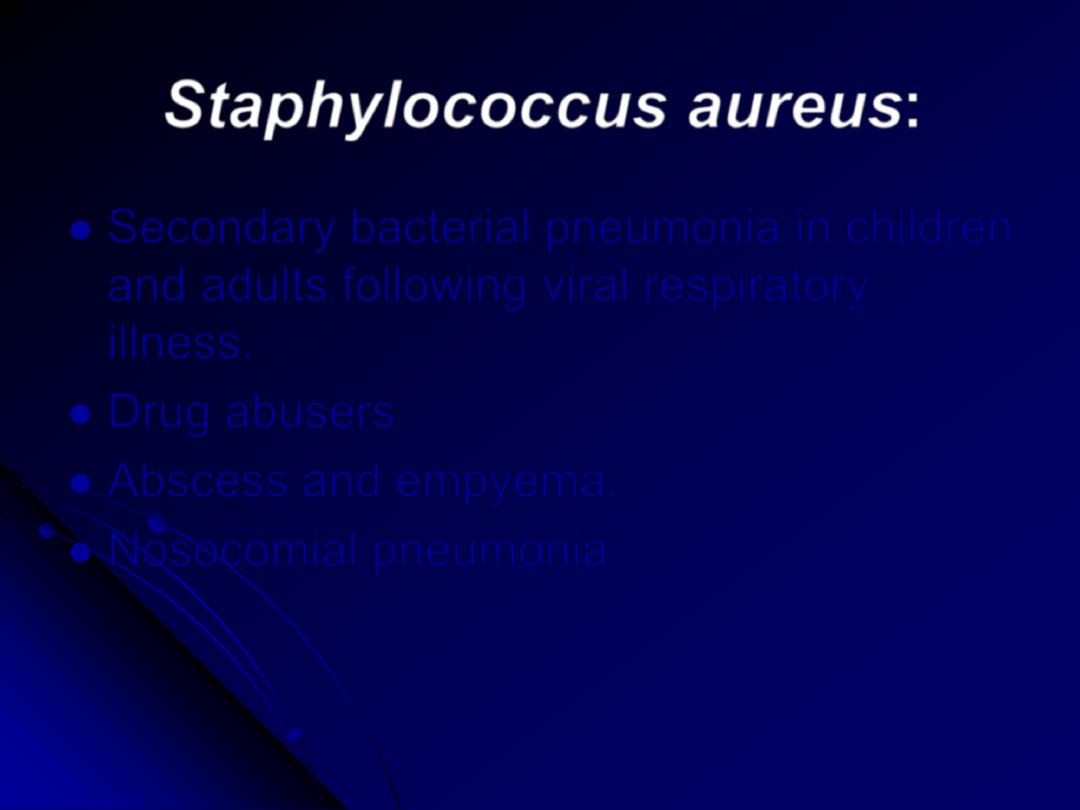

Staphylococcus aureus:

Secondary bacterial pneumonia in children
and adults following viral respiratory
illness.

Drug abusers

Abscess and empyema.

Nosocomial pneumonia


background image

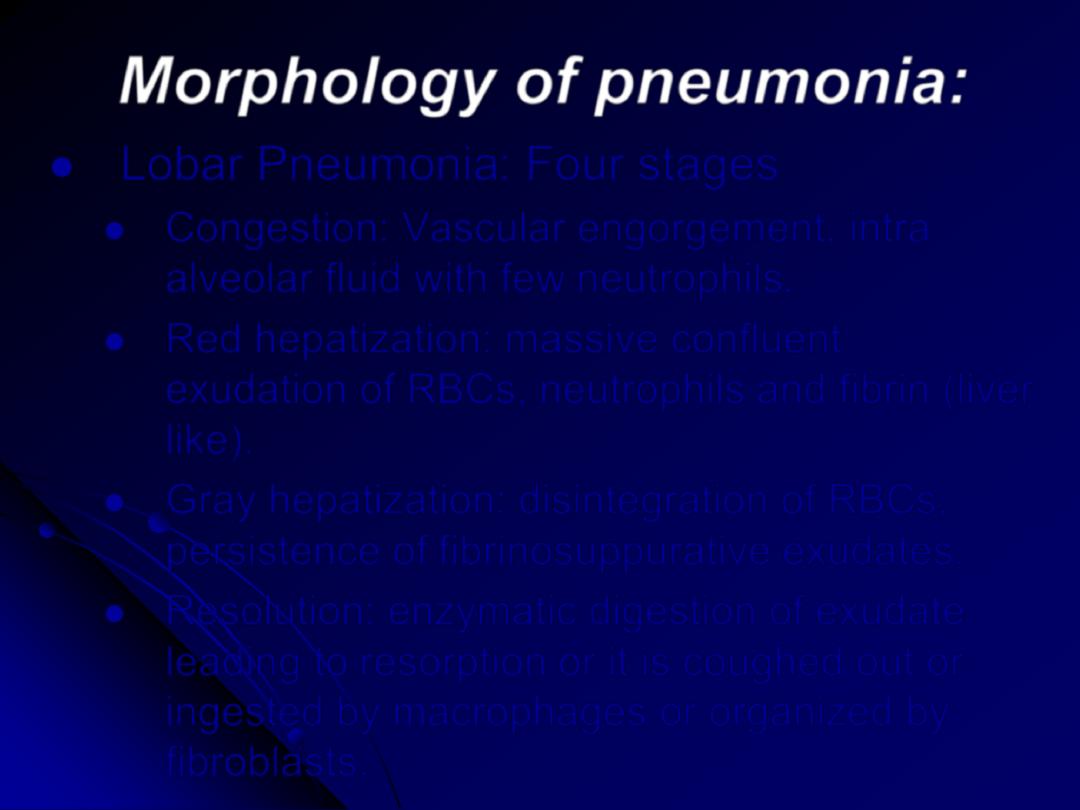

Morphology of pneumonia:

Lobar Pneumonia

: Four stages

Congestion

: Vascular engorgement, intra

alveolar fluid with few neutrophils.

Red hepatization

: massive confluent

exudation of RBCs, neutrophils and fibrin (liver
like).

Gray hepatization

: disintegration of RBCs,

persistence of fibrinosuppurative exudates.

Resolution

: enzymatic digestion of exudate

leading to resorption or it is coughed out or
ingested by macrophages or organized by
fibroblasts.


background image

background image

Morphology of pneumonia:

Bronchopneumonia

:

The consolidation is patchy through one
lobe, multilobar, bilateral and basal
(secretions gravitate into lower lobes).

Suppurative neutrophil rich exudates fills
bronchioles, bronchi and adjacent
alveoli.


background image

background image

Bronchopneumonia

  Lobar Pneumonia


background image

Patchy infiltrates consistent with a bronchopneumonia from a bacterial infection. Typical

organisms include Streptococcus pneumoniae, Staphylococcus aureus, Pseudomonas
aeruginosa, Hemophilus influenzae, Klebsiella pneumoniae, among others.

CXR: bronchopneumonia


background image

The cut surface of this lung demonstrates the

typical appearance of a
bronchopneumonia with areas of tan-
yellow consolidation. Remaining lung is
dark red because of marked pulmonary
congestion.

Bronchopneumonia (lobular pneumonia) is

characterized by patchy areas of pulmonary

consolidation. These areas become almost

confluent in the left lower lobe on the
bottom left of the photograph. The areas
of consolidation are firmer than the
surrounding lung.

Bronchopneumonia


background image

Two lung abscesses, one in the upper
lobe and one in the lower lobe of this left
lung. An abscess is a complication of
severe pneumonia, most typically from
virulent organisms such as S. aureus.

Abscesses complicating bronchopneumonia


background image

At the left the alveoli are filled with a neutrophilic exudate that corresponds to the areas of

consolidation seen grossly with the bronchopneumonia. This contrasts with the aerated
lung on the right of this photomicrograph.

Bronchopneumonia


background image

At high magnification, the alveolar exudate of mainly neutrophils is seen. The

surrounding alveolar walls have capillaries that are dilated and filled with
RBC's. Such an exudative process is typical for bacterial infection. This
exudate gives rise to the productive cough of purulent yellow sputum seen
with bacterial pneumonias.

Bronchopneumonia


background image

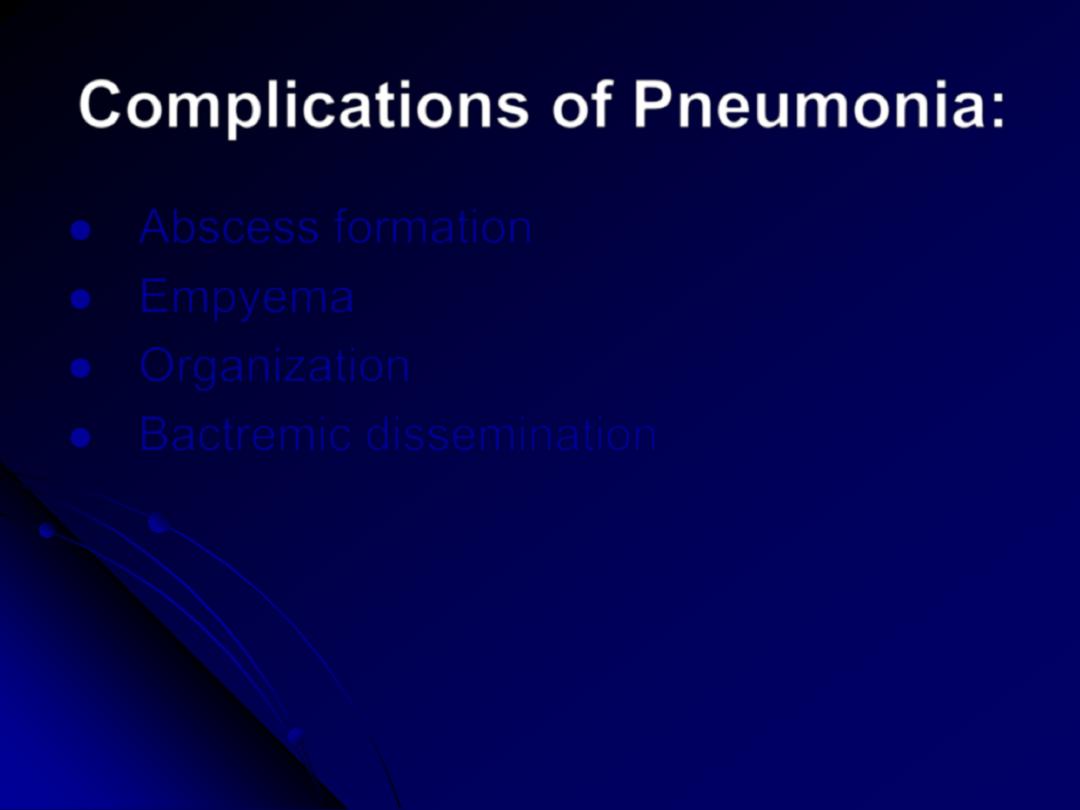

Complications of Pneumonia:

Abscess formation

Empyema

Organization

Bactremic dissemination


background image

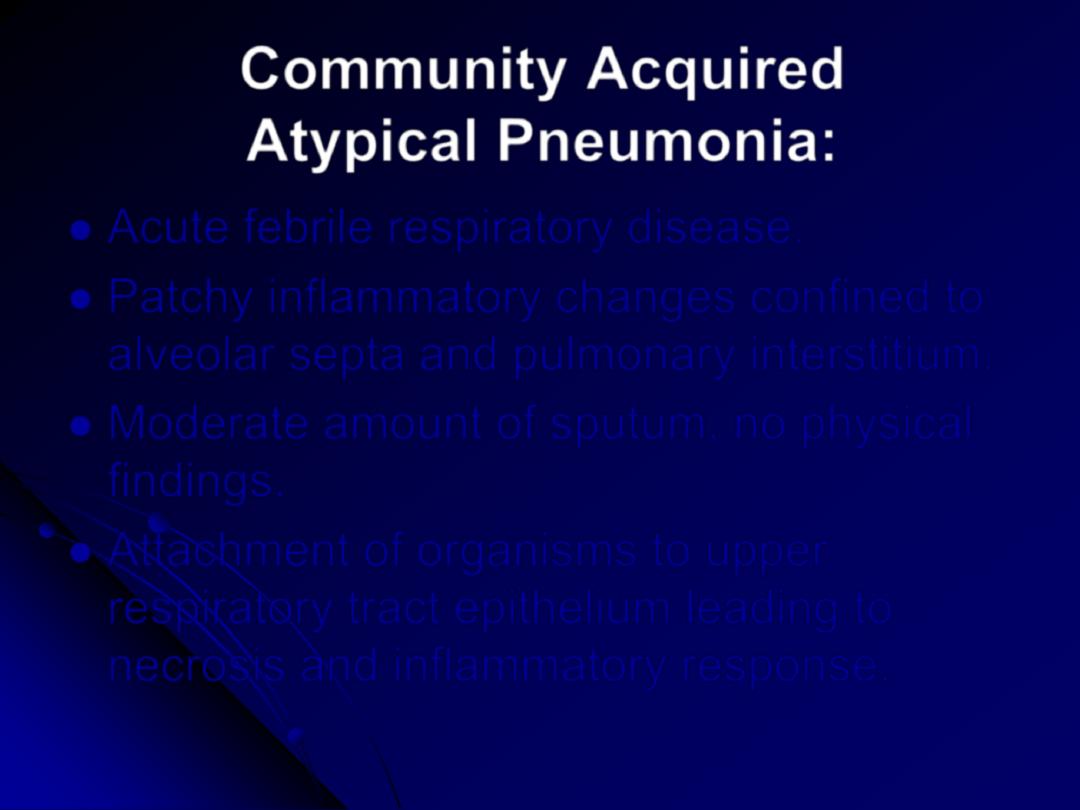

Community Acquired

Atypical



Pneumonia

Acute febrile respiratory disease.

Patchy inflammatory changes confined to
alveolar septa and pulmonary interstitium.

Moderate amount of sputum, no physical
findings.

Attachment of organisms to upper
respiratory tract epithelium leading to
necrosis and inflammatory response.


background image

Pathologic features of atypical pneumonias

Regardless of cause, the morphologic patterns are similar.

The  process  may  be  patchy,  or  it  may  involve  whole  lobes  bilaterally  or
unilaterally.

Grossly,

 there are red-blue, congested areas.

Microscopically

,  the  inflammatory  reaction  is  largely  confined  within  the

alveolar  walls,  which  are  widened  by  edema  &  mononuclear
inflammatory  infiltrate  of  lymphocytes,  histiocytes,  and,  occasionally,
plasma cells.

In  contrast  to  bacterial  pneumonias

,  alveolar  spaces  are  free  of  cellular

exudates.

In severe cases ARDS may develop.

 Identifying  the  causative  agent  can  be  difficult.  Tests  for  Mycoplasma
antigens  and  polymerase  chain  reaction  (PCR)  testing  for  Mycoplasma

DNA  are  available.  Patients  with  community-acquired  pneumonia  for
which  a  bacterial  agent  seems  unlikely  are  treated  with  a  macrolide
antibiotic  effective  against  Mycoplasma
  and  Chlamydia  pneumoniae,
because these are the most common treatable pathogens.




background image

background image

Influenza Infections

The  influenza  virus  is  RNA  virus,  bound  by  a

nucleoprotein



that determines the virus type

(A, B, or C)

.

The spherical  surface of  the  virus is a  lipid  bilayer  containing
the  viral

hemagglutinin  and  neuraminidase

,  which  determine

the

subtype

 (e.g., H1N1, H3N2, etc.).

Host  antibodies  to  the  hemagglutinin  and  neuraminidase
prevent  and  ameliorate,  respectively,  future  infection  with  the
influenza virus.

The  type  A  viruses

  are  the  major  cause  of  pandemic  and

epidemic influenza infections.

Epidemics  of  influenza  occur  through

mutations

  of  the

hemagglutinin and neuraminidase antigens that allow the virus
to escape most host antibodies

(antigenic drift).




background image

Pandemics

,  which  last  longer  and  are  more  widespread

than  epidemics,  may  occur  when  both  the  hemagglutinin
and  neuraminidase  are  replaced  through recombination of
RNA  segments  with  those  of  animal  viruses,  making  all
animals  susceptible  to  the  new  influenza  virus

(antigenic

shift).

Commercially

available

influenza

vaccines

provide

reasonable  protection  against  the  disease,  especially  in
vulnerable infants and elderly individuals.

A particular subtype of

avian influenza ("bird flu," H5N1)



has  caused  massive  outbreaks  in  domesticated  poultry  in
parts  of

Southeast  Asia

in  the  last  few  years;  this  strain  is

particularly dangerous, since it has the potential to "jump"
to humans and thereby cause an unprecedented, worldwide
influenza pandemic.




background image

The  2009  outbreak  of

influenza  A  virus  subtype  H1N1

  is  an

epidemic  of  a  new  strain  of  influenza  virus  identified  in  April
2009,  commonly  referred  to  as

"Swine  flu."

It  is  thought  to  be  a

mutation  of  four  known  strains  of  influenza  A  virus  subtype
H1N1:  one

endemic  in  humans,  one  endemic  in  birds,  and  two

endemic in pigs (swine).

The signs of infection with swine flu are similar to influenza.

People  at  higher  risk  of  serious  complications  include  people  age

65  years  and  older,  children  younger  than  5  years  old,  pregnant
women,  people  of  any  age  with  chronic  medical  conditions  (such
as  asthma,  diabetes,  or  heart  disease),  and  people  who  are
immunosuppressed.

Transmission  is  through  Sneezes  or  coughs,  and  contaminated
objects  (touching  something  with  flu  viruses  on  it  and  then
touching your mouth or nose).

Influenza  viruses  are  not  known  to  be  transmissible  to  people
through  eating  processed  pork  or  other  food  products  derived
from pigs."






background image

Severe Acute Respiratory Syndrome (SARS)

This  first  appeared  in  the

end  of  2002  in  China

,  and

subsequently  spread  to  several  neighboring  countries
(Hong  Kong,  Taiwan  etc,),  where  large  outbreaks  also
occurred.

Between  2002  and  2003,  when  the  outbreak  ended,  over
8,000  cases  and  about  750  deaths  had  been  ascribed  to
SARS.

The  cause  is  a  previously  undiscovered

coronavirus

(SARS-CoV),

which  has  the  ability  to  infect  the  lower

respiratory tract and induce viremia.

The  lungs  of  patients  dying  of  SARS,  usually  shows
ARDS changes with multinucleated giant cells.




background image

3.  Nosocomial  Pneumonia  (hospital-acquired

defined  as

"pulmonary  infections  acquired  in  the  course  of  a  hospital  stay".
They are common in hospitalized persons with severe illness, immune
suppression,  or  prolonged  antibiotic  therapy.  Those  on  mechanical
ventilation  are  also  susceptible;  infections  acquired  in  this  setting  are
designated

ventilator-associated pneumonia

. Gram-negative rods and

S. aureus are the most common offenders.



4. Aspiration Pneumonia

occurs in markedly debilitated patients

or those who aspirate gastric contents either while unconscious (e.g.,

after a stroke) or during repeated vomiting. The resultant pneumonia is

partly chemical

, resulting from the extremely irritating effects of the

gastric acid, and

partly bacterial

. Recent studies implicate

aerobes (S.

pneumoniae, S. aureus, H. influenzae, and Pseudomonas aeruginosa

more commonly than anaerobes (such as Bacteroides)

This type of

pneumonia is often necrotizing with a fulminant clinical course. In

those who survive,

absces

s formation is a common complication


background image

5. Necrotizing pneumonia & Lung Abscess

Lung  Abscess

refers  to  "a  localized  area  of  suppurative  necrosis

within the pulmonary parenchyma, resulting in the formation of one
or more large cavities
".

Necrotizing pneumonia

often coexists or evolves into lung abscess,

making the distinction between the two somewhat subjective.

The causative organism may be introduced into the lung by any of
the following mechanisms:

a.  Aspiration  of  infective  material

from  carious  teeth  or  infected

sinuses  or  tonsils,  as  during  oral  surgery,  anesthesia,  coma,  or
alcoholic  intoxication  and  in  debilitated  patients  with  depressed
cough reflexes.


b. Aspiration of gastric contents,

usually accompanied by infectious

organisms from the oropharynx.

 to two-thirds of cases.




background image

c.  As  a  complication  of  necrotizing  bacterial  pneumonias

,

particularly  those  caused  by  S.  aureus,  Streptococcus
pyogenes, K. pneumoniae, Pseudomonas
 spp. etc.

d. Mycotic infections and bronchiectasis

e.  Bronchial  obstruction,

particularly  with  bronchogenic

carcinoma.

f. within a necrotic portion of a tumor

g.  Septic  embolism

,  from  septic  thrombophlebitis  or  from

infective endocarditis of the right side of the heart.

h.  hematogenous  spread

of  bacteria  in  disseminated

pyogenic infection as with staphylococcal bacteremia.

Anaerobic  bacteria  are  present  in  almost  all  lung  abscesses
sometimes  in  vast  numbers,  and  they  are  the  exclusive
isolates in one-third to two-thirds of cases.




background image

Microscopic features

There is suppurative liquefactive necrosis

Depending  on  the  chronicity,  the  above  may  be  surrounded  by  variably
thickened  fibrous  tissue  and  mononuclear  infiltration  by  variable
amounts of (lymphocytes, plasma cells, macrophages).

Complications

1.  Rupture  into  the  pleural  cavity  producing  bronchopleural  fistulas,  the
consequence of which is pneumothorax or empyema
.

2.  Embolization  of  septic  material  to  the  brain,  gives  rise  to  meningitis  or
brain abscess.

3. Secondary amyloidosis may develop in chronic cases

Course & prognosis

The  manifestations  of  a  lung  abscess  are  similar  to  those  of  bronchiectasis
(productive cough of copious, foul sputum).

Abscesses occur in up to15% of

persons  with  bronchogenic  carcinoma;

  thus,  when  a  lung  abscess  is

suspected  in  an  older  person,  underlying  carcinoma  must  be  considered.

Overall, the mortality rate is in the range of 10%.




background image

Pathological Features

Abscesses  vary  in  diameter  from

very  small  lesions  to  large

cavities of 5 cm or more.

The  localization  and  number  depend  on  the  mode  of
development. Pulmonary abscesses resulting from

aspiration

 are

much  more  common  on

the  right  side

(more  vertical  airways),

and are mostly

single

 . In this location, they tend to occur in the

posterior segment of the upper lobe and in the apical segments of
the lower lobe.

Abscesses  that  develop  in  the

course  of  pneumonia  or

bronchiectasis  are  commonly  multiple,  basal,  and  diffusely
scattered.

Septic

emboli

and

abscesses

arising

from

hematogenous  seeding  are  commonly  multiple  and  may  affect
any region of the lungs.

As  the  focus  of  suppuration  enlarges,  it  usually  ruptures  into
airways.  Thus,  the  contained  exudate  may  be  partially  drained,
producing an air-fluid level on radiographic examination.




background image

6.  Chronic  Pneumonia

is  mostly  a  localized  lesion  in  an

immunocompetent  person

,  with  or  without  regional  lymph  node  involvement.

There  is  typically

granulomatous  inflammation

,  which  may  be  due  to  bacteria

(e.g.,  M.  tuberculosis)  or  fungi.  In  the

immunocompromised,

  there  is  usually

systemic  dissemination  of  the  causative  organism,  accompanied  by  widespread
disease


Tuberculosis

Tuberculosis  is  by  far  the  most  important  of  the  chronic  penumonia;  it  causes
6%  of  all  deaths  worldwide.
  Tuberculosis  is

"a  communicable  chronic

granulomatous disease caused by Mycobacterium tuberculosis".

 It usually involves

the lungs but may affect any organ or tissue. Tuberculosis thrives wherever there
is  poverty,  crowding,  and  chronic  debilitating  illness;  elderly,  with  their
weakened  defenses,  are  also  susceptible.  Certain  disease  states  also  increase  the
risk:


1. Diabetes mellitus

2. Hodgkin lymphoma

3. Chronic lung disease (particularly silicosis)

4. Chronic renal failure

5. Malnutrition & Alcoholism

6. Immunosuppression including HIV infection.




background image

7. Pneumonia in the Immunocompromised Host

The  appearance  of  a  pulmonary  infiltrate  and  signs  of  infection  (e.g.,
fever)  are  some  of  the  most  common  and  serious  complications  in
immunocompromised  persons  whose  immune  and  defense  systems  are
suppressed  by  disease,  immunosuppression  for  organ  transplants,
malignancy,

or

irradiation.

wide

variety

of

opportunistic

microorganisms,  many  of  which  rarely  cause  infection  in  normal  hosts,
can cause these pneumonias.

Examples of pulmonary opportunistic pathogens include

1. Bacteria (P. aeruginosa, Mycobacterium spp., etc)

2. Viruses (cytomegalo and herpesvirus viruses)

3.  Fungi  (P.  jiroveci,  Candida  spp.,  Aspergillus  spp.,  and
Cryptococcus neoformans
).




background image

Pneumocystis Pneumonia

P.  jiroveci  (formerly  P.  carinii),  an  opportunistic  infectious  agent  long
considered to be a protozoan, is now believed to be more closely related to

fungi.



Virtually  all  persons  are  exposed  to  Pneumocystis  during  early  childhood,
but in most the infection remains latent.

Reactivation and clinical disease occurs almost exclusively in those who are

immunocompromised

  (very  commonly  in  AIDS  patients  but  also  in  the

severely malnourished infants).

Pneumocystis  produce  an

interstitial  pneumonitis  with  a  characteristic

intra-alveolar  foamy,  pink-staining  exudate  with  H&E  stains  ("cotton
candy" exudate).

Silver  stains  of  tissue  sections  reveal

cup-shaped  cyst  in  the  alveolar

exudates.

The  most  sensitive  and  effective  method  of  diagnosis  is  to  identify  the
organism  in  bronchoalveolar  lavage  fluids  or  in  a  transbronchial  biopsy
specimen.



Immunofluorescence antibody kits and PCR-based assays have also become
available for use on clinical specimens

.




background image

A, The alveoli are filled with a characteristic foamy "cotton candy" exudate. B, Silver stain
demonstrates cup-shaped cysts (5-8 μm in diameter) within the exudate.

Pneumocystis pneumonia


background image

Opportunistic Fungal Infection

1. Candidiasis

aCndida al

bicans is the most frequent disease-causing fungus.

It is a normal inhabitant of the oral cavity.

Systemic  candidiasis  (with  associated  pneumonia)  is  a  disease
that is restricted to immunocompromised patients.

In  tissue  sections,  C.  albicans  demonstrates  yeastlike  forms,
pseudohyphae, and true hyphae.

The  organisms  may  be  visible  with  routine  hematoxylin  and
eosin  stains,  but  a  variety  of  special  "fungal"  stains
(methenamine-silver,  periodic  acid-Schiff)  are  commonly  used
to highlight the pathogens.

Candida  pneumonia

usually  presents  radiographically  as

bilateral

nodular

infiltrates,

resembling

Pneumocystis

pneumonia.




background image

The diagnosis of candidiasis is made by observing the characteristic pseudohyphae and budding yeasts
in tissue sections or exudates. (silver stain)

Candidiasis


background image

2. Cryptococcosis

is  caused  by

C.  neoformans

&  is  almost  exclusively

presents

as

an

opportunistic

infection

in

immunocompromised  hosts,  particularly  those  with
AIDS or hematolymphoid malignancies.

The fungus, 5- to 10-μm yeast, has a thick, gelatinous
capsule, which is invaluable for the diagnosis.

The  capsular  antigen  is  the  substrate  for  latex
agglutination  assay,  which  is  positive  in  more  than
95% of patients infected with the organism.

Human

cryptococcosis

usually

manifests

as

pulmonary,  central  nervous  system,  or  disseminated
disease.





background image

Cryptococcosis of the lung in a patient with AIDS. The yeast forms are somewhat variable in size;
unlike in Candida, pseudohyphae are not seen.

Cryptococcosis


background image

3.  The  Opportunistic  Molds:  Mucormycosis  and
invasive aspergillosis


are

uncommon

infections

almost

always

limited

to

immunocompromised hosts.

The  hyphae  of  Mucormycosis  are  nonseptate  and  branch  at  right
angles;  in  contrast,  the  hyphae  of  Aspergillus  species  are  septate  and
branch at more acute angles

Pulmonary  mucormysosis  can  cause  cavitary  lung  lesions  or  may
present radiologically with diffuse "miliary" involvement.

Invasive  aspergillosis

is  associated  with  necrotizing  pneumonia,  the

fungus tends to invade blood vessels, and thus systemic dissemination,
especially to the brain, is often a fatal complication.

Allergic  pulmonary  aspergillosis

occurs  in  patients  with  asthma  who

develop  an  exacerbation  of  symptoms  due  to  reaction  to  the  fungus
growing in the bronchi.

Aspergilloma  ("fungus  ball")

occurs  by  colonization  of  preexisting

pulmonary cavities (e.g., ectatic bronchi or lung cysts, post-tuberculous
cavitary lesions) by the fungus.




background image

Rt. Mucor produces broad, short, non-septate hyphae that branch at right angles.

Lt. The hyphae of Aspergillus are septate and branch at more acute angles

Mucormycosis Vs Aspergillosis




رفعت المحاضرة من قبل: Abdalmalik Abdullateef
المشاهدات: لقد قام 10 أعضاء و 128 زائراً بقراءة هذه المحاضرة








تسجيل دخول

أو
عبر الحساب الاعتيادي
الرجاء كتابة البريد الالكتروني بشكل صحيح
الرجاء كتابة كلمة المرور
لست عضواً في موقع محاضراتي؟
اضغط هنا للتسجيل
