CHEST RADIOLOGY

X-ray views

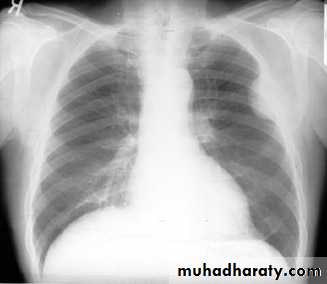

1- PA view.
2- lateral.
AP ) ) 3-Lordotic
4-P A penetrated view.

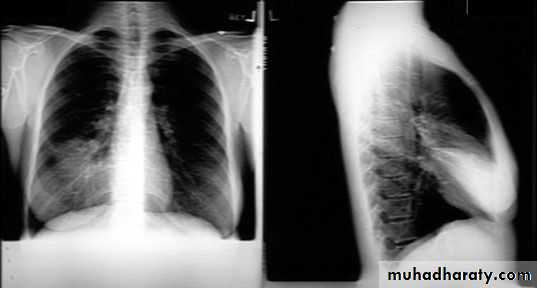

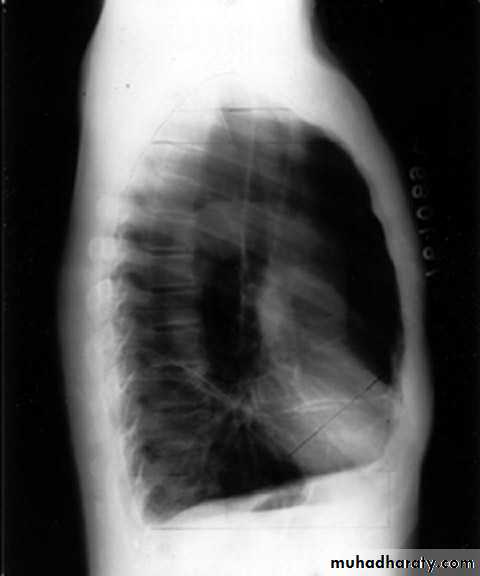

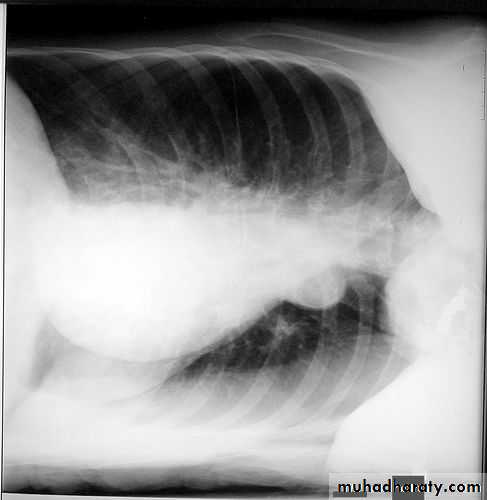

lateral PA view

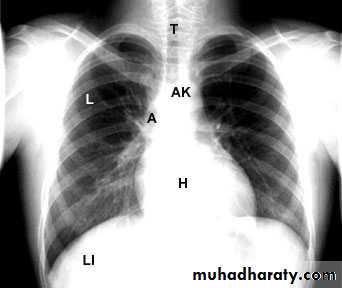

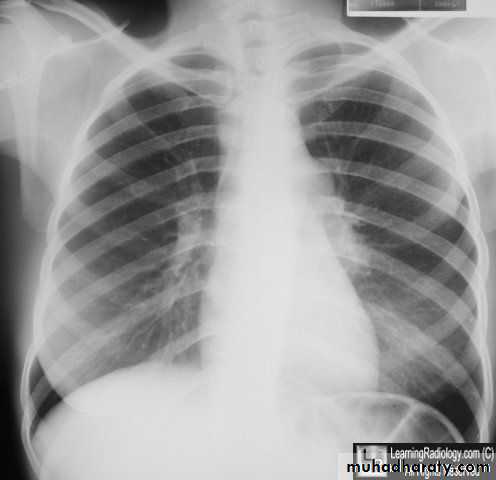

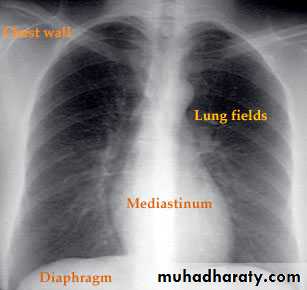

NORMAL PA view

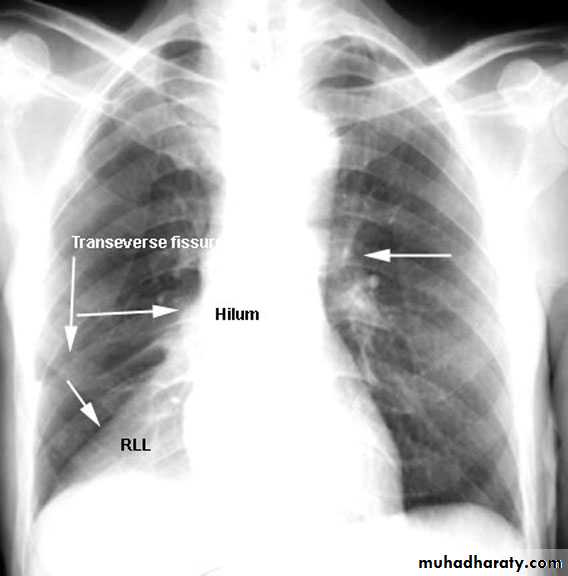

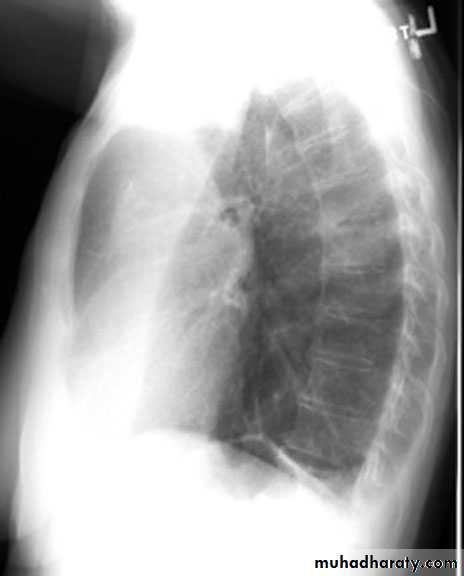

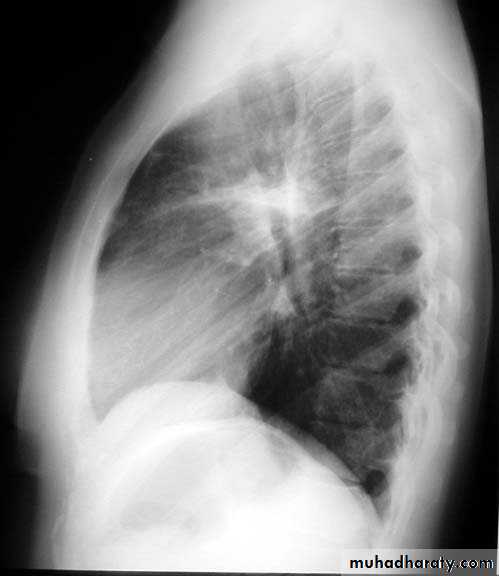

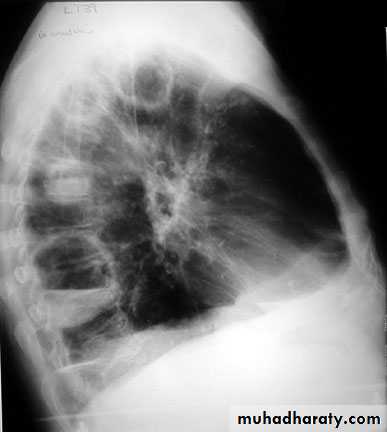

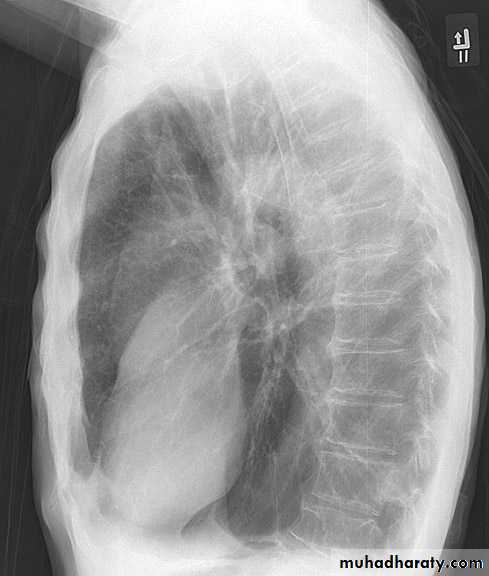

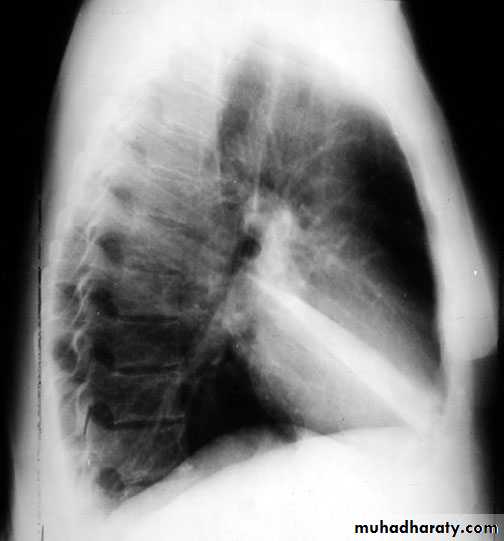

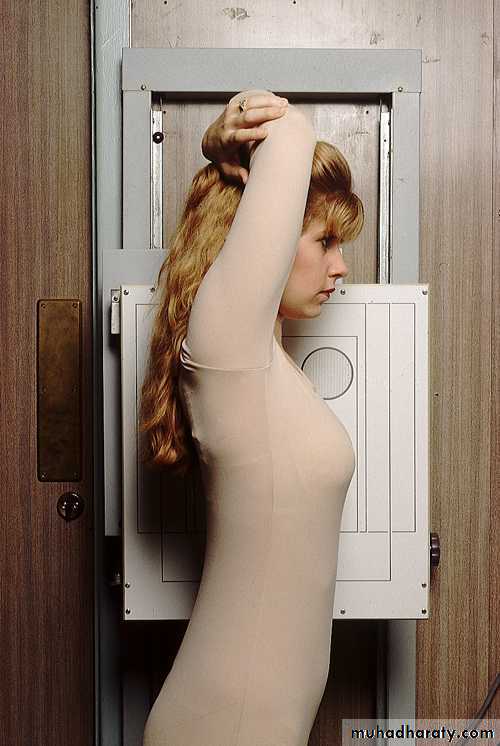

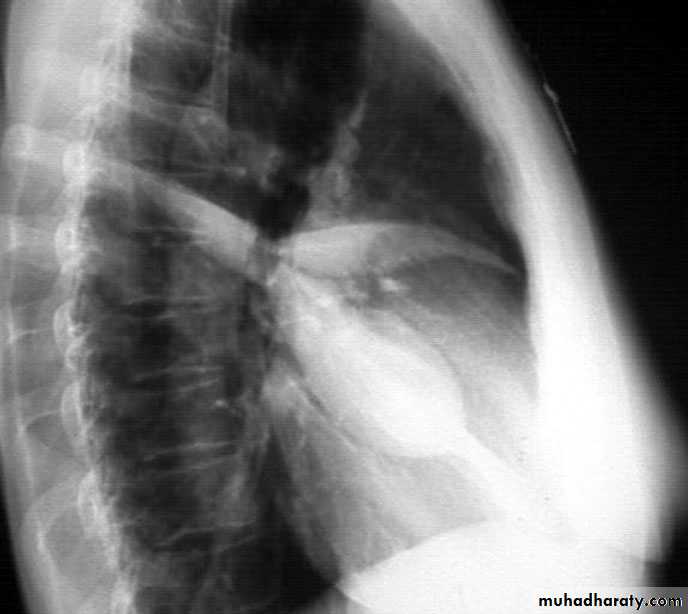

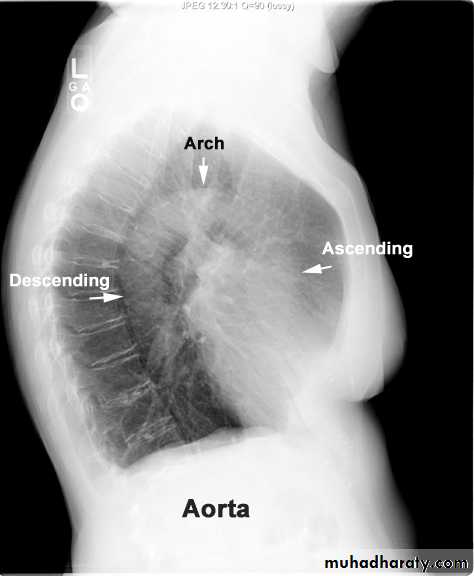

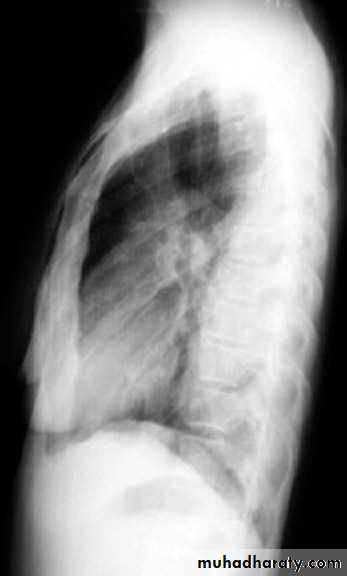

Lateral view position

Normal bronchial tree

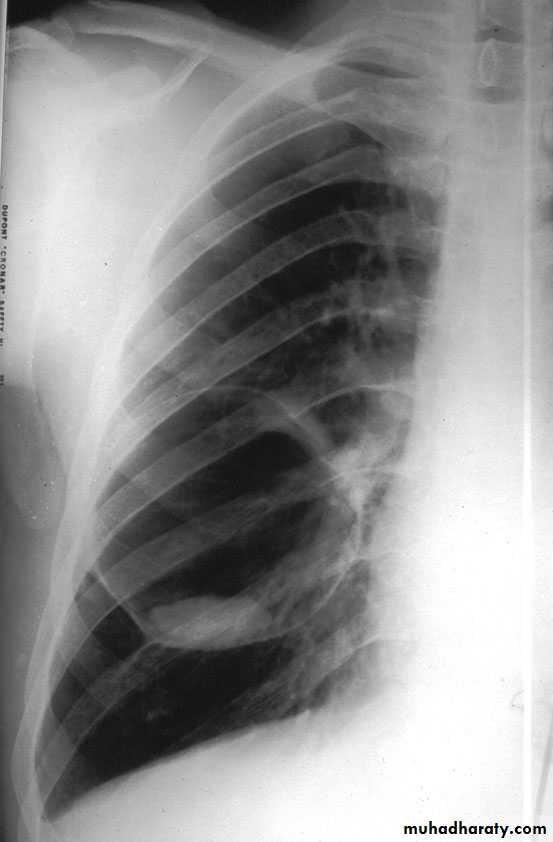

Lordotic view

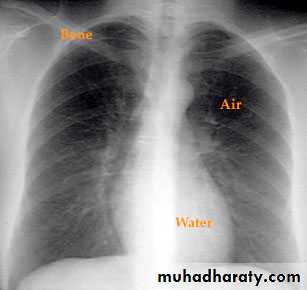

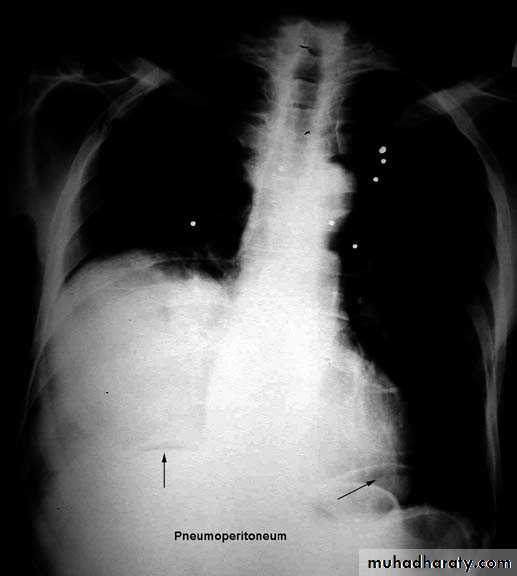

How to interpret CXR

Pulmonary infection

1- Pneumonia.
(a) Lobar ( consolidation) pn.
(b) Lobular or broncho pn.
2- Lung Abscess.
3- Tuberculosis.

Lobar pneumonia with bronchogram.

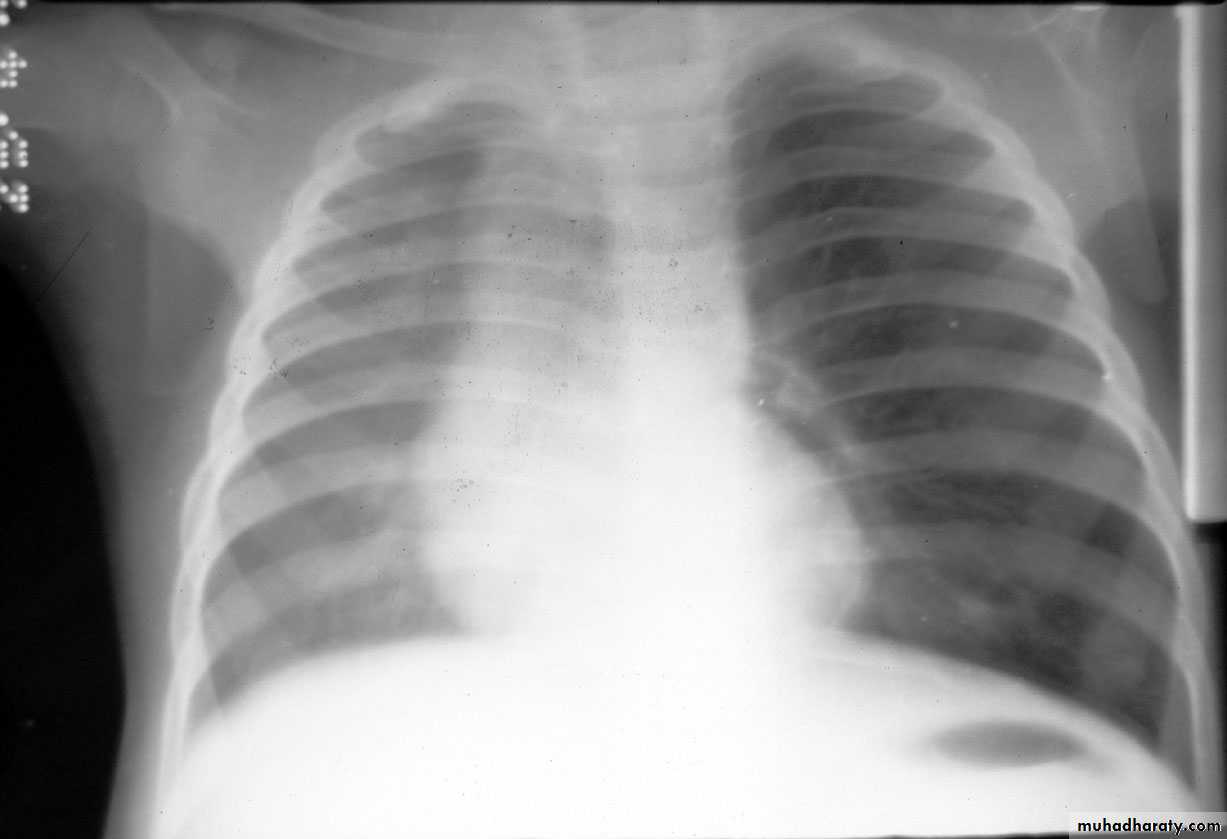

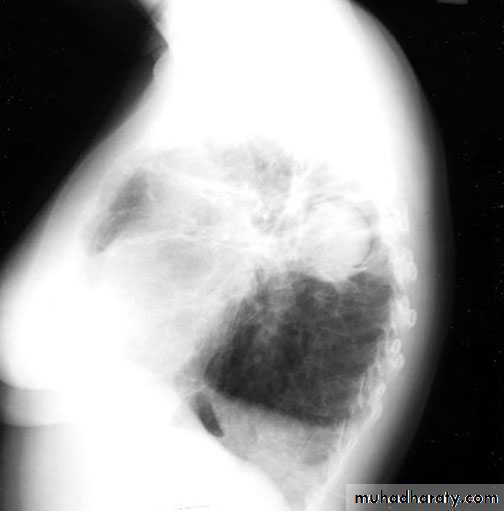

Middle lobe pneumonia

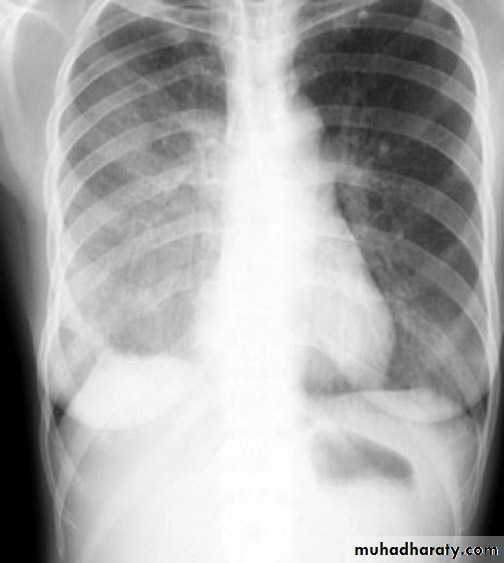

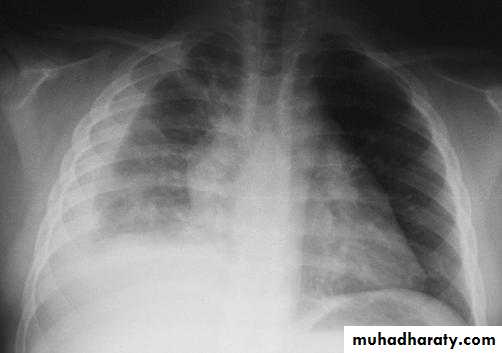

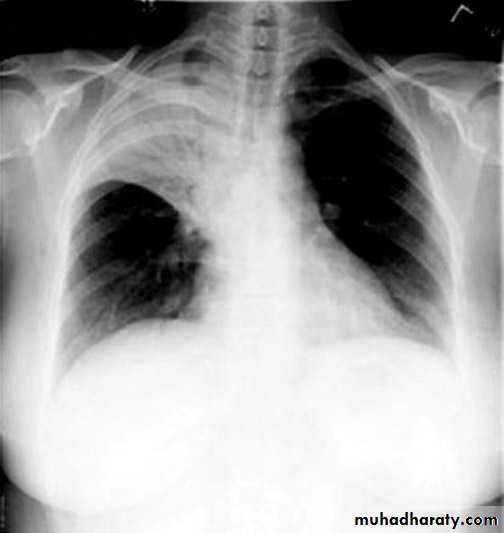

rt.upper lobe pn. Left lower lobe pn.

Klebsiella pn. Massive pn.

Resolving consolidation

Cavitations in consolidation

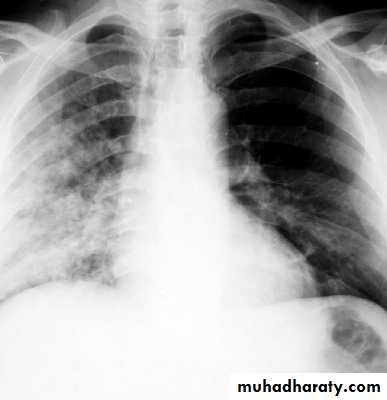

Bronchopneumonia

Lung abscess

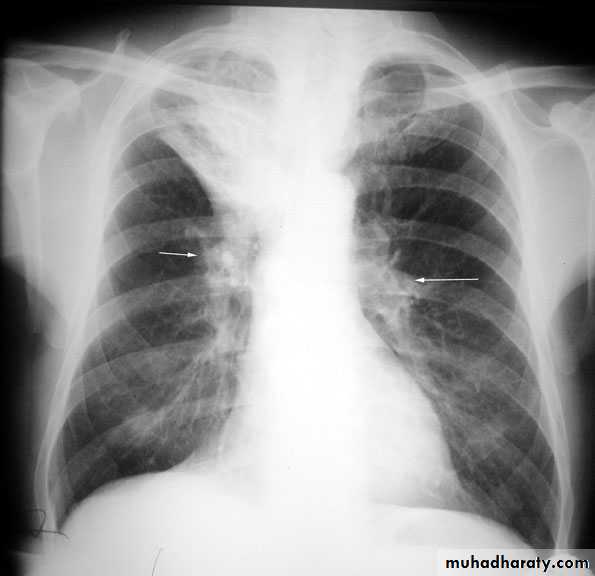

Tuberculosis primary TB

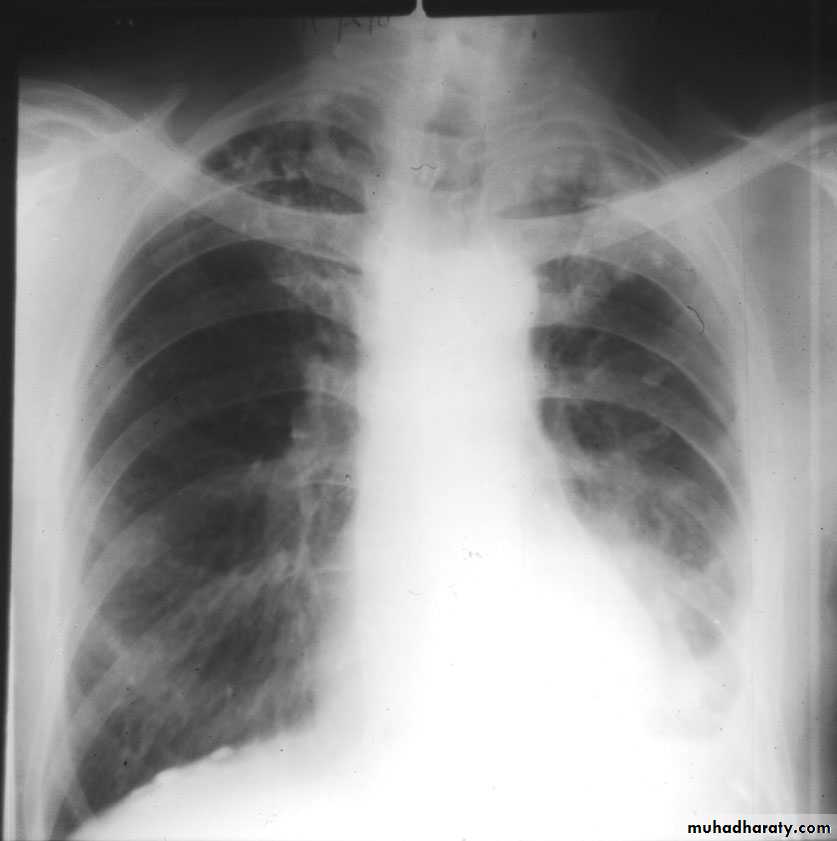

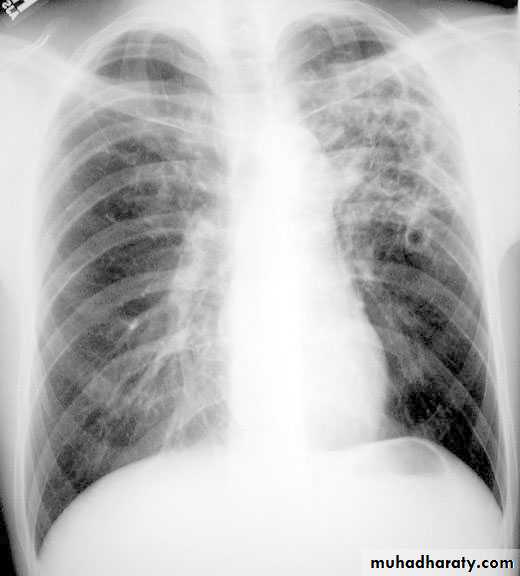

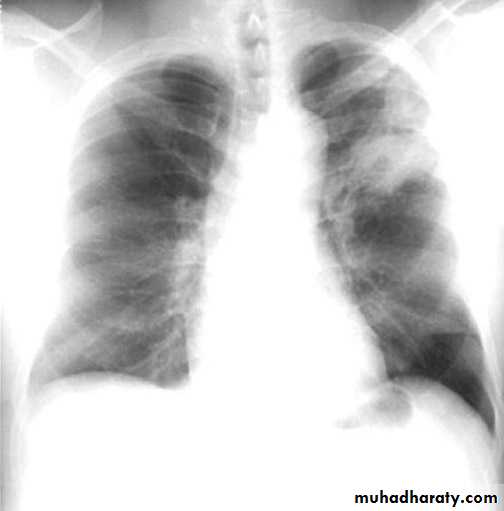

Post primary tb

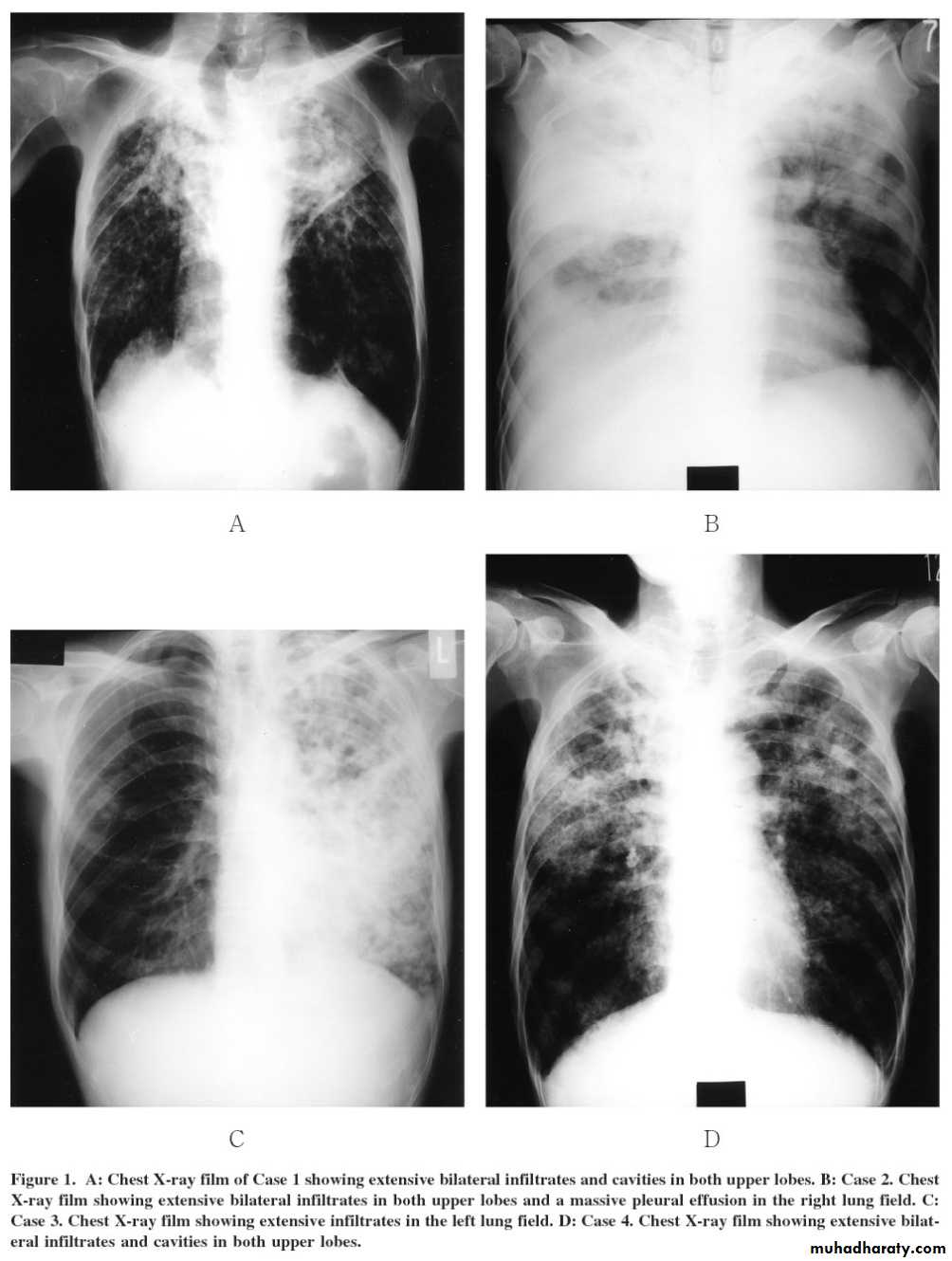

TB lung

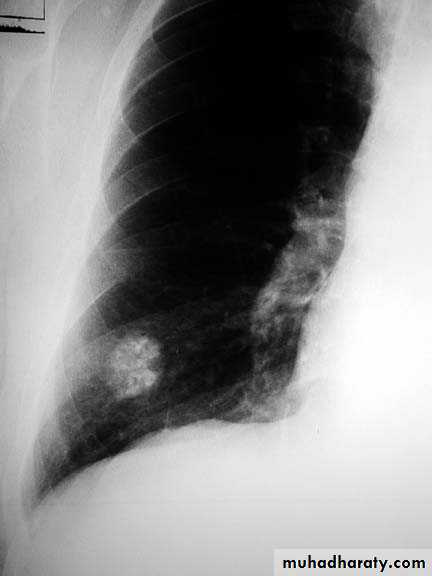

Tuberculoma mycetoma

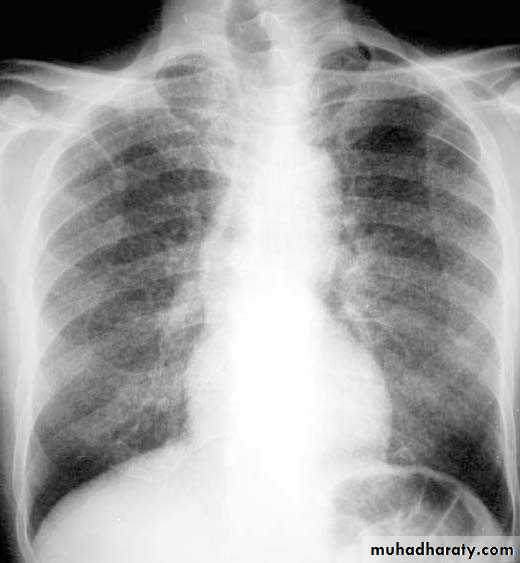

Miliary tb

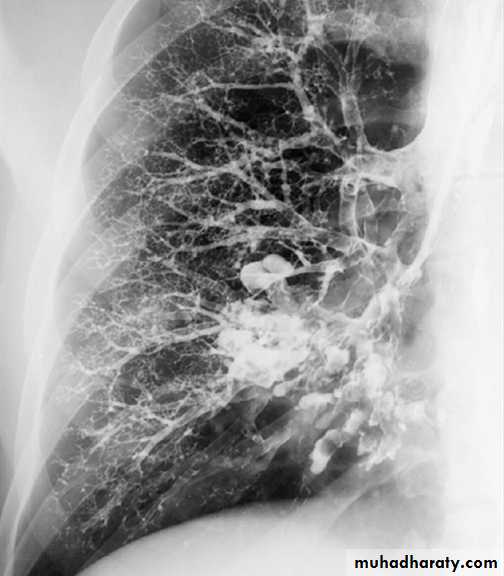

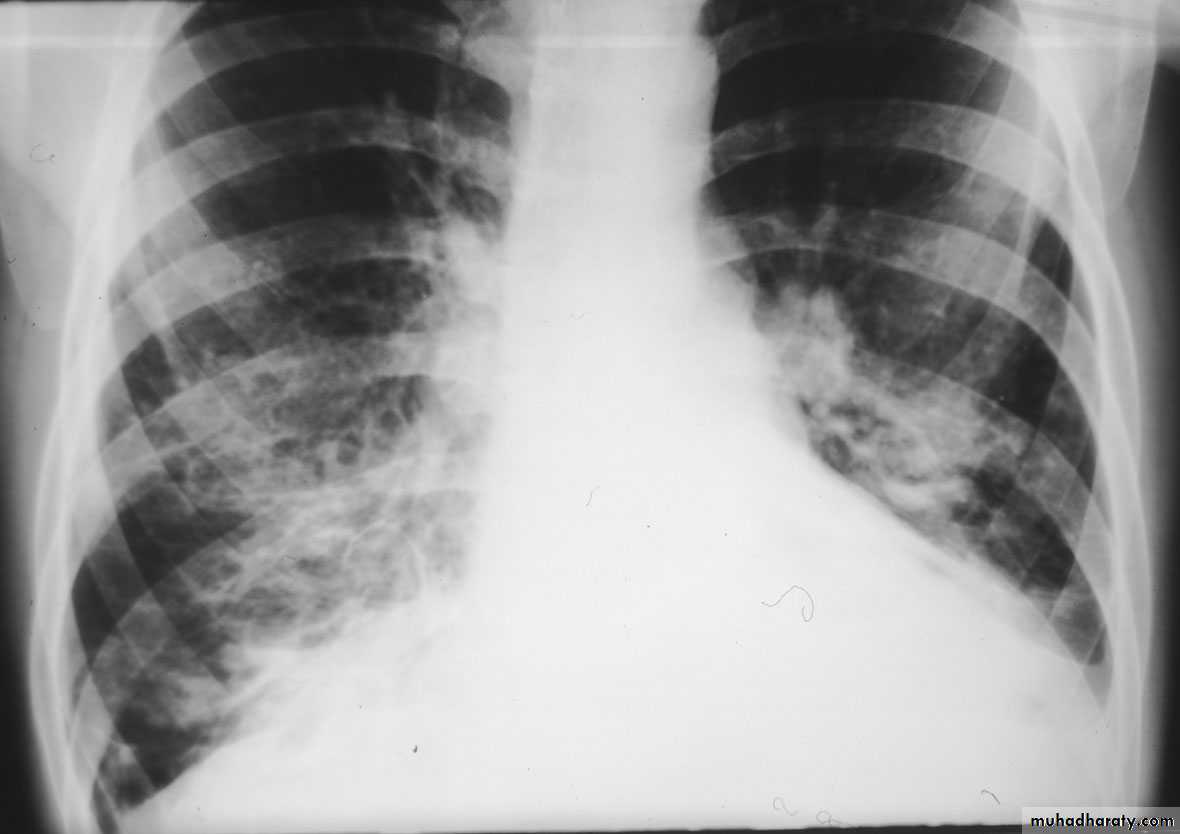

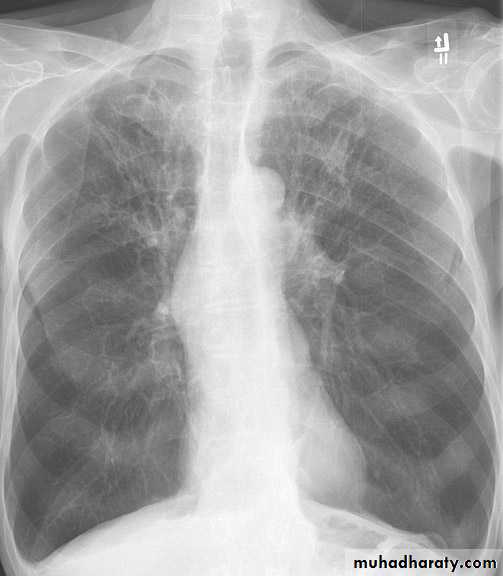

bronchiectasis

bronchiectasis

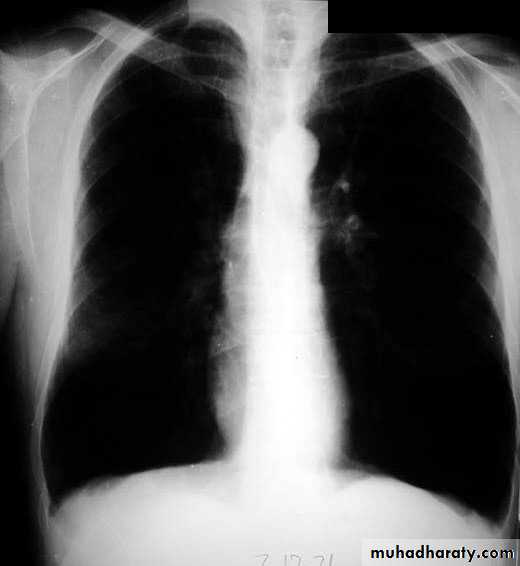

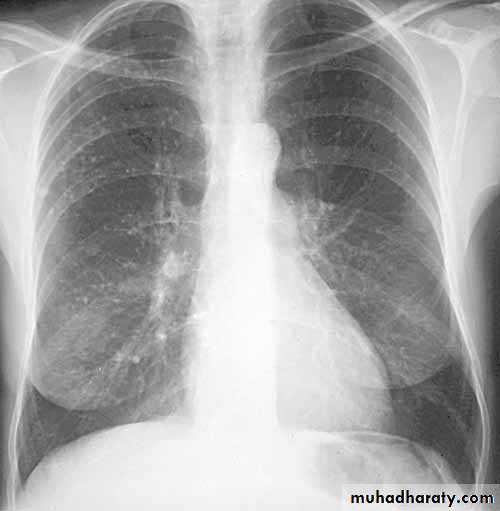

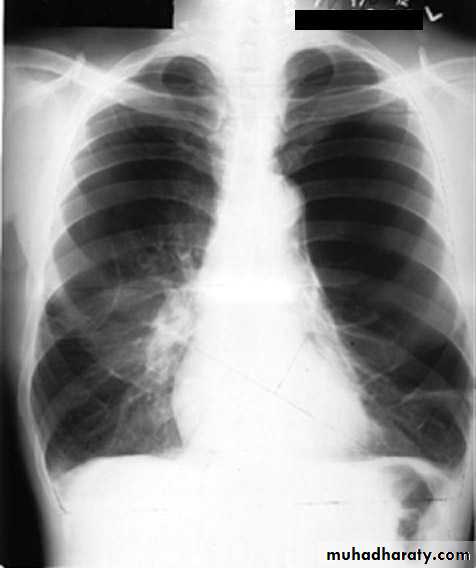

emphysema

emphysema

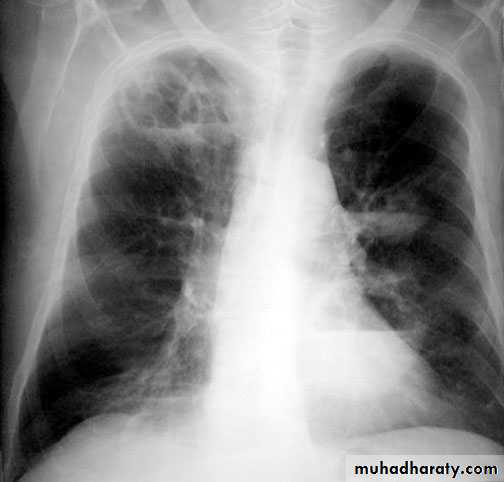

Bullous emphysema

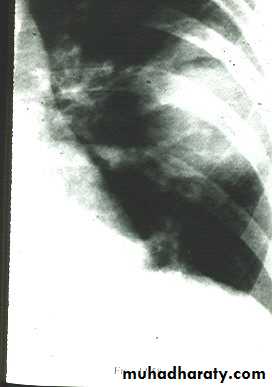

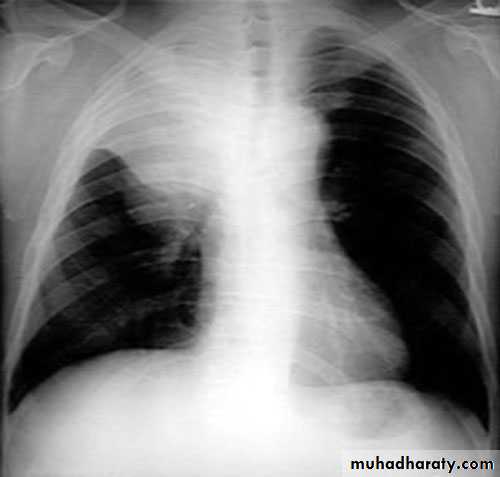

Upper lobe c. Middle lobe c.

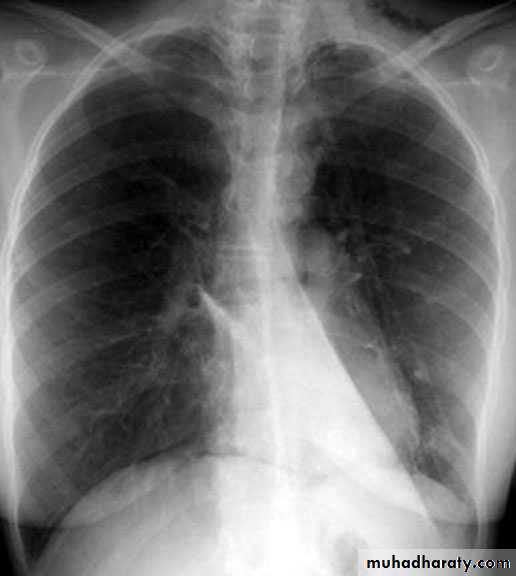

rt lower lobe c. Left lower lobe c.

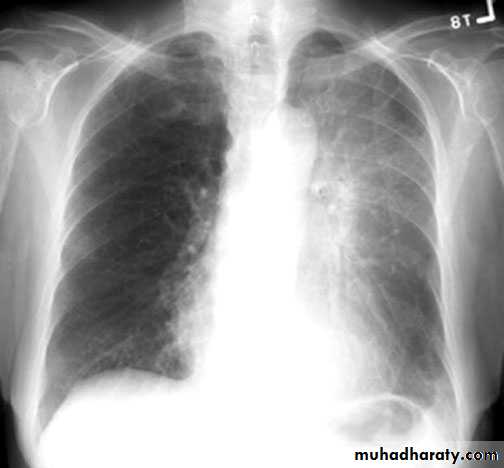

Left upper lobe collapse

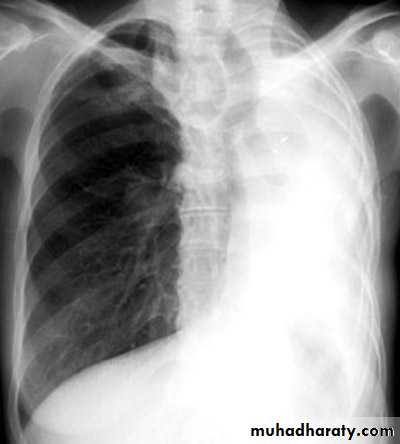

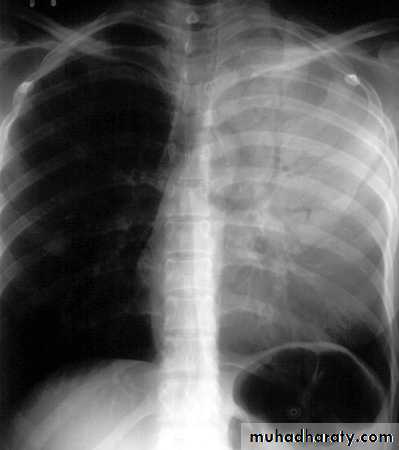

Complete rt. & left Lung collapse

Hydatid cyst early rupture

Water lilly sign (ruptured hydatid cyst)

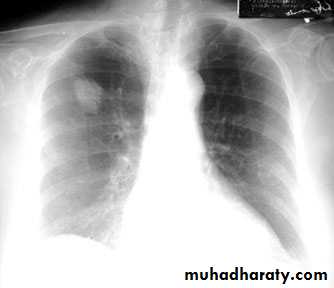

Lung tumour

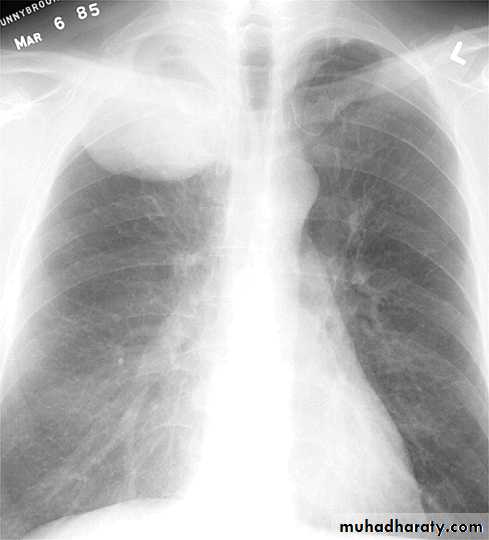

Pancoast tumour

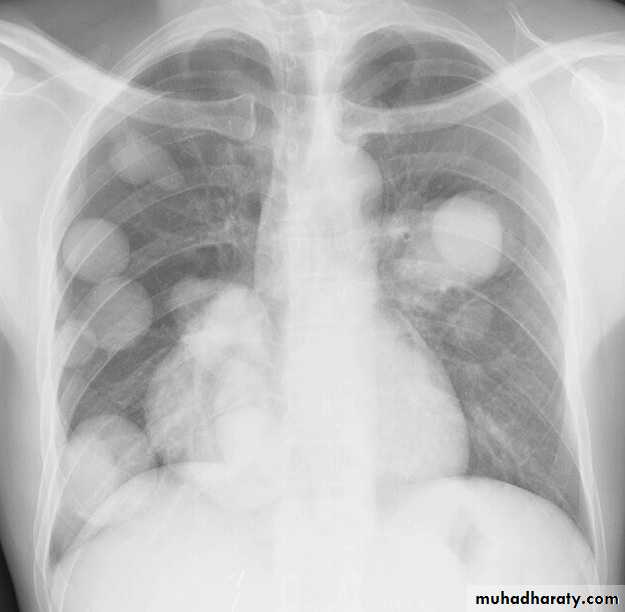

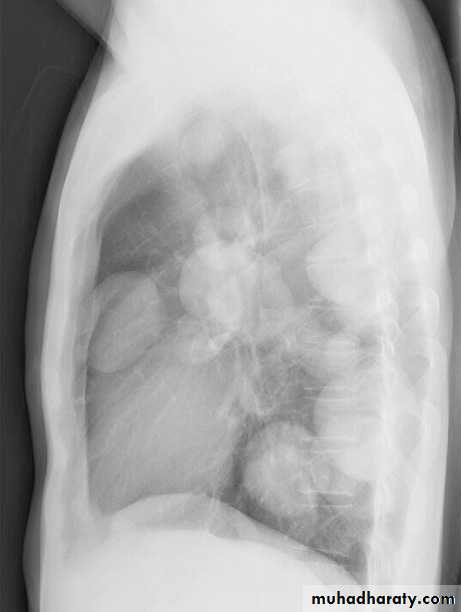

Cannon ball secondaries

Pleural diseasespleural effusionpneumothorax hydro pneumothoraxpleural calcifications & thickeningpleural tumour

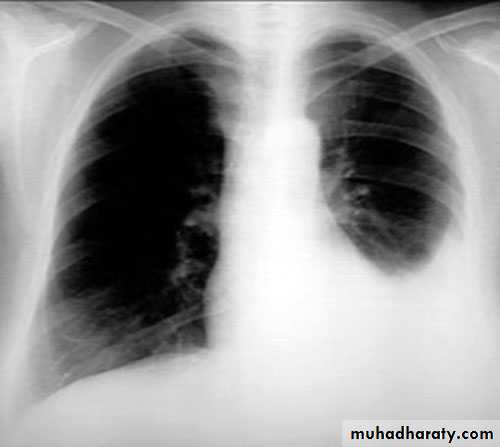

Pleural effusion ( free)

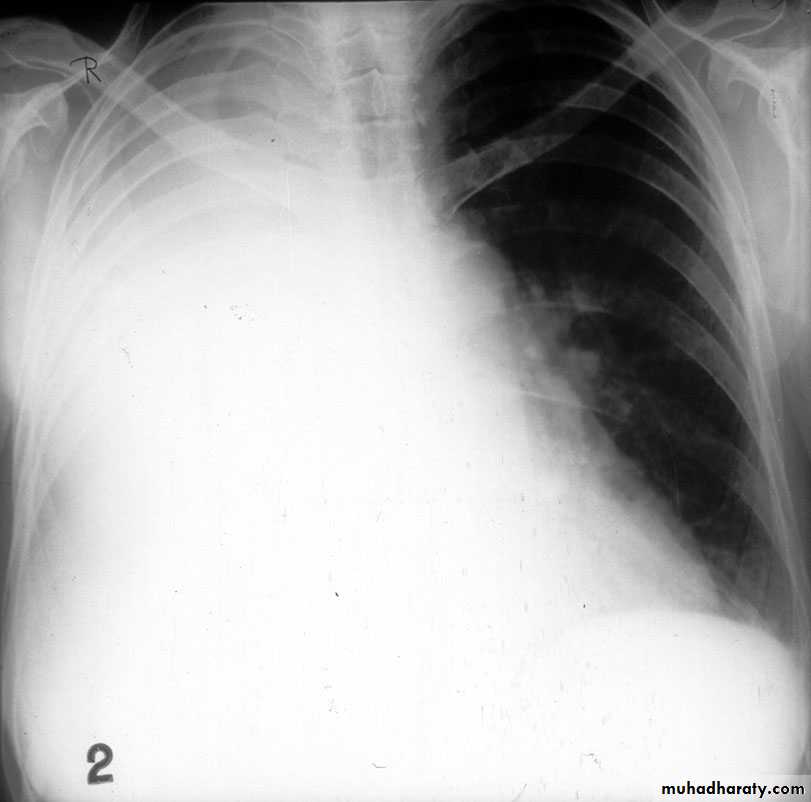

Massive pleural effusion

Lamellar pleural effusion

Encysted peural effusion

Sub costal
Fissural
Sub pulmonary
Mediastinal

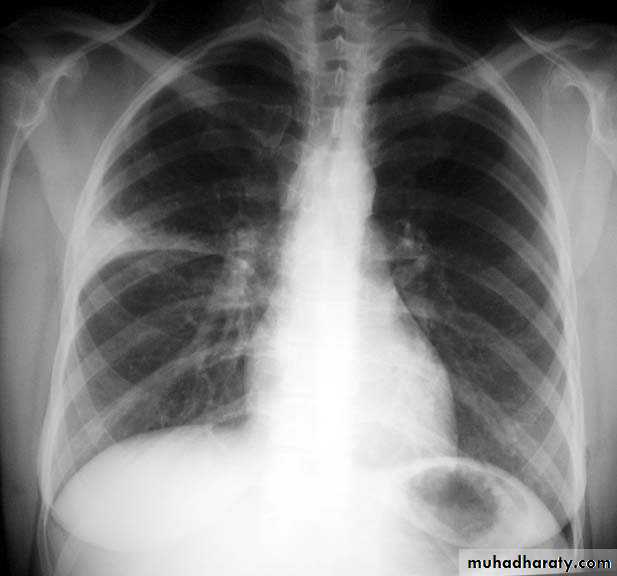

Subcostal encysted effusion

Encysted fissural effusion

Sub pulmonary encysted effusion

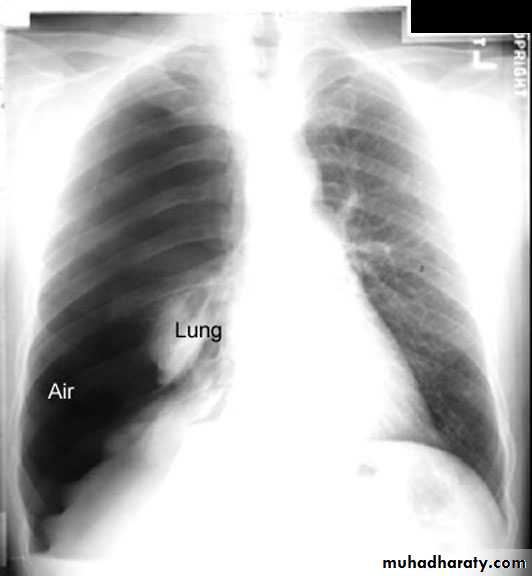

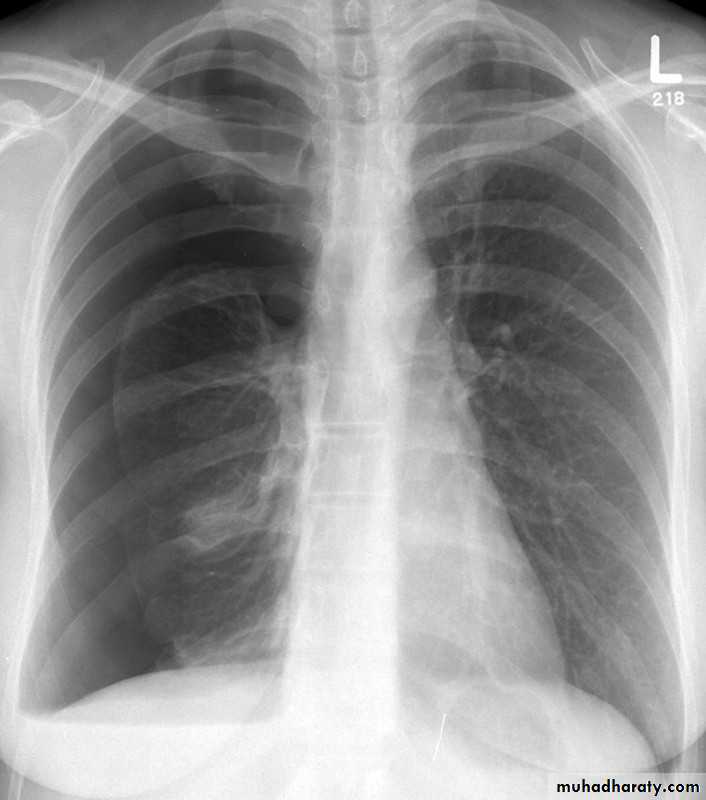

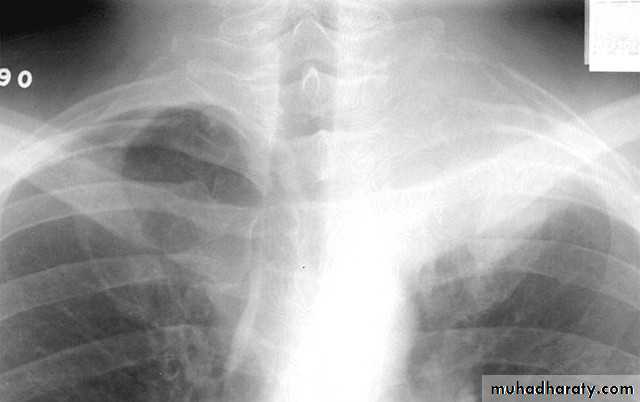

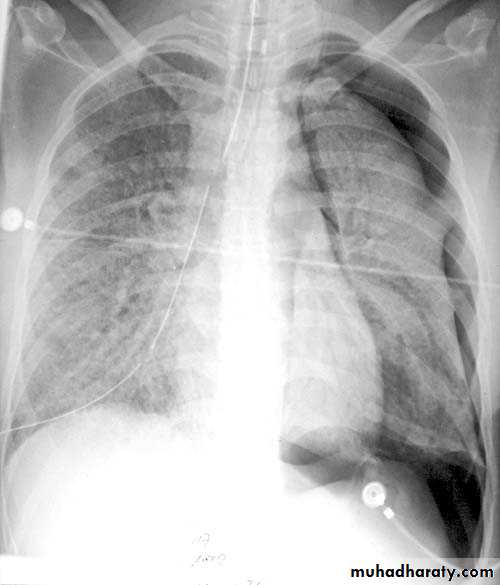

pneumothorax

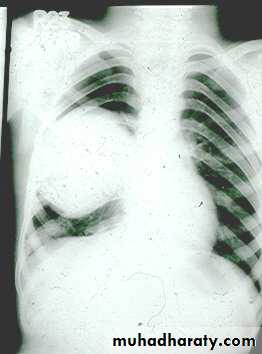

Pneumothorax hydropneumothorax

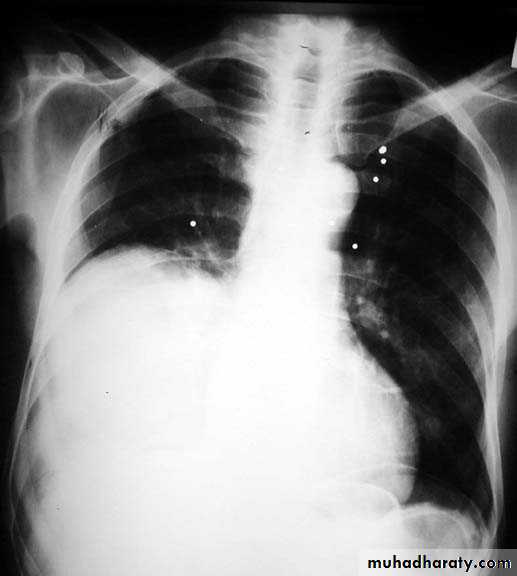

Tension pneumothoarax

Pleural tumour

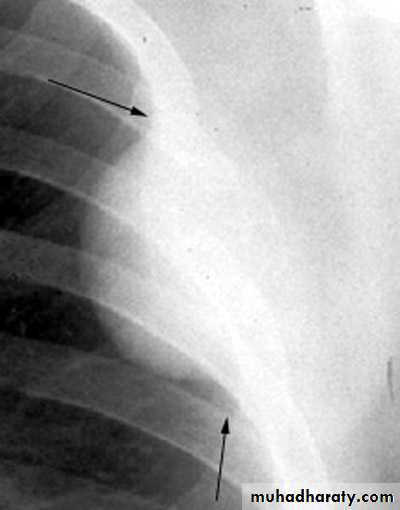

Pleural calcification

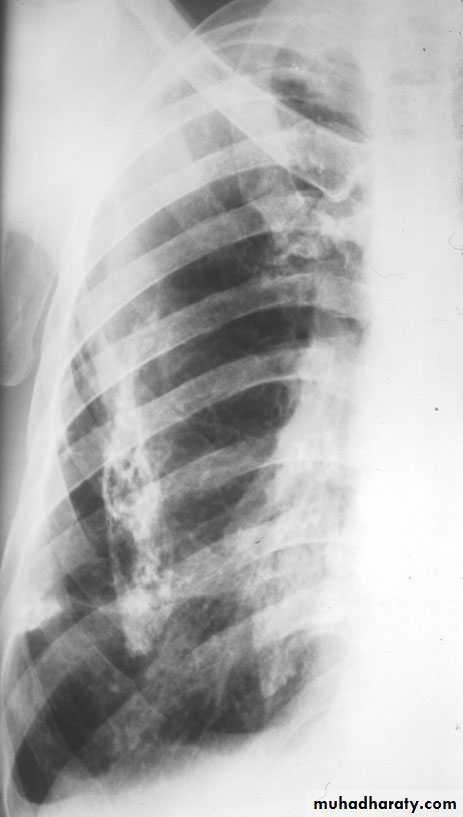

Pleural thickenning
