ophthalmology

• CHAPTER 6

• The lacrimal system
• The lacrimal glands normally produce about 1.2 µl of tears per minute. Some are lost via evaporation. The remainder are drained via the naso-lacrimal system. The tear film is reformed with every blink.
• Abnormalities are found in:
• tear composition;
• the drainage of tears.

• If certain components of the tear film are deficient or there is a disorder of eyelid apposition then there can be a disorder of ocular wetting.
• Aqueous insufficiency—dry eye
• ABNORMALITIES IN COMPOSITION
• keratoconjunctivitis sicca (KCS) or dry eyes.
• With dry mouth and other mucous membranes primary Sjögren’s syndrome (an auto-immune exocrinopathy).
• With auto-immune connective tissue disorder
• (Rheumatoid arthritis) secondary Sjögren’s syndrome.

• SYMPTOMS

• burning, photophobia, heaviness of the lids and ocular fatigue. worse in the evening . visual acuity may be reduced by corneal damage.
• SIGNS
• (punctate staining) over the exposed corneal and conjunctival surface.
• In severe cases tags of abnormal mucus may attach to the corneal surface (filamentary keratitis) causing pain due to tugging on these filaments during blinking

• tear substitutes

• shielded spectacles.
• severe cases it may be necessary to occlude the punta with plugs, or more permanently with surgery, to conserve the tears.
• Mild disease usually responds to artificial tears. Severe disease such as that in rheumatoid Sjögren’s can be very difficult to treat.

• Inadequate mucus production

• Destruction of the goblet cells as in dry eye
• cicatricial conjunctival disorders e.g. erythema multi- forme (Stevens–Johnson’s syndrome).
• . Chemical burns of the eye, particularly by alkalis
• trachoma.
• Vitamin A deficiency (xerophthalmia. Goblet cells are lost from the conjunctiva and the ocular surface becomes keratinized (xerosis).


• Abnormal or inadequate production of meibomian oil
• Absence of the oil layer causes tear film instability, associated with blepharitis
• Malposition of the eyelid margins
• If the lid is not apposed to the eye (ectropion), or there is insufficient closure of the eyes e.g. in a seventh nerve palsy or if the eye protrudes (proptosis) as in dysthyroid eye disease.

• LATERAL TARSORRHAPHY

• DISORDERS OF TEAR DRAINAGE
• When tear production exceeds the capacity of the drainage system, excess tears overflow onto the cheeks. It may be caused by:
• irritation of the ocular surface, e.g. by a corneal foreign body, infection or blepharitis;
• occlusion of any part of the drainage system (when the tearing is termed epiphora).

• Obstruction of tear drainage (infant)

• The distal end of the naso-lacrimal duct may remain imperforate, causing a watering eye.
• mucocoele
• dacrocystitis.
• Diagnostically the discharge may be expressed from the puncta by pressure over the lacrimal sac. The conjunctiva, however, is not inflamed.
• Most obstructions resolve spontaneously in the first year of life
• probing via the punctum through the naso-lacrimal duct to perforate the occluding membrane (probing). A general anaesthetic is required.

• Obstruction of tear drainage (adult)

• the most common site is the naso-lacrim al duct.
• Causes include infection or direct trauma to the naso-lacrimal system.


• HISTORY
• watering eye sometimes associated with stickiness. The eye is white.
• Symptoms may be worse in the wind or in cold weather. There may be a history of previous trauma or infection.

• SIGNS

• A stenosed punctum may be apparent on slit lamp examination. Epiphora is unusual if one punctum continues to drain. Acquired obstruction
• syringing the naso-lacrimal system.
• The exact location of the obstruction can be confirmed by injecting a radio-opaque dye into the naso-lacrimal system (dacrocystogram); X-rays are then used to follow the passage of the dye through the system.

• TREATMENT

• (dacryocystorrhinostomy or DCR The operation can be performed through an incision on the side of the nose but it may also be performed endoscopically through the nasal passages thus avoiding a scar on the face.

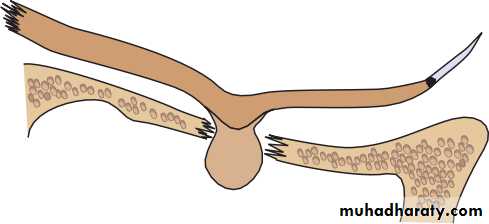

• PRINCIPLE OF A DCR

Upper canaliculus
• Lacrimal sac
• Osteotomy made in bone on side of nose

• New fistula between nasal and lacrimal sac mucosa

• Blockage Nasal mucosa
• Naso-lacrimal duct
Nasal cavity
Lower canaliculus

• Fig. 6.3 Diagram showing the principle of a DCR.

• INFECTIONS OF THE NASO-LACRIMAL SYSTEM
• Closed obstruction of the drainage system predisposes to infection of the sac (dacryocystitis;).
• Staphylococcus.
• Patients present with a painful swelling on the medial side of the orbit, which is the enlarged, infected sac.
• Treatment is with systemic antibiotics. A mucocoele results from a collection of mucus in an obstructed sac, it is not infected. In either case a DCR may be necessary to prevent recurrence.

• CHAPTER 7

• Conjunctiva, cornea and sclera

• Symptoms

• - Pain and irritation. Conjunctivitis causes mild discomfort. Pain is associated with corneal injury or infection.
• - Redness. In conjunctivitis the entire conjunctival surface including that covering the tarsal plates is involved. If the redness is localized to the limbus (ciliary flush) the following should be considered:
• keratitis (an inflammation of the cornea);
• uveitis;
• acute glaucoma.
• - Discharge.
• - Visual loss.
• 5- Patients with corneal disease may also complain of photophobia.

• Signs

• Conjunctiva
• Papillae. 1 mm
• Giant papillae, found in allergic eye disease, are formed by the coalescence of papillae .

• .

• Follicles, gelatinous, oval lesions about 1 mm in diameter found usually in the lower tarsal conjunctiva and upper tarsal border, and occasionally at the limbus. Each follicle represents a lymphoid collection with its own germinal centre.
• Unlike papillae, the causes of follicles are more specific (e.g. viral and chlamydial infections).
• Dilation of the conjunctival vasculature (termed ‘injection’).
• Subconjunctival haemorrhage,

• The features of corneal disease are different and include the following:

• Epithelial and stromal oedema may develop causing clouding of the cornea.
• Cellular infiltrate in the stroma causing focal granular white spots.
• Deposits of cells on the corneal endothelium (termed keratic precipitates or KPs, usually lymphocytes or macrophages.
• Chronic keratitis may stimulate new blood vessels superficially, under the epithelium or deeper in the stroma.
• Punctate Epithelial Erosions.
•




• CONJUNCTIVA

• Inflammatory diseases of the conjunctiva

BACTERIAL CONJUNCTIVITIS
• Patients present with:
• redness of the eye;
• discharge;
• ocular irritation.
• The commonest causative organisms are Staphylococcus, Streptococcus, Pneumococcus and Haemophilus. The condition is usually self-limiting although a broad spectrum antibiotic eye drop will hasten resolution. Conjunctival swabs for culture are indicated if the condition fails to resolve.

• ANTIBIOTICS

• Chloramphenicol Ciprofloxacin Fusidic acid Gentamicin Neomycin Ofloxacin Tetracycline

• Ophthalmia neonatorum

• any conjunctivitis in the first 28 days of neonatal life, Swabs for culture are mandatory. It is also important that the cornea is examined to exclude any ulceration.
• The commonest organisms are:
• Bacterial conjunctivitis (usually Gram positive).
• Neisseria gonorrhoea. In severe cases this can cause corneal perforation. Penicillin given topically and systemically is used to treat the local and systemic disease respectively.
• Herpes simplex, which can cause corneal scarring.Topical antivirals are used to treat the condition.
• Chlamydia. This may be responsible for a chronic conjunctivitis and cause sight-threatening corneal scarring.Topical tetracycline ointment and systemic erythromycin is used is used to treat the local and systemic disease respectively.


• 6

• VIRAL CONJUNCTIVITIS

• This is distinguished from bacterial conjunctivitis by:
• a watery and limited purulent discharge;
• the presence of conjunctival follicles and enlarged pre-auricular
• lymph nodes;
• there may also be lid oedema and excessive lacrimation.
• adenovirus
• Coxsackie
• picornavirus.
• Adenoviruses can also cause a conjunctivitis associated with the formation of a pseudomembrane across the conjunctiva.
• punctate keratitis.
• Treatment

• CHLAMYDIAL INFECTIONS

• Different serotypes of the obligate intracellular organism Chlamydia trachomatis are responsible for two forms of ocular infections.

• Inclusion keratoconjunctivitis

• This is a sexually transmitted disease and may take a chronic course (up to 18 months) unless adequately treated.
• muco- purulent follicular conjunctivitis
• micropannus and sub- epithelial scarring.
• Urethritis or cervicitis is common.
• Diagnosis
• chlamydial antigens, using immunofluorescence, or by identification of typical inclusion bodies by Giemsa staining in conjunctival swab or scrape specimen
• treated with topical and systemic tetracycline.


• Trachoma
• the commonest infective cause of blindness in the world.The housefly acts as a vector and the disease is encouraged by poor hygiene and overcrowding in a dry, hot climate.
• subconjunctival fibrosis caused by frequent re-infections associated with the unhygienic conditions.
• Blindness may occur due to corneal scarring from recurrent keratitis and trichiasis.
• treated with oral or topical tetracycline or erythromycin. Azithromycin, an alternative, requires only one application. Entropion and trichiasis require surgical correction.
•

• ALLERGIC CONJUNCTIVITIS

• This may be divided into acute and chronic forms:
• - Acute (hay fever conjunctivitis). This is an acute IgE-mediated reaction to airborne allergens (usually pollens). Symptoms and signs include:
• itchiness;
• conjunctival injection and swelling (chemosis);
• lacrimation.
• 2- Vernal conjunctivitis (spring catarrh) is also mediated by IgE. It
• often affects male children with a history of atopy. It may be
• present all year long.


• Symptoms and signs include:
• itchiness;
• photophobia;
• lacrimation;
• papillary conjunctivitis on the upper tarsal plate (papillae may coalesce to form giant cobblestones; Fig. 7.4);
• limbal follicles and white spots;
• ) punctate lesions on the corneal epithelium;
• an opaque, oval plaque which in severe disease replaces an upper zone of the corneal epithelium.

• Treatment

• Initial therapy is with antihistamines and mast cell stabilizers (e.g. sodium cromoglycate; nedocromil; lodoxamide).
• Topical steroids
• Contact lens wearers may develop an allergic reaction to their lenses or to lens cleaning materials leading to a giant papillary conjunctivitis (GPC) with a mucoid discharge.

• Conjunctival degenerations

• Pingueculae and pterygia are found on the interpalpebral bulbar conjunctiva.
• Due to reflected or direct ultraviolet component of sunlight. Histologically the collagen structure is altered.
• Pingueculae are yellowish lesions that never impinge on the cornea.
• Pterygia are wing shaped and located nasally,

• CONJUNCTIVAL TUMOURS

• These are rare. They include:
• Squamous cell carcinoma. An irregular raised area of conjunctiva which may invade the deeper tissues.
• Malignant melanoma. The differential diagnosis from benign pigmented lesions (for example a naevus) may be difficult. Review is necessary to assess whether the lesion is increasing in size. Biopsy, to achieve a definitive diagnosis, may be required.

• CORNEA

• Infective corneal lesions
• HERPES SIMPLEX KERATITIS
• Type 1 herpes simplex (HSV) is a common and important cause of ocular disease. Type 2 which causes genital disease may occasionally cause keratitis and infantile chorioretinitis.
• Primary infection by HSV1 is usually acquired early in life by close contact such as kissing. It is accompanied by:
• fever;
• vesicular lid lesions;
• follicular conjunctivitis;
• pre-auricular lymphadenopathy;
• most are asymptomatic.
• The cornea may not be involved although punctate epithelial damage may be seen.


• Recurrent infection
• dendritic ulcers on the cornea. heal without a scar.
• If the stroma is also involved oedema develops causing a loss of corneal
• transparency.
• Involvement of the stroma may lead to permanent scarring.
• Uveitis and glaucoma may accompany the disease.
• Disciform keratitis is an immunogenic reaction to herpes antigen in the stroma and presents as stromal clouding without ulceration, often associated with iritis.
• Dendritic lesions are treated with topical antivirals which typically heal within 2 weeks.
• Topical steroids

• ANTIVIRAL AGENTS

• Vidarabine Trifluorothymidine Aciclovir Ganciclovir

• HERPES ZOSTER OPHTHALMICUS (OPHTHALMIC SHINGLES)

• varicella-zoster virus which is responsible for chickenpox. The ophthalmic division of the trigeminal nerve is affected.
• a prodromal period with the patient systemically unwell.
• Ocular manifestations are usually preceded by the appearance of vesicles in the distribution of the ophthalmic division of the trigeminal nerve. Ocular problems are more likely if the naso-ciliary branch of the nerve is involved (vesicles at the root of the nose).
• Signs include:
• lid swelling (which may be bilateral);
• keratitis;
• iritis;
• secondary glaucoma.

• Reactivation of the disease is often linked to unrelated systemic illness.

• Oral antiviral treatment (e.g. aciclovir and famciclovir) is effective in reducing post-infective neuralgia if given within 3 days of the skin vesicles erupting.
• Ocular disease may require treatment with topical antivirals and steroids.
• . Both simplex and zoster cause anaesthesia of the cornea. Non-healing indolent ulcers may be seen following simplex infection and are difficult to treat.

• BACTERIAL KERATITIS

• Pathogenesis
• A host of bacteria may infect the cornea.

• BACTERIA CAUSING CORNEAL INFECTION

• Staphylococcus epidermidis
• Staphylococcus aureus
• Streptococcus pneumoniae
• Coliforms
• Pseudomonas
• Haemophilus

• Some are found on the lid margin as part of the normal flora. The conjunctiva and cornea are protected against infection by:
• blinking;
• washing away of debris by the flow of tears;
• entrapment of foreign particles by mucus;
• the antibacterial properties of the tears;
• the barrier function of the corneal epithelium (Neisseria gonnorrhoea is the only organism that can penetrate the intact epithelium).


• Predisposing causes of bacterial keratitis include:
• keratoconjunctivitis sicca (dry eye);
• a breach in the corneal epithelium (e.g. following trauma);
• contact lens wear;
• prolonged use of topical steroids.

• Symptoms and signs

• These include:
• pain, usually severe unless the cornea is anaesthetic;
• purulent discharge;
• ciliary injection;
• visual impairment (severe if the visual axis is involved);
• hypopyon sometimes (a mass of white cells collected in the anterior chamber
• a white corneal opacity which can often be seen with the naked eye.

• Treatment

• Scrapes for Gram staining and culture.
• intensive topical antibiotics often with dual therapy (e.g. cefuroxime against Gram +ve bacteria and gentamicin for Gram —ve bacteria).
• The use of fluoro- quinolones (e.g. Ciprofloxacin, Ofloxacin) as a monotherapy.
• The drops are given hourly day and night for the first couple of days and reduced in frequency as clinical improvement occurs.
• In severe or unresponsive disease the cornea may perforate. This can be treated initially with tissue adhesives (cyano-acrylate glue) and a subsequent corneal graft.
• A persistent scar may also require a corneal graft to restore vision.

• ACANTHAMOEBA KERATITIS

• freshwater amoeba .
• soft contact lenses.
• A painful keratitis with prominence of the corneal nerves results. The amoeba can be isolated from the cornea (and from the contact lens case) with a scrape and cultured on special plates impregnated with Escherichia coli.
• Topical chlorhexidine, polyhexamethylene biguanide (PHMB) and propamidine are used to treat the condition.
•

• FUNGAL KERATITIS

• more common in warmer climates. It should be considered in:
• lack of response to antibacterial therapy in corneal ulceration;
• cases of trauma with vegetable matter;
• cases associated with the prolonged use of steroids.
• The corneal opacity appears fluffy and satellite lesions may be present. Liquid and solid Sabaroud’s media are used to grow the fungi. Incubation may need to be prolonged. Treatment requires topical antifungal drops such as pimaricin 5%.

• INTERSTITIAL KERATITIS

• This term is used for any keratitis that affects the corneal stroma without epithelial involvement. Classically the most common cause was syphillis, leaving a mid stromal scar with the outline (‘ghost’) of blood vessels seen. Corneal grafting may be required when the opacity is marked and visual acuity reduced.


• Corneal dystrophies

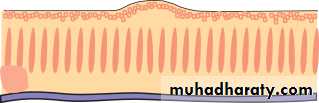

• These are rare inherited disorders. They affect different layers of the cornea and often affect corneal transparency. They may be divided into:



• Anterior dystrophies involving the epithelium. These may present with recurrent corneal erosion.
• Stromal dystrophies presenting with visual loss. If very anterior they may cause corneal erosion and pain.
• Posterior dystrophies which affect the endothelium and cause gradual loss of vision due to oedema. They may also cause pain due to epithelial erosion.

• Disorders of shape

Keratoconus: Progressive coning of cornea due to thinning of inf. Paracentral stroma.
Usually bilateral but may be asymmetrical
Start in teens age (puberty), more in females.
Associations:
1. Vernal catarrh
2. Atopic dermatitis
3. Down syndrome
4. Turner syndrome
5. Marfan syndrome
6. Ehler Danlos Syndrome


Present: Progressive blurring of vision (irregular myopic astigmatism & corneal opacities).
O/E:
1- Thinning & forward bowing of inf. Paracentral cornea stroma (slit lamp ex.)
2- Brownish ring (Fleischer) around the base of cone due to hemosiderin deposit.
3- Distortion of the corneal light reflection (placido disc).
4- Altered ophthalmoscopic & retinoscopic light reflexes.
5- Munson’s sign (indentation of the lower lid by the conical cornea when patient looks downward).
6- Acute hydrops=stromal oedema due to rupture descemet membrane.

Nowadays ,it is mostly diagnosed by corneal topography examination during the pre-oprative assessment of refractive surgery

Treatment:

1- Corneal Collagen Cross-linking, in early cases to arrest the disease
2- Glasses
3- Contact lenses (Rigid)
4- Intra-stromal corneal rings
5- Penetrating keratoplasty or Lamellar keratoplasty..in advanced cases or corneal scarring

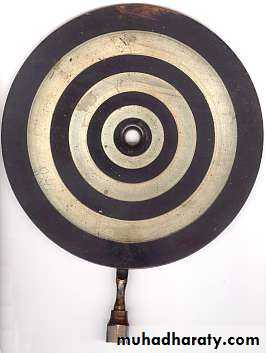

Placido disc

Munson’s sign

• Central corneal degenerations

• BAND KERATOPATHY
• the subepithelial deposition of calcium phosphate in the exposed part of the cornea. It is seen in eyes with chronic uveitis or glaucoma. It can also be a sign of systemic hypercalcaemia as in hyperparathyroidism or renal failure. and may cause visual loss or discomfort if epithelial erosions form over the band. If symptomatic it can be scraped off aided by a chelating agent such as sodium edetate.The excimer laser can also be effective in treating these patients by ablating the affected cornea.
•

• Peripheral corneal degenerations

• CORNEAL THINNING
• A rare cause of painful peripheral corneal thinning is Mooren’s ulcer, a condition with an immune basis.
• Corneal thinning or melting can also be seen in collagen diseases such as rheumatoid arthritis and Wegener’s granulomatosis. Treatment can be difficult and both sets of disorder require systemic and topical immunosuppression. Where there is an associated dry eye it is important to ensure adequate corneal wetting and corneal protection.

• LIPID ARCUS

• This is a peripheral white ring-shaped lipid deposit, separated from the limbus by a clear interval. It is most often seen in normal elderly people (arcus senilis) but in young patients it may be a sign of hyperlipidaemia. No treatment is required.

• Corneal grafting

• Donor corneal tissue can be grafted into a host cornea to restore corneal clarity or repair a perforation. Donor corneae can be stored and are banked so that corneal grafts can be performed on routine operating lists. The avascular host cornea provides an immune privileged site for grafting,





• with a high success rate. Tissue can be HLA-typed for grafting of vascularized corneae at high risk of immune rejection although the value of this is still uncertain. The patient uses steroid eye drops for some time after the operation to prevent graft rejection. Complications such as astigmatism can be dealt with surgically or by suture adjustment.
• GRAFT REJECTION
• Any patient who has had a corneal graft and who complains of redness, pain or visual loss must be seen urgently by an eye specialist, as this may indicate graft rejection. Examination shows graft oedema, iritis and a line of activated T-cells attacking the graft endothelium. Intensive topical steroid application in the early stages can restore graft clarity.

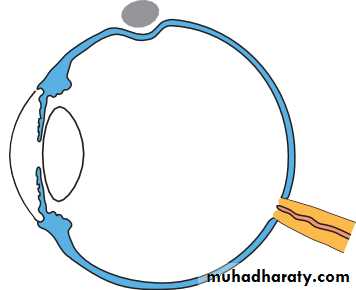

• SCLERA

• EPISCLERITIS
• This inflammation of the superficial layer of the sclera causes mild discomfort. It is rarely associated with systemic disease. It is usually self-limiting but as symptoms are tiresome, topical anti-inflammatory treatment can be given. In rare, severe disease, systemic non-steroidal anti-inflammatory treatment may be helpful.

• SCLERITIS

• more severe condition than episcleritis
• may be associated with the collagen-vascular diseases, most commonly rheumatoid arthritis. It is a cause of intense ocular pain. Both inflammatory areas and ischaemic areas of the sclera may occur. Characteristically the affected sclera is swollen. The following may complicate the condition:
• scleral thinning (scleromalacia), sometimes with perforation;
• keratitis;
• uveitis;
• cataract formation;
• glaucoma.
• Treatment may require high doses of systemic steroids or in severe cases cytotoxic therapy and investigation to find any associated systemic disease.
• Scleritis affecting the posterior part of the globe may cause choroidal effusions or simulate a tumour.


• KEY POINTS

• CHAPTER 8

• The lens and cataract
• The lens is biconvex and transparent. It is held in position behind the iris by the suspensory ligament whose zonular fibres are composed of the protein fibrillin which attach its equator to the ciliary body. Disease may affect structure, shape and position.

• .

81

• Cataract

• The large majority of cataracts occur in older age as a result of the cumulative exposure to environmental and other influences such as smoking, UV radiation and elevated blood sugar levels. This is sometimes referred to as age-related cataract. A smaller number are associated with specific ocular or systemic disease and defined physico-chemical mechanisms. Some are congenital and may be inherited.

• Ocular conditions associated with cataract OCULAR CONDITIONS

• Trauma Uveitis
• High myopia
• Topical medication (particularly steroid eye drops) Intraocular tumour


• SSSSSsYSTEMIC CAUSES
• Systemic causes
• Diabetes
• Other metabolic disorders (including galactosaemia, Fabry’s disease, hypocalcaemia)
• Systemic drugs (particularly steroids, chlorpromazine) Infection (congenital rubella)
• Myotonic dystrophy Atopic dermatitis
• Systemic syndromes (Down’s, Lowe’s) Congenital, including inherited, cataract X-radiation

.

• SYMPTOMS

• An opacity in the lens of the eye:
• causes a painless loss of vision;
• causes glare;
• may change refractive error.
• In infants, cataract may cause amblyopia
• SIGNS
• Visual acuity is reduced. In some patients the acuity measured in a dark room may seem satisfactory,
• The cataract appears black against the red reflex when the eye is examined with a direct ophthalmoscope.
• Slit lamp examination allows the cataract to be examined in detail and the exact site of the opacity can be identified. .


• INVESTIGATION
• This is seldom required unless a suspected systemic disease requires exclusion or the cataract appears to have occurred at an early age.

• TREATMENT

• Anterior
• Posterior

• Change in lens structure 83

• TYPES OF CATARACT

• Cortical

• Subcapsular

• Nuclear

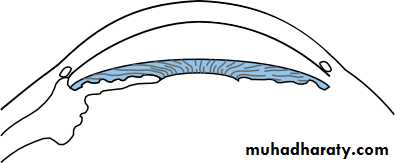

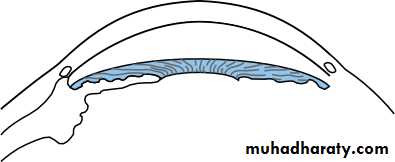

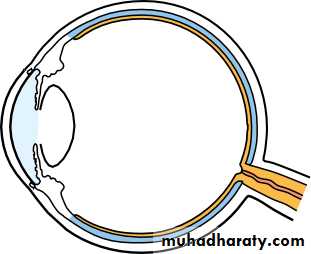

• Fig. 8.1 The location of different types of cataract.

• Fig. 8.2 The clinical appearance of:

• (a) a cortical; (b) a nuclear; (c) a posterior subcapsular cataract. The spoke opacities are silhouetted against the red reflex (a).
(b)

• (a)

• (c)

• Cataract surgery

• under local rather than general anaesthesia.
• extra-capsular cataract extraction (ECCE). The incision must be sutured.
• (phacoemulsification). Usually no suture is required.
• The power of the intraocular lens implant to be used is calculated beforehand (this is called Biometry)
• Visual rehabilitation and the prescription of new glasses is much quicker with phacoemulsification.
• Since the patient cannot accommodate he or she will need glasses for close work even if they are not needed for distance. Multifocal intraocular lenses are now in use. Accommodating intraocular lenses are being developed.


• Complications of cataract surgery
• - Vitreous loss.
• - Iris prolapse.
• - Endophthalmitis. A serious but rare infective complication of cataract extraction (less than 0.3%). Patients present with:
• a painful red eye;
• reduced visual acuity, usually within a few days of surgery;
• a collection of white cells in the anterior chamber (hypopyon). The patient requires urgent ophthalmic assessment, sampling of aqueous and vitreous for microbiological analysis and treatment with intravitreal, topical and systemic antibiotics.
• - Postoperative astigmatism.
• - Cystoid macular oedema..
• - Retinal detachment.
• - Opacification of the posterior capsule.
• - if the fine nylon sutures are not removed after surgery they may break in the following months or years causing irritation or infection. Symptoms are cured by removal.

• Incision in cornea

• Zonule
• Iris
• Lens
• Nucleus expressed through incision
• (c) Extracapsular extraction
• (a)

• CATARACT EXTRACTION

• Phaco

• ECCE

• Irrigating canula Peripheral cortex

• Change in lens structure 87

• CATARACT EXTRACTION

• Phacoemulsification probe

• Capsulorhexis

Sculpting of nucleus

• (d) Phacoemulsification

• Intraocular lens

• Forceps

• Tear in anterior capsule (capsulorhexis)

• Capsulorhexis

• Path that tear will follow

• (b)

• (f)

• expression. Pressure on the eye causes the nucleus to pass out through the incision. (d) Alternatively the nucleus can be emulsified in situ. The phacoemulsification probe, introduced through the small corneal or scleral incision shaves away the nucleus. (e) The remaining soft lens matter is aspirated leaving only the posterior capsule and the peripheral part of the anterior capsule. (f ) An intraocular lens is implanted into the remains of the capsule. To allow implantation through the small phacoemulsification wound, the lens must be folded in half or injected through a special introducer into the eye. The incision is repaired with fine nylon sutures. If phacoemulsification has been used the incision in the eye is smaller and a suture is usually not required.

• Congenital cataract

• is a threat to sight, amblyopia .
• If bilateral cataract is present and has a significant effect on visual acuity this will cause amblyopia and an oscillation of the eyes (nystagmus).
• Both cataractous lenses require urgent surgery and the fitting of contact lenses to correct the aphakia.
• The management of contact lenses requires considerable input and motivation from the parents of the child.
• The treatment of uniocular congenital cataract remains controversial.
• treatment to maximize the chances of success must be performed within the first few weeks of life and be accompanied by a coordinated patching routine to the fellow eye to stimulate visual maturation in the amblyopic eye.
• Increasingly intraocular lenses are being implanted in children over 2 years old. The eye becomes increasingly myopic as the child grows, however, making choice of the power of the lens difficult.


• CHANGE IN LENS SHAPE
• Abnormal lens shape is very unusual.
• The curvature of the anterior part of the lens may be increased centrally (anterior lenticonus) in Alport’s syndrome, a recessively inherited condition of deafness and nephropathy.
• An abnormally small lens may be associated with short stature and other skeletal abnormalities.

• CHANGE IN LENS POSITION (ECTOPIA LENTIS)

• Weakness of the zonule causes lens displacement. The lens takes up a more rounded form and the eye becomes more myopic. This may be seen in:
• Trauma.
• Inborn errors of metabolism (e.g. homocystinuria, a recessive disorder with mental defect and skeletal features. The lens is usually displaced downwards).
• Certain syndromes (e.g. Marfan’s syndrome, a dominant disorder with skeletal and cardiac abnormalities and a risk of dissecting aortic aneurysm. The lens is usually displaced upwards). There is a defect in the zonular protein due to a mutation in the fibrillin gene.
• The irregular myopia can be corrected optically although sometimes an aphakic correction may be required if the lens is substantially displaced from the visual axis. Surgical removal may be indicated, particularly if the displaced lens has caused a secondary glaucoma but surgery may result in further complications.

• CHAPTER 9

Uveitis

• INTRODUCTION

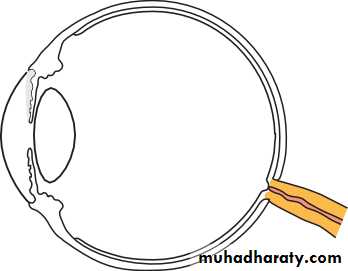

• Inflammation of the uveal tract (the iris, ciliary body and choroid) has many causes and is termed uveitis (Fig. 9.1). It is usual for structures adjacent to the inflamed uveal tissue to become involved in the inflammatory process. It may be classified anatomically:
• Inflammation of the iris, accompanied by increased vascular permeabil- ity, is termed iritis or anterior uveitis (Fig. 9.2). White cells circulating in the aqueous humour of the anterior chamber can be seen with a slit lamp. Protein which also leaks from the blood vessels is picked out by its light scattering properties in the beam of the slit lamp as a ‘flare’.
• An inflammation of the pars plana (posterior ciliary body) is termed
• cyclitis or intermediate uveitis.
• Inflammation of the posterior segment (posterior uveitis) results in inflammatory cells in the vitreous gel. There may also be an associated choroidal or retinal inflammation (choroiditis and retinitis respectively). A panuveitis is present when anterior and posterior uveitis occur together.


• Epidemiology 91



• Fig. 9.1 External ocular appearance in a patient with uveitis, note the inflammatory response at the limbus.

• HISTORY

• The patient may complain of:
• ocular pain (less frequent with posterior uveitis or choroiditis);
• photophobia;
• blurring of vision;
• redness of the eye.
• Posterior uveitis may not be painful.
• The patient must be questioned about other relevant symptoms that may help determine whether or not there is an associated systemic disease.
• Respiratory symptoms such as shortness of breath, cough, and the nature of any sputum produced (associated sarcoidosis or tuberculosis).
• Skin problems. Erythema nodosum (painful raised red lesions on the arms and legs) may be present in granulomatous diseases such as sarcoidosis and Behçet’s disease. Patients with Behçet’s may also have throm- bophlebitis, dermatographia and oral and genital ulceration. Psoriasis (in association with arthritis) may be accompanied by uveitis.
• Joint disease. Ankylosing spondylitis with backpain is associated with acute anterior uveitis. In children juvenile chronic arthritis may be associated with uveitis. Reiter’s disease (classically urethritis, conjunctivitis and a seronegative arthritis) may also be associated with anterior uveitis.
• Bowel disease. Occasionally uveitis may be associated with inflammatory bowel diseases such as ulcerative colitis, Crohn’s disease and Whipple’s disease.
• Infectious disease. Syphilis with its protean manifestations can cause uveitis (particularly posterior choroiditis). Herpetic disease (shingles) may also cause uveitis. Cytomegalovirus (CMV) may cause a uveitis particularly in patients with AIDS. Fungal infections and metastatic infections may also cause uveitis, usually in immunocompromised patients.

• 92

• Chapter 9: Uveitis








• Fig. 9.2 Signs of anterior uveitis: (a) keratic precipitates on the corneal endothelium; (b) posterior synechiae (adhesions between the lens and iris) give the pupil an irregular appearance; (c) a hypopyon, white cells have collected as a mass in the inferior anterior chamber.
• SIGNS
• On examination:
• The visual acuity may be reduced.
• The eye will be inflamed in acute anterior disease, mostly around the limbus (ciliary injection).
• Inflammatory cells may be visible clumped together on the endothelium of the cornea particularly inferiorly (keratitic precipitates or KPs).
• Slit lamp examination will reveal aqueous cells and flare. If the inflammation is severe there may be sufficient white cells to collect as a mass inferiorly (hypopyon).
• The vessels on the iris may be dilated.
• The iris may adhere to the lens (posterior synechiae or PS).
• The intraocular pressure may be elevated.
• There may be cells in the vitreous.
• There may be retinal or choroidal foci of inflammation.
• Macular oedema may be present (see p. 121).
• (a)
• (b)
• (c)

• Epidemiology 93

• INVESTIGATIONS
• These are aimed at determining a systemic association and are directed in part by the type of uveitis present. An anterior uveitis is more likely to be associated with ankylosing spondylitis and HLA-typing may help confirm the diagnosis. The presence of large KPs and possibly nodules on the iris may suggest sarcoidosis; a chest radiograph, serum calcium and serum angiotensin converting enzyme level would be appropriate. In toxoplasmic retinochoroiditis the focus of inflammation often occurs at the margin of an old inflammatory choroidal scar. A posterior uveitis may have an infectious or systemic inflammatory cause. Some diseases such as CMV virus infec- tions in HIV positive patients have a characteristic appearance and with an appropriate history may require no further diagnostic tests. Associated symptoms may also help point towards a systemic disease (e.g. fever, diar- rhoea, weight loss). Not all cases of anterior uveitis require investigation at first presentation unless associated systemic symptoms are present.

• TREATMENT

• This is aimed at:
• relieving pain and inflammation in the eye;
• preventing damage to ocular structures; particularly to the macula and the optic nerve, which may lead to permanent visual loss.
• Steroid therapy is the mainstay of treatment. In anterior uveitis this is delivered by eye drops. However, topical steroids do not effectively pene- trate to the posterior segment. Posterior uveitis is therefore treated with systemic steroids or steroids injected onto the orbital floor or into the subtenon space.
• In anterior uveitis, dilating the pupil relieves the pain from ciliary spasm and prevents the formation of posterior synechiae by separating it from the anterior lens capsule. Synechiae otherwise interfere with normal dilatation of the pupil. Dilation is achieved with mydriatics, e.g. cyclopen- tolate or atropine drops. Atropine has a prolonged action. An attempt to break any synechiae that have formed should be made with initial intensive cyclopentolate and phenylephrine drops. A subconjunctival injection of mydriatics may help to break resistant synechiae.
• In posterior uveitis/retinitis visual loss may occur either from destruc- tive processes caused by the retinitis itself (e.g. in toxoplasma or CMV) or from fluid accumulation in the layers of the macula (macular oedema). Apart from systemic or injected steroids, specific antiviral or antibiotic medication may also be required. Some rare but severe forms of uveitis,
• e.g. that associated with Behçet’s disease, may require treatment with other systemic immunosuppresive drugs such as azathoprine or cyclosporin. Long-term treatment may be necessary.

• CAUSES OF UVEITIS

• Associated with

• Infectious

• systemic disease
• Ocular disease
• Toxoplasmosis
• Ankylosing spondylosis
• Advanced cataract
• Postoperative infection
• Sarcoidosis
• Sympathetic ophthalmitis
• Fungal
• Reiter’s disease
• Retinal detachment
• CMV
• Behçet’s disease
• Angle closure glaucoma
• Herpetic
• Psoriatic arthritis
• Intraocular tumours
• Tuberculosis
• Juvenile chronic arthritis


• Syphilis
• Inflammatory bowel disease

• Metastatic infection

• Toxocara

• Table 9.1 Table showing some causes of uveitis (this is not an exclusive list).

• 94
• Chapter 9: Uveitis

• Fuchs’ heterochromic uveitis

• This is a rare chronic uveitis usually found in young adults. The cause is uncertain and there are no systemic associations.

• HISTORY

• The patient does not usually present with a typical history of iritis. Blurred vision and floaters may be the initial complaint.

• SIGNS

• A mild anterior uveitis is present but without signs of conjunctival inflam- mation and there are no posterior synechiae. There are KPs distributed diffusely over the cornea. The iris is heterochromic due to loss of some of the pigment epithelial cells. The vitreous may be inflamed and condensa- tions (the cause of the floaters) may be present. About 70% of patients develop cataract. Glaucoma occurs to a lesser extent.


• TREATMENT
• Steroids are not effective in controlling the inflammation and are thus not prescribed. The patients usually respond well to cataract surgery when it is required. The glaucoma is treated conventionally.
• Toxoplasmosis (Fig. 9.3)
• HISTORY
• The infection may be congenital or acquired. Most ocular toxoplasmosis was thought to be congenital with the resulting retinochoroiditis being reactivated in adult life. However, there is now evidence that it is often acquired during a glandular fever-like illness. The patient may complain of hazy vision, floaters, and the eye may be red and painful.

• SIGNS

• The retina is the principal structure involved with secondary inflammation

• 96

• Chapter 9: Uveitis

• Specific conditions associated with uveitis 97

• Acquired immunodeficiency syndrome (AIDS) and CMV retinitis (Fig. 9.4)
• Ocular disease is a common manifestation of the acquired immuno- deficiency syndrome. Patients develop a variety of ocular conditions:
• microvascular occlusion causing retinal haemorrhages and cotton wool spots (infarcted areas of the nerve fibre layer of the retina);
• corneal endothelial deposits;
• neoplasms of the eye and orbit;




• Fig. 9.3 The appearance of an inactive toxoplasma retinitis.

• occurring in the choroid. An active lesion is often located at the posterior pole, appearing as a creamy focus of inflammatory cells at the margin of an old chorioretinal scar (such scars are usually atrophic, with a pigmented edge). Inflammatory cells cause a vitreous haze and the anterior chamber may also show evidence of inflammation.

• INVESTIGATION

• The clinical appearance is usually diagnostic but a positive toxoplasma antibody test is suggestive. However, a high percentage of the population have positive IgG titres due to prior infection.

• TREATMENT

• The reactivated lesions will subside but treatment is required if the macula or optic nerve is threatened or if the inflammatory response is very severe. Systemic steroids are administered with an antiprotozoal drugs such as clindamycin. Care must be taken with the use of sulphadiazines or clindamycin as pseudomembranous colitis may result from clindamycin treatment. Patients must be warned that if diarrhoea develops they should seek medical help immediately.

• 98

• Chapter 9: Uveitis
• neuro-ophthalmic disorders including oculomotor palsies;
• opportunistic infections of which the most common is CMV retinitis, (previously it was seen in more than one-third of AIDS patients but the population at risk has decreased significantly since the advent of highly active antiviral therapy (HAART) in the treatment of AIDS). It typically occurs in patients with a CD4+ cell count of less than 50/ml). Toxoplasmosis, herpes simplex and herpes zoster are amongst other infections that may be seen.

• HISTORY

• The patient may complain of blurred vision or floaters. A diagnosis of HIV disease has usually already been made, often other AIDS defining features have occurred.

• SIGNS

• CMV retinopathy comprises a whitish area of retina, associated with haemorrhage, which has been likened in appearance to ‘cottage cheese’. The lesions may threaten the macula or the optic disc. There is usually an associated sparse inflammation of the vitreous.




• Fig. 9.4 The retinal appearance in a patient with AIDS and CMV retinitis. (Note the cotton wool spot at one o’clock.)

• TREATMENT

• Chronic therapy with ganciclovir and/or foscarnet given parenterally are the current mainstay of therapy; these drugs may also be given into the vitreous cavity. Cidofivir is available for intravenous administration. Ganciclovir and its prodrug valganciclovir are available orally. Systems of depot delivery into the vitreous are being actively researched for local ocular CMV retinitis and a ganciclovir implant is available.

• PROGNOSIS

• Prolonged treatment is required to prevent recurrence.

• SYMPATHETIC OPHTHALMITIS

• Sympathetic ophthalmitis 99
• A penetrating or surgical injury to one eye involving the retina may rarely excite a peculiar form of uveitis which involves not only the injured eye but also the fellow eye. This is termed sympathetic ophthalmitis (or ophthalmia).The uveitis may be so severe that in the worst cases sight may be lost from both eyes. Fortunately systemic steroids, and particularly cyclosporin, have greatly improved the chances of conserving vision. Sympathetic ophthalmitis usually develops within 3 months of the injury or last ocular operation but may occur at any time. The cause appears to be an immune response against retinal antigens at the time of injury. It can be prevented by enucleation (removal) of the traumatized eye shortly (within a week or so) after the injury if the prospects for visual potential in that eye are very poor and there is major disorganization. Excision must precede the onset of signs in the fellow eye.

• SYMPTOMS

• The patient may complain of pain and decreased vision in the seeing eye.

• SIGNS

• The iris appears swollen and yellow-white spots may be seen on the retina. There is a panuveitis.

• TREATMENT

• High-dose systemic and topical steroids and also oral cyclosporin are required to reduce the inflammation and try to prevent long term visual loss. It is vital to warn patients with ocular trauma or multiple eye opera- tions to attend an eye casualty department if they experience any prob- lems with their normal eye.


• .

• CHAPTER 10

• Glaucoma

• INTRODUCTION

• The glaucomas comprise a group of diseases in which damage to the optic nerve (optic neuropathy) is usually caused by the effects of raised ocular pressure acting at the optic nerve head. Independent ischaemia of the optic nerve head may also be important. Axon loss results in visual field defects and a loss of visual acuity if the central visual field is involved.
• BASIC PHYSIOLOGY (Fig. 10.1)
• The intraocular pressure level depends on the balance between production and removal of aqueous humour. Aqueous is produced by secretion and ultrafiltration from the ciliary processes into the posterior chamber. It then passes through the pupil into the anterior chamber to leave the eye predominantly via the trabecular meshwork, Schlemm’s canal and the episcleral veins (the conventional pathway). A small proportion of the aqueous (4%) drains across the ciliary body into the supra-choroidal space and into the venous circulation across the sclera (uveoscleral pathway).
• Two theories have been advanced for the mechanism by which an elevated intraocular pressure damages nerve fibres:
• Raised intraocular pressure causes mechanical damage to the optic nerve axons.
• Raised intraocular pressure causes ischaemia of the nerve axons by reducing bloodflow at the optic nerve head.

• 100

• The pathophysiology of glaucoma is multifactorial and both mecha- nisms are important.
• CLASSIFICATION

• Classification 101

• AQUEOUS FLOW
• Trabecular meshwork (classical or major outflow)


• Schlemm's canal

• Uveoscleral outflow pathway

• Ciliary epithelium (aqueous production)

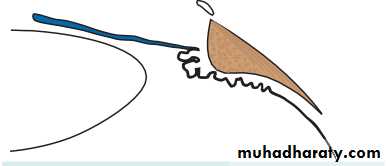

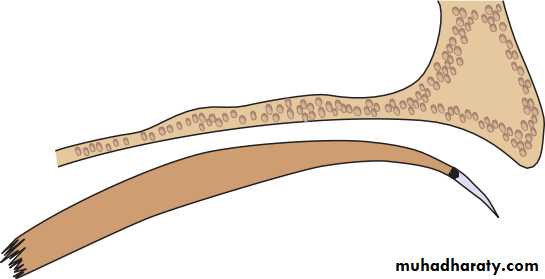

• Fig. 10.1 Diagram of the drainage angle showing routes taken by aqueous from production to absorption.

• The mechanism by which absorption is reduced provides a means of classifying the glaucomas.

• CLASSIFICATION OF GLAUCOMAS

• Primary glaucoma
• Congenital glaucoma
• Secondary glaucoma (causes)
• Chronic open angle
• Acute and chronic closed angle
• Primary
• Rubella
• Secondary to other inherited ocular disorders (e.g. aniridia— absence of the iris)
• Trauma
• Ocular surgery
• Associated with other ocular disease (e.g. uveitis)
• Raised episcleral venous pressure
• Steroid induced
• Box 10.1 Classification of the glaucomas.


• Classification of the primary glaucomas (Fig. 10.2) is based on whether or not the iris is:

• clear of the trabecular meshwork (open angle);

• covering the meshwork (closed angle).
• PATHOGENESIS
• Primary open angle glaucoma
• A special contact lens (gonioscopy lens) applied to the cornea allows a view of the iridocorneal angle with the slit lamp. In open angle glaucoma the structure of the trabecular meshwork appears normal but offers an increased resistance to the outflow of aqueous which results in an elevated ocular pressure. The causes of outflow obstruction include:
• thickening of the trabecular lamellae which reduces pore size;
• reduction in the number of lining trabecular cells;
• increased extracellular material in the trabecular meshwork.
• A form of glaucoma also exists in which glaucomatous field loss and cupping of the optic disc occurs although the intraocular pressure is not raised (normal or low tension glaucoma). It is thought that the optic

• 102

• Chapter 10: Glaucoma

• OPEN AND CLOSED ANGLE GLAUCOMA

Open angle


• Iris
Trabecular meshwork

• Closed angle

Iris
• Trabecular meshwork (covered by iris)

• Fig. 10.2 Diagram showing the difference between open and closed angle glaucoma.

• Closed angle glaucoma
• The condition occurs in small eyes (i.e. often hypermetropic) with shallow anterior chambers. In the normal eye the point of contact between the pupil margin and the lens offers a resistance to aqueous entry into the anterior chamber (relative pupil block). In angle closure glaucoma, sometimes in response to pupil dilation, this resistance is increased and the pressure gradient created bows the iris forward and closes the drainage angle. These peripheral iris adhesions are called peripheral anterior synechiae (PAS). Aqueous can no longer drain through the trabecular meshwork and ocular pressure rises, usually abruptly.
• Secondary glaucoma
• Intraocular pressure usually rises in secondary glaucoma due to blockage of the trabecular meshwork. i.e (open angle) The trabecular meshwork may be blocked by:
• Blood (hyphaema), following blunt trauma.
• Inflammatory cells (uveitis).


• Percentage

• 10

• Wide distribution in glaucomatous population

• 15 20 25

• Intraocular pressure (mmHg)

• 30

• Fig. 10.3 The distribution of intraocular pressure in a normal and glaucomatous population.
• Pathogenesis 103


• nerve head in these patients is unusually susceptible to the intraocular pressure and/or has intrinsically reduced blood flow (Fig. 10.3).
• Conversely, intraocular pressure may be raised without evidence of visual damage or pathological optic disc cupping (ocular hypertension). These subjects may represent the extreme end of the normal range of intraocular pressure; however, a small proportion will subsequently develop glaucoma.

• INTRAOCULAR PRESSURE DISTRIBUTION IN A POPULATION

• Skewed distribution in
• non-glaucomatous population

• Pigment from the iris (pigment dispersion syndrome).

• Deposition of material produced by the epithelium of the lens, iris and ciliary body in the trabecular meshwork (pseudoexfoliative glaucoma).
• Drugs increasing the resistance of the meshwork (steroid-induced glaucoma).
• Secondary glaucoma may also result from blunt trauma to the eye damaging the angle (angle recession).
• Angle closure may also account for some cases of secondary glaucoma:
• Abnormal iris blood vessels may obstruct the angle and cause the iris to adhere to the peripheral cornea, closing the angle (rubeosis iridis). This may accompany proliferative diabetic retinopathy or central retinal vein occlusion due to the forward diffusion of vasoproliferative factors from the ischaemic retina (Fig. 10.4 and Chapter 12).
• A large choroidal melanoma may push the iris forward approximating it to the peripheral cornea causing an acute attack of angle closure glaucoma.
• A cataract may swell, pushing the iris forward and closing the drainage angle.
• Uveitis may cause the iris to adhere to the trabecular meshwork.

• 104

• Chapter 10: Glaucoma




• Fig. 10.4 The appearance of the rubeotic iris; note the irregular pattern of the new blood vessels on the surface.
• Raised episcleral venous pressure is an unusual cause of glaucoma but may be seen in caroticocavernous sinus fistula where a connection between the carotid artery or its meningeal branches and the cavernous sinus, causes a marked elevation in orbital venous pressure. It is also thought to be the cause of the raised intraocular pressure in patients with the Sturge–Weber syndrome.
• The cause of congenital glaucoma remains uncertain. The iridocorneal angle may be developmentally abnormal, and covered with a membrane.

• Chronic open angle glaucoma

• EPIDEMIOLOGY
• Chronic open angle glaucoma affects 1 in 200 of the population over the age of 40, affecting males and females equally. The prevalence increases with age to nearly 10% in the over 80 population. There may be a family history, although the exact mode of inheritance is not clear.

• GENETICS

• First degree relatives of patients with chronic open angle glaucoma have up to a 16% chance of developing the disease themselves
• HISTORY
• The symptoms of glaucoma depend on the rate at which intraocular pres- sure rises. Chronic open angle glaucoma is associated with a slow rise in pressure and is symptomless unless the patient becomes aware of a severe visual deficit. Many patients are diagnosed when the signs of glaucoma are detected by their optometrist.

• EXAMINATION (Fig. 10.5)

• Assessment of a glaucoma suspect requires a full slit lamp examination:
• To measure ocular pressure with a tonometer. The normal pressure is 15.5 mmHg. The limits are defined as 2 standard deviations above and below the mean (11–21 mmHg). In chronic open angle glaucoma the pres- sure is typically in the 22–40 mmHg range. In angle closure glaucoma it rises above 60 mmHg.
• To examine the iridocorneal angle with the gonioscopy lens to confirm that an open angle is present.
• To exclude other ocular disease that may give rise to a secondary cause for the glaucoma.
• To examine the optic disc and determine whether it is pathologically cupped. Cupping is a normal feature of the optic disc (Fig. 10.5(a)). The disc is assessed by estimating the vertical ratio of the cup to the disc as a whole (the cup to disc ratio). In the normal eye the cup disc ratio is usually no greater than 0.4. There is, however, a considerable range (0– 0.8) and the size of the cup is related to the size of the disc. In chronic glaucoma,


• Pathogenesis 105

• 106

• Chapter 10: Glaucoma

• (a)

• (b)

• (a)

(b)
• Fig. 10.6 A scanning laser ophthalmoscope (Heidelberg) picture of the optic nerve head. The thin green circle on the right-hand picture outlines the optic nerve head allowing the machine to calculate the area of the cup (red on the left-hand image) and neuroretinal rim in different sectors of the disc.

• (c)

• (d)
• Fig. 10.5 Comparison of (a) a normal optic disc; (b) a glaucomatous optic disc;
• (c) a disc haemorrhage (arrowed) is a feature of patients with low tension glaucoma; (d) glaucomatous notch (arrowed) in the disc.

• VISUAL FIELD LOSS IN GLAUCOMA

• Small central field
• Blind spot

• Small temporal field

• (a)

• (b)

• 10
• 20
• 30


• 10
• 20
• 30

• Nasal step Arcuate scotoma

• Fig. 10.7 The characteristic pattern of visual field loss in chronic open angle glaucoma: (a) an upper arcuate scotoma, reflecting damage to a cohort of nerve fibres entering the lower pole of the disc (remember— the optics of the eye determine that damage to the lower retina creates an upper field defect);
• (b) the field loss has progressed, a small central island is left (tunnel vision), sometimes this may be associated with a sparing of an island of vision in the temporal field.
• Pathogenesis 107

• axons entering the optic nerve head die. The central cup expands and the rim of nerve fibres (neuroretinal rim) becomes thinner. The nerve head becomes atrophic. The cup to disc ratio in the vertical is greater than 0.4 and the cup deepens. If the cup is deep but the cup to disc ratio is lower than 0.4, then chronic glaucoma is unlikely unless the disc is very small. Notching of the rim implying focal axon loss may also be a sign of glaucomatous damage.
• scanning the disc with a confocal ophthalmoscope to produce an image of the disc. The neuroretinal rim area can be calculated from the image (Fig. 10.6). Other techniques record the thickness of the nerve fibre layer around the optic disc.
• Field testing (perimetry, see pp. 21–23) is used to establish the presence of islands of field loss (scotomata) and to follow patients to determine whether visual damage is progressive (Fig. 10.7). A proportion of nerve fibres may, however, be damaged before field loss becomes apparent

• 108

• Chapter 10: Glaucoma

• symptomless

• raised intraocular pressure
• visual field defect
• cupped optic disc
• Box 10.2 Symptoms and signs of chronic open angle glaucoma.


• TREATMENT
• Treatment is aimed at reducing intraocular pressure. The level to which the pressure must be lowered varies from patient to patient, and is that which minimizes further glaucomatous visual loss. This requires careful monitoring in the outpatient clinic. Three modalities of treatment are available:
• medical treatment;
• laser treatment;
• surgical treatment.

• MEDICAL TREATMENT

• Topical drugs commonly used in the treatment of glaucoma are listed in Table 10.1. In chronic open angle (although some of the newer drugs are challenging this, offering more convenient dosing and fewer side effects, e.g. the prostaglandin analogue glaucoma topical adrenergic beta- blockers are the usual first line treatment es). They act by reducing aqueous production. Beta-selective beta-blockers, which may have fewer systemic side effects, are available but must still be used with caution in those with respiratory disease, particularly asthma, which may be exacerbated even by the small amount of beta-blocker absorbed systemically. If intraocular pressure remains elevated the choice lies between:
• adding additional medical treatment;
• laser treatment;
• surgical drainage procedures.

• LASER TRABECULOPLASTY

• .

• Pathogenesis 109

• SURGICAL TREATMENT
• Drainage surgery (trabeculectomy) relies on the creation of a fistula between the anterior chamber and the subconjunctival space (Fig. 10.8

• TREATMENT OF GLAUCOMA

• Topical agents Action Side effects
• Decrease secretion
• Exacerbate asthma and chronic airway disease
• Hypotension, bradycardia
• Increase outflow
• Beta-blockers (timolol, carteolol, levobunolol, metipranolol, betaxolol-selective)
• Parasympathomimetic (pilocarpine)
• Increase outflow Decrease secretion
• Visual blurring in young patients and those with cataracts
• Initially, headache due to ciliary spasm
• Redness of the eye Headache
• Redness of eye Fatigue, drowsiness
• Sympathomimetic (adrenaline, dipivefrine)
• Alpha2-agonists (apraclonidine, brimonidine)
• Increase outflow through the uveoscleral pathway
• Decrease secretion
• Decrease secretion
• Stinging Unpleasant taste Headache
• Increase outflow through the uveoscleral pathway
• Carbonic anhydrase inhibitors (dorzolamide, brinzolamide)
• Prostaglandin analogues (latanoprost, travaprost, bimatoprost, unoprostone)
• Increased pigmentation of the iris and periocular skin
• Lengthening and darkening of the lashes, conjunctival hyperaemia
• Rarely, macular oedema, uveitis
• Decrease secretion
• Systemic agents
• Carbonic anhydrase inhibitors (acetazolamide)
• Tingling in limbs Depression, sleepiness Renal stones Stevens–Johnson syndrome


• 110
• Chapter 10: Glaucoma

• SECTION THROUGH A TRABECULECTOMY

• The drainage of fluid under the conjunctiva forms a bleb
• Cornea
• Conjunctiva
• Partial thickness scleral flap
• Channel cut from base of partial thickness flap into anterior chamber
• Sclera

• Peripheral iridectomy

• (a)

• (b)
• Fig. 10.8 (a) Diagram showing a section through a trabeculectomy. An incision is made in the conjunctiva, which is dissected and reflected to expose bare sclera. A partial thickness scleral flap is then fashioned. Just anterior to the scleral spur a small opening (termed a sclerostomy) is made into the anterior chamber to create a low resistance channel for aqueous. The iris is excised in the region of the sclerostomy (iridectomy) to prevent it moving forward and blocking the opening. The partial thickness flap is loosely sutured back into place. The conjunctiva is tightly sutured. Aqueous can now leak through the sclerostomy, around and through the scleral flap and underneath the conjunctiva where it forms a bleb. (b) The appearance of a trabeculectomy bleb.


• Complications of surgery include:
• shallowing of the anterior chamber in the immediate postoperative period risking damage to the lens and cornea;
• intraocular infection;
• possibly accelerated cataract development;
• failure to reduce intraocular pressure adequately.
• In patients particularly prone to scarring, antimetabolite drugs (5-flurouracil and mitomycin) may be used at the time of surgery to prevent fibrosis.
• Recent research has examined the benefit of modifying the trabeculectomy operation by removing the sclera under the scleral flap but not making a fistula into the anterior chamber (deep sclerostomy, visco- canalostomy). The long term benefit of the procedure is being assessed.

• NORMAL TENSION GLAUCOMA

• Normal tension glaucoma, considered to lie at one end of the spectrum of chronic open angle glaucoma, can be particularly difficult to treat. Some patients appear to have non-progressive visual field defects and require no treatment. In those with progressive field loss lowering intraocular pres- sure may be beneficial.
• Primary angle closure glaucoma (Fig. 10.9)
• EPIDEMIOLOGY
• Primary angle closure glaucoma affects 1 in 1000 subjects over 40 years



• Fig. 10.9 The appearance of the eye in angle closure glaucoma. Note the cloudy cornea and dilated pupil.

• 112

• Chapter 10: Glaucoma
• old, with females more commonly affected than males. Patients with angle closure glaucoma are likely to be long-sighted because the long-sighted eye is small and the anterior chamber structures more crowded.


• HISTORY
• there is an abrupt increase in pressure and the eye becomes very painful and photophobic. There is watering of the eye and loss of vision. The patient may be systemically unwell with nausea and abdominal pain, symptoms which may take them to a general casualty department.
• Intermittent primary angle closure glaucoma occurs when an acute attack spontaneously resolves. The patient may complain of pain, blurring of vision and seeing haloes around lights.

• EXAMINATION

• On examination visual acuity is reduced, the eye red, the cornea cloudy and the pupil oval, fixed and dilated.

• TREATMENT

• The acute and dramatic rise in pressure seen in angle closure glaucoma must be urgently countered to prevent permanent damage to the vision. Acetazolamide is administered intravenously and subsequently orally together with topical pilocarpine and beta-blockers. Pilocarpine constricts the pupil and draws the peripheral iris out of the angle; the acetazolamide and beta-blocker reduce aqueous secretion and the pressure across the iris.
• These measures usually break the attack and lower intraocular pressure. Subsequent management requires that a small hole (iridotomy or iridectomy) is made in the peripheral iris to prevent sub- sequent attacks. This provides an alternative pathway to the pupil for fluid to flow from the posterior to the anterior chamber reducing the pressure gradient across the iris. This can be done with a YAG laser or surgically. If the pressure has been raised for some days the iris becomes adherent to the peripheral cornea (peripheral anterior synechiae or PAS). The iridocorneal angle is damaged and additional medical or surgical measures may be required to lower the ocular pressure.
• Secondary glaucoma
• Secondary glaucomas are much rarer than the primary glaucomas. The symptoms and signs depend on the rate at which intraocular pressure rises; most are again symptomless.

• Pathogenesis 113

• Treatment broadly follows the lines of the primary disease. In secondary glaucoma it is important to treat any underlying cause, e.g. uveitis, which may be responsible for the glaucoma.
• In particularly difficult cases it may be necessary to selectively ablate the ciliary processes in order to reduce aqueous production. This is done by application of a laser or cryoprobe to the sclera overlying the processes
• Congenital glaucoma
• It may present at birth or within the first year. Symptoms and signs include:
• excessive tearing;
• an increased corneal diameter (buphthalmos);
• a cloudy cornea due to epithelial oedema;
• splits in Descemet’s membrane.
• Congenital glaucoma is usually treated surgically. An incision is made into the trabecular meshwork (goniotomy) to increase aqueous drainage or a direct passage between Schlemm’s canal and the anterior chamber is created (trabeculotom(.
• Glaucoma is an optic neuropathy caused by an elevation of intraocular pressure.Y POINTS
• Primary glaucoma is classified according to whether the trabecular meshwork is obstructed by the peripheral iris (angle closure) or not (open angle glaucoma).
• Treatment of glaucoma relies on lowering ocular pressure to reduce or prevent further visual damage.
• Ocular pressure can be reduced with topical and systemic medications, laser treatment and surgery.
• Beware patients who are acutely debilitated with a red eye; they may have acute angle closure glaucoma.
• If the diagnosis is made late arresting the glaucoma completely may still result in visual loss during the patient’s lifetime. This emphasizes the need for early diagnosis


• Box 10.3 Glaucoma key points.

• CHAPTER 11

• Retina and choroid

• INTRODUCTION

• The retina is subject to an enormous range of disease, both inherited and acquired. Some are common, with significant socio-economic importance (e.g. age related macular degeneration), while others are much rarer (for example some of the macular dystrophies). The impact on the individual may be profound in either case. Diseases of the macula, particularly if bilateral, result in a profound reduction in visual acuity. Despite the variety of disease the symptoms are relatively stereotyped. These will be described first. In this chapter both hereditary and acquired disease of the vitreous, neuroretina, retinal pigment epithelium and choroid will be described. In the chapter which follows the effects of disorders of the retinal circulation will be explored.
• SYMPTOMS OF RETINAL DISEASE
• Macular dysfunction
The central part of the macula (the fovea) is responsible for fine

115

• LEARNING OBJECTIVES

• To understand:
• The symptoms of retinal disease.
• The cause and treatment of acquired and inherited retinal disease.
• The symptoms, signs and complications of posterior vitreous detachment.
• The symptoms, signs, complications and treatment of retinal detachment.
• The symptoms, signs and treatment of retinal and choroidal tumours.


• resolution. Disorders of this relatively small part of the retina cause signifi- cant visual impairment. The patient may complain of:
• Blurred central vision.
• Distorted vision (metamorphopsia) caused by a disturbance in the arrangement of the photoreceptors such as that which occurs in macular oedema. A reduction (micropsia) or enlargement (macropsia) of object size may also occur if the photoreceptors become stretched apart or com- pressed together.
• The patient may notice areas of loss of the central visual field (scotomata) if part of the photoreceptor layer becomes covered, e.g. by blood, or if the photoreceptors are destroyed.
• Peripheral retinal dysfunction
• The patient complains of:
• Loss of visual field (usually detected clinically when a significant amount of the peripheral retina is damaged). Small areas of damage, e.g. small haemorrhages, do not produce clinically detectable defects.The field loss may be absolute, for example in a branch retinal artery occlusion, or relative (that is brighter or larger objects are visible) as in a retinal detachment.
• Some diseases affecting the retina may predominantly affect one type of photoreceptor; in retinitis pigmentosa the rods are principally affected so that night vision is reduced (night blindness).
• ACQUIRED MACULAR DISEASE
• Acquired disease at the macula may destroy part or all of the retina or retinal pigment epithelial layers (e.g. age related macular degeneration or a macular hole). In a number of conditions this damage is dramatically magnified by the growth of new vessels from the choroid through Bruch’s membrane and the retinal pigment epithelium to cause haemorrhage or exudation of fluid into the subretinal space and subsequent scarring of the retina. The retina ceases to function if it is detached from the retinal pigment epithelium so that these changes cause marked disruption of macular function even before direct retinal damage occurs.
• Fluid may also accumulate within the layers of the retina at the macula (cystoid macular oedema) if the normal tight junctions of the retinal capillaries that form the blood–retinal barrier break down. This may occur following intraocular surgery, such as cataract surgery. The retina and sub-retinal layers may also become separated by diffusion of fluid from the choriocapillaris through an abnormal region of the retinal pigment

• 116

• Chapter 11: Retina and choroid

• Age related macular degeneration (Fig. 11.1)

• Age related macular degeneration (AMD) is the commonest cause of irre- versible visual loss in the developed world.

• PATHOGENESIS

• Lipid products are found in Bruch’s membrane. They are thought to arise from the outer segments of the photoreceptors due to failure of the retinal pigment epithelium (RPE) to remove this material. Deposits form which can be seen with the ophthalmoscope as discrete sub-retinal yellow lesions called drusen (termed age-related maculopathy or ARM). The RPE


• Acquired macular disease 117

• epithelium. This represents a breakdown of the deep part of the blood–retina barrier between the choroid and the retina and is termed central-serous retinopathy. It may occur unilaterally, as a potentially reversible disorder in young men.

• Photoreceptor layer of retina

• RPE
• Bruch's
• membrane
• EXUDATIVE ARMD


• Abnormal blood vessels
• Fluid or blood under retina Fluid or blood under RPE
• Drusen






• Fig. 11.1 (a) The pathogenesis of exudative age related macular degeneration (RPE, retinal pigment epithelium). Pictures of: (b) dry AMD, note the discrete scattered yellowish sub-retinal drusen; (c) wet AMD, note the small haemorrhage associated with the sub-retinal membrane.
• Choroid

• (a)

• (b)
• (c)

• and the photoreceptors may also show degenerative changes. This is the dry or non-exudative form of age-related macular degeneration (AMD). In the less common exudative (wet) form new vessels from the choroid grow through Bruch’s membrane and the retinal pigment epithelial layer into the sub-retinal space where they form a sub-retinal neovascular membrane. Subsequent haemorrhage into the sub-retinal space or even through the retina into the vitreous is associated with profound visual loss.

• SYMPTOMS

• The symptoms are those of macular dysfunction outlined above.


• SIGNS
• The usual foveal reflex is absent.Yellow, well-circumscribed drusen may be seen and there may be areas of hypo- and hyperpigmentation. In exudative AMD sub-retinal, or more occasionally pre-retinal, haemorrhages may be seen. The experienced observer may detect elevation of the retina stereoscopically.

• INVESTIGATION

• Diagnosis is based on the appearance of the retina. In patients with a suspected exudative AMD and with vision that is not severely affected a fluorescein angiogram may be performed to delineate the position of the sub-retinal neovascular membrane. The position of the membrane determines whether or not the patient may benefit from laser treatment.

• TREATMENT

• There is no treatment for non-exudative AMD. Vision is maximized with low vision aids including magnifiers and telescopes. The patient is assured that although central vision has been lost, the disease does not cause a loss of peripheral vision. This is vital as many patients fear that they will become totally blind.
• In a small proportion of patients with exudative AMD, where the fluorescein angiogram shows the sub-retinal vascular membrane to lie eccentric to the fovea, it may be possible to obliterate it with argon-laser treatment. Subfoveal vascular membranes can be obliterated by photody- namic therapy (PDT) as conventional argon lasers would damage the overlying photoreceptors. PDT involves the intravenous injection of a porphyrin-like chemical which is activated by a non-thermal laser beam as it courses through the blood vessels in the subfoveal membrane. The activated molecules destroy the vessels but spare the photoreceptors. Unfortunately even with laser treatment the condition can recur.

• 118

• Chapter 11: Retina and choroid

• Macular holes and membranes (Fig. 11.3)

• A well-circumscribed hole may form in the macular region and destroy the fovea. It results from traction by the vitreous on the thin macular retina. Again there is a profound loss of central vision. The early stages of hole formation may be associated with distortion and mild blurring of vision.
• Unlike peripheral retinal holes, macular holes are not usually associated with retinal detachments. Most are idiopathic in origin but they may be associated with blunt trauma. Much interest is being shown in the treatment of macular holes with vitreous surgery to relieve the traction on the retina. No other treatment is available.
• A pre-retinal glial membrane may form over the macular region, whose contraction causes puckering of the retina and again results in blurring and distortion of vision. These symptoms may be improved by removing the membrane with microsurgical vitrectomy techniques.

• Acquired macular disease 119

• OTHER DEGENERATIVE CONDITIONS ASSOCIATED WITH THE FORMATION OF SUB-RETINAL
• NEOVASCULAR MEMBRANES
• Degenerative changes at the macula and the formation of sub-retinal neovascular membranes may also be seen in very myopic patients, this can cause loss of central vision particularly in young adulthood.
• Sub-retinal neovascular membranes may also grow through elongated cracks in Bruch’s membrane called angioid streaks. Angioid streaks may be associated with systemic diseases, such as Paget’s disease, occasionally sickle cell disease and the rare recessive disorder, pseudoxanthoma elasticum. Again there may be a profound reduction in central vision.Vision is also reduced if the crack itself passes through the fovea (Fig. 11.2).

• Fig. 11.2 The clinical appearance of angioid streaks.

• Central-serous retinopathy (Fig. 11.4)
• This localized accumulation of fluid between the retina and the RPE causes the separation of the two layers and distortion of the photoreceptor layer. It results from a localized breakdown in the normal structure of the RPE. Typically it affects young or middle-aged males. Patients complain of distortion and blurred vision. Examination reveals a dome-shaped elevation of the retina.
• Treatment is not usually required as the condition is self-limiting. Occasionally in intractable cases, or those where the vision is severely affected, the argon laser can be used to seal the point of leakage identified with a fluorescein angiogram.

• 120

• Chapter 11: Retina and choroid

• Fig. 11.3 The appearance of a macular hole.

• Accumulation

• of fluid between retina and RPE
• Breakdown of RPE

• CENTRAL SEROUS RETINOPATHY

• Photoreceptor layer of retina
• RPE
• Bruch's
• membrane
Choroid


• Fig. 11.4 The pattern of fluid accumulation in central-serous retinopathy.

• Toxic maculopathies (Fig. 11.6)

• The accumulation of some drugs in the RPE can cause macular damage. These include the antimalarials chloroquine and hydroxychloroquine, used quite widely in the treatment of rheumatoid arthritis and other connective tissue disorders, which may cause a toxic maculopathy. Chloroquine is the more toxic. Patients on chloroquine require regular

• Acquired macular disease 121

• Macular oedema (Fig. 11.5)















































































































































































































• This accumulation of fluid within the retina itself is a further cause of distorted and blurred vision. Ophthalmoscopy reveals a loss of the normal foveal reflex and with experience a rather cystic appearance to the fovea. If the diagnosis is in doubt a confirmatory fluorescein angiogram can be performed. The fluorescein leaks out into the oedematous retina (see p. 34).
• Macular oedema may be associated with numerous and diverse eye disorders including:
• intraocular surgery;
• uveitis;
• retinal vascular disease (e.g. diabetic retinopathy);
• retinitis pigmentosa.
• Treatment can be difficult and is dependent on the associated eye disease. Steroids in high doses are helpful in macular oedema caused by uveitis; acetazolamide may be helpful in treating patients with retinitis pigmentosa or following intraocular surgery.
• Prolonged macular oedema can cause the formation of a lamellar macular hole.


• MACULAR OEDEMA

• Fluid within the retina itself

• Retina RPE
• Bruch's membrane

• Choroid

• Fig. 11.5 The pattern of fluid accumulation in macular oedema (schematic).

• visual assessment for maculopathy. The maculopathy is initially only detected by accurate assessment of macular function. At this early stage, discontinuation of the drug results in reversal. Later, a pigmentary target lesion is seen ophthalmoscopically associated with metamorphopsia and an irreversible and appreciable loss of central vision. Ocular toxicity is unlikely with a dose of less than 4 mg (chloroquine phosphate) per kg lean body-weight per day or a total cumulative dose of less than 300ig. Screening of patients on hydroxychloroquine, although still advised, is questioned by some.
• Phenothiazines (thioridazine particularly) used in high doses for pro- longed periods (to treat psychoses) may cause retinal damage.
• Tamoxifen, in high doses, may cause a maculopathy.

• 122

• Chapter 11: Retina and choroid

• Fig. 11.6 Bull’s-eye appearance in chloroquine maculopathy.

• POSTERIOR VITREOUS DETACHMENT (Fig. 11.7)
• The vitreous gel undergoes degenerative changes in patients in their 50s and 60s (earlier in myopes) causing it to detach from the retina. This produces floaters.
• These are a common symptom particularly in middle aged patients. They take the form of spots or cobwebs which move when the eye moves and obscure vision only slightly. The symptom is caused by shadows cast on the retina by fragments of condensed vitreous. The symptom is most marked on bright days when the small pupil throws a sharper image on the retina. Sometimes the vitreous, which is relatively loosely attached to most of the retina, detaches, a condition termed a posterior vitreous detachment. This gives rise to acute symptoms of:
• Photopsia (flashing lights).This results from traction on the retina by the detaching vitreous.


• RETINAL DETACHMENT
• PATHOGENESIS
• The potential space between the neuroretina and its pigment epithelium corresponds to the cavity of the embryonic optic vesicle. The two tissues are loosely attached in the mature eye and may become separated:
• if a tear occurs in the retina, allowing liquified vitreous to gain entry to the subretinal space and causing a progressive detachment (rhegmato- genous retinal detachment);
• if it is pulled off by contracting fibrous tissue on the retinal surface (e.g. as in the proliferative retinopathy of diabetes mellitus (tractional retinal detachment);
• when, rarely, fluid accumulates in the subretinal space as a result of an exudative process, which may occur during toxaemia of pregnancy (exudative retinal detachment).
• Tears in the retina are most commonly associated with the onset of a posterior vitreous detachment. As the gel separates from the retina the traction it exerts (vitreous traction) becomes more localized and thus greater. Occasionally it may be sufficient to tear the retina. An underlying peripheral weakness of the retina such as lattice degeneration, increases the probability of a tear forming when the vitreous pulls on the retina. Highly myopic people have a significantly increased risk of develop- ing retinal detachment.

• Retinal detachment 123

• Fig. 11.7 Ultrasound picture showing a posterior vitreous detachment. Note that the vitreous is still attached at the optic disc and the ora serrata.

• A shower of floaters.This is common and sometimes may indicate a vitre- ous haemorrhage when the detaching vitreous ruptures a small blood vessel.

• Rhegmatogenous retinal detachment (Fig. 11.8)

• EPIDEMIOLOGY
• About 1 in 10 000 of the normal population will suffer a rhegmatogenous retinal detachment. The probability is increased in patients who:
• are high myopes;
• have undergone cataract surgery, particularly if this was complicated by vitreous loss;
• have experienced a detached retina in the fellow eye;
• have been subjected to recent severe eye trauma.


• SYMPTOMS
• Retinal detachment may be preceded by symptoms of a posterior vitreous detachment, including floaters and flashing lights. With the onset of the retinal detachment itself the patient notices the progressive development of a field defect, often described as a ‘shadow’ or ‘curtain’. Progression may be rapid when a superior detachment is present. If the macula be- comes detached there is a marked fall in visual acuity.

• 124

• Chapter 11: Retina and choroid

• FORMATION OF A RETINAL DETACHMENT

• Retinal break produced by localized vitreous traction on the retina
• Fluid has passed through the retinal break causing the retina to detach

• (a)

• Vitreous Retina (b)

• Fig. 11.8 The formation of a rhegmatogenous retinal detachment. (a) The detaching vitreous has torn the retina. The vitreous continues to pull on the retina surrounding the break (vitreous traction). (b) Fluid from the vitreous cavity passes through the break, detaching the retina from the underlying retinal pigment epithelium.

• SIGNS

• The detached retina is visible on ophthalmoscopy as a pinkish grey mem- brane which partly obscures the choroidal vascular detail. If there is a marked accumulation of fluid in the sub-retinal space (a bullous retinal detachment) undulating movements of the retina will be observed as the eye moves. A tear in the retina appears reddish pink because of the underlying choroidal vessels. There may be associated debris in the vitreous comprising blood (vitreous haemorrhage) and pigment, or the lid (operculum) of a retinal hole may be found floating free (Fig. 11.9).

• MANAGEMENT (Fig. 11.10)

• There are two major surgical techniques for repairing a retinal detachment:
• external (conventional approach);
• internal (vitreoretinal surgery).
• The essential principle behind both techniques is to close the causative break in the retina and to increase the strength of attachment between the surrounding retina and the retinal pigment epithelium by inducing inflammation in the region either by local freezing with a cryoprobe or with a laser. In the external approach the break is closed by indenting the sclera with an externally located strip of silicone plomb. This relieves the vitreous traction on the retinal hole and apposes the retinal pigment epithelium with the retina. It may first be necessary to drain an extensive accumulation of sub-retinal fluid by piercing the sclera and choroid with a needle (sclerostomy).
• In the internal approach the vitreous is removed with a special microsurgical cutter introduced into the vitreous cavity through the pars plana, this relieves the vitreous traction on the break. Fluid can be drained


• Retinal detachment 125



• Fig. 11.9 The clinical appearance of a retinal detachment; note the retinal tear. The retina has completely detached.

• 126

• Chapter 11: Retina and choroid

• Superior rectus

• Conjunctiva cut at limbus and retracted
• Silicone sponge indenting the sclera over the
• retinal break
• (a)
• Silicone sponge
• Retinal break supported by silicone sponge

• REPAIR OF A RETINAL DETACHMENT

• (b)

• (c)
• Retinal break

• The bubble of gas in the vitreous cavity keeps the retinal break closed whilst the surrounding retina adheres to the RPE

• Vitreous traction relieved

• Fig. 11.10 The repair of a retinal detachment:
• (a) external approach,
• a silicone sponge has been sutured to the globe to indent the sclera over the retinal break following drainage of the sub-retinal fluid and application of cryotherapy; (b) sagittal section of the eye showing the indent formed by the silicone sponge, the retina is now reattached and traction on the retinal break by the vitreous is relieved;
• (c) internal approach, following removal of the vitreous gel and drainage of sub-retinal fluid an inert fluorocarbon gas has been injected into the vitreous cavity.

• Traction retinal detachment

• The retina is pulled away from the pigment epithelium by contracting fibrous tissue which has grown on the retinal surface. This may be seen in proliferative diabetic retinopathy or may occur as a result of prolifera- tive vitreoretinopathy. Vitreoretinal surgery is required to repair these detachments.
• INHERITED RETINAL DYSTROPHIES AND PHOTORECEPTOR DYSTROPHIES
• Retinitis pigmentosa (Fig. 11.11)
• Retinitis pigmentosa is an inherited disorder of the photoreceptors which has several genotypic and phenotypic varieties. It may occur in isolation or in association with a number of other systemic diseases.


• Inherited retinal dystrophies and photoreceptor dystrophies 127

• through the causative retinal break itself and laser or cryotherapy applied to the surrounding retina. A temporary internal tamponade is then obtained by injecting an inert fluorocarbon gas into the vitreous cavity. This has the effect of closing the hole from the inside and preventing further passage of fluid through the break. The patient has to maintain a particular head posture for a few days to ensure that the bubble continuously covers the retinal break.
• Retinal tears not associated with subretinal fluid are treated prophy- lactically with a laser or cryoprobe to induce inflammation and increase the adhesion between the retina surrounding the tear and the pigment epithelium thus preventing a retinal detachment. It is always important to check the peripheral retina in the fellow eye, as tears or an asymptomatic retinal detachment may be seen here too.

• PROGNOSIS

• If the macula is attached and the surgery successfully reattaches the peripheral retina the outlook for vision is excellent. If the macula is detached for more than 24 hours prior to surgery the previous visual acuity will probably not be recovered completely. Nonetheless a substan- tial part of the vision may be restored over several months. If the retina is not successfully attached and the surgery is complicated, then fibrotic changes may occur in the vitreous (proliferative vitreoretinopathy, PVR). This may cause traction on the retina and further retinal detachment. A complex vitreoretinal procedure may permit vision to be retained but the outlook for vision is much poorer.

• 128

• Chapter 11: Retina and choroid
• PATHOGENESIS
• The disease affects both types of photoreceptors but the rods are particu- larly affected. The inheritance may be:
• autosomal recessive (sporadic cases are often in this category);
• autosomal dominant;
• X-linked recessive.
• Several forms of retinitis pigmentosa have been shown to be due to mutations in the gene for rhodopsin.

• EPIDEMIOLOGY

• The prevalence of this group of diseases is 1 in 4000.

• SYMPTOMS

• The age of onset, progression and prognosis is dependent on the mode of inheritance. In general the dominant form is of later onset and milder degree; recessive and X-linked recessive forms may present in infancy or childhood. Patients notice poor night vision, visual fields become increasingly constricted and central vision may ultimately be lost.


• SIGNS
• The three signs of typical retinitis pigmentosa are:
• peripheral clumps of retinal pigmentation (termed ‘bone-spicule’ pigmentation);
• attenuation of the retinal arterioles;
• disc pallor.
• Patients may also have cataracts at an early age and may develop macular oedema.

• Fig. 11.11 The clinical appearance of the peripheral retina in retinitis pigmentosa.

• Cone dystrophy
• This is less common than retinitis pigmentosa. It is usually autosomal dominant but many cases are sporadic. Patients present in the first decade of life with poor vision. Examination reveals an abnormal, banded macular appearance which has been likened to a bull’s-eye target. No treatment is possible but it is important to provide appropriate help not only to help maximize vision but also to help with educational problems. Genetic counselling should be offered.
• JUVENILE MACULAR DYSTROPHIES
• There are a variety of inherited conditions that affect both the retinal pigment epithelium and, secondarily, the photoreceptors. All are rare (e.g. the recessive disorder Stargardt’s dystrophy) and the prognosis for vision is often poor. Once again the social and educational needs of the patient need to be assessed and genetic counselling offered.

• Juvenile macular dystrophies 129

• INVESTIGATION
• A careful family history will help to determine the mode of inheritance. The diagnosis can usually be made clinically. Electrophysiologic tests are also useful in diagnosis, particularly in early disease where there may be few clinical signs.
• Recent work on mapping the genetic loci for the condition has opened new avenues for genetic counselling and determining disease mechanism.
• The possibility of associated syndromes should be borne in mind. Usher’s syndrome, for example, is a recessive disorder characterized by deafness and retinitis pigmentosa. Retinitis pigmentosa also occurs in mitochondrial disease.


• MANAGEMENT
• Unfortunately nothing can be done to prevent the progression of the disease. Associated ocular problems can be treated. Cataracts can be removed and macular oedema may respond to treatment with acetazol- amide. Low vision aids may be helpful for a period. The possibility of genetic counselling should be discussed with the patient.

• PROGNOSIS

• X-linked recessive and autosomal recessive disease produce the most severe visual symptoms. About 50% of all patients with retinitis pigmen- tosa will have an acuity of less than 6/60 by the time they reach 50.

• ALBINISM

• These patients have defective melanin synthesis. There are two types:
• Ocular albinism where the lack of pigmentation is confined to the eye. There are X-linked and recessive forms.
• Oculocutaneous albinism — a recessive disorder where the hair is white and the skin is pale; a few of these patients can manufacture some melanin.
• Clinically the iris is blue and there is marked transillumination so that the red reflex is seen through the iris because of the lack of pigmentation; this also allows the lens edge to be viewed. The fundus appears abnormal, with lack of a normal foveal reflex, extreme pallor and prominent visibility of the choroidal vessels. Vision is poor from birth and the patients may have nystagmus. There is an abnormal projection of retinal axons to the lateral geniculate bodies.
• Some patients will have associated systemic disease (e.g. the Hermansky–Pudlak syndrome where there is an associated haemorrhagic diathesis).
• RETINAL TUMOURS
• Retinoblastoma
• This is the commonest malignant tumour of the eye in childhood with a frequency of 1 per 20 000 births. It may be inherited as an autosomal dominant condition but most cases are sporadic. These may be caused either by germinal mutations which can be passed on to the next genera- tion or by somatic mutations (the majority, some 66% of cases) in a single retinal cell which cannot be genetically transmitted. The retinoblastoma gene has been located and the gene product is thought to control the differentiation of the retinal cell. The disease occurs when the individual has a homozygous defect in the retinoblastoma gene. In inherited retinoblastoma one gene error is inherited and the other occurs by spon- taneous somatic mutation in the retina during development. The mutation rate for the gene is thought to be 1 : 10 000i000, and 100 000 000 divisions are needed to form the adult retina thus the chance of a somatic mutation occurring in a subject with only one functioning gene is very high. The homozygous state is thus achieved by a ‘double hit’ event and the condition behaves as a pseudodominant disorder. Although it occurs frequently in affected families there may be some skip generations. Theoretically the disease should behave in a recessive fashion as only one functioning gene is required to control retinal cell differentiation.

• 130

• Chapter 11: Retina and choroid

• HISTORY AND SYMPTOMS

• The child may present (at a mean age of 8 months if inherited and 25 months if sporadic) with:
• A white pupillary reflex (leukocoria) due to a pale elevated tumour at the posterior pole of the eye. Sometimes the tumour is bilateral on presentation (Fig. 11.12).
• A squint due to reduced vision.
• Occasionally, a painful red eye.
• Most cases present by the age of two. Inherited retinoblastoma is often bilateral. When the condition is unilateral on presentation and there is no family history, inherited disease is less likely, but not excluded.


• SIGNS
• Dilated fundoscopy shows a whitish pink mass protruding from the retina into the vitreous cavity.

• INVESTIGATIONS

• The diagnosis is usually a clinical one. Cerebrospinal fluid and bone marrow must be examined to check for metastatic disease.

• TREATMENT

• Removal (enucleation) of the eye is performed in advanced cases. Radiotherapy can be used in less advanced disease as can cryotherapy and photocoagulation. Metastatic disease (either by direct spread through the optic nerve or by a haematogenous route) is treated with chemotherapy. Regular follow-up of an affected child is required and of subsequent offspring. Genetic counselling should be offered and children whose parents have had a retinoblastoma should be assessed from infancy.

• PROGNOSIS

• This depends on the extent of the disease at diagnosis. Overall the mortality of the condition is 15%. Unfortunately some 50% of children with the germinal mutation will develop a second primary tumour (e.g. an

• Retinal tumours 131

• Fig. 11.12 Left leukocoria.

• CHOROIDAL TUMOURS
• Melanoma (Fig. 11.14)
• Pigmented fundus lesions include:
• retinal pigment hypertrophy;
• areas of old chorioretinitis;
• choroidal naevi;
• the rarest cause, a malignant melanoma.
• Uveal melanomas have an incidence of 6 per 1 000 000 per year in white adults. It is seen very much more commonly in white than non- white races. It usually presents from middle-age onwards (40–70 years). Malignant melanoma may also be seen in the ciliary body and iris but by far the greatest number (80%) are found in the choroid.


• 132
• Chapter 11: Retina and choroid
• osteosarcoma of the femur) or a tumour related to treatment with radiotherapy.
• Astrocytomas (Fig. 11.13)
• These tumours of the retina and optic nerve are seen in patients with:
• tuberose sclerosis;
• neurofibromatosis (less commonly).
• They appear as white berry-like lesions, are seldom symptomatic and require no treatment. However, their identification may assist in the diagnosis of important systemic disease.

• Fig. 11.13 The clinical appearance of a retinal astrocytoma.

• Choroidal tumours 133

• SYMPTOMS

• The presence of a melanoma may be detected as a coincidental finding during ocular examination. Advanced cases may present with a visual field defect or loss of acuity. If situated in the anterior part of the choroid the enlarging tumour may cause shallowing of the anterior chamber resulting in secondary angle closure glaucoma. In the UK it is unusual for the tumour to be so advanced that it results in visible destruction of the eye.

• SIGNS

• A raised, usually pigmented, lesion is visible at the back of the eye; this may be associated with an area of retinal detachment. The optic nerve may be involved.


• INVESTIGATIONS
• The patient is investigated for systemic spread although this is less usual than in malignant melanoma of the skin. An ultrasound of the eye is useful in determining the size of the tumour and can be used both for quantita- tive assessment and in detecting the growth of tumours over time.

• TREATMENT

• A number of therapies are available. The treatment used depends on the size and location of the tumour. Large tumours that have reduced vision, or are close to the optic nerve, usually require removal of the eye (enucleation). Smaller tumours can be treated by:
• local excision;
• local radiation applied to the lesion by an overlying radioactive plaque;
• proton beam irradiation.

• Fig. 11.14 The clinical appearance of a choroidal melanoma.

• PROGNOSIS
• This depends very much on the type of tumour (some are more rapidly growing than others) and its location (tumours involving the sclera and optic nerve carry a poorer prognosis). The existence of metastatic lesions at the time of diagnosis carries a poor prognosis. Some tumours are very slow growing and have an excellent prognosis. Others, which extend into the optic nerve or through the sclera, are more malignant and result in secondary spread.
• Metastatic tumours

• 134

• Chapter 11: Retina and choroid

• These account for the greater part of ocular malignant disease. In women the commonest site of spread is from the breast, in men the commonest source is the bronchus. Symptoms and signs depend on their location in the eye. They appear as a whitish lesion with little elevation, and may be multiple. Treatment is usually by external beam radiotherapy.


• KEY POINTS
• A curtain-like partial loss of vision suggests a retinal detachment and requires urgent ophthalmic assessment.
• Distortion of vision is a sign of macular disease.
• Age-related macular degeneration results in loss of acuity but never total loss of vision.
• Children with a white pupil require urgent ophthalmic investigation.

• Box 11.1 Key points in retinal disease.

• CHAPTER 12

• Retinal vascular disease

• INTRODUCTION

• The eye is an organ in which much of the microcirculation is readily visualized. Vascular disease affecting the eye can thus be seen directly. Furthermore the eye provides important clues about pathological vascular changes in the rest of the body.
• SIGNS OF RETINAL VASCULAR DISEASE
• (Figs 12.1 & 12.2)
• The signs of retinal vascular disease result from two changes to the retinal capillary circulation:
• leakage from the microcirculation;
• occlusion of the microcirculation.
• Leakage from the microcirculation
• This results in:
• haemorrhages caused by leakage of blood from damaged vessels;
• oedema of the retina, the result of fluid leakage from damaged vessels;
• exudates formed by lipids, lipoprotein and lipid containing macrophages. These are yellow in colour, with well-defined margins.


135

• LEARNING OBJECTIVES

• To understand:
• The features of retinal vascular disease.
• The classification and treatment of diabetic retinopathy.
• The symptoms, signs and complications of retinal arterial and venous occlusion.
• The causes, features and treatment of retinopathy of prematurity.

• 136

• Chapter 12: Retinal vascular disease

• RETINAL VASCULAR DISEASE

• Retinal vascular disease


• Leakage from capillaries

• Haemorrhages

• Oedema

• Occlusion of capillaries

• Ischaemia

• New vessels

• Irregular retinal veins
• Lipid exudates

• Cotton wool spots

• Fig. 12.1 Diagram showing the building blocks of retinal vascular disease.







• Fig. 12.2 The signs of retinal vascular disease: (a) haemorrhage and exudate; (b) cotton wool spots; (c) new vessels, here particularly florid and arising at the disc. Note the yellowish nature and distinct margin to the exudates compared to the less distinct and whiter appearance of the cotton wool spot.
• (a)
• (b)
• (c)

• DIABETIC RETINOPATHY (Fig. 12.3)

• Diabetes results from a defect in both insulin secretion and action leading to hyperglycaemia.

• EPIDEMIOLOGY

• In the UK diabetic eye disease is the commonest reason for blind registration in the 30– 65 age group.
• Type I diabetes (eventual loss of insulin secretion, mostly in young people with associated HLA types) has a prevalence in the UK of 2 per 1000 under the age of 20. Diabetic retinopathy appears about 5 years after onset.

• Diabetic retinopathy 137

• Occlusion of the microcirculation
• Box 12.1 Classification of disease affecting the ocular circulation.

• This results in:

• Cotton wool spots (previously termed soft exudates).These are caused by a build-up of axonal debris in the nerve fibre layer of the retina. This results from a hold-up in axoplasmic transport due to ischaemia. Cotton wool spots are found at the margins of ischaemic infarcts. Their visibility depends on nerve fibre layer thickness so that they are seen close to the optic disc, where the nerve fibre layer is thick, and not in the periphery where the nerve fibre layer is thin. They are white in colour with indistinct borders.
• New vessels. An ischaemic retina releases vasogenic factors (e.g. VEGF) which result in the growth of abnormal blood vessels and fibrous tissue onto the retinal surface and forward into the vitreous. These intravitreal vessels are much more permeable than normal retinal vessels, and their abnormal position predisposes them to break and bleed.
• The diseases affecting the vasculature of the eye may be classified as shown in Box 12.1.


• OCULAR CIRCULATION
• Diabetic retinopathy
• Central retinal artery occlusion Branch retinal artery occlusion Central retinal vein occlusion Branch retinal vein occlusion Hypertensive retinopathy Retinopathy of prematurity Sickle cell retinopathy Abnormal retinal blood vessels

• 138

• Chapter 12: Retinal vascular disease
• Type II diabetes is a heterogeneous group of patients with familial aggregation. They usually have some insulin secretion remaining but develop resistance to insulin. It occurs in an older age group and has a prevalence of 5–20 per 1000. Because type II diabetes may be present for several years prior to diagnosis, retinopathy may be present at presentation.
• Diabetes is associated with the following ocular events:
• retinopathy;
• cataract: a rare, ‘snowflake’ cataract in youth and a greater frequency and earlier onset of age related cataract;
• glaucoma (but the association with chronic open angle glaucoma is disputed);
• extraocular muscle palsy due to microvascular disease of the third, fourth, or sixth cranial nerves.

• PATHOLOGY

• Factors thought to be important in the development of diabetic retinopathy include:
• Duration of diabetes: 80% have retinopathy after 20 years of disease.
• Diabetic control.
• Coexisting diseases particularly hypertension.
• Smoking.
• The development of retinopathy may also be accelerated by pregnancy and patients require careful screening.
• Retinal damage results from damage to the circulation. Pathological studies show that there is a:
• decrease in the number of pericytes surrounding the capillary endothelium;
• development of microaneurysms on the capillary network which allow plasma to leak out into the retina;
• development of arterio-venous shunts with closure of the capillary net resulting in areas of ischaemic retina.


• HISTORY
• Diabetic retinopathy should be diagnosed before it is symptomatic. All dia- betics should have fundoscopy performed at least yearly. Screening for sight-threatening retinopathy (maculopathy and proliferative retinopathy) should begin by 5 years after diagnosis in patients with type I disease, and from the time of presentation in type II disease.Visual acuity may be reduced gradually by a maculopathy and suddenly from a vitreous haemorrhage.

• EXAMINATION

• The building blocks of the disease are those of leakage and microvascular occlusion discussed earlier. The classification of retinopathy is shown in Table 12.1.

• Diabetic retinopathy 139

• TREATMENT
• Patients with a maculopathy, preproliferative or proliferative retinopathy or worse require referral to an ophthalmologist. Any patient with unexplained visual loss should also be referred. The mainstay of treatment for sight threatening diabetic retinopathy is the laser. A fluorescein angiogram may be performed in some patients to assess the degree of retinal ischaemia and to pinpoint areas of leakage both from micro- aneurysms and new vessels.
• Laser treatment of both the maculopathy and new vessels can be performed on an outpatient basis.

• DIABETIC RETINOPATHY

• Stage Description
• No retinopathy Background
• Maculopathy
• Preproliferative
• Proliferative
• Advanced
• There are no abnormal signs present on the retina. Vision normal
• Signs of microvascular leakage (haemorrhage and exudates) away from the macula. Vision normal
• Exudates and haemorrhages within the macula region, and/or evidence of retinal oedema, and/or evidence of retinal ischaemia. Vision may be reduced; sight threatening
• Evidence of occlusion (cotton wool spots). The veins become irregular and may show loops. Vision normal
• The occlusive changes have led to the release of a vasoproliferative substance from the retina resulting in the growth of new vessels either on the disc (NVD) or elsewhere on the retina (NVE). Vision normal; sight threatening
• The proliferative changes may result in bleeding into the vitreous or between the vitreous and the retina. The retina may also be pulled from its underlying pigment epithelium by a fibrous proliferation associated with the growth of the new vessels. Vision reduced, often acutely with vitreous haemorrhage; sight threatening
• Table 12.1 The classification of diabetic retinopathy (note that diabetic maculopathy may coexist with other stages in the classification).


• CLINICAL OBSERVATIONS
• Younger patients are more likely to develop proliferative disease.
• Older patients more commonly develop a maculopathy but because type II disease is more common, it is also an important cause of proliferative disease.
• Box 12.2 Clinical observations.

• 140

• Chapter 12: Retinal vascular disease

• (a)

• (b)
• (c)
• Fig. 12.3 The signs of diabetic eye disease. (a) Background diabetic retinopathy. (b) Diabetic maculopathy, note the circinate exudate temporal to the macula. (c) Preproliferative retinopathy with a venous loop. (d, e) Proliferative retinopathy. New vessels have formed on the retina, their


• Diabetic retinopathy 141

• (d)

• (e)
• (f )
• presence is demonstrated by leakage of fluorescein (hyperfluorescence) on the fluorescein angiogram. Closure of some of the retinal capillary network is demonstrated by its failure to fill with fluorescein. (f ) Advanced diabetic retinopathy, the neovascularization has caused a traction retinal detachment.

• 142

• Chapter 12: Retinal vascular disease
• ARTERIAL OCCLUSION
• PATHOGENESIS
• Central and branch retinal artery occlusions are usually embolic in origin. Three types of emboli are recognized:
• fibrin-platelet emboli commonly from diseased carotid arteries;
• cholesterol emboli commonly from diseased carotid arteries (Fig. 12.5);
• calcific emboli from diseased heart valves.
• Diabetic maculopathy is treated by aiming the laser at the points of leakage. The exudate is often seen to be in a circinate pattern with the focus of leakage or microaneurysm in the middle. If effective the retinal oedema and exudate will resorb although this may take some months.
• Optic disc and retinal new vessels are treated with scattered laser burns to the entire retina leaving an untreated area around the macula and optic disc (Fig. 12.4). The laser treatment eliminates ischaemic retina thus preventing the release of vasoproliferative factors. This results in the regression of the new vessels and prevents the development of advanced retinopathy.

• Fig. 12.4 Typical appearance of retinal laser burns.

• The development of vitreous haemorrhage which does not clear after a few months or fibrous traction on the retina causing detachment from the underlying pigment epithelium (tractional retinal detachment) may require surgical treatment. A vitrectomy is performed to remove the vitreous gel and blood and repair any of the detached retina.

• PROGNOSIS

• Although laser and surgical treatments have greatly improved the prognosis of patients with diabetic retinopathy the disease may still cause severe visual loss in some patients.

• Arterial occlusion 143

• HISTORY
• The patient complains of a sudden painless loss of all or part of the vision. Fibrin platelet emboli typically cause a fleeting loss of vision as the emboli passes through the retinal circulation (amaurosis fugax). This may last for some minutes and then clears. Cholesterol and calcific emboli may result in permanent obstruction with no recovery in vision (they may also be seen in the retinal vessels of asymptomatic individuals). A central retinal artery obstruction is frequently caused by an embolus, although as it lodges further back in the arterial tree behind the optic nerve head, it cannot be seen.
• In young patients, transient loss of vision may be caused by migraine.

• SIGNS

• Occasionally, a series of white platelet emboli can be seen passing rapidly through a vessel; more often a bright yellow, reflective cholesterol embolus is noted occluding an arterial branch point. The acutely affected retina is swollen and white (oedematous), while the fovea is red (cherry red spot) as it has no supply from the retinal circulation, is not swollen, and the normal choroid can be seen through it. After several weeks the disc becomes pale (atrophic) and the arterioles attenuated. The condition may also occasionally be caused by vasculitis, such as giant cell arteritis (see p. 160).

• INVESTIGATION

• Patients require a careful vascular work-up since disease in the eye may reflect systemic vascular disease. A search for carotid artery disease should be made by assessing the strength of carotid pulsation and listening for bruits. Ischaemic heart disease, peripheral claudication and hypertension may also be present.




• Fig. 12.5 The clinical appearance of a cholesterol embolus (arrow). They appear to sparkle when viewed with a direct ophthalmoscope.

• 144

• Chapter 12: Retinal vascular disease
• A carotid endarterectomy may be indicated to prevent the possibility of a cerebral embolus if a stenosis of the carotid artery greater than 75% is present. Doppler ultrasound allows non-invasive imaging of both the carotid and vertebral arteries to detect such a stenosis.

• TREATMENT

• Acute treatment of central and branch artery occlusions is aimed at dilating the arteriole to permit the embolus to pass more distally. Results are usually disappointing although a trial is worthwhile if the patient is seen within 24 hours of onset of the obstruction. The patient is referred to an eye unit where the following measures may be tried:
• lowering the intraocular pressure with intravenous acetazolamide;
• ocular massage;
• paracentesis (a needle is inserted into the anterior chamber to release aqueous and lower the intraocular pressure rapidly);
• getting the patient to rebreath into a paper bag firmly applied around the mouth and nose to use the vasodilatatory effect of raised carbon dioxide levels.

• PROGNOSIS

• Full visual recovery occurs with amaurosis fugax but more prolonged arterial occlusion results in severe unrecoverable visual loss.
• VENOUS OCCLUSION (Fig. 12.6)
• PATHOGENESIS
• Central retinal vein occlusion (CRVO) may result from:
• abnormality of the blood itself (the hyperviscosity syndromes and abnormalities in coagulation);
• an abnormality of the venous wall (inflammation);
• an increased ocular pressure.


• HISTORY
• The patient complains of a sudden partial or complete loss of vision although onset may be less acute than that of arterial occlusion.

• SIGNS

• These contrast markedly with those of arterial occlusion. There is marked haemorrhage and great tortuosity and swelling of the veins. The optic disc appears swollen. Branch retinal vein occlusion may originate at the crossing point of an arteriole and a vein where the arteriole has

• ARTERIOSCLEROSIS AND HYPERTENSION

• Arteriosclerosis can be visualized in the eye as an attenuation of the
• Arteriosclerosis and hypertension 145

• been affected by arteriosclerosis associated with hypertension (a/v nipping).

• Subsequently:
• Abnormal new vessels may grow on the retina and optic disc, causing vitreous haemorrhage. This happens if the retina has become ischaemic as a result of the vein occlusion (an ischaemic retinal vein occlusion).
• In ischaemic retinal vein occlusion abnormal new vessels may grow on the iris causing rubeotic glaucoma.

• INVESTIGATION

• Investigation of a CRVO includes vascular and haematological work-up to exclude increased blood viscosity. Central retinal vein occlusion is also associated with raised ocular pressure, diabetes and hypertension.

• TREATMENT

• Retinal laser treatment is given if the retina is ischaemic to prevent the development of retinal and iris new vessels (see glaucoma, p. 104). Laser treatment may improve vision in some patients with a branch retinal vein occlusion by reducing macular oedema.


• PROGNOSIS
• The vision is usually severely affected in central, and often in branch, vein occlusion and usually does not improve. Younger patients may fare better, and there may well be some visual improvement.

• (a)

(b)
• Fig. 12.6 The contrast between: (a) an inferior branch retinal artery occlusion (note the white appearance of the affected retina); and (b) a superior branch vein occlusion.

• 146

• Chapter 12: Retinal vascular disease
• RETINOPATHY OF PREMATURITY
• PATHOGENESIS
• There is an initial failure of normal retinal vascularization followed by a phase of aggressive new vessel formation extending forward into the vitreous and causing traction detachment.
• Risk factors associated with retinopathy of prematurity include:
• gestation less than 32 weeks;
• birth weight below 1500ig;
• exposure to supplemental oxygen;
• apnoea;
• sepsis;
• duration of ventilation;
• blood transfusion;
• the presence of intraventricular haemorrhage;
• retinal arterial vessels (sometimes referred to as copper and silver wiring) and by the presence of nipping of the retinal vein where it is crossed by an arteriole. Hypertension in addition may cause focal arteriolar narrowing and a breakdown in the blood retinal barrier resulting in the signs of vas- cular leakage (haemorrhage and exudate). These are particularly promi- nent if the hypertension is of renal origin. If severe the retina may also demonstrate signs of capillary occlusion (cotton wool spots). Very high blood pressure may cause swelling of the optic disc as well as these other signs (accelerated hypertension; Fig. 12.7).The patient may complain of blur- ring of vision and episodes of temporary visual loss, though severe retinopathy may also be asymptomatic.




• Fig. 12.7 The fundus in malignant hypertension. The disc is swollen, and there are retinal haemorrhages and exudates.

• Treatment of the hypertension, avoiding a rapid reduction which may precipitate vascular occlusion, results in the resolution of the retinal signs. This may take some months.

• SICKLE CELL RETINOPATHY

• Patients with sickle cell haemoglobin C disease (SC disease) and sickle cell haemoglobin with thalassaemia (SThal) develop a severe form of retinopathy. This is unusual in homozygous sickle cell disease (SS) where the retinopathy is more confined. Signs include:
• tortuous veins;
• peripheral haemorrhages;
• capillary non-perfusion;
• pigmented spots on the retina;
• new vessel formation, classically in a ‘sea-fan’ pattern, which may occur as a result of peripheral retinal artery occlusion.
• New vessels may cause vitreous haemorrhage and traction retinal detachment. As with diabetes this may require treatment with laser photocoagulation and vitrectomy.
• ABNORMAL RETINAL BLOOD VESSELS
• Abnormality of the retinal blood vessels may be seen in rare ocular diseases where they are associated with the development of massive exudate. They may also be an indication of systemic disorders as in the retinal and optic disc angioma associated with the familial von Hippel–Lindau syndrome. Here the ocular condition may be associated

• Abnormal retinal blood vessels 147

• retinal light exposure.
• The incidence of the condition in infants weighing less than 1500ig is between 34 and 60%.


• SIGNS
• The retinal appearance depends on the severity of the condition but includes:
• new vessels;
• the development of retinal haemorrhage;
• increased tortuosity and dilation of the retinal vessels. In severe disease blindness can result from:
• bleeding into the vitreous;
• retinal detachment.

• TREATMENT

• At-risk infants are screened on a regular basis.The severe complications of the condition can be reduced by applying cryotherapy or laser to the avas- cular retina.

• 148

• Chapter 12: Retinal vascular disease

• with angioma in the brain and spinal cord. Patients and their relatives require repeated MRI screening.
• ABNORMALITIES OF THE BLOOD
• Clotting abnormalities may be responsible for occlusion of any blood vessel in the eye (e.g. a central retinal vein occlusion). Similarly increased viscosity may also cause vessel occlusion. Leukaemia with a greatly raised white cell count may lead to the development of a haemorrhagic retinopathy in which the haemorrhages have white centres (Roth spots) (Fig. 12.8). These may also be a feature of bacterial endocarditis and auto-immune diseases associated with vasculitis.

• Fig. 12.8 White centred haemorrhages.

• KEY POINTS
• Premature infants require screening for retinopathy of prematurity.
• Diabetics require regular screening for sight-threatening retinopathy.

• Box 12.3 Key points in retinal vascular disease.

• CHAPTER 13

• The pupil

• INTRODUCTION

• Movements of the pupil are controlled by the parasympathetic and sympa- thetic nervous systems.The pupils constrict (miosis) when the eye is illumi- nated (parasympathetic activation, sympathetic relaxation) and dilate (mydriasis) in the dark (sympathetic activation, parasympathetic relax- ation). When the eyes accommodate the eyes converge and the pupils constrict. The pupils are normally equal in size but some 20% of people may have noticeably unequal pupils (anisocoria) with no associated disease. The key to diagnosis of pupillary disorders is to:
• determine which pupil is abnormal;
• search for associated signs.
• Disorders of the pupil may result from:
• ocular disease;
• disorders of the controlling neurological pathway;
• pharmacological action.
• The parasympathetic fibres reach the eye through the third cranial nerve. The sympathetic pathway is shown in Fig. 13.1.
• OCULAR CAUSES OF PUPILLARY ABNORMALITY
• Diseases of the eye which cause irregularity of the pupil and alter its reaction, include:
• ocular inflammation where posterior synechiae give the pupil an irregular appearance (see p. 91);
• the sequelae of intraocular surgery;


149

• LEARNING OBJECTIVES

• To understand:
• The neurological pathways controlling pupillary size.
• The causes of pupillary dysfunction.

• 150

• Chapter 13: The pupil
• blunt trauma to the eye which may rupture the sphincter muscle causing irregularity, or fixed dilation (traumatic mydriasis).
• NEUROLOGICAL CAUSES OF AN ABNORMAL PUPIL
• Horner’s syndrome (Fig. 13.2)
• Interruption of the sympathetic pathway causes:
• A small pupil on the affected side. This is more noticeable in the dark when the fellow, normal pupil, dilates more than the affected pupil.
• A slight ptosis on the affected side.
• Lack of sweating on the affected side if the sympathetic pathway is affected proximal to the base of the skull.
• An apparent recession of the globe into the orbit.

• Superior cervical ganglion

• Internal carotid artery
• Ciliospinal centre of Budge (C8-T2)
• Posterior hypothalamus
• SYMPATHETIC PUPILLARY CONTROL
• Ophthalmic artery
• Long ciliary nerves
• Short
• ciliary nerves
• Ciliary ganglion (no sympathetic synapses)
• Fig. 13.1 The pathway of sympathetic pupillary control. (With permission from Kanski JJ (1994) Clinical Ophthalmology.
• Butterworth-Heinemann, Oxford.)

• Light-near dissociation 151

• Because of its extended course the sympathetic pathway may be affected by a multitude of pathologies. Examples include:
• Syringomyelia, a cavity within the spinal cord sometimes extending into the medulla (syringobulbia). Typically it also causes wasting of the hand muscles and loss of sensation.
• Disease of the lung apex catches the cervical sympathetic chain (e.g. neoplasia). Involvement of the brachial plexus gives rise to pain and to T1 wasting of the small muscles of the hand, in Pancoast’s syndrome.
• Neck injury, disease or surgery.
• Cavernous sinus disease.
• Horner’s syndrome may also be congenital. Here the iris colour may be altered when compared to the fellow eye (heterochromia).
• LIGHT–NEAR DISSOCIATION
• In these pupillary abnormalities the reaction of the pupils to light is much less than to the near (accommodative) response. There is no condition in which the light reflex is intact but the near reflex is defective. A light–near dissociation is seen in diabetes and multiple sclerosis or may be caused by periaqueductal brainstem lesions (see below).
• Relative afferent pupillary defect
• A lesion of the optic nerve on one side blocks the afferent limb of the pupillary light reflex (see p. 25). The pupils are equal and of normal size, but the pupillary response to light on the affected side is reduced, while the near reflex is intact. This is an important test to perform in a patient suspected of having an optic nerve lesion, such as optic neuritis. It may

• Fig. 13.2 A right ptosis and miosis in Horner’s syndrome.

• 152
• Chapter 13: The pupil
• also, however, be seen in severe disease of the retina. It is not seen with opacities of the cornea or lens.
• Adie’s pupil
• This is not an unusual cause of unequal pupil size (anisocoria). It affects young adults and is seen more commonly in females than males (2 : 1). It is due to a ciliary ganglionitis which denervates the iris and ciliary body. Parasympathetic fibres which reinnervate the iris sphincter are those which were previously involved in accommodation. The affected pupil:
• Is enlarged.
• Is poorly reactive to light. On the slit lamp examination the pupil move- ment in response to light is seen as a worm-like (vermiform) contraction.
• Shows slow, sustained miosis on accommodation.
• Is supersensitive to dilute pilocarpine (0.1%).
• The ability to accommodate is also impaired, the patient may complain of blurred vision when looking from a distant object to a near one and vice versa. Systemically the disorder is associated with loss of tendon reflexes; there are no other neurological signs.
• Argyll Robertson pupil
• Classically seen in neurosyphilis the pupils are bilaterally small and irregular. They do not react to light but do to accommodation. The iris stroma has a typical feathery appearance and loses its architectural detail.
• Midbrain pupil
• A lesion in the region of the pretectal nuclear complex disrupts retinotec- tal fibres but preserves the supranuclear accommodative pathway, causing mydriasis and light–near dissociation. These are usually seen as part of the periaqueductal (Parinaud’s) syndrome (see p. 183).
• Other causes of pupillary abnormality
• In coma, both pupils may become miosed but remember that patients taking pilocarpine for glaucoma or receiving morphine also show bilateral miosis. Coma associated with a unilateral expanding supratentorial mass, e.g. a haematoma, results in pressure on the third nerve and dilation of the pupil. Intrinsic third nerve lesions also cause a dilated pupil (see p. 175). The pupil may also be affected by drugs, both topical and systemic (Table 13.1).

• Light–near dissociation 153

• KEY POINTS
• Take a good history to help exclude an ocular cause for the pupillary changes and to see if a medical condition exists which may contribute to the pupillary problem.
• Determine whether it is the small or the large pupil that is abnormal.
• Search for associated signs that may help make a diagnosis.

• Box 13.1 Key points in the assessment of abnormal pupils.

• DRUGS AFFECTING THE PUPIL

• Action Mechanism Agent

• Topical agents
• Dilates
• Muscarinic blockade
• Cyclopentolate Tropicamide Atropine (long acting)
• Alpha-adrenergic agonists
• Phenylephrine Adrenaline Dipivefrine
• Constricts
• Muscarinic agonist
• Pilocarpine
• Systemic
• Dilates
• Muscarinic blockade Alpha-adrenergic agonist
• Atropine Adrenaline
• Constricts
• Morphine
• Local action and action on central nervous system
• Table 13.1 Drugs having a pharmacological effect on the pupil.


• CHAPTER 14

• The visual pathway

• INTRODUCTION

• The innermost layer of the retina consists of the nerve fibres originating from its ganglion cells. These fibres collect together at the optic nerve head, and form the optic nerve (see p. 13). The subsequent course of the visual pathway is shown in Fig. 14.1. Diagnosis and location of disease of the optic pathways is greatly aided by the differing field defects produced, as Fig. 14.1 shows.
• THE OPTIC NERVE
• The normal optic nerve head has distinct margins, a pinkish rim and usually a white central cup. The central retinal artery and vein enter the globe slightly nasally in the optic nerve head. The optic disc may be involved in many disorders but has a limited repertoire of responses. Ophthalmoscopically it may become swollen, or it may become pale.
• The swollen optic disc (Fig. 14.2)
• The swollen disc is an important and often worrying sign. Papilloedema is the term given to disc swelling associated with raised intracranial pressure, accelerated hypertension and optic disc ischaemia. Optic neuritis affecting the nerve head (papillitis) has a similar appearance. The differential diagnosis of disc swelling is shown in Table 14.1.

• 154

• LEARNING OBJECTIVES

• To understand:

• The basic anatomy of the visual pathway.
• The field defects produced by lesions at different points along the visual pathway.
• The causes, symptoms and signs associated with a swollen optic disc.
• The symptoms, signs, treatment and complications of giant cell arteritis.

• Lateral geniculate body

• Optic tract
• Chiasm
• Optic nerve
• Left field
• Right field
• Temporal retina
• Nasal retina
• Central scotoma
• Bitemporal hemianopia
• Incongruous left hemianopia

• Optic radiation

• Congruous left hemianopia

• Visual cortex

• The optic nerve 155

• VISUAL PATHWAY

• Temporal fields Nasal fields

• Fig. 14.1 Anatomy of the optic pathway and the field defects produced by lesions at different sites.

• 156

• Chapter 14: The visual pathway

• CAUSES OF A SWOLLEN OPTIC DISC

• Condition Distinguishing features
• Raised intracranial pressure
• Vision and field usually normal save for large blind spot. Obscurations (short episodes of visual loss usually on changing posture). Field may be contracted in chronic disease. Colour vision normal. No RAPD. No spontaneous venous pulsation of the vein at the disc (but some people with normal intracranial pressure do not have this). Dilated capillaries and haemorrhages on disc. Other symptoms and signs of raised intracranial pressure
• Space occupying lesions of the optic nerve head
• Various solid, or infiltrative lesions at the nerve head,
• e.g. optic disc drusen (calcified axonal material), gliomas, sarcoidosis and leukaemia, may produce disc swelling. These may be associated with reduced vision and field defects
• Papillitis
• (optic neuritis affecting the optic nerve head)
• A swollen optic disc. Exudates around the macula may occasionally be seen. Vision is profoundly reduced. Colour vision is abnormal. RAPD present. A central field defect is present
• Accelerated (malignant) hypertension
• (see vascular eye disease)
• Reduced vision, haemorrhagic disc swelling. Retinal haemorrhages, exudates and cotton wool spots away from the nerve head. Check blood pressure!
• Ischaemic optic neuropathy
• Sudden visual loss, field defect. Colour vision may be normal. RAPD may be present. Spontaneous venous pulsation at the optic disc may be present. May be sectorial swelling only. Haemorrhages on disc and disc margin. Cotton wool spots may be seen around disc particularly if caused by giant cell arteritis
• Central retinal vein occlusion (see vascular eye disease)
• Sudden marked visual loss, tortuous veins, gross retinal haemorrhage
• Table 14.1 Causes of a swollen optic disc (RAPD, relative afferent pupillary defect; see p. 26).


• The optic nerve 157









• disc. (c) The appearance of optic disc drusen, note how the solid yellow lesions cause irregularity of the disc margin. (d) Myelination of the nerve fibres around the nerve head may be mistaken for a swollen optic disc. (e) A myopic optic disc. Note the extensive peripapillary atrophy.
• (a)
• (b)
• (c)

• Fig. 14.2 (a) A normal disc. (b) A swollen disc secondary to raised intracranial pressure. Note the lack of a sharp outline to the disc and the dilated capillaries on the
• (d)
• (e)

• 158

• Chapter 14: The visual pathway
• Note also that myelinated nerve fibres (a normal variant where the nor- mally unmyelinated retinal nerve fibre layer is partly myelinated giving it a white appearance) may be mistaken for optic disc swelling. A high myope may also have an optic disc surrounded by an atrophic area (peripapillary atrophy) that may be confused with disc swelling.
• Papilloedema due to raised intracranial pressure
• HISTORY
• The crucial feature of disc swelling due to raised intracranial pressure is that there is no acute prolonged visual loss. Some patients may develop fleeting visual loss lasting seconds when they alter posture (obscurations of vision). Other features of raised intracranial pressure may be present including:
• headache, worse on waking and made worse by coughing;
• nausea, retching;
• diplopia (double vision) usually due to a sixth nerve palsy;
• neurological symptoms, if the raised pressure is due to a cranial space- occupying lesion;
• a history of head trauma suggesting a subdural haemorrhage.

• SIGNS

• The optic disc is swollen, the edges blurred and the superficial capillaries are dilated and thus abnormally prominent. There is no spon- taneous venous pulsation of the central retinal vein (5–20% of those with normal nerve heads have no spontaneous pulsation, however).
• A large blind spot will be found on visual field testing corresponding to the swollen nerve head. In chronic papilloedema the field may become constricted. A field defect may, how-ever, be caused by the space- occupying lesion causing the papilloedema.
• Abnormal neurological signs may indicate the site of a space-occupying lesion.

• INVESTIGATION

• CT and MRI scanning will identify any space-occupying lesion or enlarge- ment of the ventricles. Following neurological consultation (and normally after a scan) a lumbar puncture will enable intracranial pressure to be measured.


• TREATMENT
• Intracranial pressure may be elevated and disc swelling present with no evidence of intracranial abnormality and no dilation of the ventricles on

• The optic nerve 159

• the scan.This is termed benign intracranial hypertension and usually presents in overweight women in the second and third decade. Patients complain of headache and may have obscurations of vision and sixth nerve palsies. No other neurological problems are present. Although acute permanent visual loss is not a feature of papilloedema, if the nerve remains swollen for several weeks there will be a progressive contraction of the visual field. It is thus important to reduce intracranial pressure. This may be achieved:
• with medications such as oral acetazolamide;
• through ventriculoperitoneal shunting;
• through optic nerve decompression where a small hole is made in the sheath surrounding the optic nerve to allow the drainage of CSF and reduce the pressure of CSF around the anterior optic nerve.
• Space-occupying lesions (i.e. tumours and haemorrhage) and hydro- cephalus require neurosurgical management.
• Optic neuritis
• Inflammation or demyelination of the optic nerve results in optic neuritis (termed papillitis if the optic nerve head is affected and retrobulbar neuritis if the optic nerve is affected more posteriorly).

• HISTORY

• There is:
• An acute loss of vision that may progress over a few days and then slowly improve.
• Pain on eye movement in retrobulbar neuritis because rectus contrac- tion pulls on the optic nerve sheaf.
• A preceding history of viral illness in some cases. Between 40 and 70% of patients with optic neuritis will have or develop other neuro- logical symptoms to suggest a diagnosis of demyelination (multiple sclerosis).

• EXAMINATION

• This reveals:
• reduced visual acuity;
• reduced colour vision;
• relative afferent pupillary defect (RAPD) (see p. 26);
• central scotoma on field testing;
• a normal disc in retrobulbar neuritis. A swollen disc in papillitis.


• TREATMENT
• An MRI scan will help to identify additional ‘silent’ plaques of demyelina- tion but the patient must be suitably counselled before a scan is per-

• 160

• Chapter 14: The visual pathway
• formed. There may be a role for steroid treatment to speed up visual recovery.

• PROGNOSIS

• Vision slowly recovers over several weeks although often it is not quite as good as before the attack. Repeated episodes may lead to a decline in vision and optic atrophy. Very occasionally in atypical cases vision may not recover.
• Ischaemic optic neuropathy (Fig. 14.3)
• PATHOGENESIS
• The anterior optic nerve may become ischaemic if the posterior ciliary vessels are compromised as a result of degenerative or vasculitic disease of the arterioles (see p. 14). This results in an anterior ischaemic optic neuropathy.

• SYMPTOMS

• The patient complains of a sudden loss of vision or visual field, often on waking since vascular perfusion to the eye is decreased during sleep. If accompanied by pain or scalp tenderness the diagnosis of giant cell arteritis must never be forgotten. Ischaemic optic neuropathy is the usual cause of blindness in the disease.

• Giant cell arteritis

• This is an auto-immune disease occurring in patients generally over the age of 60. It affects arteries with an internal elastic lamina. It may present with any combination of:
• sudden loss of vision;
• scalp tenderness (e.g. on combing);
• pain on chewing ( jaw claudication);
• shoulder pain;
• malaise.


• SIGNS
• There is usually:
• A reduction in visual acuity.
• A field defect, typically an absence of the lower half of the visual field.
• A swollen and haemorrhagic disc with normal retina and retinal vessels (remember the blood supply to the anterior optic nerve and retina

• The optic nerve 161

• are different). In arteritic ischaemic optic neuropathy the disc may be pale.
• A small fellow disc with a small cup in non-arteritic disease.
• A tender temporal artery, a sign suggestive of giant cell arteritis.

• INVESTIGATIONS

• If giant cell arteritis is present the ESR and C-reactive protein are usually grossly elevated (although 1 in 10 patients with giant cell arteritis have a normal ESR). Temporal artery biopsy is often helpful but again may not lead to a diagnosis, particularly if only a small specimen is examined, because the disease may skip a length of the artery. Giant cell arteritis can also present as a central retinal artery occlusion when the vessel is affected secondary to arteritis of the ophthalmic artery.



(a)

• ISCHAEMIC OPTIC NEUROPATHY

• Fig. 14.3 (a) The clinical appearance of the optic disc and (b) one form of field defect (altitudinal) seen in
• ischaemic optic neuropathy. (b)

• Investigation of the patient with non-arteritic ischaemic optic neuropathy includes:

• a full blood count to exclude anaemia;
• blood pressure check;
• blood sugar check;
• ESR and C-reactive protein to check for giant cell arteritis.

• 162

• Chapter 14: The visual pathway
• Both hypertension and diabetes may be associated with the condition. It may also be seen in patients suffering acute blood loss, e.g. haemateme- sis, where it may occur some days after the acute bleed. Hypotensive episodes may also give rise to ischaemic optic neuropathy. Occasionally clotting disorders or autoimmune disease may cause the condition.

• TREATMENT

• If giant cell arteritis is suspected treatment must not be delayed while the diagnosis is confirmed. High-dose steroids must be given, intravenously and orally, and the dose tapered over the ensuing weeks according to both symptoms and the response of the ESR or C-reactive protein. The usual precautions must be taken, as with any patient on steroids, to exclude other medical conditions that might be unmasked or made worse by the steroids (e.g. tuberculosis, diabetes, hypertension and an increased sus- ceptiblity to infection). Steroids will not reverse the visual loss but should help prevent the fellow eye being affected.
• There is unfortunately no treatment for non-arteritic ischaemic optic neuropathy other than the diagnosis of underlying conditions.

• PROGNOSIS

• It is unusual for the vision to get progressively worse in non-arteritic ischaemic optic neuropathy and the visual outcome both in terms of visual field and acuity is very variable. Vision does not recover once it has been lost. The second eye may rapidly become involved in patients with untreated giant cell arteritis. There is also a significant rate of involvement of the second eye in the non-arteritic form (40–50%).
• Optic atrophy (Fig. 14.4)
• A pale optic disc represents a loss of nerve fibres at the optic nerve head (Table 14.2). The vision is usually reduced and colour vision affected. On

• (a)

• (b)
• Fig. 14.4 (a) A pale optic disc compared to (b) a normal optic disc.

• examination the usual vascularity of the disc is lost. Comparison of the two eyes is of great help in unilateral cases as the contrast makes identifi- cation of pallor much easier. A relative afferent pupillary defect will also be present (see p. 26).

• The optic nerve 163

• PALE OPTIC DISC

• Cause

• Distinguishing features
• Compression of the optic nerve
• History of orbital or chiasmal disease. If sectorial, field loss may give a clue to the location of a compressive lesion
• Ischaemic optic neuropathy Retinal artery and vein occlusion
• A history of sudden (unilateral) visual loss in the past. The retinal vessels may be attenuated
• Glaucoma (see Chapter 10)
• The optic disc is pathologically cupped
• Optic neuritis
• There may be a history of previous loss of vision Symptoms and signs compatible with multiple sclerosis may be present
• Inherited optic nerve disease
• Dominant and recessive optic neuropathy are associated with onset of blindness in the first few years of life. Leber’s optic neuropathy results from an inheritable mutation of mitochondrial DNA. Leber’s typically affects males in early adulthood. It is bilateral. The optic disc appears pale
• Inherited retinal disease
• Retinal disease may result in optic disc pallor. It is, for example, a feature of rod-cone dystrophies and retinitis pigmentosa
• Toxic optic neuropathy
• Optic neuropathy may follow chemical toxicity, for example heavy metals, toluene from glue sniffing and some drugs (e.g. isoniazid used in the treatment of TB). Again information should be sought in the history
• Tobacco, alcohol, nutritional Vitamin amblyopia
• Optic neuropathy here (where all three factors are often involved together) is due to a combination of vitamin deficiency (B12) and cyanide toxicity
• Table 14.2 Causes of a pale optic disc.


• 164 Chapter 14: The visual pathway
• THE CHIASM
• Compressive lesions at the chiasm produce a bitemporal hemianopia as the fibres representing the nasal retina (temporal field) are compressed as they cross in the centre of the chiasm. Patients may present with rather vague visual symptoms, e.g.:
• missing objects in the periphery of the visual field;
• when testing vision with a Snellen chart patients may miss the tem- poral letters with each eye;
• the bitemporal field loss may cause difficulty in fusing images causing the patient to complain of diplopia although eye movements are normal;
• there may be difficulty with tasks requiring stereopsis such as pouring water into a cup or threading a needle.
• The most common lesion is a pituitary tumour and the patient should be asked for symptoms relating to hormonal disturbance (Fig. 14.5). Treatment depends on the type of tumour found; some are amenable to medical therapy but many require surgical excision. A meningioma and craniopharyngioma may also cause chiasmal compression.

• Fig. 14.5 (a) The CT appearance of a pituitary tumour. (b) The bitemporal visual field loss produced.
• (a)

• BITEMPORAL VISUAL FIELD LOSS

• (b)

• Optic tract, radiation and visual cortex 165

• OPTIC TRACT, RADIATION AND VISUAL CORTEX (Fig. 14.6)
• Lesions (usually either vascular or neoplastic) of the optic tract and radia- tion produce a homonymous hemianopic field defect, that is, loss confined to the right or left-hand side of the field in both eyes.This pattern of field loss results from the crossing of the fibres representing the nasal retina in the chiasm. If the extent of field loss is similar in both eyes a congruous defect is said to be present.This usually means that the defect has affected the optic radiation or cerebral cortex. Neoplasia more commonly affects the radiation in the anterior temporal lobe. The commonest cause of disease in the occipital cortex is a cerebrovascular accident. The visual loss is of rapid onset, a slower onset is suggestive of a space-occupying lesion.


• Fig. 14.6 (a) A CT scan showing a left cortical infarct. (b) The incomplete congruous right homonymous hemianopia produced by the infarct.
(a)

• LEFT CORTICAL INFARCT

• (b)

• KEY POINTS

• A bitemporal visual field defect suggests a pituitary lesion.
• There are several causes of a swollen optic disc, it is not just a sign of raised intraocular pressure.
• A pale optic disc may result from retinal disease.

• Box 14.1 Key points in disease of the optic pathway.

• CHAPTER 15

• Eye movements

• INTRODUCTION
• Eye movements may be abnormal because there is:
• an abnormal position of the eyes;
• a reduced range of eye movement;
• an abnormality in the form of eye movement.
• ANATOMY AND PHYSIOLOGY (Fig. 15.1)
• Each eye can be abducted (away from the nose) or adducted (towards the nose) or may look up (elevation) or down (depression). The cardinal positions of gaze for assessing a muscle palsy are: gaze right, left, up, down, and gaze to the right and left in the up and down positions.
• Six extraocular muscles control eye movement. The medial and lateral recti bring about horizontal eye movements causing adduction and abduction respectively. The vertical recti elevate and depress the eye in abduction. The superior oblique causes depression in the adducted position and the inferior oblique causes elevation in the adducted position. The vertical muscles all have additional secondary actions (intorsion and extorsion, circular movement of the eye).
• Three cranial nerves supply these muscles (see p. 15) whose nuclei are found in the brainstem, together with connections linking them with

• 166

• LEARNING OBJECTIVES

• To understand:

• The actions and control of the six muscles moving the eye.
• The difference between non-paralytic and paralytic squint.
• What is meant by binocular single vision.
• The cause, investigation and treatment of non-paralytic squint.
• The symptoms, signs and treatment of paralytic squint.
• The importance of the differential diagnosis of third nerve palsy.
• Gaze palsy and nystagmus. To be able to:
• Perform a cover test.






3rd
nucleus



4th
nucleus

• Parapontine reticular

• formation (PPRF)



3rd
nucleus
• Anatomy and physiology 167


• other nuclei (e.g. vestibular) and with gaze centres (horizontal gaze in the pons and vertical gaze in the midbrain). These coordinate the movements of both eyes.
• Higher cortical centres control the speed of the eyes in following a moving target (pursuit), and the rapid movements required to take up another position of gaze (saccades). These centres also influence the brainstem nuclei.
• The linkage of the nuclei ensures that the eyes move together in a coordinated way. For example when looking to the right, the right lateral and left medial rectus are equally stimulated (they are said to be yoke muscles). At the same time innervation of the antagonists which move

• THE CONTROL OF HORIZONTAL EYE MOVEMENTS

LEFT RIGHT



4th
nucleus

• Midbrain

• Pons
Medial
longitudinal
fasciculus


• Parapontine reticular formation (PPRF)

PURSUIT

• Occipito-mesencephalic pathway (parieto-occipito-temporal
lobe junction)

• SACCADES

• Fronto-mesencephalic pathway
• (frontal lobes)



6th
nucleus
6th
nucleus

• Vestibular nuclei

• Semicircular canal
• Fig. 15.1 The connections of the nuclei and higher centres controlling horizontal eye movements.

• 168

• Chapter 15: Eye movements





• the eyes to the left (the left lateral rectus and the right medial rectus) is inhibited.
• Clinically, eye movement disorders are best described under four headings (which are not mutually exclusive):
• 1 In a non-paralytic squint the movements of both eyes are full (there is no paresis) but only one eye is directed towards the fixated target (Fig. 15.2). The angle of deviation is constant and unrelated to the direction of gaze. This is also termed a concomitant squint and is the squint that is seen in childhood.

• NON–PARALYTIC SQUINT

• (a) Straight ahead

• (b) Left gaze

• Fig. 15.2 The pattern of eye movement seen in a non-paralytic squint: (a) the right eye is divergent in the primary position of gaze (looking straight ahead);
• (b) when the eyes look to the left the angle of deviation between the visual axis (a line passing through the point of fixation and the foveola) of the two eyes is unchanged.

• In a paralytic squint there is underaction of one or more of the eye muscles due to a nerve palsy, extraocular muscle disease or tethering of the globe. The size of the squint is dependent on the direction of gaze and, for a nerve palsy, is greatest in the field of action (the direction in which the muscle would normally take the globe) of the affected muscle. This is also termed an inconcomitant squint.
• In gaze palsies there is a disturbance of the supranuclear coordination of eye movements; pursuit and saccadic eye movements may also be

• affected if the cortical pathways to the nuclei controlling eye movements are interrupted (Fig. 15.3).
• 4 Disorders of the brainstem nuclei or vestibular input may also result in a form of oscillating eye movement termed nystagmus.
• NON-PARALYTIC SQUINT
• Binocular single vision (Fig. 15.4)
• In the absence of a squint the eyes are directed towards the same object. Their movements are coordinated so that the retinal images of an object fall on corresponding points of each retina. These images are fused centrally, so that they are interpreted by the brain as a single image. This is termed binocular single vision. Because each eye views an object from a different angle, the retinal images do not correspond precisely; the closer the object the greater this disparity. These differences allow a three

• Non-paralytic squint 169

• LEFT SIXTH NERVE PALSY

• (a) Right gaze

• (b) Left gaze
• Fig. 15.3 The pattern of eye movement seen in a left sixth nerve palsy with paralysis of the left lateral rectus. (a) The eyes are looking to the right, the visual axes are aligned, there is no deviation between the visual axes of the two eyes. (b) The eyes look to the left (the field of action of the left lateral rectus). The left lateral rectus is paralysed and thus the left eye is unable to move past the midline. Now there is a marked angle of deviation between the visual axes of the two eyes.

• 170

• Chapter 15: Eye movements
• If the visual axes of the two eyes are not aligned, binocular single vision is not possible. This results in:
• Diplopia. An object is seen to be in two different places.
• Visual confusion. Two separate and different objects appear to be at the same point.
• In children, a non-alignment of the visual axes of the two eyes (or squint) results in suppression of the image in the squinting eye. This means that when the vision in the two eyes is tested together only one object is seen. If this is prolonged and constant during the sensitive period of visual development it causes a reduced visual acuity in the squinting eye (strabis- mic amblyopia) when the vision is tested separately in each eye. Amblyopia will only develop if the squint constantly affects the same eye. Some chil- dren alternate the squinting eye. These children will not develop ambly- opia, but they do not develop stereopsis either.
• Aetiology of non-paralytic squint (Fig. 15.5)
• Non-paralytic squint:


• Field of right eye
• Field of left eye
• Right eye blind spot
• Left eye
• blind spot
• Fixation point

• dimensional percept to be constructed. This is termed stereopsis. The development of stereopsis requires that eye movements and visual alignment are coordinated in approximately the first five years of life.
• Binocular single vision and stereopsis afford certain advantages to the individual:
• they increase the field of vision;
• they eliminate the blind spot, since the blind spot of one eye falls in the seeing field of the other;
• they provide a binocular acuity which is greater than monocular acuity;
• stereopsis provides depth perception.

• BINOCULAR VISUAL FIELD

• Field of binocular single vision

• Fig. 15.4 Elimination of the blind spot and increase in the field of vision that binocular single vision affords.

• HISTORY

• The presence of a squint in a child may be noted by the parents or detected at pre-school or school screening clinics. It may be intermittent or constant. There may be a family history of squint or refractive error. The following should be noted:
• Non-paralytic squint 171


• May develop in an otherwise normal child with normal eyes.The cause of the problem in these patients remains obscure. It is thought to be caused by an abnormality in the central coordination of eye movements.
• May be associated with ocular disease:
• A refractive error which prevents the formation of a clear image on the retina. This is the most common factor. If the refractive error is dissimilar in the two eyes (anisometropia) one retinal image will be blurred.
• Opacities in the media of the eye blurring or preventing the formation of the retinal image (i.e. corneal opacities or cataract).
• Abnormalities of the retina preventing the translation of a correctly formed image into neural impulses.
• In a child equally long sighted (hypermetropic) in both eyes a convergent squint may develop because the increased accommoda- tion of the lens (which will correct the hypermetropic error) needed to achieve a clear retinal image for distant objects (and even more for near) will be associated with excessive convergence. Here squint may only occur on attempted convergence, in which case amblyopia does not develop since binocular visual alignment remains normal for some of the time during distant viewing.

• Fig. 15.5 The appearance of: (a) a convergent and

• (b) a divergent squint. Note the position of the light reflection in each eye.
• (a)
• (b)

• 172

• Chapter 15: Eye movements
• when the squint is present;
• how long a squint has been present for;
• past medical, birth and family history of the child.


• EXAMINATION
• First the patient is observed for features that may simulate a squint. These include:
• epicanthus (a crescentic fold of skin on the side of the nose that incompletely covers the inner canthus);
• facial asymmetry.
• The corneal reflection of a pen torch held 33 cm in front of the subject is a guide to eye position. If the child is squinting the reflection will be central in the fixating eye and deviated in the squinting eye (Fig. 15.5).
• A cover/uncover test (Fig. 15.6) is next performed to detect a manifest squint (a tropia).
• The right eye is completely covered for a few seconds whilst holding a detailed near target (usually a small picture or a toy) in front of the subject as a fixation target. The left eye is closely observed. If it has been maintain- ing fixation it should not move. If it moves outwards to take up fixation an esotropia or convergent squint is present. If it moves inwards to take up fixation an exotropia or divergent squint is present.
• The cover is removed from the right eye and the left eye covered, this time closely observing the right. If it moves outwards to take up fixation an esotropia or convergent squint is present. If it moves inwards to take up fix- ation an exotropia is present. If there is no movement no squint is present.
• The test is repeated for a distance object sited at 6 metres and for a far distant object. It will also reveal a vertical squint.
• If no abnormal eye movement is seen an alternate cover test is performed. This will reveal the presence of a latent squint (a phoria), that is one which occurs only in the absence of bifoveal visual stimulation. It is not really an abnormal condition and can be demonstrated in most people who otherwise have normal binocular single vision.
• This time the cover is moved rapidly from one eye to the other a couple of times. This dissociates the eyes (there is no longer bifoveal stimulation).The right eye is now occluded and as the occluder is removed any movement in the right eye is noted. If the eye is seen to move inwards an exophoria (latent divergence) is present and the eye has moved inwards to take up fixation. If the eye is seen to move outwards to take up fixation an esophoria (latent convergence) is present. Exactly the same movements would be seen in the left eye if it were covered following dissociation.
• In an eye clinic the squint can be further assessed with the synoptophore (see p. 32). This instrument together with special three-

• Non-paralytic squint 173

• Occluder

• (b)

• (d)

• COVER/UNCOVER TEST

• Left eye Right eye

• (a)

• Occluder

• (c)




• Fig. 15.6 The cover/uncover test. (a) A manifest right convergent squint (right esotropia) is present. (b) The right, squinting eye, is occluded. There is no movement of the left eye which maintains fixation. (c) The left eye is
• occluded, the squinting right eye moves outwards to take up fixation, the non- squinting eye moves inwards because the movement of the two eyes is linked.
• (d) The cover is removed from the left eye which moves outwards to take up fixation, the right eye moves inward to resume its squinting position. (If an alternating squint was present (i.e. each eye retained the ability to fixate) the right eye would maintain fixation and the eyes would not move when the cover was removed.)


• 174
• Chapter 15: Eye movements

• TREATMENT

• A non-paralytic squint with no associated ocular disease is treated as follows:
• Any significant refractive error is first corrected with glasses.
• If amblyopia is present and the vision does not improve with glasses the better seeing eye is patched to try and stimulate the amblyopic eye thereby increasing its visual acuity.
• Surgical intervention to realign the eyes may be required for functional reasons (to restore or establish binocular single vision) or for cosmetic reasons (to prevent a child being singled out at school) (Fig. 15.7).
• The principle of surgery is to realign the eyes by adjusting the position of the muscles on the globe or by shortening the muscle. Access to the muscles is gained by making a small incision in the conjunctiva.
• Moving the muscle insertion backwards on the globe (recession) weakens the muscle.
• Removing a segment of the muscle (resection) strengthens the action.

• PROGNOSIS

• Glasses and patching can significantly improve vision in the squinting eye. Unfortunately realignment, even if performed when the child is very young, is rarely associated with the development of stereopsis in the majority of non-paralytic squints. The operation is important from the cosmetic viewpoint, however, particularly when the child starts school.
• dimensional pictures can also be used to determine whether the eyes are used together and whether stereopsis is present.
• Refractive error is measured (following topical administration of atropine or cyclopentolate eye drops to paralyse accommodation and dilate the pupil). The eye is then examined to exclude opacities of the cornea, lens or vitreous and abnormalities of the retina or optic disc.

• INVESTIGATING A SQUINT

• Determination of acuity (see p. 20)
• Detection of any abnormality in eye movement
• Detection and measurement of squint
• Measurement of stereopsis
• Determination of any refractive error
• Careful examination of the eyes including dilated fundus view


• Box 15.1 Summary of the steps taken in investigating a squinting child.

• PARALYTIC SQUINT

• Isolated nerve palsy (Fig. 15.8)
• PATHOGENESIS
• Disease of the third, fourth and sixth nerves and their central connections gives rise to a paralytic strabismus. Each nerve may be affected at any point along its course from brainstem nucleus to orbit. Table 15.1 details some causes.

• (a)

• (b)
• Anterior segment of muscle resected
• Paralytic squint 175

• SQUINT SURGERY

• Fig. 15.7 Diagrammatic illustration of the principles of squint surgery.

• Recession. The conjunctiva has been incised to expose the medial rectus muscle. The muscle is then disinserted and moved backwards on the globe.
• Resection. Following exposure of the muscle the anterior tendon and muscle is resected, thus shortening it; the muscle is then reattached to its original position.

• 176

• Chapter 15: Eye movements

• ISOLATED NERVE PALSIES

• Primary position

• Left gaze
• Right gaze
• Upgaze
• Downgaze
• (a)
• Fig. 15.8 (a) Left third nerve palsy. Note the dilated pupil and ptosis as well as the limitation of eye movement. (Continued opposite.)


• Paralytic squint 177
• HISTORY AND EXAMINATION
• The patient complains of diplopia.There may be an abnormal head posture to compensate for the inability of the eye to move in a particular direction. A third nerve palsy results in:
• failure of adduction, elevation and depression of the eye;
• ptosis;
• in some cases, a dilated pupil due to involvement of the autonomic fibres.
• A fourth nerve palsy results in defective depression of the eye when attempted in adduction. It produces the least noticeable eye movement abnormality. Patients may notice vertical double vision with some torsion of the image particularly when going downstairs or reading.
• A sixth nerve palsy results in failure of abduction of the eye.

• TREATMENT

• An isolated nerve palsy is often related to coexistent systemic disease. If a posterior communicating aneurysm is suspected the patient must be sent for neurosurgical review and angiography. The most common cause of a palsy is microvascular disease of the peripheral cranial nerve, itself

Right downgaze

Left gaze
(b)
(c)
• Fig. 15.8 (Continued.)
• (b) Left fourth nerve palsy, the defect is maximal when the patient tries to look down when the left eye is adducted. (c) Sixth nerve palsy, the left eye is unable to abduct.

• 178

• Chapter 15: Eye movements

• ISOLATED NERVE PALSIES

• Orbital disease (e.g. neoplasia)
• Vascular disease
• Diabetes (a ‘pupil sparing’ third nerve palsy, i.e. there is no mydriasis)
• Hypertension
• Aneurysm (most commonly a painful third nerve palsy from an aneurysm of the posterior communicating artery. Mydriasis is usually present)
• Carotid-cavernous sinus fistula (also causes myogenic palsy) Cavernous sinus thrombosis
• Trauma
• (Most common cause of fourth and sixth nerve palsy)
• Neoplasia
• Meningioma Acoustic neuroma Glioma
• May cause a third or sixth palsy (a false localizing sign)
• Raised intracranial pressure
• Inflammation
• Sarcoidosis
• Vasculitic disease (i.e. giant cell arteritis) Infection (particularly herpes zoster) Guillain–Barré syndrome
• Table 15.1 The cause of isolated nerve palsies.
• associated with diabetes or hypertension. Here, nerve function recovers over some months and the symptoms abate.
• Orbital disease (see p. 41) and disease in the cavernous sinus may also be the cause of multiple nerve palsies as the third, fourth and sixth nerves become anatomically close together. A CT or MRI scan will show the lesion (e.g. an orbital metastasis).
• Diplopia can be helped by fitting prisms to the patient’s glasses which realign the retinal images. Alternatively the affected eye can be patched. If eye movements fail to improve spontaneously then surgical intervention may be required. Such intervention will seldom restore normal eye movement but is aimed at restoring an acceptable field of binocular single vision in the primary positions of gaze (i.e. straight ahead and in downgaze), the commonest positions in which the eyes are used.


• Disease of the extraocular muscles 179
• DISEASE OF THE EXTRAOCULAR MUSCLES
• Dysthyroid eye disease (Fig. 15.9)
• PATHOGENESIS
• Disorders of the thyroid gland can be associated with an infiltration of the extraocular muscles with lymphocytes and the deposition of glycosaminoglycans. An immunological process is suspected but not fully determined.

• SYMPTOMS AND SIGNS

• The patient may sometimes complain of:
• A red painful eye (associated with exposure caused by proptosis). If the redness is limited to part of the eye only it may indicate active inflammation in the adjacent muscle.
• Double vision.
• Reduced visual acuity (sometimes associated with optic neuropathy). On examination:
• There may be proptosis of the eye (the eye protrudes from the orbit, also termed exophthalmos).
• The eye may be chemosed and injected over the muscle insertions.
• The upper lid may be retracted so that sclera is visible (thought to be due in part to increased sympathetic activity stimulating the sympathetically innervated smooth muscle of levator). This results in a characteristic stare.
• The upper lid may lag behind the movement of the globe on downgaze (lid lag).
• There may be restricted eye movements or squint (also termed restrictive thyroid myopathy, exophthalmic ophthalmoplegia, dysthyroid eye disease or Graves’ disease).
• The inferior rectus is the most commonly affected muscle. Its movement becomes restricted and there is mechanical limitation of the eye in upgaze. Involvement of the medial rectus causes mechanical limita- tion of abduction thereby mimicking a sixth nerve palsy. A CT or MRI scan shows enlargement of the muscles.
• Dysthyroid eye disease is associated with two serious acute complications:
• 1 Excessive exposure of the conjunctiva and cornea with the formation of chemosis (oedematous swelling of the conjunctiva), and corneal ulcers due to proptosis and failure of the lids to protect the cornea. The condi- tion may lead to corneal perforation.

• 180

• Chapter 15: Eye movements
• TREATMENT
• Corneal exposure and optic nerve compression require urgent treatment with systemic steroids, radiotherapy or surgical orbital decompression.
• In the long term, treatment may be needed for the eye movement problems and to improve the cosmetic appearance. A period may elapse while the eye movements stabilize, during which time prisms can be added to manage the diplopia. Once stabilized, if the patient remains sympto- matic, surgery on the extraocular muscles can be performed to increase the field of binocular single vision. If desired cosmetic surgery to lower the upper lids can also be performed following the squint surgery.
• Myasthenia gravis
• PATHOGENESIS
• Myasthenia gravis is caused by the development of antibodies to the acetylcholine receptors of striated muscle. It affects females more than males and although commonest in the 15–50 age group may affect young children and older adults. Some 40% of patients may show involvement of the extraocular muscles only.


• SYMPTOMS AND SIGNS
• The extraocular muscles fatigue resulting in a variable diplopia. A variable ptosis may also be present.This can be demonstrated by asking the patient
• 2 Compressive optic neuropathy due to compression and ischaemia of the optic nerve by the thickened muscles. This leads to field loss and may cause blindness.



(b)
• Fig. 15.9 (a) The clinical appearance of dysthyroid eye disease; (b) a CT scan demonstrating muscle thickening.
• (a)

• ➚

• Ocular myositis
• This is an inflammation of the extraocular muscles associated with pain and diplopia, leading to a restriction in the movement of the involved muscle (similar to that seen in dysthyroid eye disease). It is not usually associated with systemic disease but thyroid abnormalities should be excluded. The conjunctiva over the involved muscle is inflamed. CT or MRI scanning shows a thickening of the muscle. If symptoms are troublesome it responds to a short course of steroids.
• Ocular myopathy
• Ocular myopathy (progressive external ophthalmoplegia) is a rare condition where the movement of the eyes is slowly and symmetrically reduced. There is an associated ptosis. Ultimately, eye movement may be lost completely.
• Brown’s syndrome
• The action of the superior oblique muscle may be congenitally restricted which reduces elevation of the eye when it is adducted (Brown’s syndrome). The exact cause remains unknown although it may involve restriction of tendon movement as it passes through the trochlea pulley. The condition may also result from trauma to the orbit.
• Duane’s syndrome
• This is a ‘congenital miswiring’ of the medial and lateral rectus muscles


• Disease of the extraocular muscles 181

• to look up and down rapidly a number of times to fatigue the muscle. There may be evidence of systemic muscle weakness.

• TREATMENT

• The diagnosis can be confirmed by electromyography or by determining whether an injection of neostigmine or edrophonium (cholinesterase antagonists) temporarily restores normal muscle movement. This test must be performed under close medical supervision with resuscitation equipment and atropine to hand because of the possibility of cholinergic side effects such as bradycardia and bronchospasm.
• Patients are treated, in collaboration with a neurologist, with neostigmine or pyridostigmine. Systemic steroids and surgical removal of the thymus also have a role in treatment.

• (cases of an absent sixth nerve and nucleus are also reported). There is neuromuscular activity in the lateral rectus during adduction and reduced lateral rectus activity in abduction. This results in limited abduction and apparent narrowing of the palpebral aperture on adduction with retraction of the eye into the globe (due to contraction of both medial and lateral rectus muscles). The condition may be unilateral or, more rarely, bilateral. Children do not usually develop amblyopia because binoc- ular alignment is normal in some positions of gaze and surgical interven- tion is often not required.
• GAZE PALSIES
• Disordered eye movement results from damage to the pathways connecting the cranial nerve nuclei and the higher centres.The abnormality in eye movements depends on the point at which the pathway is disrupted. Both the extent and form of eye movement may be affected. Some of the more common are briefly described below. The ophthalmologist usually investigates and manages these patients with the help of a neurologist.
• Lesions of the parapontine reticular formation (PPRF)
• PATHOGENESIS
• The PPRF controls the horizontal movements of the eyes. Lesions affecting the PPRF are usually associated with other brainstem disease. It may be seen in patients with:
• vascular disease;
• tumours.

• SYMPTOMS AND SIGNS

• There is:
• a failure of horizontal movements of both eyes to the side of the lesion (a horizontal gaze palsy);
• deviation of the eyes to the contralateral side in acute cases.
• Internuclear ophthalmoplegia (Fig. 15.10)
• PATHOGENESIS
• It is caused by a lesion of the medial longitudinal fasciculus (MLF). The MLF connects the sixth nerve nucleus to the third nerve nucleus on the oppo- site side and coordinates their activity in gaze movements.


• 182
• Chapter 15: Eye movements

• Parinaud’s syndrome (dorsal midbrain syndrome)

• PATHOGENESIS
• In Parinaud’s syndrome a lesion exists in the dorsal midbrain involving the centre for vertical gaze. It may be seen in patients with:
• Gaze palsies 183

• It may become damaged in:

• demyelination (e.g. multiple sclerosis— usually bilateral);
• vascular disease (unilateral).

• SYMPTOMS AND SIGNS

• The patient complains of horizontal diplopia.
• There is a:
• reduction of adduction on the same side as the lesion.
• nystagmus of the contralateral, abducting eye.

• MANAGEMENT

• Spontaneous recovery is usual. An MRI scan may be helpful diagnostically both to locate the causal brainstem lesion and, in demyelination, to determine whether other plaques are present.

• 3rd nucleus

• 4th nucleus

• Parapontine reticular formation (PPRF)

• 3rd nucleus

INTERNUCLEAR OPHTHALMOPLEGIA

• Left Right

• 4th nucleus

• 6th

• Midbrain
• Pons nucleus
Medial
longitudinal
fasciculus
• Lesion producing an internuclear
• ophthalmoplegia

• Parapontine reticular formation (PPRF)

• 6th

• nucleus


• Fig. 15.10 Diagram showing the site of the lesion producing an internuclear ophthalmoplegia.

• 184

• Chapter 15: Eye movements
• demyelination;
• space-occupying lesions such as a pinealoma which press on the tectum;
• infarction of the dorsal midbrain;
• an enlarged third ventricle.

• SYMPTOMS AND SIGNS

• The disorder causes:
• deficient elevation of both eyes;
• convergence of the eyes and retraction into the orbit associated with nystagmus on attempted elevation;
• light–near dissociation of the pupil (the pupil constricts on accommodation but reacts poorly to a light stimulus).
• ABNORMAL OSCILLATIONS OF THE EYES
• Nystagmus
• This refers to repeated involuntary to and fro or up and down movements of the eyes. Similar movements may occur normally when following a moving object (e.g. looking out of a train window) (optokinetic nystagmus) or following stimulation of the vestibular system. When examined closely they may be seen to have a slow phase in one direction and a fast phase in the other ( jerk nystagmus). The nystagmus is described as beating to the side of the fast component. In some cases the speed of eye movement may be roughly the same in either direction (pendular nystagmus). Jerk nystagmus may also be seen at the extreme position of gaze (end gaze nystagmus).

• ACQUIRED NYSTAGMUS

• Pathologically, jerk nystagmus may be seen:
• In cerebellar disease, when it is worse when gaze is directed towards the side of the lesion. The fast movement is directed towards the side of the lesion.
• With some drugs (such as barbiturates).
• In damage to the labyrinth and its central connections when a fine jerk nystagmus results. The fast phase of the movement is away from the lesion and it is usually present only acutely.
• An upbeat nystagmus (fast phase upwards) is commonly associated with brainstem disease. It may also be seen in toxic states, e.g. with excess alcohol intake.


• Abnormal oscillations of the eyes 185

• A downbeat nystagmus may be seen in patients with a posterior fossa lesion near the cervicomedullary junction (e.g. a Chiari malformation where cerebellar tissue passes through the foramen magnum). It may also be seen in patients with demyelination and again may be present in toxic states.
• Patients with nerve palsies or weakness of the extraocular muscles may develop nystagmus when looking in the direction of the affected muscle (gaze-evoked nystagmus). The fast phase of the movement is in the field of action of the weak muscle.
• Patients with acquired nystagmus complain that the visual environment is in continual movement (oscillopsia).

• CONGENITAL NYSTAGMUS

• Nystagmus can be congenital in origin.
• Sensory congenital nystagmus. Here the movements may be at similar speeds in both directions (pendular nystagmus) or of the jerk variety. It is associated with poor vision (e.g. congenital cataract, albinism).
• Motor congenital nystagmus is a jerk nystagmus developing at birth in children with no visual defect.
• The continuous movement of the eye reduces visual acuity but does not cause oscillopsia in congenital nystagmus. The exact degree of disability depends on:
• the speed of the nystagmus;
• whether there are short periods of rest between the nystagmoid movements when objects can be focused on the fovea;
• whether the nystagmus is reduced by accommodation as is often the case.
• Some subjects find a position of the eyes which reduces the nystagmus to a minimum (the null position), thus maximizing visual acuity.

• KEY POINTS

• In analysing eye movement problems try to determine whether there is a reduction in the range of eye movements, an abnormal position of the eyes, an abnormality in the form of eye movement or a combination of these disorders.
• An abnormality in the range of eye movements may reflect muscular, orbital, infranuclear or supranuclear disease.
• In a child with a squint it is important to exclude intraocular pathology.
• An intracranial aneurysm may present as a painful third nerve palsy involving the pupil.


• Box 15.2 Key points in eye movement disorders.

• CHAPTER 16

• Trauma

• INTRODUCTION

• Although the eye is well protected in the orbit it may be subject to injuries from which no part is immune (Fig. 16.1). Forms of injury include:
• Foreign bodies becoming lodged under the upper lid or on the surface of the eye, especially the cornea.
• Blunt trauma from objects small enough not to impact on the orbital rim (shuttlecocks, squashballs, champagne corks and knuckles are some of the offenders). The sudden alteration of pressure, and distortion of the eye may cause severe damage.
• Penetrating trauma where ocular structures are damaged by a foreign body which passes through the ocular coat and may also be retained in the eye. With the introduction of the seat belt laws the incidence of penetrating injury following road traffic accidents has declined.
• Chemical and radiation injury where the resultant reaction of the ocular tissues causes the damage.
• HISTORY, SYMPTOMS AND SIGNS
• A careful history is essential:
• Use of a hammer and chisel can release a flake of metal which will penetrate the globe, leaving only a tell-tale subconjunctival haemorrhage to indicate penetration of the sclera and suggest a retained foreign body.
• A wire under tension, or a rose thorn, may penetrate the cornea briefly, sometimes creating a barely visible track.

• 186

• LEARNING OBJECTIVES

• To be able to:

• Take a history in a case of eye trauma. To understand:
• The effects of trauma on the eye and ocular adnexae.
• The management of penetrating eye trauma.
• The management of chemical injury to the eye.

Examination 187

• A blunt injury to the eye may also result in damage to the orbit (blow- out fracture).
• It is vitally important to determine the nature of any chemical that may have been in contact with the eye. Strong alkalis penetrate the anterior tissues of the eye and may rapidly cause irreversible damage.
• The patient’s symptoms will relate to the degree and type of trauma suffered. Pain, lacrimation and blurring of vision are common features of trauma but mild symptoms may disguise a potentially blinding intraocular foreign body. As in all history taking it is essential to enquire about previous ocular and medical history.
• EXAMINATION
• Without a slit lamp
• The examination will depend on the type of injury. In all cases it is






• TRAUMATIC EYE DAMAGE
• Vitreous haemorrhage
• Dialysis of the retina
• Traumatic mydriasis
• Traumatic uveitis
• Corneal foreign body
• Cataract Hyphaema
• Zonular damage

• Damage to the angle Dialysis of the iris

• Corneal laceration Corneal abrasion
• Commotio retinae
• Macula hole
• Scleral rupture
• Choroidal rupture

• Traumatic optic neuropathy

• Fig. 16.1 The extent of possible traumatic damage to the eye.

• 188
• Chapter 16: Trauma

• Upgaze and downgaze limited by tethered muscle

• important that visual acuity is recorded in the injured and uninjured eye. Where a penetrating injury is suspected and pressure to the globe must be avoided, it may only be possible to measure an approximate vision in the injured eye. The skin around the orbit and eyelids should be carefully examined for a penetrating wound.

• ORBITAL INJURY

• Damage to the orbit itself (a blow-out fracture; Fig. 16.2) is suspected if the following signs are present:
• Emphysema (air in the skin which crackles when pressed) derived from a fractured sinus.
• A patch of paraesthesia below the orbital rim suggesting infraorbital nerve damage. The infraorbital nerve is commonly injured in orbital blow- out injury involving the floor of the orbit.
• Limitation of eye movements, particularly on upgaze and downgaze, due to tethering of the inferior rectus muscle by connective tissue septa

• BLOW-OUT FRACTURE

• Prolapse into the orbital floor fracture

• Fig. 16.2 A blow-out fracture.

• Fig. 16.3 A

• subconjunctival haemorrhage.


• Examination 189

• caught on the fractured bone (the inferior orbital floor is the most commonly fractured).
• Subsequently the eye may become recessed into the orbit (enophthalmos).
• If the lid margin is cut at the medial canthus it is important to determine if either of the lacrimal canaliculi are involved.
• Further examination of a traumatized eye will require the instillation of a local anaesthetic to facilitate lid opening (lignocaine, amethocaine). If a penetrating eye injury is suspected it is important that no pressure is applied to the globe.

• PENETRATING EYE INJURY

• History of high velocity object hitting the eye
• Dark tissue in the cornea or sclera (iris plugging of wound)
• Distortion of the pupil
• Unusually deep anterior chamber
• Cataract
• Vitreous haemorrhage

• Box 16.1 Symptoms and signs of a penetrating eye injury.

• THE CONJUNCTIVA AND SCLERA
• These must be examined for the presence of any lacerations. If the history is appropriate a subconjunctival haemorrhage should be considered to be the potential site of a scleral perforation (Fig. 16.3). The fundus should be examined with full mydriasis.
• If a chemical injury has occurred the conjunctiva may appear white and ischaemic (Fig. 16.4). If such changes are extensive, involving the greater part of the limbal circumference, corneal healing is likely to be grossly


• 190
• Chapter 16: Trauma
• impaired and there will be additional complications such as uveitis, sec- ondary glaucoma and cataract.

• THE CORNEA

• This is examined for loss of the epithelial layer (abrasion), for lacerations and for foreign bodies (Fig. 16.5).The instillation of fluorescein will identify the extent of an abrasion and, if concentrated, will identify a leak of aqueous through a penetrating wound (see p. 28). If the globe appears intact and a subtarsal foreign body is suspected (signalled by fine, vertical, linear corneal abrasions) the upper lid must be everted (see pp. 28–29). This exposes the underside of the lid and allows any foreign body to be identified and removed.
• Electromagnetic radiation may injure the conjunctiva and the cornea. Unprotected exposure to ultraviolet radiation from an arc-lamp (arc eye), sunlamp or reflected from snow, is the commonest cause of this severely painful condition. Typically, ocular pain occurs acutely, 6 hours after exposure to the radiation and the cornea shows diffuse epithelial oedema and punctate damage which resolves within 24–48 hours.

• (a)

(b)
• Fig. 16.4 (a) An everted lid showing ischaemia of the upper tarsal conjunctiva following an alkali burn; (b) a hazy cornea following an alkali burn.



• Fig. 16.5 A corneal foreign body. (With permission from Sue Ford, Western Eye Hospital.)


• Examination 191

• THE ANTERIOR CHAMBER

• Blunt trauma may cause haemorrhage into the anterior chamber where it collects with a fluid level (hyphaema). This is caused by rupture of the root of the iris blood vessels or the iris may be torn away from its insertion into the ciliary body (iris dialysis) to produce a D-shaped pupil. Hyphaema may also be seen with a penetrating eye injury, and the shape of the pupil may be distorted if the peripheral iris has plugged a penetrating wound (Fig. 16.6). The pupil may also be dilated as a result of blunt trauma (traumatic mydriasis).

• THE LENS

• Dislocation of the lens following blunt trauma may be suggested by a fluttering of the iris diaphragm on eye movement (iridodnesis). Lens clarity should be assessed with the slit lamp and against the red reflex after pupil dilation. Cataracts develop abruptly with direct penetrating trauma (Fig. 16.7). Blunt trauma also causes a posterior subcapsular cataract within hours of injury, which may be transient.
• (a)
(b)
• Fig. 16.6 (a) A hyphaema; (b) penetrating eye injury (note the eyelashes in the anterior chamber and the distorted iris).



• Fig. 16.7 The lens in this patient has become disrupted and cataractous following penetrating trauma.

• 192

• Chapter 16: Trauma
• THE FUNDUS
• The fundus should be inspected with a direct ophthalmoscope after full mydriasis. If no neurological complications accompany the injury and an ocular penetration is not suspected, the pupil can be dilated. If no details are visible this suggests a vitreous haemorrhage. Areas of retinal haemor- rhage and whiteness (oedema) may be seen (commotio retinae). A retinal dialysis (a separation of the peripheral retina from its junction with the pars plana of the ciliary body) and a macular hole (see p. 119) may also result from blunt trauma. The choroid may also become torn; acutely this may cause sub-retinal haemorrhage which is followed by the development of sub-retinal scarring. Peripheral retinal changes can only be excluded with indirect ophthalmoscopy or slit lamp microscopy.
• The optic disc may be pale from a traumatic optic neuropathy caused by avulsion of the blood vessels supplying the optic nerve. Although this is uncommon it usually leads to a profound loss of vision. No treatment is available.
• With a slit lamp
• The slit lamp will allow a more detailed examination to be performed, which may reveal:
• A shallow anterior chamber compared to the fellow eye suggesting anterior penetrating injury.
• A microscopic hyphaema where the red cells are present in the anterior chamber but have not settled to form a hyphaema.
• The presence of white cells in the anterior chamber (traumatic uveitis).
• Recession of the iridocorneal angle seen with a gonioscopic contact lens (the insertion of ciliary muscle into the scleral spur moves posteriorly). This may be seen in blunt trauma.
• Raised intraocular pressure measured by applanation tonometry. This may accompany a hyphaema or lens dislocation.
• TREATMENT
• Lacerations to the skin and lids
• These require careful suturing particularly if the lid margin is involved. If one of the lacrimal canaliculi is damaged an attempt can be made to repair it but if repair is unsuccessful usually the remaining tear duct is capable of draining all the tears. If both canaliculi are involved, an attempt at repair should always be made.


• Treatment 193
• Corneal abrasions
• These normally heal rapidly and should be treated with antibiotic ointment and an eye pad. Dilatation of the pupil with cyclopentolate 1% can help to relieve the pain caused by spasm of the ciliary muscle.
• Following such injury, usually with flexible objects such as fingernails, twigs or the edge of a newspaper a minority of patients may be troubled by recurrent episodes of pain particularly in the early hours of the morning or on waking. This condition is termed recurrent corneal erosion and is due to a defective adhesion of the resurfacing epithelium to Bowman’s layer at the site of injury. Prophylaxis against recurrent corneal erosions can be achieved by using a lubricating ointment at night, but more permanent results can be achieved by inducing a sub-epithelial scar. The scar can be induced by laser treatment or by applying a series of micro- punctures to the affected zone.
• Radiation injury to the cornea responds quickly to the same treatment as an abrasion.
• Corneal foreign bodies (Fig. 16.8)
• Corneal foreign bodies should be removed with a needle under topical anaesthesia; a rust ring may remain and can be removed with a small burr. Subtarsal objects can often be swept away with a cotton wool bud from the everted lid.The patient is then treated as for an abrasion. If there is any suggestion that a foreign body may have penetrated the globe the eye must be carefully examined with dilation of the pupil to allow a good view of the lens and retina. An X-ray with the eyes looking up and then the eyes looking down or a CT scan may also be indicated if an intraocular foreign body is suspected. Microsurgical techniques can be used to remove foreign bodies from the eye under direct visualization.

• Fig. 16.8 Removal of a superficial ocular foreign body at the slit lamp.

• 194
• Chapter 16: Trauma
• Corneal and scleral penetrating trauma
• Once identified no further examination of the globe should be performed but a shield should be gently placed over the eye and the patient referred for urgent ophthalmic treatment. These serious injuries, often with grave implications for sight, require careful microsurgical suturing to restore the integrity of the globe. Once the eye has settled from this primary repair additional operations are often required to:
• remove a cataract;
• remove a foreign body;
• repair a detached retina or remove the vitreous gel to prevent this happening.
• Occasionally, in the longer term, the fellow eye may develop sympathetic ophthalmitis (see p. 99).
• Uveitis
• This reponds to the usual treatment with steroids and dilating drops. It may be accompanied by elevated intraocular pressure requiring additional medical treatment.
• Hyphaema
• This usually settles with rest but a rebleed may occur in the first 5–6 days after injury. Children usually require admission to hospital for a few days while adults can be treated at home provided they can rest and no complications develop. Steroid eye drops are given for a short time together with dilatation of the pupil. Steroids reduce the risk of rebleeds. The commonest complication is a raised ocular pressure, particularly if there is a secondary bleed, which tends to be more severe than the first. It is for this reason that rest is important. Raised pressure usually responds to medical treatment but occasionally surgical intervention is required. When the hyphaema has settled it is important that the eye is carefully checked for other complications of blunt trauma. Hyphaemia clears slowly after trauma in patients with sickle cell disease because sickling retards red cell removal from the chamber.
• Retinal damage
• Commotio retinae: the affected zone of retina opacifies and obscures the underlying choroidal detail. It usually resolves but requires careful obser- vation since retinal holes may develop in affected areas and may lead to subsequent retinal detachment.


• Prognosis 195

• Retinal dialysis requires surgical intervention to repair any detached retina.

• A vitreous haemorrhage may absorb over several weeks, or may require removal by vitrectomy. An ultrasound scan is useful in detecting associated retinal detachments.
• Chemical injury
• The most important part of the treatment is to irrigate the eye immediately with copious quantities of clean water. It is also important to irrigate under the upper and lower lid to remove solid particles, e.g. lime. The nature of the chemical can then be ascertained by history and mea- suring tear pH with litmus paper. Administration of steroid and dilating drops may be required. Vitamin C given both orally and topically may improve healing. Systematic and topical anticollagenases may be needed (e.g. tetracyclines).
• Extensive damage to the limbus may prevent resurfacing of the cornea with epithelium. A prolonged epithelial defect may lead to a corneal ‘melt’ (keratolysis). This is treated by limbal transplantation (which provides a new source of stem cells) or an overlay with amniotic membrane (which expands the remaining stem cells).
• Orbital blow-out fracture
• If a blow-out fracture is suspected, a CT scan will delineate the bony and soft tissue injury. If this is not possible then plain orbital X-rays are performed. Treatment may be delayed until the periorbital swelling has settled. At this later stage the degree of enophthalmos and the limitation of eye movement can be measured. If the enophthalmos is cosmetically unacceptable or eye movements significantly limited then surgical repair of the orbital fracture is indicated. Although some surgeons advocate an early intervention to obtain the best results many patients will require no surgery at all.
• PROGNOSIS
• The eye heals well following minor trauma and there are rarely long term sequelae save for the occurrence of the recurrent erosion syndrome. Penetrating ocular trauma, however, is often associated with severe visual damage and may require extensive surgery. Long-term retention of iron foreign bodies may destroy retinal function by the generation of free radi- cals. Similarly, chemical injuries to the eyes can result in severe long-term visual impairment and ocular discomfort. Blunt trauma can cause untreat-

• 196

• Chapter 16: Trauma

• able visual loss if a retinal hole develops at the fovea. Vision will also be impaired if the choroid at the macula is damaged. In the longer term sec- ondary glaucoma can develop in an eye several years after the initial insult if the trabecular meshwork has been damaged. Severe orbital trauma may also cause both cosmetic and oculomotor problems.

• KEY POINTS

• Take an accurate history.
• Foreign bodies can often be found under the upper lid.
• Persistent pain in an intact eye suggests a subtarsal foreign body.
• Irrigate chemical injuries immediately with clean water.
• Suspect a perforating eye injury if the pupil is not round, a cataract has developed rapidly or a vitreous haemorrhage is present.


• Box 16.2 Key points in ocular trauma.

• CHAPTER 18

• Clinical cases

• INTRODUCTION

• These case histories are designed to test your understanding of the symptoms, signs and management of ophthalmic disease that have been discussed in this book. Answers include reference to pages where additional information may be found.
• CLINICAL CASES
• Case 1
• A 70-year-old lady presents to the eye casualty department with sudden loss of vision in her right eye. She has noted increasing headache and her scalp is tender when she combs her hair. She complains of pain in the jaw when she eats and tires easily. There is no ophthalmic history but she suffers from peptic ulceration. She takes no regular medications. There is no family history of medical problems.
• Examination reveals a vision of counting fingers in the affected eye. A relative afferent pupillary defect is present (see p. 25). The optic disc appears slightly swollen (Fig. 18.1). The left eye is normal.

• Questions

• What is the likely diagnosis?
• What is the immediate treatment? How would you confirm the diagnosis?
• What other precautions would you take?

• Answers

• The patient almost certainly has giant cell arteritis causing ischaemic optic neuropathy (see p. 160). Intravenous and oral steroids must be given immediately before any other diagnostic step is taken for there is a risk of blindness in the fellow eye.


199

• Case 2

• A 40-year-old man presents with sudden onset of a drooping left eyelid. When he lifts the lid with his finger he notices that he has double vision. He has a severe headache. He is otherwise fit and well with no past ophthalmic history. He is on no regular medication. There is no family history of medical problems.
• Examination reveals normal visual acuity in both eyes. A left ptosis is present. The left pupil is dilated. The left eye is abducted in the primary position of gaze. Testing of eye movements reveals reduced adduction ele- vation, and depression of the left eye. The remainder of the eye examina- tion is normal.

• Questions

• What nerve palsy is present? What is the most likely cause? What is the management?

• Answers

• The man has a third nerve palsy (see p. 177). An aneurysm from the poste- rior communicating artery pressing on the third nerve must be the initial

• 200

• Chapter 18: Clinical cases

• Fig. 18.1 The appearance of disc in case 1.

• An ESR, CRP and temporal artery biopsy would help to confirm the diagnosis.
• As the patient is being treated with steroids it is important to check a chest X-ray to exclude TB (steroids may cause miliary TB to develop if the disease is present). Blood pressure and blood glucose must be monitored. The patient should be warned of the other complications of steroid therapy, including immunosuppressive effects. Treatment to prevent osteoporosis is required. A positive history of gastric ulceration indicates that prophylactic treatment with a proton pump inhibitor will be required.


• Case 3
• A 55-year-old man presents to his GP with a 5-day history of sudden onset of floaters in the left eye. These were accompanied by small flashes of light. He has treated hypertension but no other medical problems.
• The GP examines the eye and finds a normal visual acuity. Dilated fundoscopy reveals no abnormality.

• Questions

• What should the GP advise? What is the diagnosis?
• What are the associated risks?

• Answers

• As the symptoms are acute the GP should arrange for an urgent ophthalmic assessment. The man has a posterior vitreous detachment. The flashing lights are caused by traction of the vitreous gel on the retina. A tear may occur in the retina that in turn may lead to a retinal detach- ment. Laser applied around the tear while it is flat can prevent retinal detachment (see p. 127).
• Case 4
• A 75-year-old woman attends the main casualty department with nausea and vomiting. She says that her right eye is painful and red. Vision is reduced. She wears glasses for near and distance vision. She is generally fit. There is no family history of medical problems.
• On examination the casualty officer finds the vision to be reduced to counting fingers, the eye to be red, the cornea appears cloudy and the pupil oval and dilated on the affected side. No view of the fundus is obtained.

• Questions

• What is the diagnosis?
• How might it be confirmed? What is the treatment?

• Clinical cases 201

• diagnosis in a painful third nerve palsy. The patient requires urgent neuro- surgical investigation with a magnetic resonance angiogram (MRA) and possibly angiography. Urgent treatment may be required. It is also impor- tant to check blood pressure and blood glucose. Diabetics may develop a painful third nerve palsy but the pupil is not always affected.


• Answers
• The lady has acute angle closure glaucoma (see p. 103). Tonometry would reveal a high intraocular pressure (see p. 24). Gonioscopy would confirm the presence of a closed angle and a narrow angle in the fellow eye (see p. 102). The pressure must be lowered with intravenous acetazolamide and topical hypotensive drops including pilocarpine. A peripheral iridotomy is then performed, usually with a YAG laser in both eyes, to prevent further attacks.
• Case 5
• A 28-year-old man presents to his optician with a painful, red right eye. The vision has become increasingly blurred over the last 2 days. He is a soft contact lens wearer.
• The optician notes that the vision is reduced to 6/60 in the right eye, the conjunctiva is inflamed and there is a central opacity on the cornea. A small hypopyon (see p. 92) is present (Fig. 18.2).

• Questions

• What is the likely diagnosis? What should the optician do?

• Answers

• It is likely that the man has an infective corneal ulcer; he requires immedi- ate referral to an ophthalmic casualty unit. The ulcer will be scraped for culture and the contact lens and any containers cultured. Intensive broad- spectrum antibiotics are administered as an inpatient pending the result of the microbiological investigation (see pp. 74–75).

• 202

• Chapter 18: Clinical cases

• Fig. 18.2 The appearance of eye in case 5.

• Case 6
• A mother attends her GP’s surgery with her baby, now 8 months old. He has had a persistently watery eye since birth. Intermittently there is a yellow discharge surrounding the eye. The white of the eye has never been red. The baby is otherwise healthy.
• Examination reveals a white, quiet, normal eye; slight pressure over the lacrimal sac produces a yellowish discharge from the normal puncta.


• Questions
• What is the diagnosis?
• What advice would you give the mother?

• Answers

• It is likely that the child has an imperforate naso-lacrimal duct. The mother should be reassured that this often resolves spontaneously.The lids should be kept clean and the skin above the lacrimal sac can be gently massaged. Antibiotics are generally not effective. If the symptoms persist after the child’s first birthday the child can be referred to an ophthalmologist for syringing and probing of the naso-lacrimal duct (see p. 62).
• Case 7
• A 14-year-old complains of intermittent redness and soreness of the right eye. He has noticed a small lump on the upper lid. The vision is unaffected.
• Examination reveals a quiet, white eye but the upper lid has a small raised lesion on it (Fig. 18.3).

• Questions

• What is the likely diagnosis? What is the treatment?

• Clinical cases 203

• Fig. 18.3 The appearance of the lid in case 7.

• Answers
• It is likely that the lid lesion is a molluscum contagiosum. It is treated by excision (see p. 55).
• Case 8
• A 35-year-old man presents to his GP with erythematous, swollen right upper and lower eyelids, worsening over the previous 2 days. He is unable to open them. He feels unwell and has a temperature.
• Examination reveals marked lid swelling, and on manual opening of the lids a proptosis with chemotic injected conjunctiva. Eye movements are limited in all directions. Visual acuity and colour vision are normal, and there is no relative afferent pupillary defect (see p. 25). The optic disc and retina also appear normal.


• Questions
• What is the diagnosis? What is the management?

• Answers

• The man has orbital cellulitis (see pp. 44– 45). Blood cultures and a high nasal swab should be performed together with an orbital CT scan to confirm the diagnosis and delineate any abscess. He requires admission to hospital for intravenous antibiotics and close monitoring of his vision, colour vision and pupillary reflexes as he is at risk of severe optic nerve damage.The ENT surgeons should be informed as they may be required to drain an abscess. The normal acuity and colour vision suggest that the optic nerve is not compromised at present but should these change for the worse urgent surgical drainage is required.
• Case 9
• While working in the laboratory a colleague inadvertently sprays his eyes with an alkali solution.

• Questions

• What is the immediate treatment? What should you do next?

• Answers

• The eyes must be washed out with copious quantities (litres) of water immediately. Alkalis are very toxic to the eye. Failure to treat immediately

• 204

• Chapter 18: Clinical cases

• Case 10

• A 27-year-old man presents with a 2-day history of a painful red right eye; the vision is slightly blurred and he dislikes bright lights. He is otherwise fit and well, but complains of some backache. He wears no glasses.

• Questions

• What is the likely diagnosis?
• What would you expect to find on examination of the eye? What treatment would you give?
• What is the eye condition likely to be associated with?


• Answers
• The patient has iritis (see Chapter 9). Examination would reveal a reduc- tion in visual acuity, redness of the eye that is worse at the limbus, cells in the anterior chamber and possibly on the cornea (keratic precipitate) or a collection at the bottom of the anterior chamber (hypopyon). The iris may be stuck to the lens (posterior synechiae). There may be inflammation of the vitreous and retina. The patient is treated with steroid eye drops to reduce the inflammation and dilating drops to prevent the formation of posterior synechiae. The history of backache suggests that the patient may have ankylosing spondylitis.
• Case 11
• A 68-year-old lady presents with a mildly painful red eye and some blurring of vision. One year previously she had had a corneal graft. She was on no medications and was otherwise well.

• Questions

• What is the possible diagnosis?
• What treatment should the patient be given?

• Answers

• There may be a number of causes of this lady’s red eye. A diagnosis of graft rejection must be considered first of all. The patient must be referred to an eye department as an emergency. She will need intensive treatment with topical steroids to save the graft (see p. 79).

• Clinical cases 205

• may result in permanent severe ocular damage (see p. 195). The patient should then be taken to an eye emergency clinic.

• Case 12

• A 68-year-old hypertensive man noted a fleeting loss of vision in one eye lasting for about a minute. He described it as a curtain coming down over the vision. Recovery was complete. There was no pain.
• Examination revealed no abnormality.

• Questions

• What is the diagnosis?
• What treatment would you advise?


• Answers
• The patient has had an episode of amaurosis fugax, most likely caused by the passage of a fibrin–platelet embolus through the retinal arteriolar circulation. The patient requires treatment with antiplatelet drugs and a cardiovascular work-up. The most likely abnormality is a plaque on the carotid artery which may require surgery (see pp. 142–144).
• Case 13
• A 60-year-old lady presented to her GP with gradual loss of vision over some months. She noticed that the problem was particularly bad in bright sunshine. The eye was not painful or red. She was otherwise well.

• Questions

• What is the probable diagnosis?
• How can the diagnosis be confirmed? What treatment may be advised?

• Answers

• It is likely that the lady has a cataract. These can be readily seen with a slit lamp but are also well visualized with the direct ophthalmoscope in the red reflex (Fig. 18.4). The advantages and possible complications of cataract surgery should be discussed with her once the diagnosis has been confirmed (see Chapter 8).
• Case 14
• An 80-year-old lady who has already lost the vision in one eye develops distortion and reduction of vision over a few days in her good eye.
• Examination reveals an acuity of 6/12, an early cataract and an abnor- mality at the macula (Fig. 18.5).

• 206

• Chapter 18: Clinical cases

• Questions

• What is the likely diagnosis? What treatment may be helpful?


• Answers
• The rapid onset suggests that the cataract has little to do with the new visual disturbance. It is most likely due to age related macular degenera- tion (AMD) (see p. 117). In some patients, following a fluorescein angiogram, laser therapy may be helpful in preventing further progression.
• Case 15
• A 30-year-old builder was using a hammer to hit a steel chisel. He felt

• Clinical cases 207

• Fig. 18.4 The red reflex seen with direct ophthalmoscope in case 13.

• Fig. 18.5 The appearance of the macula in case 14.

• something hit his eye and the vision became blurred. He is fit and well and there is no history of medical problems.
• On examination by his GP the vision was reduced to 6/12. A fluorescein-staining lesion was seen on the cornea but this appeared Seidel’s negative. A small hyphaema was seen in the anterior chamber, and in the red reflex observed with a direct ophthalmoscope a well delineated lens opacity was seen. The retina appeared normal.

• Questions

• What is the cause of the reduced acuity? What is the likely origin of the lens opacity?
• What is the possible management of the patient?


• Answers
• It is likely that a piece of steel travelling at high velocity has penetrated the cornea, caused damage to the iris (resulting in the hyphaema) and passed into or through the lens (causing the opacity). The relatively good acuity suggests that there has been no damage to the macular region of the retina. The patient needs to be seen urgently in an eye unit. The corneal wound, if self-sealing, will probably not require suturing. The exact loca- tion of the foreign body has to be determined. Although it is unlikely to cause an infection (heat generated by the impact of the hammer on the metal may effectively sterilize the fragment) it may cause retinal toxicity if it has entered the vitreous cavity or retina. If it is enclosed in the lens (Fig. 18.6) there is less chance of retinal toxicity developing but the patient is at high risk of developing a subsequent cataract that may require operation. A foreign body that impacts on the retina or the vitreous body requires a vitrectomy to remove it, with careful examination of the retina for tears (see p. 194).
• Case 16
• A 2-year-old child was thought to have a squint by her parents. The finding was confirmed by her GP and she was referred to hospital.

• Question

• What examination must be conducted in hospital?

• Answer

• Having taken a full history, an orthoptist will measure the visual acuity of the child, examine the range of eye movements, determine the type of squint with a cover test and try to assess the degree of binocular vision

• 208

• Chapter 18: Clinical cases

• present. The child will have a refraction performed and glasses prescribed if there is a significant refractive error or a difference in the strength of the lens needed between the two eyes (anisometropia). An ophthalmologist will examine the eye to check that there is no ocular or neurological condition that may account for the squint (see p. 172).
• Case 17
• A 26-year-old lady presents with a 3-day history of blurring of vision in the right eye. This has become progressively worse. She also has pain caused by moving the eye. She has previously had an episode of weakness in the right arm 2 years ago, but this settled without treatment. She is otherwise fit and well.
• On examination in ophthalmic casualty the vision was recorded as 6/60 with no improvement on looking through a pinhole. The eye was white and quiet with no abnormality noted save for a right relative afferent pupillary defect (see p. 25).

• Questions

• What is the diagnosis?
• How could this be confirmed?


• Clinical cases 209

• Fig. 18.6 The intralenticular foreign body seen in case 15.

• What are the management options? What is the prognosis?

• Answers

• The patient has the typical symptoms and signs of optic neuritis (see p. 159).The diagnosis can be supported by an MRI scan to look for additional plaques of demyelination and a visual evoked potential to examine the functioning of the optic nerve. A neurologist may also suggest performing a lumbar puncture, particularly if there is any doubt about the diagnosis. With the possibility of a previous neurological episode it is likely that the patient has multiple sclerosis. It is of great importance that appropriate counselling is given. Steroid treatment may speed up the recovery of vision and the prognosis for recovery of vision over a few months is good.
• Case 18
• A 79-year-old man presents with a lesion on his right lower lid (Fig. 18.7). It has been there for some months and has gradually grown bigger.

• Questions

• What is the lesion?
• How should it be treated?

• Answers

• This is a basal cell carcinoma. It requires local excision. There is no problem with metastatic spread but local extension could cause severe problems as the tumour grows and infiltrates surrounding structures (see p. 56).

• 210

• Chapter 18: Clinical cases

• Fig. 18.7 The appearance of the lid in case 18.

• Case 19
• A 60-year-old man presents with tired sore eyes. He has noted that the eyelids may crust in the morning. Sometimes the white of the eye is red. The vision is unaffected. He is otherwise fit and well.

• Questions

• What is the probable diagnosis? What signs would you look for? How can this condition be treated?

• Answers

• The patient has blepharitis (see p. 52). Scaling of the lid margins and at the base of the lashes, together with inflammation of the lid margins and plug- ging of the meibomian glands, may be present (Fig. 18.8). Lid cleaning together with the use of local antibiotic ointment and possibly topical steroids (supervised by an ophthalmologist) will improve, if not alleviate, the symptoms. Heat and lid massage can restore oil flow. If associated with acne rosacea systemic tetracycline treatment may be beneficial.
• Case 20
• A 30-year-old man develops an acute red eye associated with a watery discharge. Vision is unaffected but the eye irritates. He is otherwise fit and well.

• Questions

• What is the diagnosis?

• Clinical cases 211

• Fig. 18.8 Plugging of the meibomian glands in case 19.

• What confirmatory signs would you look for on examination? What precautions would you take following your examination?

• Answers

• The patient has viral conjunctivitis (see p. 68). Examination for a pre- auricular lymph node and conjunctival follicles on the lower tarsus would confirm the diagnosis. This form of conjunctivitis is highly contagious; it is important to ensure that hands and equipment are thoroughly cleaned following the examination and that the importance of good hygiene is emphasized to the patient.

• 212

• Chapter 18: Clinical cases

• CHAPTER 19

• Useful references

• TEXTBOOKS

• Listed below are some sources that will provide more detailed informa- tion about the subjects covered in this book.
• Clinical ophthalmology
• American Academy Review Series. Published by the American Academy of Ophthalmology. (Reviews of ophthalmic subspecialty subjects.)
• Easty, D.L. & Sparrow, J.M. (eds) (1999) Oxford Textbook of Ophthalmology. Oxford University Press. ISBN 0-192-62557-8. (Large comprehensive textbook from Britain.)
• Kanski, J.J. (1999) Clinical Ophthalmology. Butterworth Heinemann. ISBN 0-750-64014-6. (Concise illustrated description of ophthalmic disease.) Kanski, J.J. (2002) Clinical Ophthalmology: Test Yourself Atlas. Butterworth Heinemann. ISBN 0-750-62189-3. (Test your knowledge with this
• companion volume.)
• Rhee, J.D. (2000) The Wills Eye Manual. Lippincott, Williams & Wilkins. ISBN 0-781-71602-0. (Concise details on the management of oph- thalmic disease.)
• Rowe, F.J. (1997) Clinical Orthoptics. Blackwell Science. ISBN 0-632-04274-5. (Outlines the examination and diagnosis of eye movement disorders.)
• Spalton, D.J., Hitchings, R.A. & Hunter, P.A. (1994) Atlas of Clinical Ophthalmology, 2nd edn. Mosby-Wolfe. ISBN 0-397-44632-2. (Illustrated account of ophthalmic disease.)
• Yanoff, M. & Duker, J.S. (1998) Ophthalmology. Mosby. ISBN 0-723-42500-0. (Also available on CD ROM.) (Large comprehensive textbook from America.)
• 213


• Basic science
• Bron, A.J.,Tripathi, R.C. &Tripathi, B.J. (1997) Wolff ’s Anatomy of the Eye and Orbit. Chapman & Hall. ISBN 0-412-41010-9.
• Elkington, A.R. (1999) Clinical Optics. Blackwell Science. ISBN 0-632-04989-8.
• Forrester, J.V. (2001) The Eye: Basic Sciences, 2nd edn. Saunders. ISBN 0-702-02541-0.
• Snell, R.S., Lemp, M.A. & Westmoreland, B.F. (1998) Clinical Anatomy of the Eye. Blackwell Science. ISBN 0-632-04344-X.
• REVIEW JOURNALS
• Eye News.
• Ed. P. Murray. Published by Pinpoint Ltd, 9 Gayfield Square, Edinburgh EH1 3NT. Bi-monthly. Provides short practical review articles and information about new developments in ophthalmology.
• Survey of Ophthalmology.
• Ed. B. Schwartz. Published by Elsevier Science. Bi-monthly. Provides in-depth well referenced review articles on particular topics in ophthalmology.
• OPHTHALMIC JOURNALS
• For detailed research articles there are numerous ophthalmic publica- tions; most of the sub-specialty fields in ophthalmology have their own journal. Among the leaders in clinical ophthalmology are:
• American Journal of Ophthalmology Archives of Ophthalmology
• British Journal of Ophthalmology Eye
• Graeffe’s Archives of Ophthalmology Ophthalmology
• Research and basic science
• Eye Research
• Investigative Ophthalmology andVisual Science

• 214

• Chapter 19: Useful references


• WEB SITES
• www.rcophth.ac.uk. The Royal College of Ophthalmology. Includes details of the college’s publications and information about ophthalmic disease for patients.
• www.aao.org. The American Academy of Ophthalmology. Test your knowl- edge of basic science. Contains updates on every aspect of ophthalmology.
• www.djo.havard.edu. The Digital Journal of Ophthalmology. Includes clinical case presentations and quizzes from the large American ophthalmic hospitals.
• www.icoph.com. The International Council of Ophthalmology. Includes a comprehensive list of ophthalmic journals with links to their web sites. Information about educational meetings. Information about eye diseases for patients linking to other web sites.
• www.eyecasualty.co.uk. The Oxford Eye Hospital. This provides details on common ocular emergencies and patient information sheets on common eye problems.
• www.mrcophth.com. Information about training hospitals in the UK, the addresses of the surgical colleges, a link to the BMJ ophthalmology job pages and a discussion board for those in training.
• www.moorfields.com. The Moorfields Eye Hospital. Describes the facilities of the hospital, courses available and has information sheets for patients on common eye diseases.
• www.rnib.org.uk. The Royal National Institute for the Blind. Produces a range of fact sheets for patients.
• www.ophthalmologyresource.com. Sponsored by a large pharmaceutical company, the website is aimed at ophthalmologists but will help students seeking more detailed information about ophthalmic topics.
• Eye News contains a web directory for companies involved in the manufac- ture of ophthalmic equipment and medicines. Some of these sites also contain clinical information.
• ORGANIZATIONS PRODUCING PATIENT INFORMATION LITERATURE
• The Royal National Institute for the Blind, 105 Judd Street, LondonWC1H 9NE, UK. Produces a variety of leaflets on common ocular conditions

• Organizations producing patient information literature 215

• from the patient’s perspective. It is also a most valuable source of informa- tion and practical help for visually impaired people.
• The Royal College of Ophthalmology, 17 CornwallTerrace, London NW1 4QW, UK.
• American Academy of Ophthalmology, PO Box 7424, San Francisco, CA 94120-7424, USA. Produces a range of booklets and guidelines on ophthalmic topics.

• 216

• Chapter 19: Useful references


• Appendices

• 217

• Deep red
• Sclera obscured
• Sub-conjunctival haemorrhage

• Diffuse bulbar and tarsal injection

• APPENDIX 1: RED EYE

• Corneal abrasion Corneal

• foreign body
• Infective conjunctivitis
• Allergic conjunctivitis
• Angle closure glaucoma

• Diffuse/focal bulbar injection

• Scleritis
• Episcleritis


• Perilimbal injection

• Uveitis

• Abrasion
• Keratitis

• Corneal opacity

• Cataract
• Vitreous haemorrhage
• *This refers to the presence of opacities in the cornea, lens or vitreous which will appear black against the red reflex

• Media cloudy*

• Media clear

• Retinal disorder

• APPENDIX 2: GRADUAL LOSS OF VISION


• Macular/retinal dystrophy
• Age related macular degeneration

• Optic nerve/pathway disorder

• Optic neuropathy

• Cranial disease affecting visual pathway

• 218
• Appendices

• Acute angle closure glaucoma

• Optic neuritis

• Embolic

• Migraine

• Giant cell arteritis

• Orbital cellulitis
• Endophthalmitis
• Painful

• Prolonged

• Ischaemic optic neuropathy
• Retinal artery occlusion
• Retinal vein occlusion
• Vitreous haemorrhage
• Retinal detachment

• Prolonged

• Painless

• Fleeting

• APPENDIX 3: ACUTE LOSS OF VISION

• Raised intracranial pressure (papilloedema with other symptoms of raised intracranial pressure)


• Blepharitis Dry eye

• Conjunctivitis

• Allergy
• Dysthyroid eye disease
• Discomfort

• APPENDIX 4: PAINFUL EYE

• Optic neuritis

• Pain on eye movements

• Giant cell arteritis
• Migraine
• Orbital cellulitis
• Causes of 'headache'

• Pain around eye

• Corneal abrasion/ foreign body
• Keratitis

• Angle closure glaucoma

• Endophthalmitis

• Uveitis Scleritis Myositis

• Severe pain
