(Fournier’s gangrene)

•  Causative organisms: mixed infection of  Haemolytic

streptococci , Staphylococcus, E. coli, Clostridium welchii.

Tx :1-



gentamicin and  cephalosporin



       2-



Wide excision of the necrotic scrotal skin



•



       3-



Many patients die despite active treatment

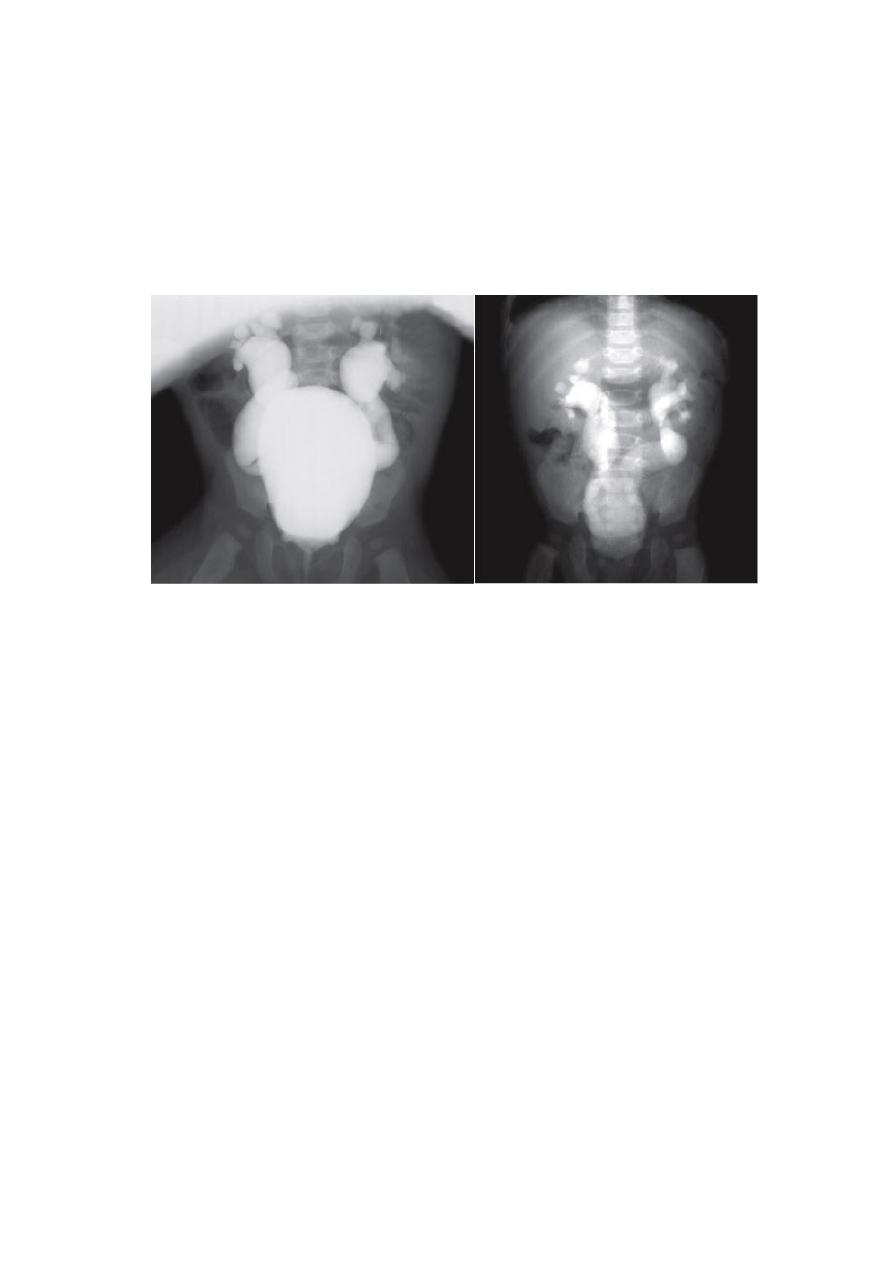

Vesicoureteral reflux:





Definition: abnormal retrograde flow of urine from the bladder
into the upper urinary tract(exam)

causes:1-congenital 2-iatrogenic 3-contracted bladder 4-
voiding dysfunction



complication:

1-

Hydroureteronephrosis 2-UTI 3-HT 4-progressive

renal failure



definitive examination:voiding cystourethrogram



Tx:1-long term antibiotic



      2-anticholinergic drugs(treat bladder overactivity)



      3-surgery:ureteral re-implantation in:




background image

a-failure of medical Tx



b-grade 4 or 5



c-



low-pressure reflux and significant hydroureter



d-



persistant reflux in girls after puberty

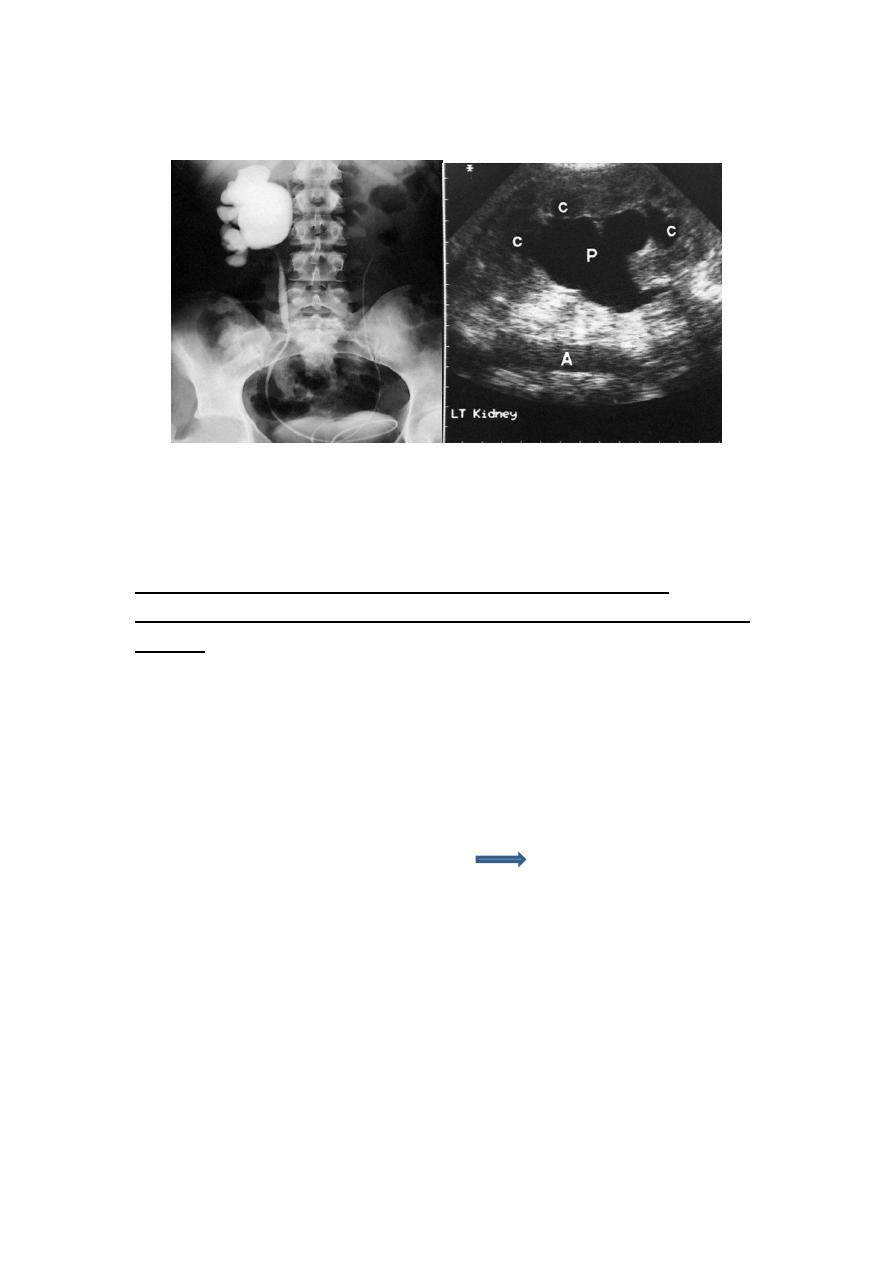

Hydronephrosis:



aseptic dilatation of the renal pelvis

usually caused by obstruction to the  outflow of
urine(exam)



Hydroureteronephrosis: dilatation of renal pelvis &
ureter.



Causes of hydronephrosis:



1-Extramural obstruction:tumor +retrocaval



2-Intramural obstruction:puj obstruction+ureterocele



3-Intraluminal obstruction:stone




background image

Most common diagnostic test?U/S then IVU







Renal colic: sudden severe agonizing pain.(exam)



radiats from costovertebral angle, toward the lower anterior

rotum

rse of the urether into the sc

u

abdominal quadrant, along the co
or vulva



Evaluation of patient:



Hx: Socrates+MAY BE VOMITING, NAUSEA



Ex:renal angle tenderness +soft abdomen + PR exam(VERY RARELY WE
DO IT).



IX:lab.:GUE+CULTURE+RFT.        RADIOLOGY:U/S +KUB+IVU+NON
CONTRAST CT



TX(EXAM):



1-DICLOFENAC(VOLTARINE)(IM)(NOT MORE THAN 150
ML\DAY)(C.I.:HT+ASTHMA+PU+RENAL IMPAIRMENT)(IF VOLTARINE IS
CONTRAINDICATED USE NARCOTICS)



2-ANTIBIOTICS



3-ANTI-EMETICS




background image

4-IV FLUID



5-INDICATION OF ADMISSION(10%)(*90% NOT NEED ADMISSION):



Child , elderly, pregnant



PAIN NOT RESPONDING(UNCERTAIN DX)



persistent vomiting



RENAL IMPAIRMENT



single kidney with ureteral obstruction



bilateral ureteral stones



Differential Diagnosis of Renal Colic



❏pyelonephritis



❏ acute ureteral obstruction





stone



UPJ obstruction



sloughed papillae



blood clot

❏radiculitis (L1 nerve root irritation)



• herpes zoster



• nerve root compression



 ❏acute abdominal crisis (biliary, bowel)



❏leaking abdominal aortic aneurysm






background image

Hematuria :

 More than three red blood cells are found in

centrifuged urine per high-power field microscopy.(exam)

*normally:1-3intact RBC ,but presence of 1 abnormal RBC is not normal

DDx of red urine(exam): 1-hematuria 2-hemoglobineuria 3-
myoglobinuria 4-metabolic:porphyria and alkaptonuria 5-drugs like
rifampicine 6-polluted urine(menstruation) 7-food dyes.

DDX of hematuria(causes of hematuria) كلش مهم التفريق بينهم االثنين:
1-GN 2-interstial nephritis 3-uroepithelium malignancy 4-AV
malformation 5-sickle cell trait 6-stones -6-drugs 8-SLE 9-TB 10-trauma

Ix :1-

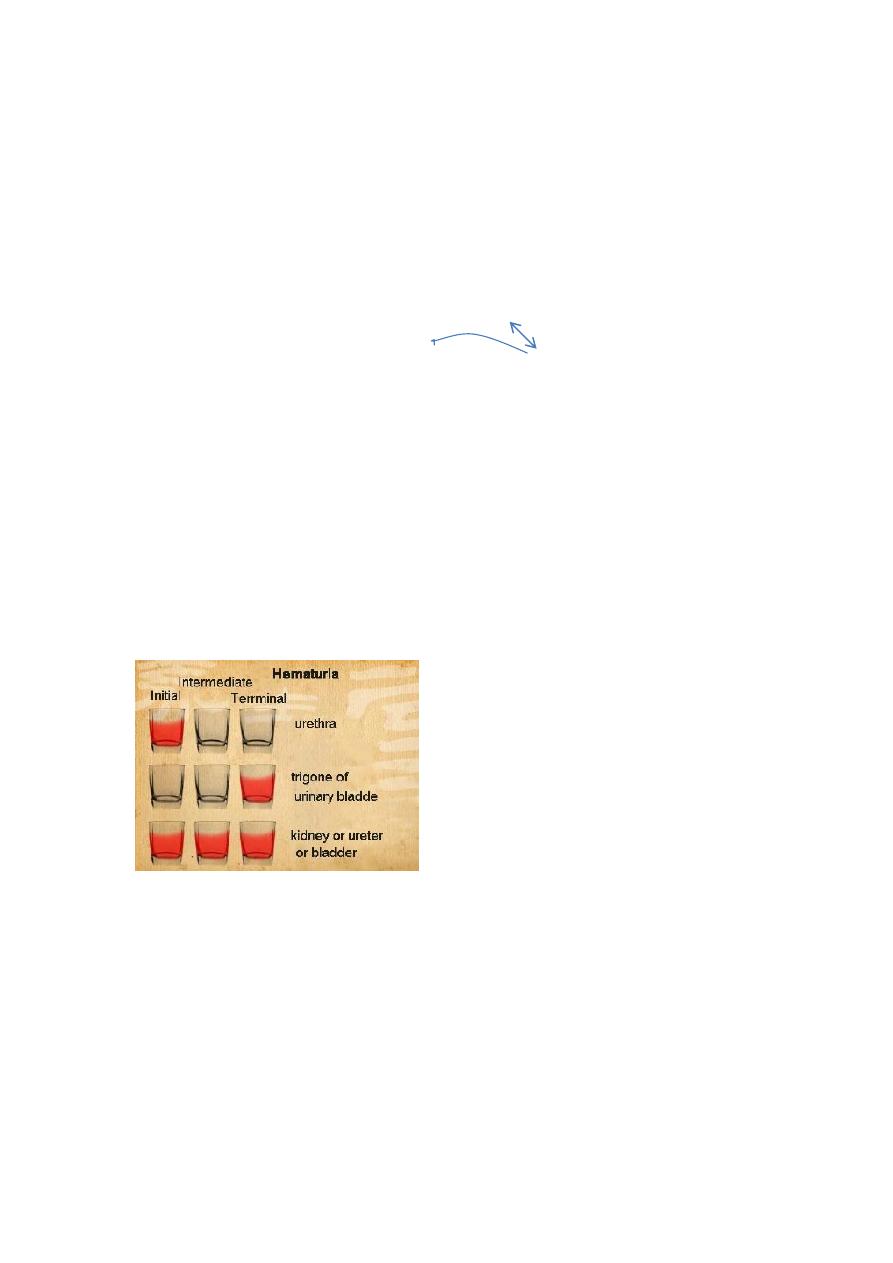

 Three-glass test(collecting the three stages of urine of a patient
during micturition)
Result:



the initial specimen containing RBC—the urethra
the last specimen containing RBC—the bladder neck and trianglar area
all the specimens containing RBC—renal or ureter or bladder




2-



Phase-contrast microscopy:



to distinguish glomerular from post

glomerular bleeding



Result :



post glomerular bleeding: normal size and shape of RBC



glomerular bleeding: dysmorphic RBC (acanthocyte)




background image



PHASE-CONTRAST MICROSCOPY TEST (non-glomerlar bleeding)





PHASE-CONTRAST MICROSCOPY TEST (glomerular bleeding)



Symptoms of urology

Associated symptoms : Fever, Chills, Weight loss, Nausea, Vomiting .

Irritative symptoms : Frequency, Nocturia, Dysuria, Urgency .

Obstructive Symptoms :poor stream , dribbling , Hesitancy,
incontinence, retention of urine.


background image



Stone :












background image







Types : calcium stones , struvite stones , uric acid stones, cysteine stones
,other rare types.

Ix :1-general:CBC,RFT,GUE

      2-RADIOLOGY:

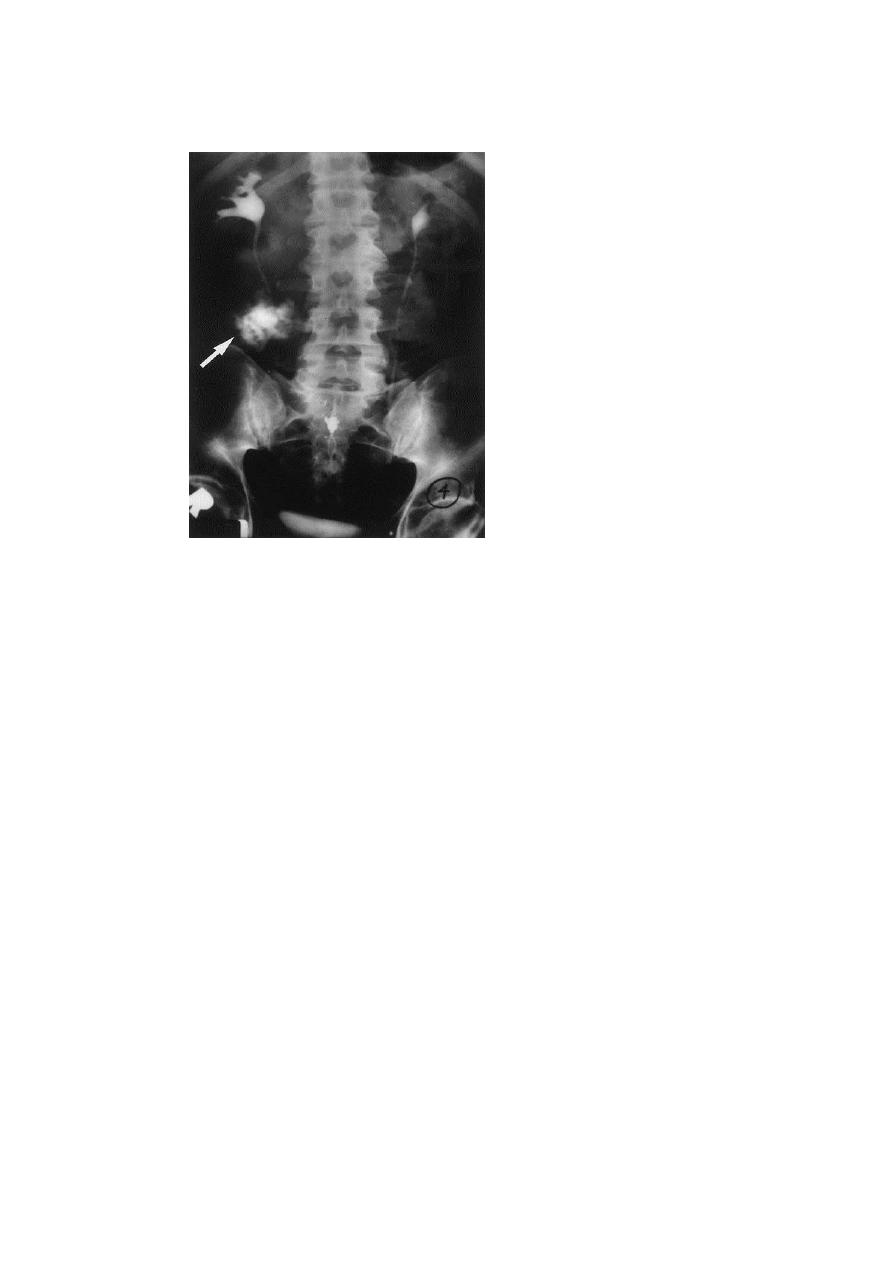

 KUB:radiopaque mass(white)

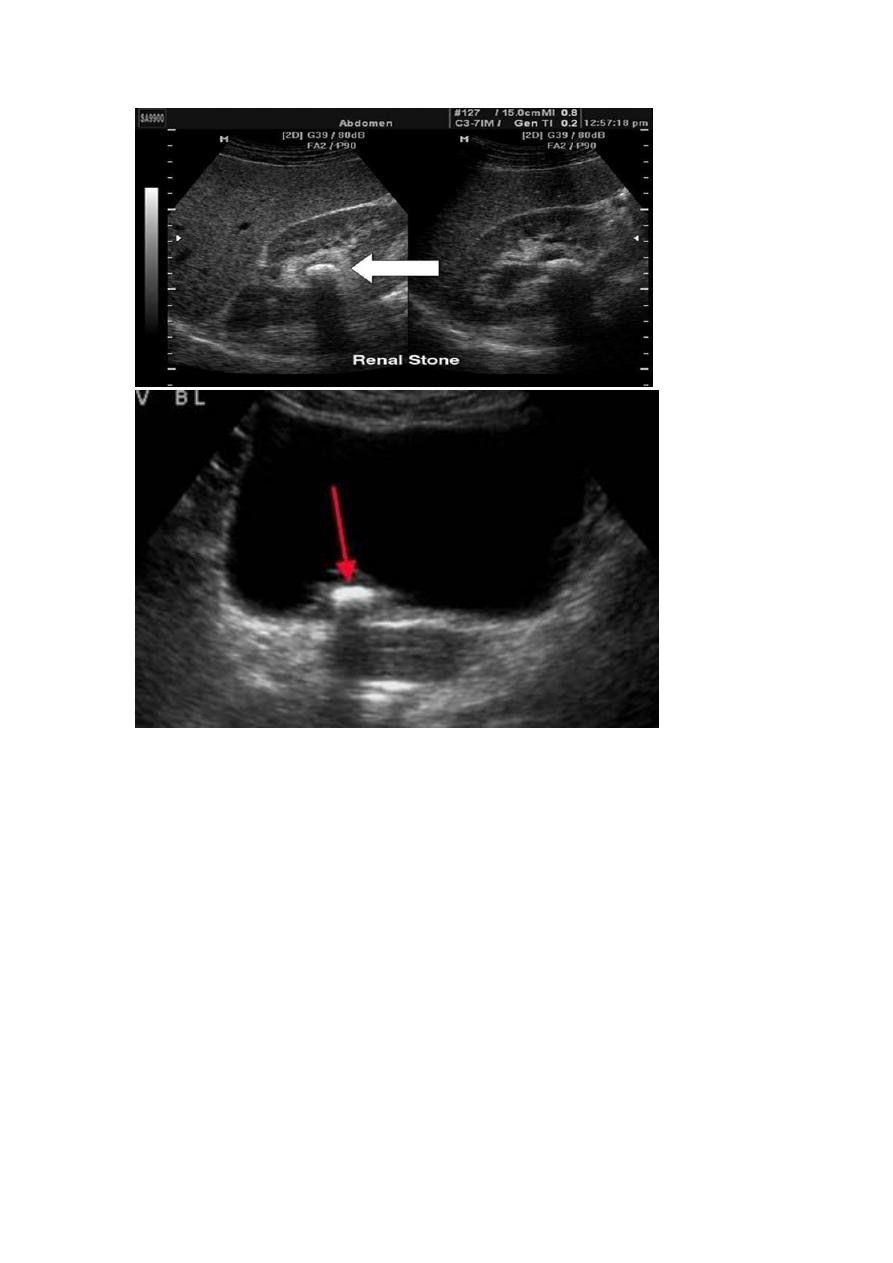

 u/s :hyperechoic mass(white) with acoustic shadow

 CT: hyperdense mass(white)

 IVU:filling defect(dark)


background image

INDICATION OF KUB(EXAM):

1- Radio-opaque urinary calculi (90% of calculi)(all stone visble except
pure uric acid stone ans xanthine stone)

2- Soft tissue masses in the renal areas and pelvis

3-Gallstones (10%)

4- Pelvic phleboliths

5-Calcified lymph nodes

-6 Sclerotic deposits in prostate cancer

7-other tumours

Tx :

medical

a-blocker

NSAIDs help lower intra-ureteral pressure

Surgical(exam):5 options in general

1-



extracorporeal shock wave lithotripsy(C.I. in pregnancy(the only

absolute one),too hard stone , uncontrolled HT, bleeding tendency ,
over weight)

2-endoscopy ,cystoscopy,uretroscopy

3-



percutaneous nephrolithotomy



4-laproscopy



5-open surgery



  options in selected cases:

   #case of renal stone :



extracorporeal shock wave lithotripsy

                                                   percutaneous nephrolithotomy


background image

                                                   open nephrolithotomy

   #case of uretric stone:



extracorporeal shock wave lithotripsy

                                                         ureteroscopy



                           open ureterolithotomy



               #case of bladder stone :



Lithotrities

            Cystolithotomy

                                                            Remove outflow obstruction

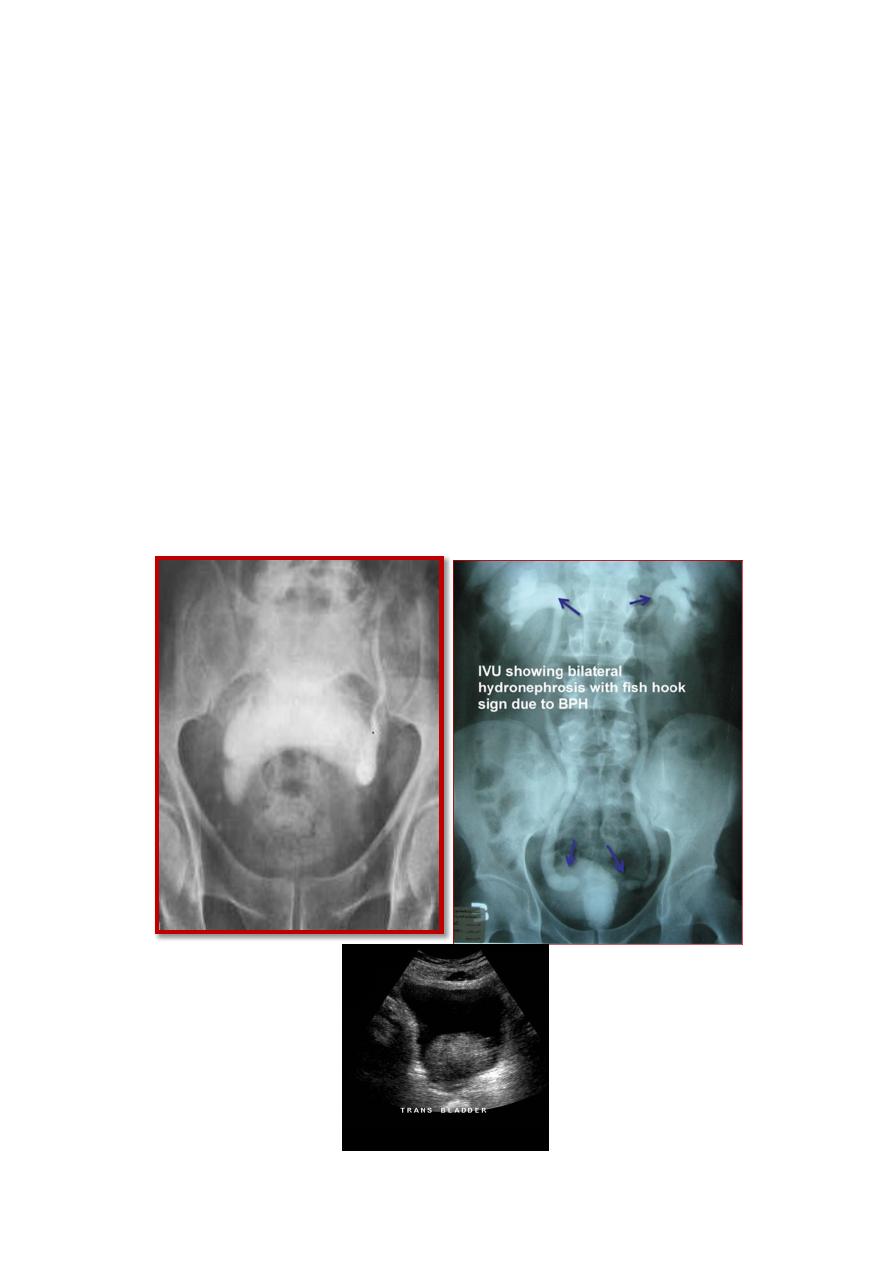

BPH:




background image

ž



DDX:  Bladder Neck Contracture.



ž

Bladder Stone.

ž

Bladder tumor

ž

Neuropathic bladder

ž

Ca. Prostate.

ž



           Urethral Stricture



ž



Indication of surgery:



ž



1-bladder diverticulum



ž



2-bladder wall hypertrophy and trabeculation



ž



3-bladder stone



ž



4-hydroureter



ž



5-hydronephrosis



ž



TX:



ž

A. WATCHFUL WAITING.

ž

B. MEDICAL THERAPY.(A-BLOCKER +5-alpha reductase inhibitor)

ž

C. MINIMALLY INVASIVE THERAPY.(thermal based
therapies,laser,others)

ž

D. SURGICAL THERAPY

ž

1-endoscopic:transurethral resection of prostate(risks:retrograde
ejaculation , impotence ,incontinence)+transurethral incision of
prostate.

ž

2-open surgery:retropubic prostatectomy+transvesical
prostatectomy






background image

RCC:



DDX:



  Carcinoma of renal pelvis

  Renal lymphoma

  Adrenal cancer

  Benign renal tumor

  Renal cysts

  Renal abscess

TX:



LOCALISED DISEASE



partial nepherctomy

radical nephrectomy

DISSEMINATED DISEASE

radical nephrectomy withremoval of solitary metastasis

Immunotherapy

Radiotherapy (RCC is a radioresistant)

Chemotherapy   (is also chemoresistant )






background image

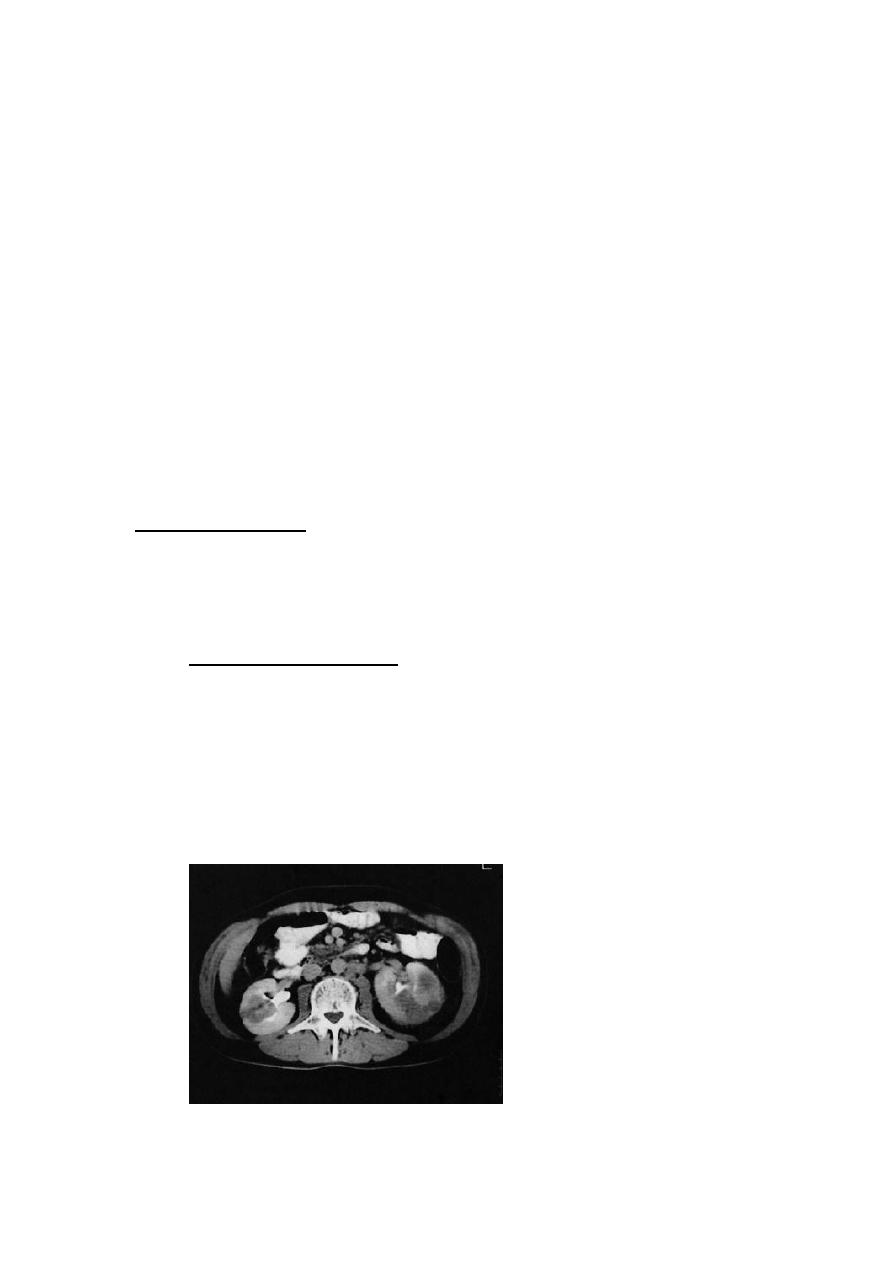

Renal trauma

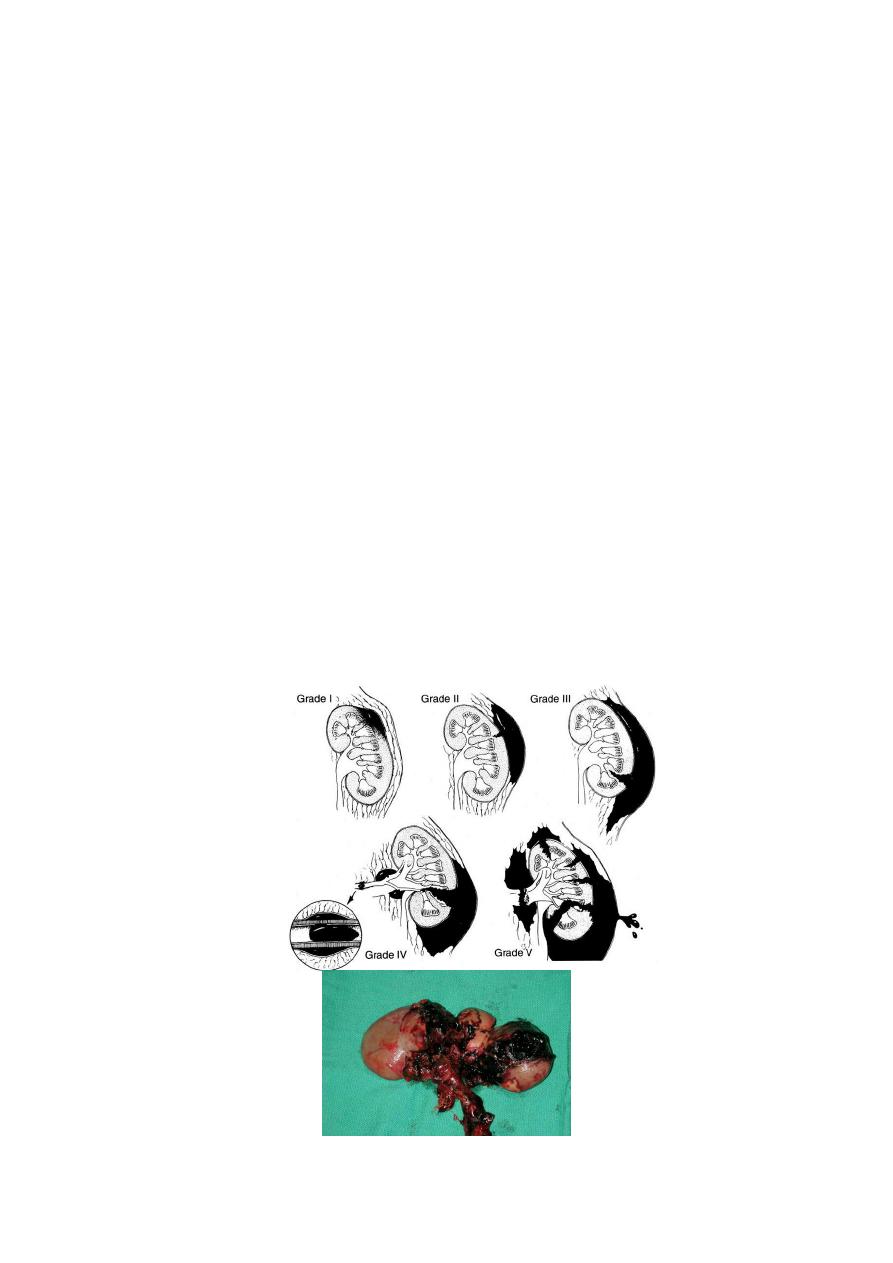

  (American Associaton for the Surgery of Trauma)AAST

classification:

1.  Contusion, non-expanding subcapsular haematoma, no

laceration

2.  Non-expanding perirenal haematoma, cortical laceration < 1 cm

deep, no urinary extravasation

3.  cortical laceration > 1cm, no u.extravasation

4.  Laceration: through corticomedullary junction into collecting

system  OR  vascular: segm. renal artery or vein injury with
contained haematoma

5.  Shattered kidney OR major vascular injury (renal pedicle injury

or avulsion)

1,2 = minor injuries – 85-95%      3,4,5 = major injuries






background image

Primary imaging -> ultrasonography

Tx

:

  grade I-III in stable patients:

microscopic hematuria + isolated minor injuries do not need
hospitalization

 gross hematuria + contusion/minor lacerations: hospitalize, bedrest,
repeat CT if bleeding persists

  Surgery(exam):

absolute indications: hemorrhage and hemodynamic instability

relative indications:

 1-nonviable tissue and major laceration

 2-urinary extravasation

 3-vascular injury

 4-incomplete staging

 5-laparotomy for associated injury



Complication:

  Early: Haemorrhage, retroperitoneal urinoma, haematoma,

abscess

  Late: Hypertension 5%, AV fistula, calculi, late bleeding










background image

Urethral injery:



  Causes:



Pelvic surgery

RTA

Penetrating injury

Severe blunt trauma

TX :

      First-line: urinary diversion  (nephrostomy, ureteral stenting)

Second line: Reconstructive surgery














background image



Urethral stenosis:



  Causes:congenital ,instrumentation , external trauma , infection

Tx : 1-dilatation 2- internal urethrotomy 3-open surgical reconstruction








background image

ECTOPIA VESICA: incomplete development of the infra-umbilical



part of the anterior abdominal wall+absent umbilicus+ incomplete
development of the anterior wall of the bladder+low located
bladder+separation of pubic bones.



Most common urethral abnormality?

 epispadiac penis



Tx : 1-Staged reconstruction in first year of life(Iliac osteotomy,



closure of the bladder and closure of abdominal wall)



            2-Urinary diversion
















background image

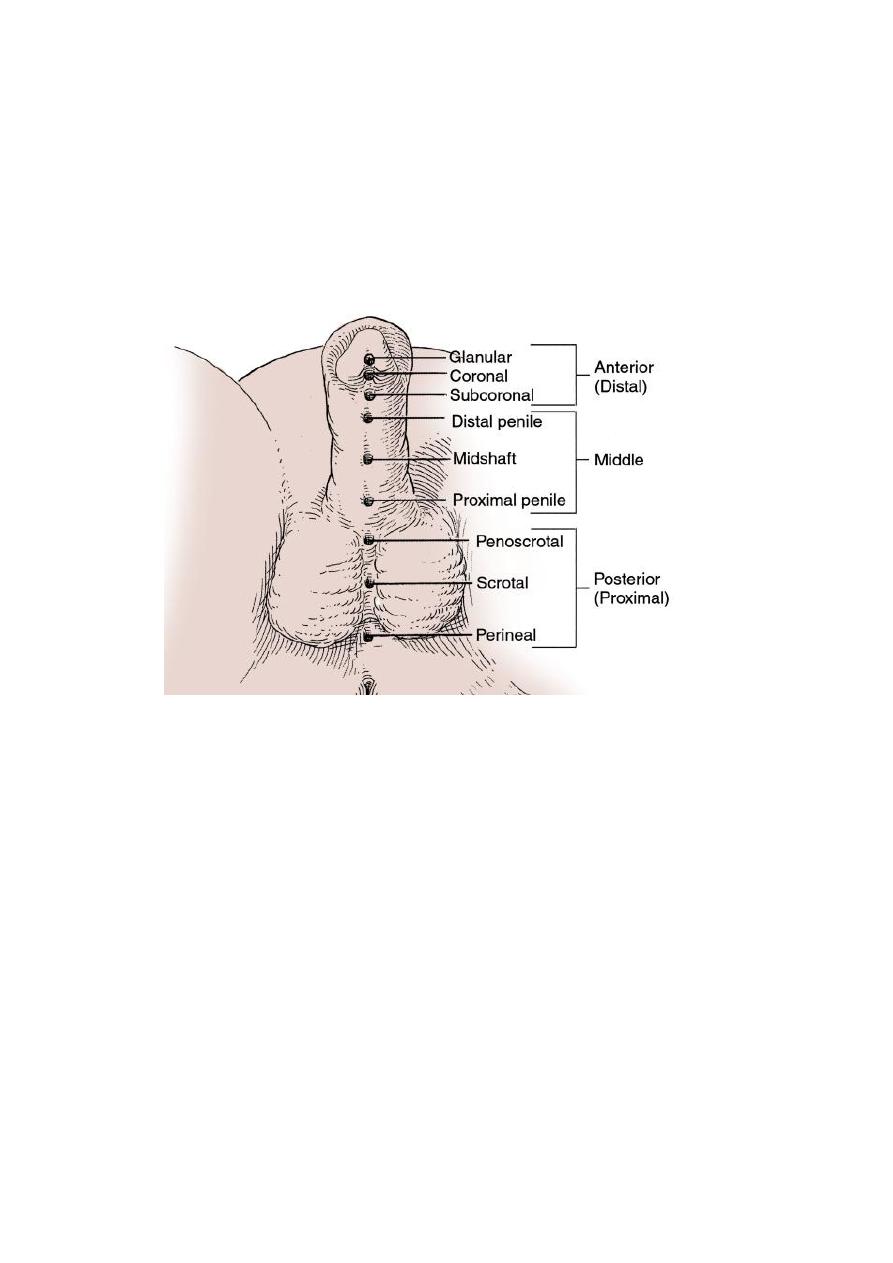

Hypospadias :the external urethral meatus(EUM)opens on the
ventral side of the penis prximal to the tip of the glans penis or on the
scrotum or perineum+ There may be poorly developed ventral part



of the prepuce( hooded prepuce)+There may be ventral penile
curvature(chordee).



Glanular hypospadias isthe commonest type.



Causes:Congenital(Esrogens & progestins given in prgnancy increase
its incidence)



Time of surgery: 6-18 montha of age





Indication  of surgery:



 improve sexual function

-

1



2- Improve urine stream.





 3-Cosmotic reasons.



Steps of surgery



1.  Orthoplasty
2.  Urethroplasty


background image

3.  Glanuloplasty

circumcision should be delayed till hypospadias repair succeeded.













Epispadias:

 ERM OPEN ON THE DORSUM OF THE PENIS(VERY RARE)



Most common associated abnormality?ectopia vesica









Phimosis(scaring prepuce which becomes tight & cant be retracted
over the glans):

DDX: physiologic adhesions between the the foreskin & glans.




background image

Rx. : circumcision.

Indications of circumcision:

1.  Religious or cultural habits.

2.  Phimosis & paraphimosis.

3.  Recurrent UTI or balanoposthitis

     4. Obstruction of urine flow.



Paraphimosis(tight retracted foreskin  that act as a ring):

Tx : 1-Gentle manual squeezing of the glans+ icebags.





     2-Circumcision(if the first step fails).






background image

PUJ Obstruction:



Bilateral PUJO




background image



Medical: control infection and pain.

Surgical:

Indications for surgery:

1-progressive hydronephrosis.

2- UTI, and symptomatic patients.

3- Severe hydronephrotic non functioning kidney.

SURGICAL REPAIR including open surgical techniques, laparoscopic, &
endoscopic  approaches



Uretrocele:



Treatment



Asymptomatic : no treatment

Cystoscopy with diathermy cauterization of the hole

Nephrectomy in non functioning kidney

In complicated cases, ureteral reimplantation and vesical
reconstruction



background image



Horseshoe Kidney:

fused lower ploes

low located kidney

malrotated

pelvis lies anteriorly

compllications:

1-HN

2-Infection

3-stone


Adult cystic renal disease:





Other organs involved: liver, lung, pancreas or spleen.

Tx :



Medical:  (Expectant)



control infection, hypertension, pain and anemia.


background image

Renal impairment: by low protein diet and dialysis.

Surgical:

Rovsing’s operation

Stone removal.

Renal failure: Renal transplantation.



Infantile polycystic disease of the kidney(incompatible with life).:








رفعت المحاضرة من قبل: Abdalmalik Abdullateef
المشاهدات: لقد قام 59 عضواً و 458 زائراً بقراءة هذه المحاضرة








تسجيل دخول

أو
عبر الحساب الاعتيادي
الرجاء كتابة البريد الالكتروني بشكل صحيح
الرجاء كتابة كلمة المرور
لست عضواً في موقع محاضراتي؟
اضغط هنا للتسجيل
